Olympus E-PL1 vs Sony RX100 II

The Olympus PEN E-PL1 and the Sony Cyber-shot DSC-RX100 II are two digital cameras that were revealed to the public, respectively, in February 2010 and June 2013. The E-PL1 is a mirrorless interchangeable lens camera, while the RX100 II is a fixed lens compact. The cameras are based on a Four Thirds (E-PL1) and an one-inch (RX100 II) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Sony provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL1		Sony RX100 II
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		28-100mm f/1.8-4.9
12.2 MP – Four Thirds sensor		20 MP – 1" sensor
720/30p Video		1080/60p Video
ISO 200-3,200		ISO 100-12,800 (100 - 25,600)
Viewfinder optional		Viewfinder optional
2.7" LCD – 230k dots		3.0" LCD – 1229k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
3 shutter flaps per second		10 shutter flaps per second
In-body stabilization		Lens-based stabilization
290 shots per battery charge		350 shots per battery charge
115 x 72 x 42 mm, 334 g		102 x 58 x 38 mm, 281 g

Check E-PL1 offers at
ebay.com
Check RX100 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL1 and the Sony Cyber-shot DSC-RX100 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

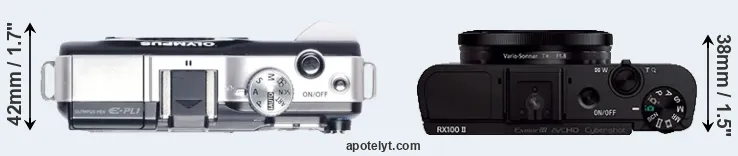

An illustration of the physical size and weight of the Olympus E-PL1 and the Sony RX100 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the RX100 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX100 II is notably smaller (29 percent) than the Olympus E-PL1. In this context, it is worth noting that neither the E-PL1 nor the RX100 II are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the RX100 II has a lens built in, whereas the E-PL1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-PL1 gets 290 shots out of its Olympus BLS-1 battery, while the RX100 II can take 350 images on a single charge of its Sony NP-BX1 power pack. The power pack in the RX100 II can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
2.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	US$ 749	ebay.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
4.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
5.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
6.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
7.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
8.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
9.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
10.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
11.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
12.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
13.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	US$ 549	ebay.com
14.		Sony RX100	102 mm	58 mm	36 mm	240 g	330	n	Jun 2012	US$ 649	ebay.com
15.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
16.		Sony RX100 VII	102 mm	58 mm	43 mm	302 g	260	n	Jul 2019	US$ 1 199	amazon.com
17.		Sony ZV-1	105 mm	60 mm	44 mm	294 g	260	n	May 2020	US$ 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

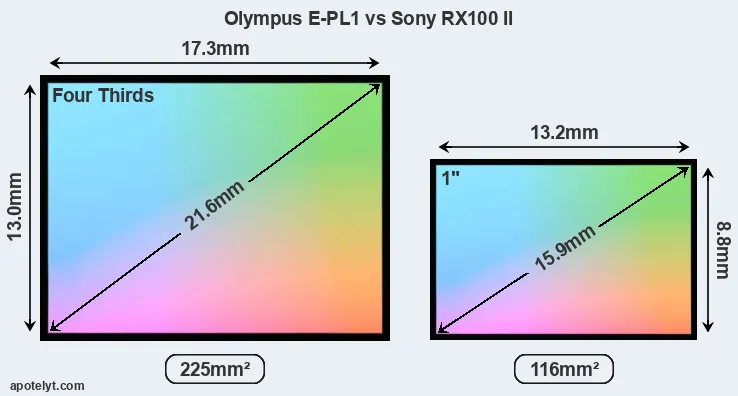

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-PL1 features a Four Thirds sensor and the Sony RX100 II an one-inch sensor. The sensor area in the RX100 II is 48 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 2.7. The sensor in the E-PL1 has a native 4:3 aspect ratio, while the one in the RX100 II offers a 3:2 aspect.

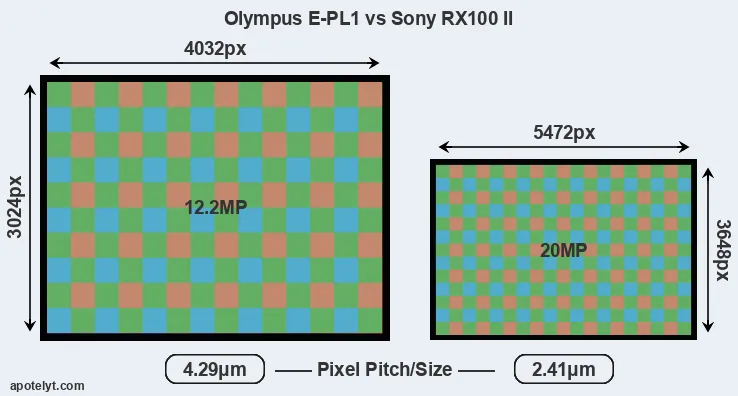

Despite having a smaller sensor, the RX100 II offers a higher resolution of 20 megapixels, compared with 12.2 MP of the E-PL1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 4.29μm for the E-PL1). However, it should be noted that the RX100 II is much more recent (by 3 years and 4 months) than the E-PL1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Sony RX100 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RX100 II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Olympus PEN E-PL1 has a native sensitivity range from ISO 200 to ISO 3200. The corresponding ISO settings for the Sony Cyber-shot DSC-RX100 II are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the E-PL1 is build around a CMOS sensor, while the RX100 II uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the RX100 II offers substantially better image quality than the E-PL1 (overall score 13 points higher). The advantage is based on 1 bits higher color depth, 2.3 EV in additional dynamic range, and 0 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
2.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
5.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
6.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
7.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
8.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
9.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
10.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
11.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
12.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
13.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
14.		Sony RX100	1-inch	20.0	5472	3648	1080/60p	22.6	12.4	390	66
15.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
16.		Sony RX100 VII	1-inch	20.0	5472	3648	4K/30p	21.8	12.4	418	63
17.		Sony ZV-1	1-inch	20.0	5472	3648	4K/30p	22.2	12.6	669	66
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the RX100 II provides a better video resolution than the E-PL1. It can shoot movie footage at 1080/60p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-PL1 and the RX100 II are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the VF-2 for the E-PL1 and the FDA-EV1MK for the RX100 II – are available as accessories. The adjacent table lists some of the other core features of the Olympus E-PL1 and Sony RX100 II along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
2.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
5.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
6.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
7.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
8.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
9.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
10.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
11.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
12.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
13.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
14.		Sony RX100	none	n	3.0 / 1229	fixed	n	1/2000s	10.0/s	Y	Y
15.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony RX100 VII	2359	n	3.0 / 921	tilting	Y	1/2000s	90.0/s	Y	Y
17.		Sony ZV-1	none	n	3.0 / 922	swivel	Y	1/2000s	24.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The E-PL1 writes its imaging data to SDHC cards, while the RX100 II uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL1 and Sony Cyber-shot DSC-RX100 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
6.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
13.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony RX100	-	stereo / mono	-	-	micro	2.0	-	-	-
15.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony RX100 VII	-	stereo / mono	Y	-	micro	2.0	Y	Y	Y
17.		Sony ZV-1	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y

It is notable that the RX100 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-PL1 does not provide wifi capability.

Both the E-PL1 and the RX100 II have been discontinued, but can regularly be found used on ebay. The E-PL1 was replaced by the Olympus E-PL2, while the RX100 II was followed by the Sony RX100 III. Further information on the features and operation of the E-PL1 and RX100 II can be found, respectively, in the Olympus E-PL1 Manual (free pdf) or the online Sony RX100 II Manual.

Review summary

So how do things add up? Which of the two cameras – the Olympus E-PL1 or the Sony RX100 II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Olympus PEN E-PL1:

• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More heavily discounted: Has been available for much longer (launched in February 2010).

Advantages of the Sony Cyber-shot DSC-RX100 II:

• More detail: Has more megapixels (20 vs 12.2MP), which boosts linear resolution by 30%.
• Better image quality: Scores substantially higher (13 points) in the DXO overall evaluation.
• More dynamic range: Captures a broader range of light and dark details (2.3 EV of extra DR).
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1229k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has an integrated lens, whereas the E-PL1 necessitates an extra lens.
• More compact: Is smaller (102x58mm vs 115x72mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-PL1).
• Longer lasting: Gets more shots (350 versus 290) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More modern: Reflects 3 years and 4 months of technical progress since the E-PL1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the RX100 II is the clear winner of the contest (16 : 2 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL1 and the Sony RX100 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-PL1 and the RX100 II in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
2.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	US$ 749	ebay.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
4.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
5.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
6.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
7.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
8.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
9.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
10.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
11.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
12.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
13.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	US$ 549	ebay.com
14.		Sony RX100	5/5	+ +	..	78/100	4/5	5/5	Jun 2012	US$ 649	ebay.com
15.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
16.		Sony RX100 VII	4.5/5	..	4/5	..	4/5	5/5	Jul 2019	US$ 1 199	amazon.com
17.		Sony ZV-1	4/5	+	4/5	85/100	4/5	4.5/5	May 2020	US$ 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
