LCD resolution of the Sony NEX-5T
The rear LCD screen of the Sony Alpha NEX-5T has a resolution of 922,000 dots and measures 3.0 inches across its diagonal. A high-resolution display offers a clearer and crisper user experience than a lower pixel screen, notably during live view framing and image review. While the physical size of the LCD is naturally limited by the space that is available on the back of the camera, the resolution of the rear screen has continued to increase over time, with new camera models often featuring nicer rear panels as one of the key arguments for a camera upgrade.
Viewfinder Type | Viewfinder optional | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 922k dots | |
LCD Attachment | Tilting screen | |
Touch Input | Touchscreen |

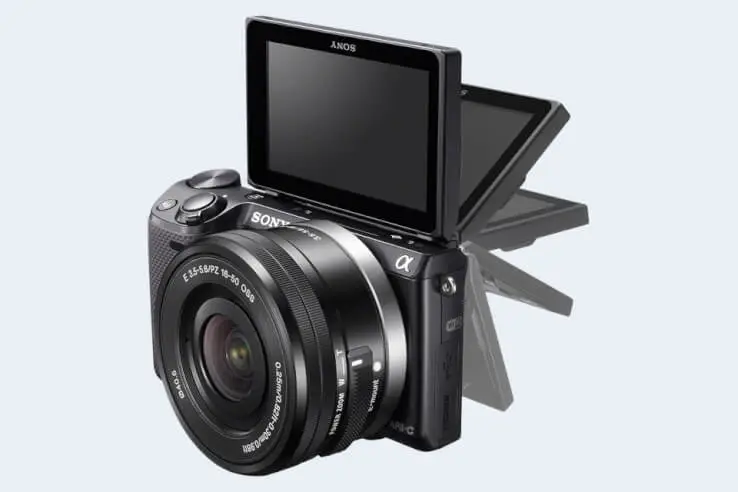

In terms of screen handling characteristics, the LCD of the Sony NEX-5T is touch sensitive and is flexibly attached to the body to allow for odd-angle shots. Also, the screen can be turned to be front-facing, such that it enables selfies and facilitates v-logging.
Back side of the Sony NEX-5T with LCD
As can be seen from the rear-side image, the 3.0-inch LCD occupies a large part of the backside of the camera. For comparison, the diagonal on a standard credit card measures 4 inches.
Camera to camera comparisons
The Sony Alpha NEX-5T is a mirrorless interchangeable lens camera that was revealed to the public in August 2013 and is equipped with an APS-C sensor. It offers a resolution of 16 megapixel. In the United States, the Sony NEX-5T was initially launched at a price of $699.
The table below compares the rear screen specs of the Sony NEX-5T to those of several similar cameras. Additionally, the table includes some information on other core features, such as the viewfinder, shutter, flash, and image stabilization system.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Mech Shutter Speed |
Shutter Flaps (1/sec) |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Sony NEX-5T | optional | n | 3.0 / 922 | tilting | Y | 1/4000s | 10.0/s | n | n | |
2. | Sony A5100 | none | n | 3.0 / 922 | tilting | Y | 1/4000s | 6.0/s | Y | n | |
3. | Sony A6000 | 1440 | n | 3.0 / 922 | tilting | n | 1/4000s | 11.0/s | Y | n | |
4. | Sony NEX-3 | optional | n | 3.0 / 920 | tilting | n | 1/4000s | 7.0/s | n | n | |
5. | Sony NEX-3N | optional | n | 3.0 / 460 | tilting | n | 1/4000s | 4.0/s | Y | n | |
6. | Sony NEX-5 | optional | n | 3.0 / 920 | tilting | n | 1/4000s | 7.0/s | n | n | |
7. | Sony NEX-5N | optional | n | 3.0 / 920 | tilting | Y | 1/4000s | 10.0/s | n | n | |
8. | Sony NEX-5R | optional | n | 3.0 / 920 | tilting | Y | 1/4000s | 10.0/s | n | n | |
9. | Sony NEX-6 | 2359 | n | 3.0 / 921 | tilting | n | 1/4000s | 10.0/s | Y | n | |
10. | Sony NEX-C3 | optional | n | 3.0 / 920 | tilting | n | 1/4000s | 5.5/s | n | n | |
11. | Sony NEX-F3 | optional | n | 3.0 / 920 | tilting | n | 1/4000s | 5.5/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
It is worthwhile pointing out that the NEX-5T has a touchscreen. Touch control can be particularly helpful, for example, when trying to adjust the focus point.
In case you are interested in seeing how this camera compares to another one, just make your choice using the following search menu. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 100D vs Sony NEX-5T
- Canon 200D vs Sony NEX-5T
- Canon 800D vs Sony NEX-5T
- Canon M3 vs Sony NEX-5T
- Fujifilm X10 vs Sony NEX-5T
- Leica M-E Typ 240 vs Sony NEX-5T
- Leica SL vs Sony NEX-5T
- Nikon D4S vs Sony NEX-5T
- Olympus XZ-2 vs Sony NEX-5T
- Panasonic G6 vs Sony NEX-5T
- Panasonic GF7 vs Sony NEX-5T
- Panasonic GX80 vs Sony NEX-5T
Camera Model | Sony NEX-5T | |
---|---|---|
Camera Type | Mirrorless system camera | |
Camera Lens | Sony E mount lenses | |
Launch Date | August 2013 | |
Launch Price | USD 699 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | APS-C Sensor | |
Sensor Size | 23.4 x 15.6 mm | |
Sensor Area | 365 mm2 | |
Sensor Diagonal | 28.1 mm | |
Crop Factor | 1.5x | |
Sensor Resolution | 16 Megapixels | |
Image Resolution | 4 912 x 3 264 pixels | |
Pixel Pitch | 4.78 μm | |
Pixel Density | 4.39 MP/cm2 | |
Moiré control | Anti-Alias filter | |
Movie Capability | 1080/60p Video | |
ISO Setting | 100 - 25 600 ISO | |
Image Processor | BIONZ | |
DXO Sensor Quality (score) | 78 | |
DXO Color Depth (bits) | 23.6 | |
DXO Dynamic Range (EV) | 13.0 | |
DXO Low Light (ISO) | 1015 | |
Screen Specs | ||
Viewfinder Type | Viewfinder optional | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 922k dots | |
LCD Attachment | Tilting screen | |
V-logging Friendliness | Front-flip possible | |
Touch Input | Touchscreen | |
Shooting Specs | ||
Focus System | Contrast-detect AF | |
Manual Focusing Aid | Focus Peaking | |
Maximum Shutter Speed | 1/4000s | |
Continuous Shooting | 10 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Fill Flash | no On-Board Flash | |
Storage Medium | MS or SDXC cards | |
Single or Dual Card Slots | Single card slot | |
UHS card support | no | |
Connectivity Specs | ||
External Flash | Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | mini HDMI | |
Wifi Support | Wifi built-in | |
Near-Field Communication | NFC built-in | |
Body Specs | ||
Battery Type | Sony NP-FW50 power pack | |
Battery Life (CIPA) | 330 shots per charge | |
Body Dimensions |
111 x 59 x 39 mm (4.4 x 2.3 x 1.5 in) |
|
Camera Weight | 276 g (9.7 oz) |
