Canon 40D vs XC10

The Canon EOS 40D and the Canon XC10 are two enthusiast cameras that were officially introduced, respectively, in August 2007 and April 2015. The 40D is a DSLR, while the XC10 is a fixed lens compact. The cameras are based on an APS-C (40D) and an one-inch (XC10) sensor. The 40D has a resolution of 10.1 megapixels, whereas the XC10 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 40D		Canon XC10
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-240mm f/2.8-5.6
10.1 MP – APS-C sensor		12 MP – 1" sensor
no Video		4K/30p Video
ISO 100-1,600 (100 - 3,200)		ISO 160-20,000
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 230k dots		3.0" LCD – 1030k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
6.5 shutter flaps per second		3.8 shutter flaps per second
750 shots per battery charge		370 shots per battery charge
146 x 108 x 74 mm, 822 g		125 x 102 x 122 mm, 1040 g

Check 40D offers at
ebay.com
Check XC10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Canon XC10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

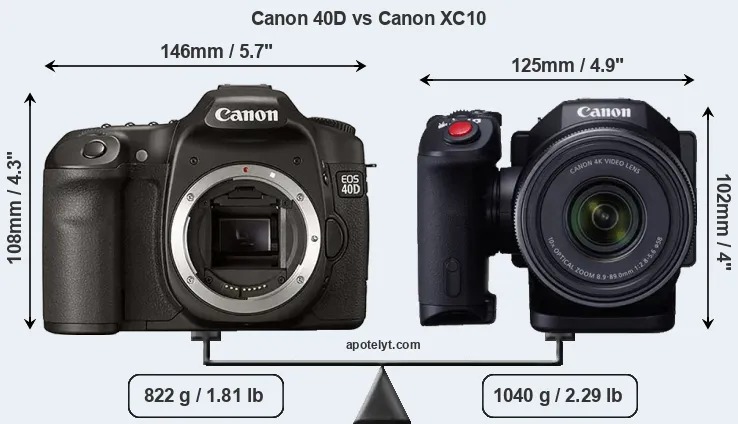

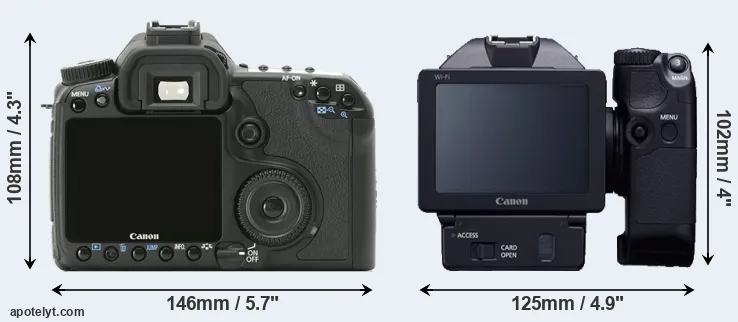

An illustration of the physical size and weight of the Canon 40D and the Canon XC10 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XC10 is notably smaller (19 percent) than the Canon 40D. In this context, it is worth noting that neither the 40D nor the XC10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens built in, whereas the 40D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 40D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 40D gets 750 shots out of its Canon BP-511A battery, while the XC10 can take 370 images on a single charge of its Canon LP-E6N power pack. The power pack in the XC10 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
2.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	US$ 2 499	ebay.com
3.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	US$ 1 999	ebay.com
4.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
5.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
6.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
7.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
8.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
9.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
10.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
11.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
12.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
13.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
14.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
15.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
16.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	US$ 799	ebay.com
17.		Nikon D90	132 mm	103 mm	77 mm	703 g	850	n	Aug 2008	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

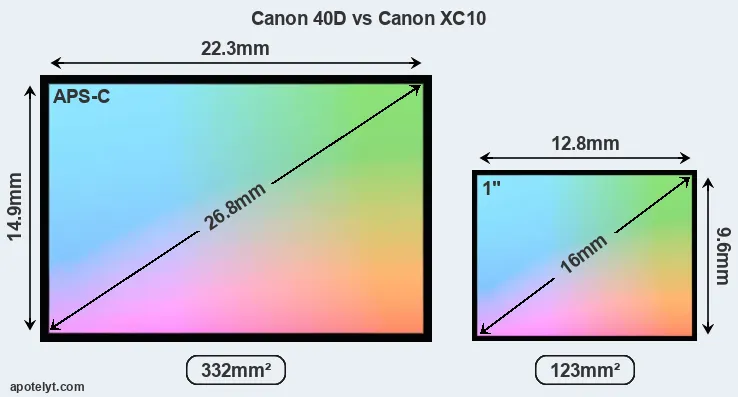

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 40D features an APS-C sensor and the Canon XC10 an one-inch sensor. The sensor area in the XC10 is 63 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.75. The sensor in the 40D has a native 3:2 aspect ratio, while the one in the XC10 offers a 4:3 aspect.

Despite having a smaller sensor, the XC10 offers a higher resolution of 12 megapixels, compared with 10.1 MP of the 40D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.20μm versus 5.73μm for the 40D). However, it should be noted that the XC10 is much more recent (by 7 years and 7 months) than the 40D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon XC10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the XC10 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon XC10 are ISO 160 to ISO 20000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
2.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
3.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
4.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
5.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
6.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
7.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
8.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
9.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
10.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
11.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
12.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
13.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
14.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
15.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
16.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
17.		Nikon D90	APS-C	12.2	4288	2848	720/24p	22.7	12.5	977	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The XC10 indeed provides for movie recording, while the 40D does not. The highest resolution format that the XC10 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 40D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 40D and Canon XC10 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
2.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
3.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
5.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
6.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
7.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
8.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
9.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
10.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
11.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
12.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
13.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
16.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
17.		Nikon D90	optical	Y	3.0 / 920	fixed	n	1/4000s	4.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 40D has one, while the XC10 does not. While the built-in flash of the 40D is not very powerful, it can at times be useful as a fill-in light.

The Canon XC10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 40D writes its imaging data to Compact Flash cards, while the XC10 uses CFast or SDXC cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 40D only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Canon XC10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
2.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
3.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
5.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
7.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
9.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
15.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
16.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
17.		Nikon D90	Y	mono / mono	-	-	mini	2.0	-	-	-

It is notable that the XC10 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 40D does not provide wifi capability.

Studio photographers will appreciate that the Canon 40D (unlike the XC10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 40D and the XC10 have been discontinued, but can regularly be found used on ebay. The 40D was replaced by the Canon 50D, while the XC10 was followed by the Canon XC15. Further information on the features and operation of the 40D and XC10 can be found, respectively, in the Canon 40D Manual (free pdf) or the online Canon XC10 Manual.

Review summary

So what conclusions can be drawn? Is the Canon 40D better than the Canon XC10 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS 40D:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (6.5 vs 3.8 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (750 versus 370) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2007).

Arguments in favor of the Canon XC10:

• More detail: Has more megapixels (12 vs 10.1MP), which boosts linear resolution by 7%.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• More detailed LCD: Has a higher resolution rear screen (1030k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the 40D requires a separate lens.
• More compact: Is smaller (125x102mm vs 146x108mm) and will fit more readily into a bag.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 7 years and 7 months of technical progress since the 40D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the XC10 is the clear winner of the contest (14 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 40D and the Canon XC10 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 40D and the XC10 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
2.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	US$ 2 499	ebay.com
3.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	US$ 1 999	ebay.com
4.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
5.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
6.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
7.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
8.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
9.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
10.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
11.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
12.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
13.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
14.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
15.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
16.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	US$ 799	ebay.com
17.		Nikon D90	..	+ +	..	+ +	4/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
