Canon 40D vs Olympus Stylus 1s

The Canon EOS 40D and the Olympus Stylus 1s are two digital cameras that were announced, respectively, in August 2007 and April 2015. The 40D is a DSLR, while the Stylus 1s is a fixed lens compact. The cameras are based on an APS-C (40D) and a 1/1.7-inch (Stylus 1s) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 40D		Olympus Stylus 1s
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		28-300mm f/2.8
10.1 MP – APS-C sensor		11.8 MP – 1/1.7" sensor
no Video		1080/30p Video
ISO 100-1,600 (100 - 3,200)		ISO 100-12,800
Optical viewfinder		Electronic viewfinder (1440k dots)
3.0" LCD – 230k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
6.5 shutter flaps per second		7 shutter flaps per second
750 shots per battery charge		450 shots per battery charge
146 x 108 x 74 mm, 822 g		116 x 87 x 57 mm, 402 g

Check 40D offers at
ebay.com
Check Stylus 1s offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Olympus Stylus 1s? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

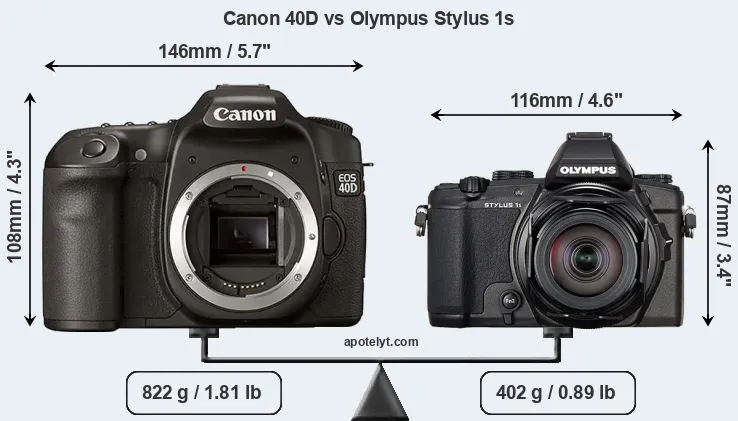

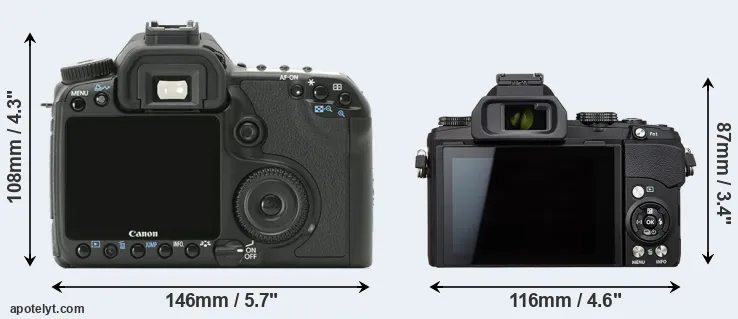

The side-by-side display below illustrates the physical size and weight of the Canon 40D and the Olympus Stylus 1s. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1s is considerably smaller (36 percent) than the Canon 40D. In this context, it is worth noting that neither the 40D nor the Stylus 1s are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the Stylus 1s has a lens built in, whereas the 40D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 40D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 40D gets 750 shots out of its Canon BP-511A battery, while the Stylus 1s can take 450 images on a single charge of its Olympus BLS-50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
2.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
3.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
4.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
5.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
6.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
7.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
8.		Canon 400D	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	US$ 799	ebay.com
9.		Canon 450D	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
10.		Canon 1000D	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
11.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
12.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
13.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
14.		Nikon D90	132 mm	103 mm	77 mm	703 g	850	n	Aug 2008	US$ 1 299	ebay.com
15.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	US$ 1 299	ebay.com
16.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
17.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Stylus 1s was launched at a lower price than the 40D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

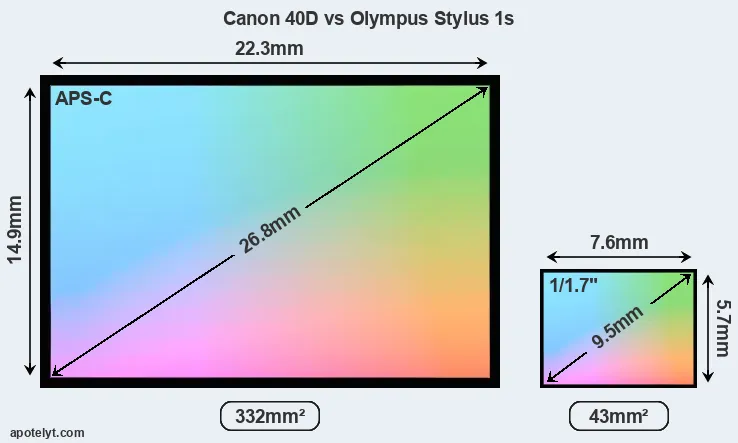

Of the two cameras under consideration, the Canon 40D features an APS-C sensor and the Olympus Stylus 1s a 1/1.7-inch sensor. The sensor area in the Stylus 1s is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.5. The sensor in the 40D has a native 3:2 aspect ratio, while the one in the Stylus 1s offers a 4:3 aspect.

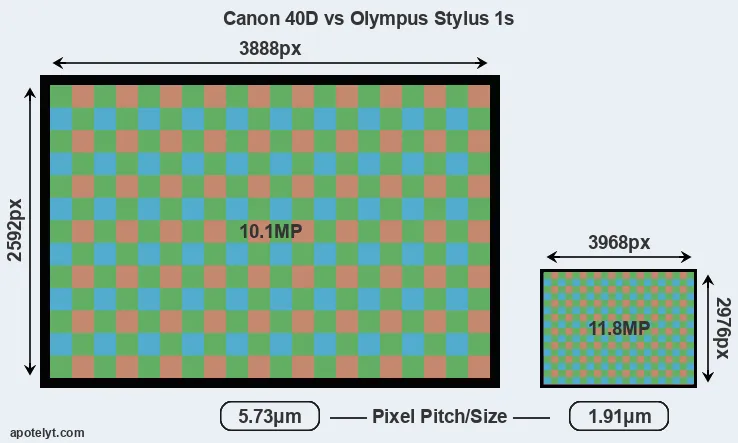

Despite having a smaller sensor, the Stylus 1s offers a higher resolution of 11.8 megapixels, compared with 10.1 MP of the 40D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.91μm versus 5.73μm for the 40D). However, it should be noted that the Stylus 1s is much more recent (by 7 years and 7 months) than the 40D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the Stylus 1s has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus Stylus 1s implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Stylus 1s for good quality output (200 dots per inch) amounts to 19.8 x 14.9 inches or 50.4 x 37.8 cm, for very good quality (250 dpi) 15.9 x 11.9 inches or 40.3 x 30.2 cm, and for excellent quality (300 dpi) 13.2 x 9.9 inches or 33.6 x 25.2 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus Stylus 1s are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the 40D is build around a CMOS sensor, while the Stylus 1s uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
2.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
3.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
4.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
5.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
6.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
7.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
8.		Canon 400D	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
9.		Canon 450D	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
10.		Canon 1000D	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
11.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
12.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
13.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
14.		Nikon D90	APS-C	12.2	4288	2848	720/24p	22.7	12.5	977	73
15.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
16.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
17.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The Stylus 1s indeed provides for movie recording, while the 40D does not. The highest resolution format that the Stylus 1s can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the Stylus 1s has an electronic viewfinder (1440k dots), while the 40D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the Stylus 1s offers a wider field of view (100%) than the one in the 40D (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 40D has a higher magnification (0.59x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 40D and Olympus Stylus 1s along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
2.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
4.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
5.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
6.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
7.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
8.		Canon 400D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon 450D	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
10.		Canon 1000D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
12.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
13.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
14.		Nikon D90	optical	Y	3.0 / 920	fixed	n	1/4000s	4.5/s	Y	n
15.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
16.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
17.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 40D, but is missing on the Stylus 1s is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Olympus Stylus 1s has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 40D writes its imaging data to Compact Flash cards, while the Stylus 1s uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Olympus Stylus 1s and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
6.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Canon 400D	Y	- / -	-	-	-	2.0	-	-	-
9.		Canon 450D	Y	- / -	-	-	mini	2.0	-	-	-
10.		Canon 1000D	Y	- / -	-	-	-	2.0	-	-	-
11.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Nikon D90	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the Stylus 1s offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 40D does not provide wifi capability.

Studio photographers will appreciate that the Canon 40D (unlike the Stylus 1s) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 40D and the Stylus 1s have been discontinued, but can regularly be found used on ebay. The 40D was replaced by the Canon 50D, while the Stylus 1s does not have a direct successor. Further information on the features and operation of the 40D and Stylus 1s can be found, respectively, in the Canon 40D Manual (free pdf) or the online Olympus Stylus 1s Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon 40D or the Olympus Stylus 1s – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 40D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.58x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (750 versus 450) on a single battery charge.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2007).

Advantages of the Olympus Stylus 1s:

• More detail: Has more megapixels (11.8 vs 10.1MP), which boosts linear resolution by 6%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the 40D requires a separate lens.
• More compact: Is smaller (116x87mm vs 146x108mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 40D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 7 years and 7 months of technical progress since the 40D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the Stylus 1s emerges as the winner of the match-up (16 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 40D and the Olympus Stylus 1s place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 40D and the Stylus 1s in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
2.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
3.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
4.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
5.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
6.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
7.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
8.		Canon 400D	..	+ +	..	+ +	o	4/5	Aug 2006	US$ 799	ebay.com
9.		Canon 450D	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
10.		Canon 1000D	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
11.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
12.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
13.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
14.		Nikon D90	..	+ +	..	+ +	4/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
15.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	US$ 1 299	ebay.com
16.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
17.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check 40D offers at
ebay.com
Check Stylus 1s offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check 40D offers at
ebay.com
Check Stylus 1s offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
