Canon 5D Mark II vs Leica M10-R

The Canon EOS 5D Mark II and the Leica M10-R are two digital cameras that were announced, respectively, in September 2008 and July 2020. The 5D Mark II is a DSLR, while the M10-R is a rangefinder-focusing mirrorless camera. Both cameras are equipped with a full frame sensor. The Canon has a resolution of 21 megapixels, whereas the Leica provides 40.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D Mark II		Leica M10-R
Digital single lens reflex		Rangefinder camera
Canon EF mount lenses		Leica M mount lenses
21 MP – Full Frame sensor		40.9 MP – Full Frame sensor
1080/30p Video		no Video
ISO 100-6,400 (50 - 25,600)		ISO 100-50,000
Optical viewfinder		Optical viewfinder
3.0" LCD – 920k dots		3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
3.9 shutter flaps per second		4.5 shutter flaps per second
Weathersealed body		Weathersealed body
850 shots per battery charge		210 shots per battery charge
152 x 114 x 75 mm, 850 g		139 x 80 x 39 mm, 660 g

Check 5D Mark II offers at
ebay.com
Check M10-R offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Leica M10-R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

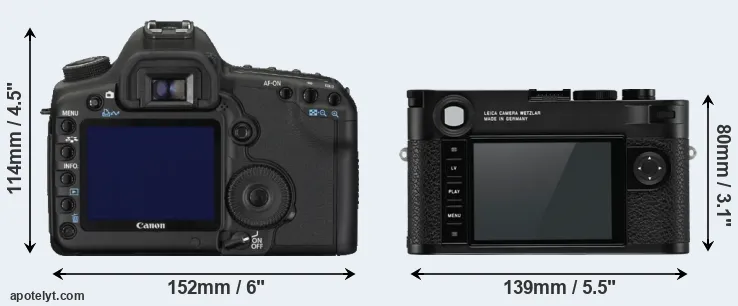

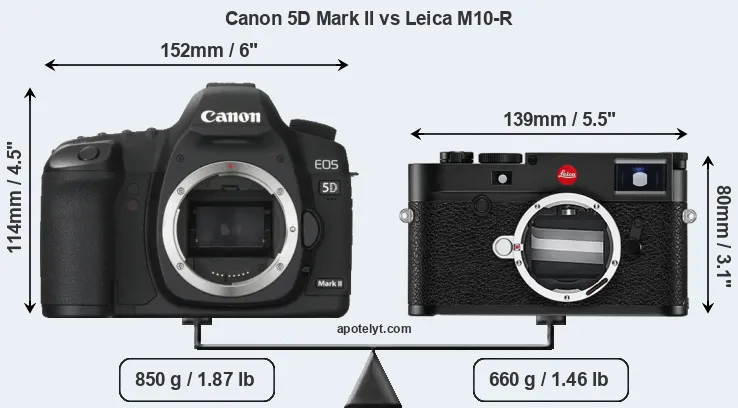

An illustration of the physical size and weight of the Canon 5D Mark II and the Leica M10-R is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The M10-R can be obtained in two different colors (black, silver), while the 5D Mark II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M10-R is considerably smaller (36 percent) than the Canon 5D Mark II. Moreover, the M10-R is markedly lighter (22 percent) than the 5D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark II) and the Leica M Lens Catalog (M10-R).

Concerning battery life, the 5D Mark II gets 850 shots out of its Canon LP-E6 battery, while the M10-R can take 210 images on a single charge of its Leica BP-SCL5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
2.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
3.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	US$ 7 999	ebay.com
4.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	US$ 6 799	ebay.com
5.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
6.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	US$ 3 299	ebay.com
7.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	US$ 3 499	ebay.com
8.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
9.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
10.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
11.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
12.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
13.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
14.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
15.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
16.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
17.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 5D Mark II was launched at a markedly lower price (by 58 percent) than the M10-R, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

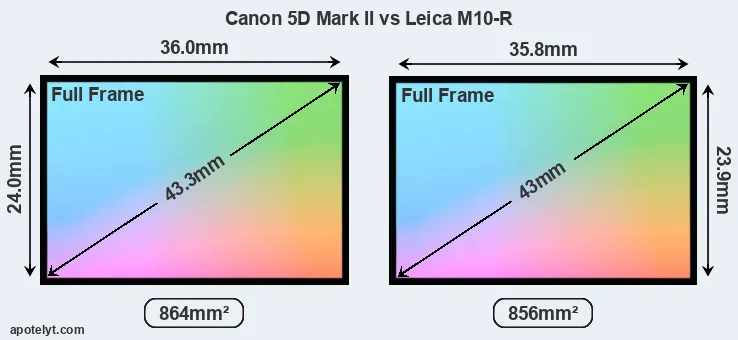

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the M10-R is 1 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

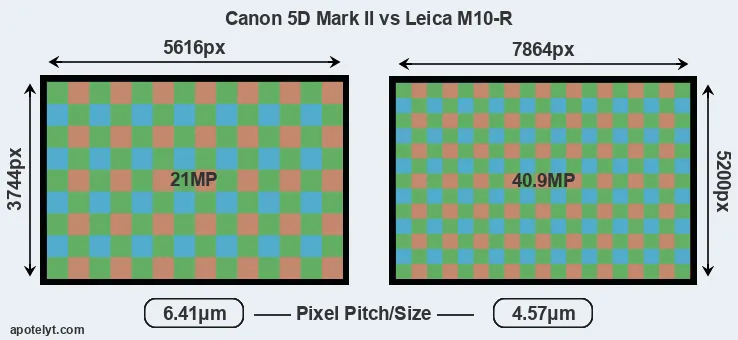

Despite having a slightly smaller sensor, the M10-R offers a higher resolution of 40.9 megapixels, compared with 21 MP of the 5D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.57μm versus 6.41μm for the 5D Mark II). However, it should be noted that the M10-R is much more recent (by 11 years and 10 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the M10-R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica M10-R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10-R for good quality output (200 dots per inch) amounts to 39.3 x 26 inches or 99.9 x 66 cm, for very good quality (250 dpi) 31.5 x 20.8 inches or 79.9 x 52.8 cm, and for excellent quality (300 dpi) 26.2 x 17.3 inches or 66.6 x 44 cm. The corresponding values for the Canon 5D Mark II are 28.1 x 18.7 inches or 71.3 x 47.5 cm for good quality, 22.5 x 15 inches or 57.1 x 38 cm for very good quality, and 18.7 x 12.5 inches or 47.5 x 31.7 cm for excellent quality prints.

The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Leica M10-R are ISO 100 to ISO 50000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
2.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
3.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
4.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
5.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
6.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
7.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
8.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
9.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
10.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
11.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
12.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
13.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
14.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
15.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
16.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
17.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 5D Mark II indeed provides movie recording capabilities, while the M10-R does not. The highest resolution format that the 5D Mark II can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 5D Mark II and the M10-R are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M10-R offers a wider field of view (100%) than the one in the 5D Mark II (98%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M10-R has a higher magnification (0.73x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 5D Mark II, the Leica M10-R, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
2.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
3.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
4.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
5.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
6.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
7.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
8.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
9.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
10.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
11.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
12.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
13.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
14.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
15.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
16.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
17.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D Mark II, but is missing on the M10-R is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Leica M10-R has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5D Mark II writes its imaging data to Compact Flash cards, while the M10-R uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Leica M10-R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
3.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
4.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
6.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
9.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
10.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
11.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
12.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
13.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
14.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
15.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
16.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
17.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y

It is notable that the M10-R offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5D Mark II does not provide wifi capability.

Studio photographers will appreciate that the Canon 5D Mark II (unlike the M10-R) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 5D Mark II and the M10-R have been discontinued, but can regularly be found used on ebay. The 5D Mark II was replaced by the Canon 5D Mark III, while the M10-R does not have a direct successor. Further information on the features and operation of the 5D Mark II and M10-R can be found, respectively, in the Canon 5D Mark II Manual (free pdf) or the online Leica M10-R Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 5D Mark II or the Leica M10-R – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 5D Mark II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Can take more shots (850 versus 210) on a single battery charge.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2008).

Reasons to prefer the Leica M10-R:

• More detail: Has more megapixels (40.9 vs 21MP), which boosts linear resolution by 40%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.71x).
• More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (4.5 vs 3.9 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (139x80mm vs 152x114mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 190g or 22 percent) and is thus easier to take along.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Reflects 11 years and 10 months of technical progress since the 5D Mark II launch.

If the count of relative strengths (bullet points above) is taken as a measure, the M10-R is the clear winner of the contest (13 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 5D Mark II or the M10-R perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
2.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
3.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	US$ 7 999	ebay.com
4.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	US$ 6 799	ebay.com
5.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
6.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	US$ 3 299	ebay.com
7.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	US$ 3 499	ebay.com
8.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
9.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
10.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
11.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
12.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
13.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
14.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
15.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
16.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
17.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
