Canon M6 Mark II vs Olympus E-300

The Canon EOS M6 Mark II and the Olympus Evolt E-300 are two digital cameras that were officially introduced, respectively, in August 2019 and September 2004. The M6 Mark II is a mirrorless interchangeable lens camera, while the E-300 is a DSLR. The cameras are based on an APS-C (M6 Mark II) and a Four Thirds (E-300) sensor. The Canon has a resolution of 32.3 megapixels, whereas the Olympus provides 8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M6 Mark II		Olympus E-300
Mirrorless system camera		Digital single lens reflex
Canon EF-M mount lenses		Four Thirds lenses
32.3 MP – APS-C sensor		8 MP – Four Thirds sensor
4K/30p Video		no Video
ISO 100-25,600 (100 - 51,200)		ISO 100-400 (100 - 1,600)
Viewfinder optional		Optical viewfinder
3.0" LCD – 1040k dots		1.8" LCD – 134k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
14 shutter flaps per second		2.5 shutter flaps per second
305 shots per battery charge		750 shots per battery charge
120 x 70 x 49 mm, 408 g		147 x 85 x 64 mm, 624 g

Check M6 Mark II offers at
ebay.com
Check E-300 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 Mark II and the Olympus Evolt E-300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon M6 Mark II and the Olympus E-300. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-300 is considerably larger (49 percent) than the Canon M6 Mark II. Moreover, the E-300 is substantially heavier (53 percent) than the M6 Mark II. In this context, it is worth noting that neither the M6 Mark II nor the E-300 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M6 Mark II gets 305 shots out of its Canon LP-E17 battery, while the E-300 can take 750 images on a single charge of its Olympus BLM-1 power pack. The power pack in the M6 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	US$ 849	ebay.com
2.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
3.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
4.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
5.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
6.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
7.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
8.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
9.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
10.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	US$ 599	ebay.com
11.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
12.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	US$ 1 499	ebay.com
13.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
14.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	US$ 599	ebay.com
15.		Panasonic L1	146 mm	87 mm	64 mm	606 g	750	n	Feb 2006	US$ 999	ebay.com
16.		Panasonic LX100 II	115 mm	66 mm	65 mm	392 g	300	n	Aug 2018	US$ 999	ebay.com
17.		Sony A6400	120 mm	67 mm	50 mm	403 g	410	Y	Jan 2019	US$ 899	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-300 was somewhat cheaper (by 6 percent) than the M6 Mark II at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M6 Mark II features an APS-C sensor and the Olympus E-300 a Four Thirds sensor. The sensor area in the E-300 is 33 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M6 Mark II has a native 3:2 aspect ratio, while the one in the E-300 offers a 4:3 aspect.

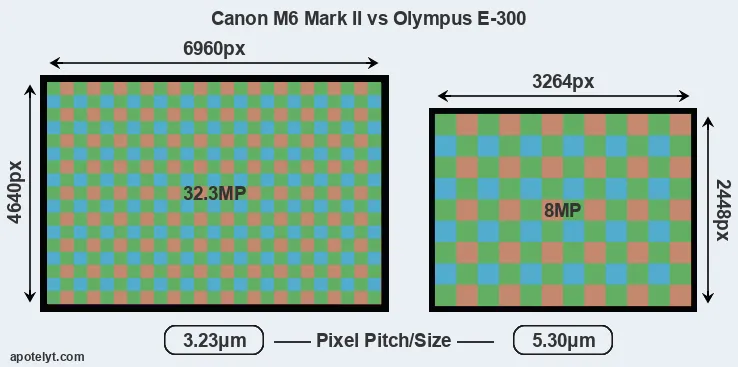

With 32.3MP, the M6 Mark II offers a higher resolution than the E-300 (8MP), but the M6 Mark II has smaller individual pixels (pixel pitch of 3.23μm versus 5.30μm for the E-300). However, the M6 Mark II is a much more recent model (by 14 years and 11 months) than the E-300, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon M6 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 Mark II for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Olympus E-300 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.

The M6 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M6 Mark II has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus Evolt E-300 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.

In terms of underlying technology, the M6 Mark II is build around a CMOS sensor, while the E-300 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
2.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
3.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
4.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
5.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
6.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
7.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
8.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
9.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
10.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
11.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
12.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
13.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
14.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
15.		Panasonic L1	Four Thirds	7.4	3136	2352	none	20.8	10.4	80	52
16.		Panasonic LX100 II	Four Thirds	16.8	4736	3552	4K/30p	22.8	12.7	979	72
17.		Sony A6400	APS-C	24.0	6000	4000	4K/30p	24.0	13.6	1431	83
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The M6 Mark II indeed provides movie recording capabilities, while the E-300 does not. The highest resolution format that the M6 Mark II can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-300 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M6 Mark II relies on live view and the rear LCD for framing. That said, the M6 Mark II can be equipped with an optional viewfinder – the EVF-DC2. The table below summarizes some of the other core capabilities of the Canon M6 Mark II and Olympus E-300 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
2.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
3.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
7.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
10.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
11.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
12.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
13.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
14.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
15.		Panasonic L1	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
16.		Panasonic LX100 II	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
17.		Sony A6400	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M6 Mark II has a touchscreen, while the E-300 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the M6 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon M6 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The M6 Mark II writes its imaging data to SDXC cards, while the E-300 uses Compact Flash or xD Picture cards. The E-300 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M6 Mark II only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 Mark II and Olympus Evolt E-300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
7.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
11.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
12.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
13.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
15.		Panasonic L1	Y	- / -	-	-	-	2.0	-	-	-
16.		Panasonic LX100 II	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
17.		Sony A6400	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y

It is notable that the M6 Mark II offers wifi support, while the E-300 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the M6 Mark II and the E-300 have been discontinued, but can regularly be found used on ebay. The E-300 was replaced by the Olympus E-330, while the M6 Mark II does not have a direct successor. Further information on the features and operation of the M6 Mark II and E-300 can be found, respectively, in the Canon M6 Mark II Manual (free pdf) or the online Olympus E-300 Manual.

Review summary

So what conclusions can be drawn? Is the Canon M6 Mark II better than the Olympus E-300 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS M6 Mark II:

• More detail: Offers more megapixels (32.3 vs 8MP) with a 105% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can record not only still images but also 4K/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 134k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (14 vs 2.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (120x70mm vs 147x85mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 216g or 35 percent) and hence easier to carry around.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 14 years and 11 months of technical progress since the E-300 launch.

Reasons to prefer the Olympus Evolt E-300:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Gets more shots (750 versus 305) out of a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in September 2004).

If the number of relative strengths (bullet points above) is taken as a guide, the M6 Mark II is the clear winner of the match-up (22 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M6 Mark II and the Olympus E-300 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the M6 Mark II or the E-300 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	US$ 849	ebay.com
2.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
3.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
4.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
5.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
6.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
7.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
8.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
9.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
10.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	US$ 599	ebay.com
11.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
12.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	US$ 1 499	ebay.com
13.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
14.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	US$ 599	ebay.com
15.		Panasonic L1	..	85/100	..	+	..	3.5/5	Feb 2006	US$ 999	ebay.com
16.		Panasonic LX100 II	4.5/5	+	4.2/5	82/100	4.5/5	4.5/5	Aug 2018	US$ 999	ebay.com
17.		Sony A6400	4/5	+	4/5	85/100	4.5/5	4/5	Jan 2019	US$ 899	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check M6 Mark II offers at
ebay.com
Check E-300 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check M6 Mark II offers at
ebay.com
Check E-300 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
