Canon R1 vs Fujifilm X-S20

The Canon EOS R1 and the Fujifilm X-S20 are two digital cameras that were revealed to the public, respectively, in July 2024 and May 2023. Both the R1 and the X-S20 are mirrorless interchangeable lens cameras that are based on a full frame (R1) and an APS-C (X-S20) sensor. The Canon has a resolution of 24 megapixels, whereas the Fujifilm provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R1		Fujifilm X-S20
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Fujifilm X mount lenses
24 MP – Full Frame sensor		26 MP – APS-C sensor
6K/60p Video		4K/60p Video
ISO 100-102,400 (50 - 409,600)		ISO 160-12,800 (80 - 51,200)
Electronic viewfinder (9440k dots)		Electronic viewfinder (2360k dots)
3.2" LCD – 2100k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
12 shutter flaps per second		8 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		not weather sealed
1330 shots per battery charge		750 shots per battery charge
158 x 150 x 87 mm, 1115 g		128 x 85 x 65 mm, 491 g

Check R1 price at
amazon.com
Check X-S20 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R1 and the Fujifilm X-S20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

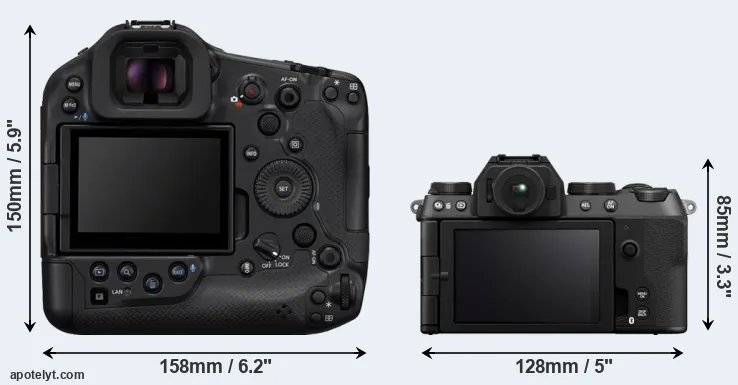

The physical size and weight of the Canon R1 and the Fujifilm X-S20 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-S20 is considerably smaller (54 percent) than the Canon R1. Moreover, the X-S20 is substantially lighter (56 percent) than the R1. It is worth mentioning in this context that the R1 is splash and dust resistant, while the X-S20 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R1 gets 1330 shots out of its Canon LP-E19 battery, while the X-S20 can take 750 images on a single charge of its Fujifilm NP-W235 power pack. As can be seen in the images above, the R1 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R1	158 mm	150 mm	87 mm	1115 g	1330	Y	Jul 2024	US$ 6 299	amazon.com
2.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
3.		Canon R3	150 mm	143 mm	87 mm	1015 g	760	Y	Sep 2021	US$ 5 999	amazon.com
4.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	US$ 4 299	amazon.com
5.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
6.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
7.		Fujifilm GFX 100 II	152 mm	117 mm	99 mm	1030 g	540	Y	Sep 2023	US$ 7 499	amazon.com
8.		Fujifilm X-S10	126 mm	85 mm	65 mm	465 g	325	n	Oct 2020	US$ 999	amazon.com
9.		Fujifilm X-T50	124 mm	84 mm	49 mm	438 g	305	n	May 2024	US$ 1 399	amazon.com
10.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
11.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	US$ 1 299	ebay.com
12.		Leica SL3-S	141 mm	108 mm	85 mm	852 g	315	Y	Jan 2025	US$ 5 299	amazon.com
13.		Nikon Zf	144 mm	103 mm	49 mm	710 g	380	Y	Sep 2023	US$ 1 999	amazon.com
14.		Panasonic G9 II	134 mm	102 mm	90 mm	658 g	390	Y	Sep 2023	US$ 1 899	amazon.com
15.		Panasonic S9	126 mm	74 mm	47 mm	486 g	470	n	May 2024	US$ 1 499	amazon.com
16.		Sony A9 III	136 mm	97 mm	83 mm	702 g	530	Y	Nov 2023	US$ 5 999	amazon.com
17.		Sony A6700	122 mm	69 mm	64 mm	493 g	570	Y	Jul 2023	US$ 1 399	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-S20 was launched at a markedly lower price (by 79 percent) than the R1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon R1 features a full frame sensor and the Fujifilm X-S20 an APS-C sensor. The sensor area in the X-S20 is 58 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

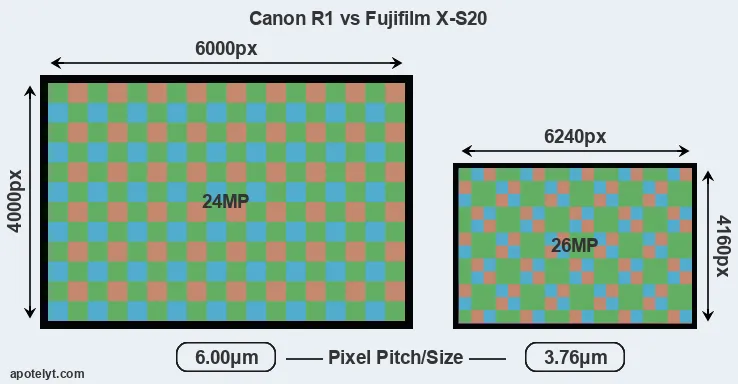

Despite having a smaller sensor, the X-S20 offers a slightly higher resolution of 26 megapixels, compared with 24 MP of the R1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 6.00μm for the R1). Moreover, it should be noted that the R1 is a somewhat more recent model (by 1 year and 1 month) than the X-S20, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-S20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS R1 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-409600. The corresponding ISO settings for the Fujifilm X-S20 are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the R1 is build around a Stacked BSI-CMOS sensor, while the X-S20 uses a BSI-CMOS imager. Like most digital cameras, the R1 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-S20 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R1	Full Frame	24.0	6000	4000	6K/60p	25.4	14.8	3332	97
2.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
3.		Canon R3	Full Frame	24.0	6000	4000	6K/60p	25.0	14.7	4086	96
4.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
5.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
6.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
7.		Fujifilm GFX 100 II	Medium Format	101.8	11648	8736	8K/30p	25.9	15.0	3651	101
8.		Fujifilm X-S10	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2057	85
9.		Fujifilm X-T50	APS-C	39.8	7728	5152	6.2k/30p	24.3	14.1	2418	86
10.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
11.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
12.		Leica SL3-S	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3383	97
13.		Nikon Zf	Full Frame	24.3	6048	4024	4K/60p	25.4	14.7	3243	96
14.		Panasonic G9 II	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.5	1710	78
15.		Panasonic S9	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3297	96
16.		Sony A9 III	Full Frame	24.0	6000	4000	4K/120p	25.4	14.7	3243	96
17.		Sony A6700	APS-C	25.6	6192	4128	4K/120p	24.3	14.0	2329	86
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the R1 provides a higher video resolution than the X-S20. It can shoot video footage at 6K/60p, while the Fujifilm is limited to 4K/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the R1 offers a substantially higher resolution than the one in the X-S20 (9440k vs 2360k dots). The following table reports on some other key feature differences and similarities of the Canon R1, the Fujifilm X-S20, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R1	9440	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
2.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
3.		Canon R3	5760	Y	3.2 / 4150	swivel	Y	1/8000s	12.0/s	n	Y
4.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
5.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
6.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
7.		Fujifilm GFX 100 II	9440	Y	3.2 / 2360	full-flex	Y	1/4000s	8.0/s	n	Y
8.		Fujifilm X-S10	2360	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	Y
9.		Fujifilm X-T50	2360	n	3.0 / 1840	tilting	Y	1/4000s	8.0/s	Y	Y
10.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
11.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
12.		Leica SL3-S	5760	Y	3.2 / 2333	tilting	Y	1/8000s	30.0/s	n	Y
13.		Nikon Zf	3690	n	3.2 / 2100	swivel	Y	1/8000s	14.0/s	n	Y
14.		Panasonic G9 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	10.0/s	n	Y
15.		Panasonic S9	none	n	3.0 / 1840	swivel	Y	1/8000s	30.0/s	n	Y
16.		Sony A9 III	9440	n	3.2 / 2100	full-flex	Y	1/80000s	120.0/s	n	Y
17.		Sony A6700	2360	n	3.0 / 1037	swivel	Y	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the R1, but is missing on the X-S20 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R1 and the Fujifilm X-S20 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R1 writes its imaging data to CFexpress (type B) or SDXC cards, while the X-S20 uses SDXC cards. The R1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the X-S20 only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R1 and Fujifilm X-S20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R1	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
2.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon R3	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
4.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
5.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
6.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
7.		Fujifilm GFX 100 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
8.		Fujifilm X-S10	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
9.		Fujifilm X-T50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
10.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
11.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Leica SL3-S	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
13.		Nikon Zf	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
14.		Panasonic G9 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Panasonic S9	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
16.		Sony A9 III	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Sony A6700	Y	stereo / mono	Y	Y	YES	3.2	Y	Y	Y

Studio photographers will appreciate that the Canon R1 (unlike the X-S20) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R1 and the X-S20 are recent models that are part of the current product line-up. The X-S20 replaced the earlier Fujifilm X-S10, while the R1 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.

Review summary

So how do things add up? Which of the two cameras – the Canon R1 or the Fujifilm X-S20 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS R1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (6K/60p vs 4K/60p).
• More detailed viewfinder: Has higher resolution electronic viewfinder (9440k vs 2360k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.9x vs 0.62x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1840k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 8 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (1330 versus 750) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Is somewhat more recent (announced 1 year and 1 month after the X-S20).

Arguments in favor of the Fujifilm X-S20:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More compact: Is smaller (128x85mm vs 158x150mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 624g or 56 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (79 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in May 2023).

If the count of relative strengths (bullet points above) is taken as a measure, the R1 is the clear winner of the match-up (20 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R1 and the Fujifilm X-S20 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the R1 and the X-S20 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R1	..	..	..	..	..	..	Jul 2024	US$ 6 299	amazon.com
2.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
3.		Canon R3	5/5	o	4.5/5	..	5/5	4.5/5	Sep 2021	US$ 5 999	amazon.com
4.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	US$ 4 299	amazon.com
5.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
6.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
7.		Fujifilm GFX 100 II	5/5	+	5/5	..	..	4.5/5	Sep 2023	US$ 7 499	amazon.com
8.		Fujifilm X-S10	5/5	..	4.5/5	86/100	4.5/5	4.5/5	Oct 2020	US$ 999	amazon.com
9.		Fujifilm X-T50	..	..	..	85/100	..	..	May 2024	US$ 1 399	amazon.com
10.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
11.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	US$ 1 299	ebay.com
12.		Leica SL3-S	..	..	..	..	..	..	Jan 2025	US$ 5 299	amazon.com
13.		Nikon Zf	4.5/5	..	4.5/5	90/100	4.5/5	5/5	Sep 2023	US$ 1 999	amazon.com
14.		Panasonic G9 II	5/5	..	4.5/5	87/100	..	4.5/5	Sep 2023	US$ 1 899	amazon.com
15.		Panasonic S9	..	..	..	..	..	..	May 2024	US$ 1 499	amazon.com
16.		Sony A9 III	4.5/5	..	..	91/100	..	..	Nov 2023	US$ 5 999	amazon.com
17.		Sony A6700	4.5/5	+	4.5/5	88/100	4.5/5	4.5/5	Jul 2023	US$ 1 399	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check R1 price at
amazon.com
Check X-S20 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check R1 price at
amazon.com
Check X-S20 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
