Canon R5 Mark II vs Nikon Z6 II

The Canon EOS R5 Mark II and the Nikon Z6 II are two enthusiast cameras that were announced, respectively, in July 2024 and October 2020. Both the R5 Mark II and the Z6 II are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The Canon has a resolution of 44.8 megapixels, whereas the Nikon provides 24.3 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R5 Mark II		Nikon Z6 II
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Nikon Z mount lenses
44.8 MP – Full Frame sensor		24.3 MP – Full Frame sensor
8k/60p Video		4K/60p Video
ISO 100-51,200 (50 - 102,400)		ISO 100-51,200 (50 - 204,800)
Electronic viewfinder (5760k dots)		Electronic viewfinder (3690k dots)
3.2" LCD – 2100k dots		3.2" LCD – 2100k dots
Swivel touchscreen		Tilting touchscreen
12 shutter flaps per second		14 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
340 shots per battery charge		410 shots per battery charge
138 x 98 x 88 mm, 746 g		134 x 101 x 70 mm, 705 g

Check R5 Mark II price at
amazon.com
Check Z6 II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 Mark II and the Nikon Z6 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

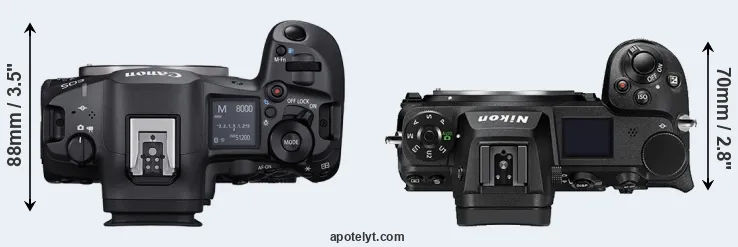

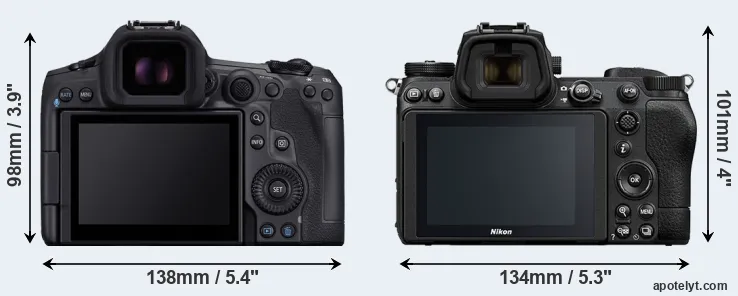

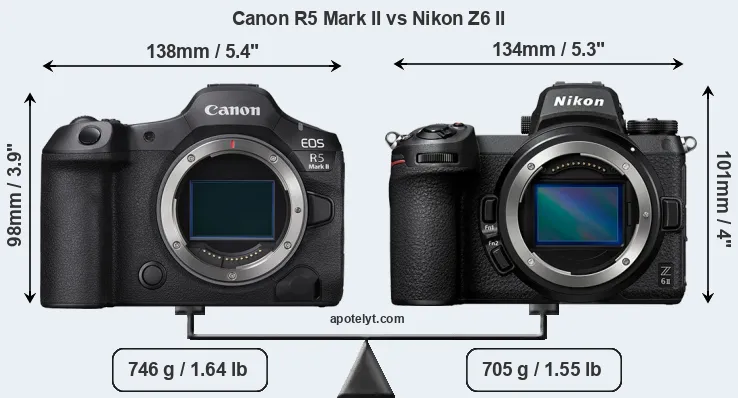

Body comparison

The physical size and weight of the Canon R5 Mark II and the Nikon Z6 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R5 Mark II and the Nikon Z6 II are of equal size. However, the Z6 II is markedly lighter (5 percent) than the R5 Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	US$ 4 299	amazon.com
2.		Nikon Z6 II	134 mm	101 mm	70 mm	705 g	410	Y	Oct 2020	US$ 1 999	amazon.com
3.		Canon R1	158 mm	150 mm	87 mm	1115 g	1330	Y	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
8.		Nikon Z5	134 mm	101 mm	67 mm	675 g	470	Y	Jul 2020	US$ 1 399	ebay.com
9.		Nikon Z6	134 mm	101 mm	67 mm	675 g	310	Y	Aug 2018	US$ 1 999	ebay.com
10.		Nikon Z7 II	134 mm	101 mm	70 mm	705 g	420	Y	Oct 2020	US$ 2 999	amazon.com
11.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	US$ 3 999	amazon.com
12.		Nikon Zf	144 mm	103 mm	49 mm	710 g	380	Y	Sep 2023	US$ 1 999	amazon.com
13.		Panasonic S1R II	134 mm	102 mm	92 mm	795 g	350	Y	May 2025	US$ 3 299	amazon.com
14.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	US$ 1 999	amazon.com
15.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
16.		Sony A1 II	136 mm	97 mm	83 mm	743 g	520	Y	Nov 2024	US$ 6 499	amazon.com
17.		Sony A7R V	131 mm	97 mm	82 mm	723 g	530	Y	Oct 2022	US$ 3 899	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Z6 II was launched at a markedly lower price (by 54 percent) than the R5 Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

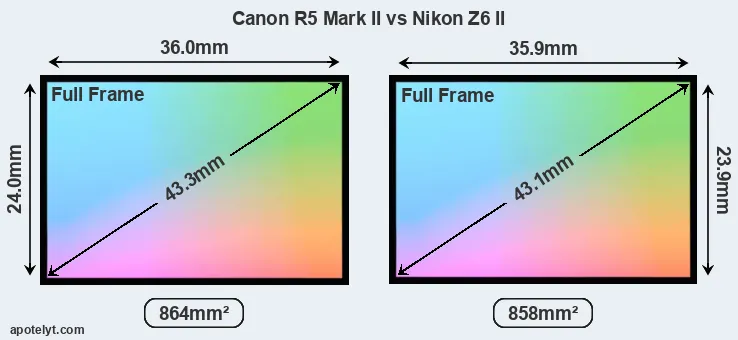

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the Z6 II is 1 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 44.8MP, the R5 Mark II offers a higher resolution than the Z6 II (24.3MP), but the R5 Mark II has smaller individual pixels (pixel pitch of 4.39μm versus 5.94μm for the Z6 II). However, the R5 Mark II is a much more recent model (by 3 years and 9 months) than the Z6 II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Nikon Z6 II are 30.2 x 20.1 inches or 76.8 x 51.1 cm for good quality, 24.2 x 16.1 inches or 61.4 x 40.9 cm for very good quality, and 20.2 x 13.4 inches or 51.2 x 34.1 cm for excellent quality prints.

The Canon EOS R5 Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Nikon Z6 II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

In terms of underlying technology, the R5 Mark II is build around a CMOS sensor, while the Z6 II uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
2.		Nikon Z6 II	Full Frame	24.3	6048	4024	4K/60p	25.0	14.4	3303	94
3.		Canon R1	Full Frame	24.0	6000	4000	6K/60p	25.4	14.8	3332	97
4.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
5.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
6.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
7.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
8.		Nikon Z5	Full Frame	24.2	6016	4016	4K/30p	25.3	14.3	2929	95
9.		Nikon Z6	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	3299	95
10.		Nikon Z7 II	Full Frame	45.4	8256	5504	4K/60p	26.3	14.7	2841	100
11.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
12.		Nikon Zf	Full Frame	24.3	6048	4024	4K/60p	25.4	14.7	3243	96
13.		Panasonic S1R II	Full Frame	44.2	8144	5424	8K/30p	25.4	14.8	3406	97
14.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
15.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
16.		Sony A1 II	Full Frame	49.8	8640	5760	8k/30p	25.4	14.8	3363	97
17.		Sony A7R V	Full Frame	60.2	9504	6336	8k/24p	26.5	14.8	3187	100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R5 Mark II provides a higher video resolution than the Z6 II. It can shoot video footage at 8k/60p, while the Nikon is limited to 4K/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the R5 Mark II offers a substantially higher resolution than the one in the Z6 II (5760k vs 3690k dots). The following table reports on some other key feature differences and similarities of the Canon R5 Mark II, the Nikon Z6 II, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
2.		Nikon Z6 II	3690	Y	3.2 / 2100	tilting	Y	1/8000s	14.0/s	n	Y
3.		Canon R1	9440	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
4.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
5.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
6.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
7.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
8.		Nikon Z5	3690	n	3.2 / 1040	tilting	Y	1/8000s	4.5/s	n	Y
9.		Nikon Z6	3690	Y	3.2 / 2100	tilting	Y	1/8000s	12.0/s	n	Y
10.		Nikon Z7 II	3690	Y	3.2 / 2100	tilting	Y	1/8000s	10.0/s	n	Y
11.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
12.		Nikon Zf	3690	n	3.2 / 2100	swivel	Y	1/8000s	14.0/s	n	Y
13.		Panasonic S1R II	5760	n	3.2 / 1840	full-flex	Y	1/8000s	9.0/s	n	Y
14.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
15.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
16.		Sony A1 II	9437	n	3.2 / 2100	full-flex	Y	1/8000s	30.0/s	n	Y
17.		Sony A7R V	9440	n	3.2 / 2100	full-flex	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II and the Nikon Z6 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the R5 Mark II and the Z6 II write their files to CFexpress (type B) or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 Mark II and Nikon Z6 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
2.		Nikon Z6 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon R1	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
4.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
5.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
7.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
8.		Nikon Z5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
9.		Nikon Z6	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
10.		Nikon Z7 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
11.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
12.		Nikon Zf	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
13.		Panasonic S1R II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
14.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
15.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
16.		Sony A1 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Sony A7R V	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

Studio photographers will appreciate that the Canon R5 Mark II (unlike the Z6 II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R5 Mark II and the Z6 II are recent models that are part of the current product line-up. The Z6 II replaced the earlier Nikon Z6, while the R5 Mark II followed on from the Canon R5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon R5 Mark II and the Nikon Z6 II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS R5 Mark II:

• More detail: Offers more megapixels (44.8 vs 24.3MP) with a 36% higher linear resolution.
• Better video: Provides higher definition movie capture (8k/60p vs 4K/60p).
• More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 3690k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More modern: Reflects 3 years and 9 months of technical progress since the Z6 II launch.

Arguments in favor of the Nikon Z6 II:

• Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.76x).
• Faster burst: Shoots at higher frequency (14 vs 12 flaps/sec) to capture the decisive moment.
• Longer lasting: Gets more shots (410 versus 340) out of a single battery charge.
• More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in October 2020).

If the count of relative strengths (bullet points above) is taken as a measure, the R5 Mark II emerges as the winner of the contest (8 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R5 Mark II and the Nikon Z6 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the R5 Mark II or the Z6 II perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	US$ 4 299	amazon.com
2.		Nikon Z6 II	4.5/5	..	4/5	89/100	4.5/5	4.5/5	Oct 2020	US$ 1 999	amazon.com
3.		Canon R1	..	..	..	..	..	..	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
8.		Nikon Z5	4/5	..	4/5	89/100	4.5/5	4/5	Jul 2020	US$ 1 399	ebay.com
9.		Nikon Z6	5/5	..	5/5	89/100	4.5/5	5/5	Aug 2018	US$ 1 999	ebay.com
10.		Nikon Z7 II	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Oct 2020	US$ 2 999	amazon.com
11.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	US$ 3 999	amazon.com
12.		Nikon Zf	4.5/5	..	4.5/5	90/100	4.5/5	5/5	Sep 2023	US$ 1 999	amazon.com
13.		Panasonic S1R II	..	..	..	..	..	..	May 2025	US$ 3 299	amazon.com
14.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	US$ 1 999	amazon.com
15.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
16.		Sony A1 II	..	..	..	..	..	..	Nov 2024	US$ 6 499	amazon.com
17.		Sony A7R V	5/5	+ +	4.5/5	92/100	..	..	Oct 2022	US$ 3 899	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
