Canon R5 vs R5 Mark II

The Canon EOS R5 and the Canon EOS R5 Mark II are two enthusiast cameras that were officially introduced, respectively, in July 2020 and July 2024. Both the R5 and the R5 Mark II are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. Both cameras offer a resolution of 44.8 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R5		Canon R5 Mark II
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Canon RF mount lenses
44.8 MP – Full Frame sensor		44.8 MP – Full Frame sensor
8K/30p Video		8k/60p Video
ISO 100-51,200 (50 - 102,400)		ISO 100-51,200 (50 - 102,400)
Electronic viewfinder (5760k dots)		Electronic viewfinder (5760k dots)
3.2" LCD – 2100k dots		3.2" LCD – 2100k dots
Swivel touchscreen		Swivel touchscreen
12 shutter flaps per second		12 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
320 shots per battery charge		340 shots per battery charge
138 x 98 x 88 mm, 738 g		138 x 98 x 88 mm, 746 g

Check R5 price at
amazon.com
Check R5 Mark II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 and the Canon EOS R5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

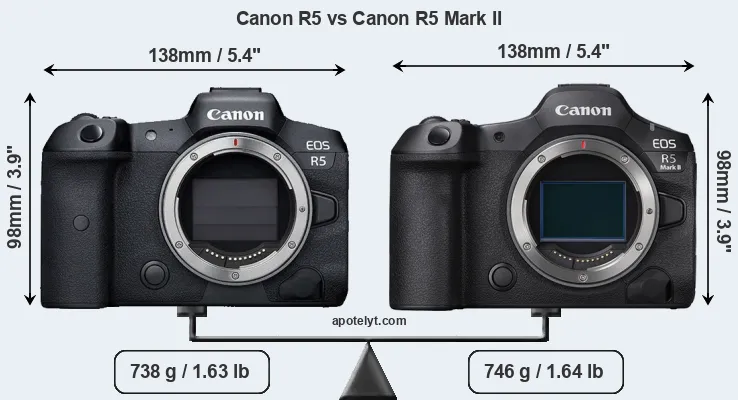

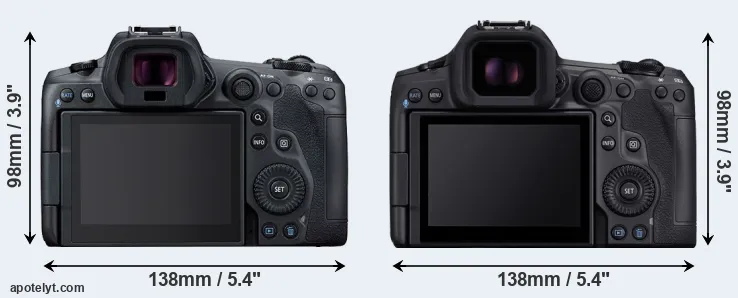

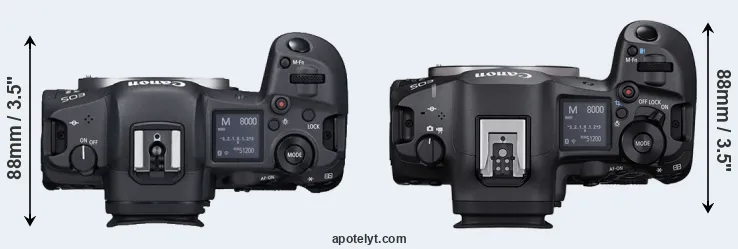

The side-by-side display below illustrates the physical size and weight of the Canon R5 and the Canon R5 Mark II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

In this particular case, the Canon R5 and the Canon R5 Mark II have exactly the same width and height, and, thus, have identically-sized bodies. However, the R5 Mark II is slightly heavier (1 percent) than the R5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
2.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	US$ 4 299	amazon.com
3.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
4.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
5.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
6.		Nikon Z7	134 mm	101 mm	67 mm	675 g	330	Y	Aug 2018	US$ 3 399	ebay.com
7.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	US$ 3 999	amazon.com
8.		Panasonic S1R	149 mm	110 mm	97 mm	1016 g	380	Y	Feb 2019	US$ 3 699	ebay.com
9.		Sony A7R III	127 mm	96 mm	74 mm	650 g	650	Y	Oct 2017	US$ 3 199	ebay.com
10.		Sony A7R IIIA	127 mm	96 mm	74 mm	650 g	650	Y	Apr 2021	US$ 3 199	amazon.com
11.		Sony A7R IV	129 mm	96 mm	78 mm	665 g	670	Y	Jul 2019	US$ 3 499	ebay.com
12.		Sony A7S III	127 mm	97 mm	81 mm	699 g	600	Y	Jul 2020	US$ 3 499	amazon.com
13.		Sony A9 II	129 mm	96 mm	76 mm	678 g	690	Y	Oct 2019	US$ 4 499	amazon.com
14.		Sony A99 II	143 mm	104 mm	76 mm	849 g	490	Y	Sep 2016	US$ 3 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The R5 was somewhat cheaper (by 9 percent) than the R5 Mark II at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

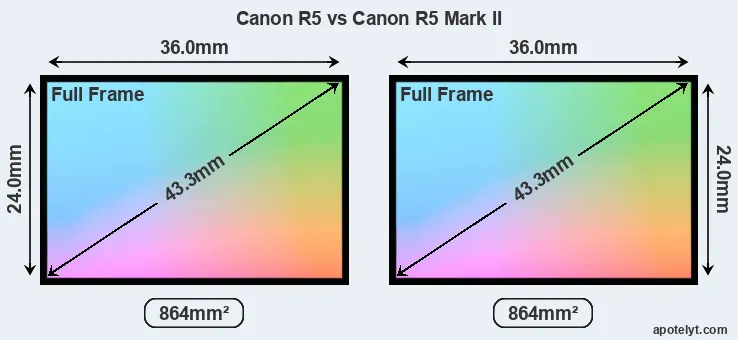

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

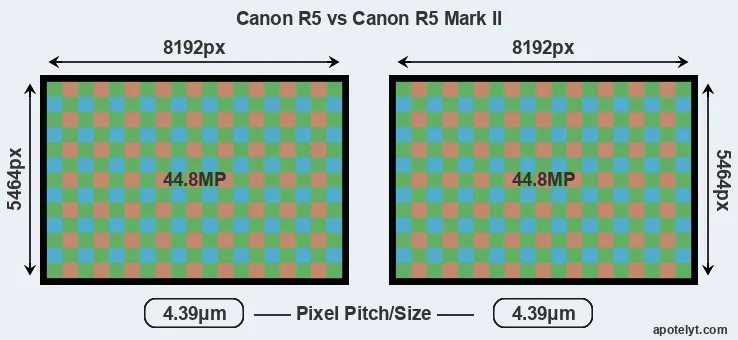

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 44.8 megapixels. This similarity in sensor specs implies that both the R5 and the R5 Mark II have the same pixel density, as well as the same pixel size. It should, however, be noted that the R5 Mark II is much more recent (by 4 years) than the R5, and its sensor will have benefitted from technological advances during this time.

The Canon EOS R5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The Canon EOS R5 Mark II offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
2.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
3.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
4.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
5.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
6.		Nikon Z7	Full Frame	45.4	8256	5504	4K/30p	26.3	14.6	2668	99
7.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
8.		Panasonic S1R	Full Frame	46.7	8368	5584	4K/60p	26.4	14.1	3525	100
9.		Sony A7R III	Full Frame	42.2	7952	5304	4K/30p	26.0	14.7	3523	100
10.		Sony A7R IIIA	Full Frame	42.2	7952	5304	4K/30p	26.0	14.7	3523	100
11.		Sony A7R IV	Full Frame	60.2	9504	6336	4K/30p	26.0	14.8	3344	99
12.		Sony A7S III	Full Frame	12.0	4240	2832	4K/120p	23.7	13.9	2520	86
13.		Sony A9 II	Full Frame	24.0	6000	4000	4K/30p	25.0	14.0	3434	93
14.		Sony A99 II	Full Frame	42.2	7952	5304	4K/30p	25.4	13.4	2317	92
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R5 Mark II provides a faster frame rate than the R5. It can shoot movie footage at 8k/60p, while the R5 is limited to 8K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The R5 and the R5 Mark II are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 5760k dots. The following table reports on some other key feature differences and similarities of the Canon R5, the Canon R5 Mark II, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
2.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
3.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
4.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
5.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
6.		Nikon Z7	3690	Y	3.2 / 2100	tilting	Y	1/8000s	9.0/s	n	Y
7.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
8.		Panasonic S1R	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
9.		Sony A7R III	3686	n	3.0 / 1440	tilting	Y	1/8000s	10.0/s	n	Y
10.		Sony A7R IIIA	3686	n	3.0 / 2340	tilting	Y	1/8000s	10.0/s	n	Y
11.		Sony A7R IV	5760	n	3.0 / 1440	tilting	Y	1/8000s	10.0/s	n	Y
12.		Sony A7S III	9440	n	3.0 / 1440	swivel	Y	1/8000s	10.0/s	n	Y
13.		Sony A9 II	3686	n	3.0 / 1440	tilting	Y	1/8000s	20.0/s	n	Y
14.		Sony A99 II	2400	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 and the Canon R5 Mark II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the R5 and the R5 Mark II write their files to CFexpress (type B) or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Moreover, both the R5 and the R5 Mark II support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s, on both slots.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 and Canon EOS R5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
2.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
3.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
4.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
5.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Nikon Z7	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
7.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
8.		Panasonic S1R	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
9.		Sony A7R III	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y
10.		Sony A7R IIIA	Y	stereo / mono	Y	Y	micro	3.2	Y	Y	Y
11.		Sony A7R IV	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y
12.		Sony A7S III	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
13.		Sony A9 II	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y
14.		Sony A99 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	Y

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the R5 and the R5 Mark II are recent models that are part of the current product line-up. The R5 Mark II replaced the earlier Canon R5, while the R5 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon R5 and the Canon R5 Mark II? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS R5:

• More heavily discounted: Has been available for much longer (launched in July 2020).

Reasons to prefer the Canon EOS R5 Mark II:

• Better video: Provides higher movie framerates (8k/60p versus 8K/30p).
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• More modern: Reflects 4 years of technical progress since the R5 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the R5 Mark II emerges as the winner of the match-up (3 : 1 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R5 and the Canon R5 Mark II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the R5 and the R5 Mark II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
2.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	US$ 4 299	amazon.com
3.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
4.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
5.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
6.		Nikon Z7	5/5	+	4.8/5	89/100	4.5/5	5/5	Aug 2018	US$ 3 399	ebay.com
7.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	US$ 3 999	amazon.com
8.		Panasonic S1R	4.5/5	..	4.6/5	89/100	4.5/5	4.5/5	Feb 2019	US$ 3 699	ebay.com
9.		Sony A7R III	..	+ +	4/5	90/100	4.5/5	5/5	Oct 2017	US$ 3 199	ebay.com
10.		Sony A7R IIIA	..	+ +	4/5	90/100	4.5/5	5/5	Apr 2021	US$ 3 199	amazon.com
11.		Sony A7R IV	5/5	+	4.5/5	91/100	4.5/5	5/5	Jul 2019	US$ 3 499	ebay.com
12.		Sony A7S III	4.5/5	+ +	5/5	91/100	4.5/5	5/5	Jul 2020	US$ 3 499	amazon.com
13.		Sony A9 II	..	..	5/5	90/100	5/5	5/5	Oct 2019	US$ 4 499	amazon.com
14.		Sony A99 II	..	..	4.5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 3 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
