Canon R8 vs Olympus E-1

The Canon EOS R8 and the Olympus E-1 are two digital cameras that were officially introduced, respectively, in February 2023 and June 2003. The R8 is a mirrorless interchangeable lens camera, while the E-1 is a DSLR. The cameras are based on a full frame (R8) and a Four Thirds (E-1) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 4.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon R8
versus
Olympus E-1
Canon R8   Olympus E-1
Mirrorless system camera Digital single lens reflex
Canon RF mount lenses Four Thirds lenses
24 MP – Full Frame sensor 4.9 MP – Four Thirds sensor
4k/60p Video no Video
ISO 100-102,400 (100 - 204,800) ISO 100-800 (100 - 3,200)
Electronic viewfinder (2360k dots) Optical viewfinder
3.0" LCD – 1620k dots 1.8" LCD – 134k dots
Swivel touchscreen Fixed screen (not touch-sensitive)
6 shutter flaps per second 3 shutter flaps per second
not weather sealedWeathersealed body
220 shots per battery charge750 shots per battery charge
133 x 86 x 70 mm, 461 g 141 x 104 x 81 mm, 738 g
logo
Check R8 price at
amazon.com
logo
Check E-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R8 and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Canon R8 and the Olympus E-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

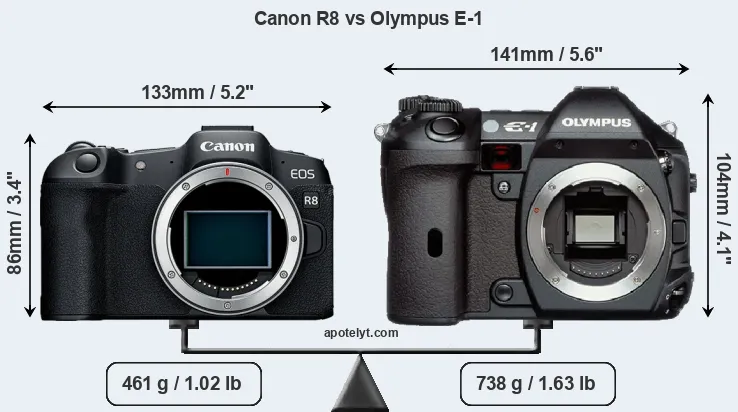

Size Canon R8 vs Olympus E-1

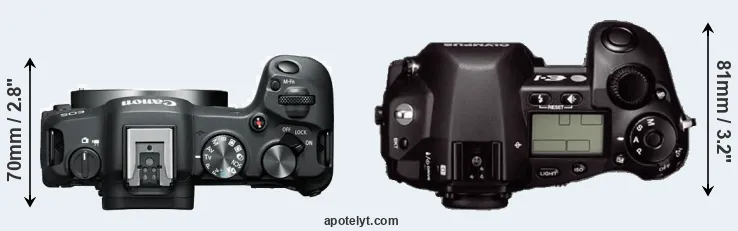

Compare R8 versus E-1 top

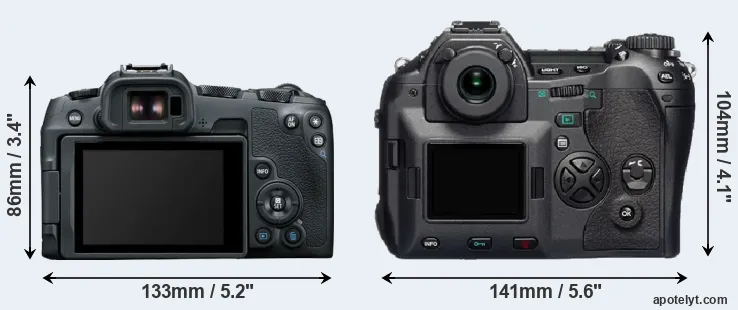

Comparison R8 or E-1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is notably larger (28 percent) than the Canon R8. Moreover, the E-1 is substantially heavier (60 percent) than the R8. It is noteworthy in this context that the E-1 is splash and dust-proof, while the R8 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R8 gets 220 shots out of its Canon LP-E17 battery, while the E-1 can take 750 images on a single charge of its Olympus BLM-1 power pack. The power pack in the R8 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon R8 133 mm 86 mm 70 mm 461 g 220 n Feb 2023 US$ 1 499 amazon.com
2.

Olympus E-1 141 mm 104 mm 81 mm 738 g 750 Y Jun 2003 US$ 1 699ebay.com
3.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 US$ 899ebay.com
4.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 US$ 979ebay.com
5.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 US$ 779ebay.com
6.

Canon R10 123 mm 88 mm 83 mm 429 g 450 n May 2022 US$ 979 amazon.com
7.

Canon RP 133 mm 85 mm 70 mm 485 g 250 n Feb 2019 US$ 1 299 amazon.com
8.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 US$ 549ebay.com
9.

Leica Digilux 3 146 mm 87 mm 77 mm 606 g 750 n Sep 2006 US$ 1 499ebay.com
10.

Olympus E-3 142 mm 116 mm 75 mm 876 g 750 Y Oct 2007 US$ 1 699ebay.com
11.

Olympus E-5 142 mm 117 mm 75 mm 873 g 750 Y Sep 2010 US$ 1 699ebay.com
12.

Olympus E-300 147 mm 85 mm 64 mm 624 g 750 n Sep 2004 US$ 799ebay.com
13.

Olympus E-330 140 mm 87 mm 72 mm 637 g 750 n Jan 2006 US$ 999ebay.com
14.

Sony A7 127 mm 94 mm 48 mm 474 g 340 Y Oct 2013 US$ 1 699ebay.com
15.

Sony NEX-7 120 mm 67 mm 43 mm 400 g 430 n Aug 2011 US$ 1 349ebay.com
16.

Sony RX1 113 mm 65 mm 70 mm 482 g 270 n Sep 2012 US$ 2 799ebay.com
17.

Sony RX1R 113 mm 65 mm 70 mm 482 g 270 n Jun 2013 US$ 2 799ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The R8 was launched at a somewhat lower price (by 12 percent) than the E-1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R8 features a full frame sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the R8 has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.

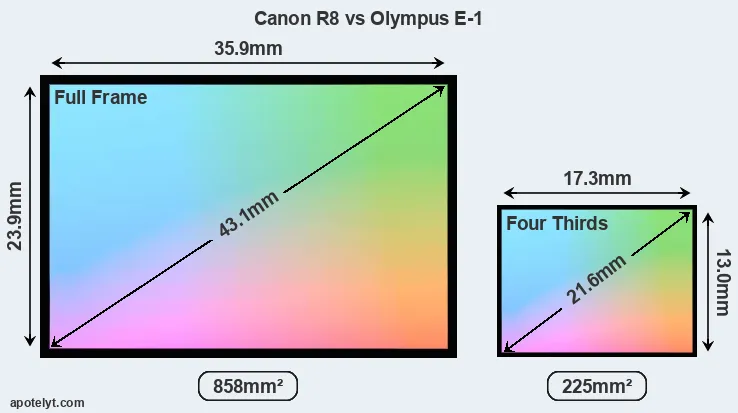

Canon R8 and Olympus E-1 sensor measures

With 24MP, the R8 offers a higher resolution than the E-1 (4.9MP), but the R8 has smaller individual pixels (pixel pitch of 5.98μm versus 6.78μm for the E-1). However, the R8 is a much more recent model (by 19 years and 7 months) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R8 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The R8 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R8 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 100-204800. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the R8 is build around a CMOS sensor, while the E-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

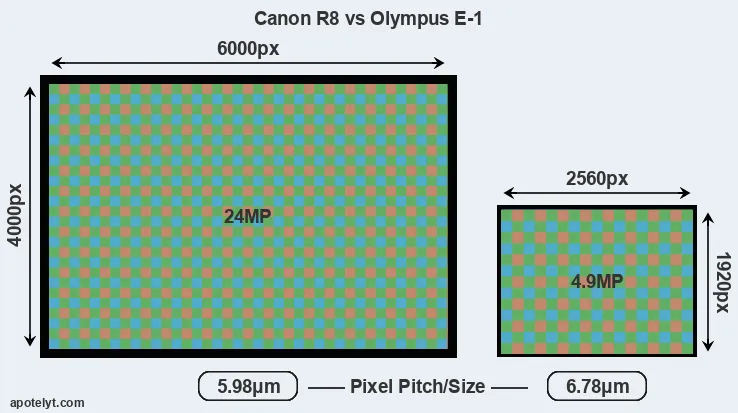

R8 versus E-1 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon R8 Full Frame 24.0 6000 40004k/60p24.514.7329593
2.

Olympus E-1 Four Thirds 4.9 2560 1920none20.09.7-14544
3.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
4.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
5.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
6.

Canon R10 APS-C 24.0 6000 40004k/60p24.113.8208584
7.

Canon RP Full Frame 26.0 6240 41604K/30p24.311.9297785
8.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
9.

Leica Digilux 3 Four Thirds 7.4 3136 2352none21.010.612753
10.

Olympus E-3 Four Thirds 10.0 3648 2736none21.610.557156
11.

Olympus E-5 Four Thirds 12.2 4032 3024720/30p21.610.551956
12.

Olympus E-300 Four Thirds 8.0 3264 2448none20.410.1-4048
13.

Olympus E-330 Four Thirds 7.4 3136 2352none20.810.47352
14.

Sony A7 Full Frame 24.0 6000 40001080/60p24.814.2224890
15.

Sony NEX-7 APS-C 24.0 6000 40001080/60i24.113.4101681
16.

Sony RX1 Full Frame 24.0 6000 40001080/60p25.114.3253493
17.

Sony RX1R Full Frame 24.0 6000 40001080/60p25.013.6253791
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The R8 indeed provides movie recording capabilities, while the E-1 does not. The highest resolution format that the R8 can use is 4k/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R8 has an electronic viewfinder (2360k dots), while the E-1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the R8 has a higher magnification than the one of the E-1 (0.70x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon R8 and Olympus E-1 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon R82360 n3.0 / 1620 swivel Y 1/4000s 6.0/s n n
2.

Olympus E-1optical Y1.8 / 134 fixed n 1/4000s 3.0/s n n
3.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
4.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
5.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
6.

Canon R102360 n3.0 / 1040 swivel Y 1/8000s 15.0/s Y n
7.

Canon RP2360 n3.0 / 1040 swivel Y 1/4000s 5.0/s n n
8.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
9.

Leica Digilux 3optical n2.5 / 207 fixed n 1/4000s 3.0/s Y n
10.

Olympus E-3optical Y2.5 / 230 swivel n 1/8000s 5.0/s Y Y
11.

Olympus E-5optical Y3.0 / 920 swivel n 1/8000s 5.0/s Y Y
12.

Olympus E-300optical n1.8 / 134 fixed n 1/4000s 2.5/s Y n
13.

Olympus E-330optical n2.5 / 215 tilting n 1/4000s 3.0/s Y n
14.

Sony A72400 n3.0 / 1230 tilting n 1/8000s 5.0/s n n
15.

Sony NEX-72359 n3.0 / 921 tilting n 1/4000s 10.0/s Y n
16.

Sony RX1optional n3.0 / 1229 fixed n 1/4000s 5.0/s Y n
17.

Sony RX1Roptional n3.0 / 1229 fixed n 1/4000s 5.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The R8 has a touchscreen, while the E-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The R8 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-1 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R8 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R8 writes its imaging data to SDXC cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the R8 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R8 and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon R8Ystereo / monoYYmicro3.2Y-Y
2.

Olympus E-1Y- / ----2.0---
3.

Canon 77DYstereo / monoY-mini2.0YYY
4.

Canon M5Ystereo / monoY-mini2.0YYY
5.

Canon M6Ystereo / monoY-mini2.0YYY
6.

Canon R10Ystereo / monoY-micro2.0Y-Y
7.

Canon RPYstereo / monoYYmicro2.0Y-Y
8.

Canon SL2Ystereo / monoY-mini2.0YYY
9.

Leica Digilux 3Ystereo / mono---2.0---
10.

Olympus E-3Y- / ----2.0---
11.

Olympus E-5Ystereo / ---mini2.0---
12.

Olympus E-300Y- / ----2.0---
13.

Olympus E-330Y- / ----2.0---
14.

Sony A7Ystereo / monoYYmicro2.0YY-
15.

Sony NEX-7Ystereo / monoY-mini2.0---
16.

Sony RX1Ystereo / monoY-mini2.0---
17.

Sony RX1RYstereo / monoY-mini2.0---

It is notable that the R8 offers wifi support, while the E-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Olympus E-1 (unlike the R8) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R8 is a recent model that features in the current product line-up of Canon. In contrast, the E-1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-1 was succeeded by the Olympus E-3. Further information on the features and operation of the R8 and E-1 can be found, respectively, in the Canon R8 Manual (free pdf) or the online Olympus E-1 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon R8 and the Olympus E-1? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Canon EOS R8:

  • More detail: Offers more megapixels (24 vs 4.9MP) with a 125% higher linear resolution.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Broader imaging potential: Can record not only still images but also 4k/60p movies.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.48x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 134k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (133x86mm vs 141x104mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 277g or 38 percent) and hence easier to carry around.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced segment (12 percent cheaper at launch).
  • More modern: Reflects 19 years and 7 months of technical progress since the E-1 launch.

ilogo

Reasons to prefer the Olympus E-1:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Longer lasting: Gets more shots (750 versus 220) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been around for much longer (launched in June 2003).

If the count of individual advantages (bullet points above) is taken as a guide, the R8 is the clear winner of the match-up (26 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

R8 26:07 E-1

How about other alternatives? Do the specifications of the Canon R8 and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the R8 or the E-1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon R84.5/5+ +4.5/587/1004/54.5/5 Feb 2023 US$ 1 499 amazon.com
2.

Olympus E-1......+o.. Jun 2003 US$ 1 699ebay.com
3.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 US$ 899ebay.com
4.

Canon M54/5+4/582/1004/54/5 Sep 2016 US$ 979ebay.com
5.

Canon M6......80/1004/54/5 Feb 2017 US$ 779ebay.com
6.

Canon R104/5..4.5/587/1004/54.5/5 May 2022 US$ 979 amazon.com
7.

Canon RP4/5+4/5..4.5/54/5 Feb 2019 US$ 1 299 amazon.com
8.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 US$ 549ebay.com
9.

Leica Digilux 3............ Sep 2006 US$ 1 499ebay.com
10.

Olympus E-3..88/100..+ +o4/5 Oct 2007 US$ 1 699ebay.com
11.

Olympus E-54/5....75/1004/54.5/5 Sep 2010 US$ 1 699ebay.com
12.

Olympus E-300......+o4.5/5 Sep 2004 US$ 799ebay.com
13.

Olympus E-330......+o.. Jan 2006 US$ 999ebay.com
14.

Sony A75/5+ +..80/1005/55/5 Oct 2013 US$ 1 699ebay.com
15.

Sony NEX-75/5+ +..81/1004.5/55/5 Aug 2011 US$ 1 349ebay.com
16.

Sony RX15/5....79/1004/54.5/5 Sep 2012 US$ 2 799ebay.com
17.

Sony RX1R5/5......4/54.5/5 Jun 2013 US$ 2 799ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check R8 price at
amazon.com
logo
Check E-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon R8 vs Olympus E-1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon R8 Olympus E-1
    Camera Type Mirrorless system camera Digital single lens reflex
    Camera Lens Canon RF mount lenses Four Thirds lenses
    Launch Date February 2023 June 2003
    Launch Price USD 1,499 USD 1,699
    Sensor Specs Canon R8 Olympus E-1
    Sensor Technology CMOS CCD
    Sensor Format Full Frame Sensor Four Thirds Sensor
    Sensor Size 35.9 x 23.9 mm 17.3 x 13.0 mm
    Sensor Area 858.01 mm2 224.9 mm2
    Sensor Diagonal 43.1 mm 21.6 mm
    Crop Factor 1.0x 2.0x
    Sensor Resolution 24 Megapixels 4.9 Megapixels
    Image Resolution 6000 x 4000 pixels 2560 x 1920 pixels
    Pixel Pitch 5.98 μm 6.78 μm
    Pixel Density 2.80 MP/cm2 2.19 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4k/60p Video no Video
    ISO Setting 100 - 102,400 ISO 100 - 800 ISO
    ISO Boost 100 - 204,800 ISO 100 - 3,200 ISO
    Image Processor DIGIC X TruePic
    DXO Sensor Quality (score) 93 ..
    DXO Color Depth (bits) 24.5 ..
    DXO Dynamic Range (EV) 14.7 ..
    DXO Low Light (ISO) 3295 ..
    Screen Specs Canon R8 Olympus E-1
    Viewfinder Type Electronic viewfinder Optical viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.70x 0.48x
    Viewfinder Resolution 2360k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View
    Rear LCD Size 3.0inch 1.8inch
    LCD Resolution 1620k dots 134k dots
    LCD Attachment Swivel screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon R8 Olympus E-1
    Focus System On-Sensor Phase-detect Phase-detect AF
    Manual Focusing AidFocus Peakingno Peaking Feature
    Continuous Shooting 6 shutter flaps/s 3 shutter flaps/s
    Electronic Shutterup to 1/16000sno E-Shutter
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards CF or XD cards
    Single or Dual Card Slots Single card slot Dual card slots
    Connectivity Specs Canon R8 Olympus E-1
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 3.2 USB 2.0
    HDMI Port micro HDMI no HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in no Wifi
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon R8 Olympus E-1
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Canon LP-E17 Olympus BLM-1
    Battery Life (CIPA)220 shots per charge750 shots per charge
    In-Camera Charging USB charging no USB charging
    Body Dimensions 133 x 86 x 70 mm
    (5.2 x 3.4 x 2.8 in)
    141 x 104 x 81 mm
    (5.6 x 4.1 x 3.2 in)
    Camera Weight 461 g (16.3 oz) 738 g (26.0 oz)
    logo
    Check R8 price at
    amazon.com
    logo
    Check E-1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon R8 vs Olympus E-1
