Canon R8 vs Panasonic G5

The Canon EOS R8 and the Panasonic Lumix DMC-G5 are two digital cameras that were officially introduced, respectively, in February 2023 and July 2012. Both the R8 and the G5 are mirrorless interchangeable lens cameras that are based on a full frame (R8) and a Four Thirds (G5) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R8		Panasonic G5
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Micro Four Thirds lenses
24 MP – Full Frame sensor		15.9 MP – Four Thirds sensor
4k/60p Video		1080/60p Video
ISO 100-102,400 (100 - 204,800)		ISO 160-12,800
Electronic viewfinder (2360k dots)		Electronic viewfinder (1440k dots)
3.0" LCD – 1620k dots		3.0" LCD – 920k dots
Swivel touchscreen		Swivel touchscreen
6 shutter flaps per second		6 shutter flaps per second
220 shots per battery charge		320 shots per battery charge
133 x 86 x 70 mm, 461 g		120 x 83 x 71 mm, 396 g

Check R8 price at
amazon.com
Check G5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R8 and the Panasonic Lumix DMC-G5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

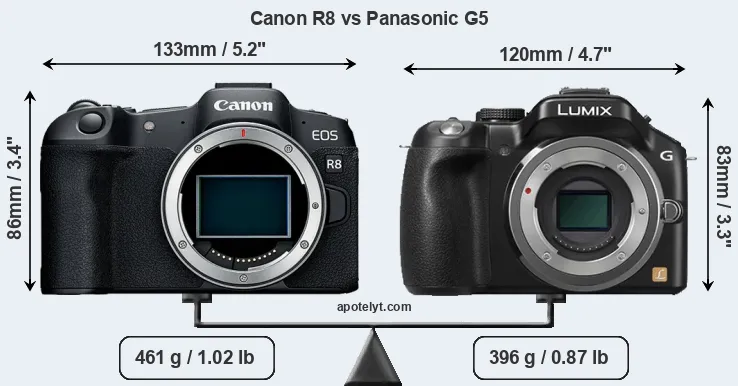

The side-by-side display below illustrates the physical size and weight of the Canon R8 and the Panasonic G5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The G5 can be obtained in two different colors (black, silver), while the R8 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G5 is notably smaller (13 percent) than the Canon R8. Moreover, the G5 is markedly lighter (14 percent) than the R8. In this context, it is worth noting that neither the R8 nor the G5 are weather-sealed.

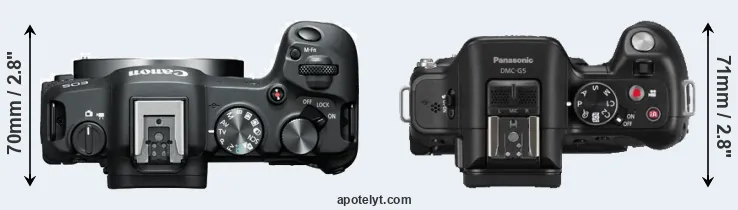

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R8 gets 220 shots out of its Canon LP-E17 battery, while the G5 can take 320 images on a single charge of its Panasonic DMW-BLC12 power pack. The power pack in the R8 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
2.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	US$ 599	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
5.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
6.		Canon G1 X Mark III	115 mm	78 mm	51 mm	399 g	200	Y	Oct 2017	US$ 1 299	ebay.com
7.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
8.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
9.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
10.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
11.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
12.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
13.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
14.		Panasonic G7	125 mm	86 mm	77 mm	410 g	350	n	May 2015	US$ 649	ebay.com
15.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
16.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
17.		Sony NEX-7	120 mm	67 mm	43 mm	400 g	430	n	Aug 2011	US$ 1 349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G5 was launched at a markedly lower price (by 60 percent) than the R8, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

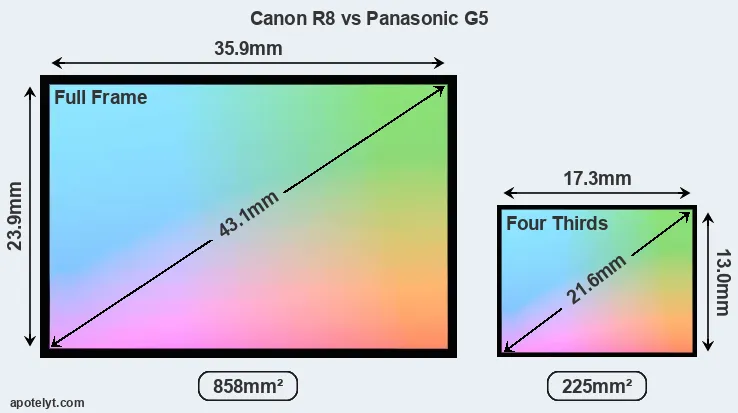

Of the two cameras under consideration, the Canon R8 features a full frame sensor and the Panasonic G5 a Four Thirds sensor. The sensor area in the G5 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the R8 has a native 3:2 aspect ratio, while the one in the G5 offers a 4:3 aspect.

With 24MP, the R8 offers a higher resolution than the G5 (15.9MP), but the R8 nevertheless has larger individual pixels (pixel pitch of 5.98μm versus 3.76μm for the G5) due to its larger sensor. Moreover, the R8 is a much more recent model (by 10 years and 6 months) than the G5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R8 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic G5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The R8 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R8 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 100-204800. The corresponding ISO settings for the Panasonic Lumix DMC-G5 are ISO 160 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the R8 provides substantially higher image quality than the G5, with an overall score that is 32 points higher. This advantage is based on 3.1 bits higher color depth, 3.1 EV in additional dynamic range, and 2.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
2.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
6.		Canon G1 X Mark III	APS-C	24.0	6000	4000	1080/60p	23.8	13.2	1649	81
7.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
8.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
9.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
10.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
11.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
12.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
13.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
14.		Panasonic G7	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.4	904	71
15.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
16.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
17.		Sony NEX-7	APS-C	24.0	6000	4000	1080/60i	24.1	13.4	1016	81
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the R8 provides a higher video resolution than the G5. It can shoot video footage at 4k/60p, while the Panasonic is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the R8 offers a substantially higher resolution than the one in the G5 (2360k vs 1440k dots). The following table reports on some other key feature differences and similarities of the Canon R8, the Panasonic G5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
2.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon G1 X Mark III	2360	n	3.0 / 1040	swivel	Y	1/2000s	9.0/s	Y	Y
7.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
10.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
11.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
12.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
13.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
14.		Panasonic G7	2360	n	3.0 / 1040	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
16.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
17.		Sony NEX-7	2359	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The G5 has one, while the R8 does not. While the built-in flash of the G5 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R8 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the R8 and the G5 write their files to SDXC cards. The R8 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the G5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R8 and Panasonic Lumix DMC-G5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G1 X Mark III	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
11.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
12.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Panasonic G7	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-7	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the R8 has a microphone port, which is missing on the G5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The R8 is a recent model that features in the current product line-up of Canon. In contrast, the G5 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the G5 was succeeded by the Panasonic G6. Further information on the features and operation of the R8 and G5 can be found, respectively, in the Canon R8 Manual (free pdf) or the online Panasonic G5 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon R8 or the Panasonic G5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS R8:

• More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
• Better image quality: Scores substantially higher (32 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (3.1 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (3.1 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (2.4 stops ISO advantage).
• Better video: Provides higher definition movie capture (4k/60p vs 1080/60p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 1440k dots).
• More detailed LCD: Has a higher resolution rear screen (1620k vs 920k dots).
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 10 years and 6 months of technical progress since the G5 launch.

Arguments in favor of the Panasonic Lumix DMC-G5:

• More compact: Is smaller (120x83mm vs 133x86mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 65g or 14 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (320 versus 220) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (60 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in July 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the R8 is the clear winner of the match-up (19 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R8 and the Panasonic G5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the R8 and the G5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
2.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
5.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
6.		Canon G1 X Mark III	5/5	+	4/5	79/100	4.5/5	4.5/5	Oct 2017	US$ 1 299	ebay.com
7.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
8.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
9.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
10.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
11.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
12.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
13.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
14.		Panasonic G7	4/5	+ +	3.5/5	80/100	5/5	4.5/5	May 2015	US$ 649	ebay.com
15.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
16.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
17.		Sony NEX-7	5/5	+ +	..	81/100	4.5/5	5/5	Aug 2011	US$ 1 349	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check R8 price at
amazon.com
Check G5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check R8 price at
amazon.com
Check G5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
