Canon SX1 vs Nikon D3400

The Canon PowerShot SX1 IS and the Nikon D3400 are two digital cameras that were announced, respectively, in September 2008 and August 2016. The SX1 is a fixed lens compact, while the D3400 is a DSLR. The cameras are based on a 1/2.3-inch (SX1) and an APS-C (D3400) sensor. The Canon has a resolution of 10 megapixels, whereas the Nikon provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX1		Nikon D3400
Fixed lens compact camera		Digital single lens reflex
28-560mm f/2.8-5.7		Nikon F mount lenses
10 MP – 1/2.3" sensor		24 MP – APS-C sensor
1080/30p Video		1080/60p Video
ISO 100-1,600 (100 - 3,200)		ISO 100-25,600
Electronic viewfinder (202k dots)		Optical viewfinder
2.8" LCD – 230k dots		3.0" LCD – 921k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
4 shutter flaps per second		5 shutter flaps per second
128 x 88 x 88 mm, 615 g		124 x 98 x 76 mm, 445 g

Check SX1 offers at
ebay.com
Check D3400 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX1 IS and the Nikon D3400? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

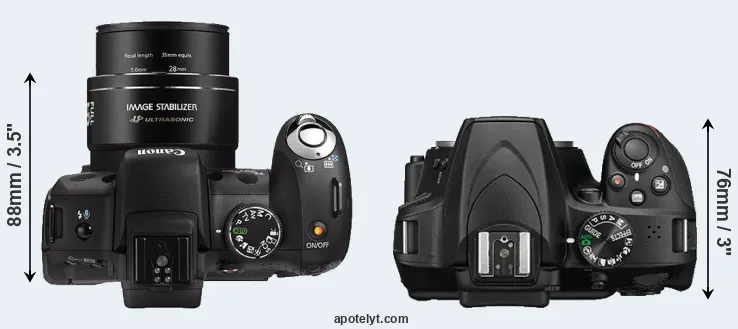

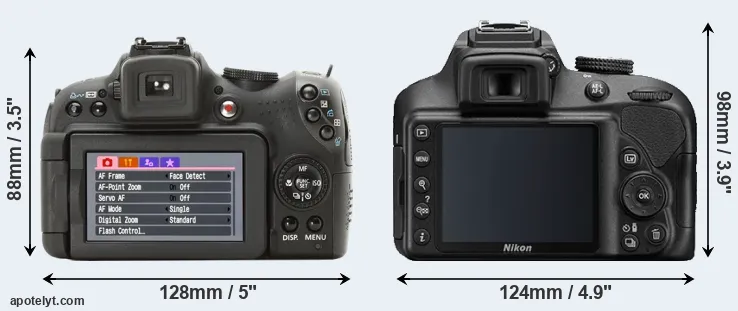

An illustration of the physical size and weight of the Canon SX1 and the Nikon D3400 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The D3400 can be obtained in two different colors (black, red), while the SX1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3400 is notably larger (8 percent) than the Canon SX1. In this context, it is worth noting that neither the SX1 nor the D3400 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX1 has a lens built in, whereas the D3400 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D3400 and their specifications in the Nikon Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX1	128 mm	88 mm	88 mm	615 g	..	n	Sep 2008	US$ 599	ebay.com
2.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	US$ 499	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
4.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
5.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
6.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
7.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
9.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	US$ 549	amazon.com
10.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	US$ 599	ebay.com
11.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	US$ 499	ebay.com
12.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	US$ 429	ebay.com
13.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
14.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
15.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
16.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
17.		Panasonic FZ300	132 mm	92 mm	117 mm	691 g	380	Y	Jul 2015	US$ 599	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX1 features a 1/2.3-inch sensor and the Nikon D3400 an APS-C sensor. The sensor area in the D3400 is 1211 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX1 has a native 4:3 aspect ratio, while the one in the D3400 offers a 3:2 aspect.

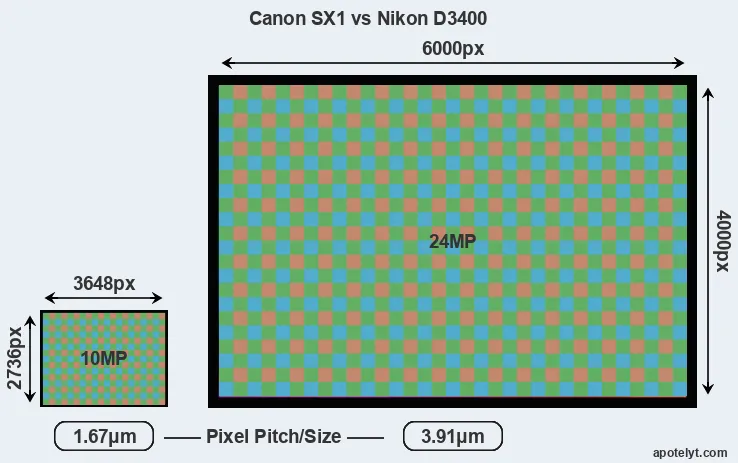

With 24MP, the D3400 offers a higher resolution than the SX1 (10MP), but the D3400 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.67μm for the SX1) due to its larger sensor. Moreover, the D3400 is a much more recent model (by 7 years and 11 months) than the SX1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX1 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Canon PowerShot SX1 IS has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Nikon D3400 are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX1	1/2.3	10.0	3648	2736	1080/30p	19.0	10.3	144	35
2.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
5.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
6.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
7.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
10.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
11.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
12.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
13.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
14.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
15.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
16.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
17.		Panasonic FZ300	1/2.3	12.0	4000	3000	4K/30p	19.3	11.0	97	38
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D3400 provides a faster frame rate than the SX1. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the SX1 has an electronic viewfinder (202k dots), while the D3400 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon SX1, the Nikon D3400, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX1	202	n	2.8 / 230	swivel	n	1/3200s	4.0/s	Y	Y
2.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
5.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
6.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
7.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
10.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
11.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
12.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
13.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
14.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
15.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
16.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
17.		Panasonic FZ300	1440	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The SX1 writes its imaging data to SDHC cards, while the D3400 uses SDXC cards. The D3400 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX1 IS and Nikon D3400 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX1	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
5.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
6.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
7.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y
13.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
15.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Panasonic FZ300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-

Both the SX1 and the D3400 have been discontinued, but can regularly be found used on ebay. The D3400 was replaced by the Nikon D3500, while the SX1 does not have a direct successor. Further information on the features and operation of the SX1 and D3400 can be found, respectively, in the Canon SX1 Manual (free pdf) or the online Nikon D3400 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon SX1 or the Nikon D3400 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot SX1 IS:

• More framing info: Has an electronic viewfinder that displays shooting data.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Ready to shoot: Comes with a built-in lens, while the D3400 requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More heavily discounted: Has been available for much longer (launched in September 2008).

Reasons to prefer the Nikon D3400:

• More detail: Has more megapixels (24 vs 10MP), which boosts linear resolution by 58%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 4 flaps/sec) to capture the decisive moment.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 7 years and 11 months of technical progress since the SX1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the D3400 is the clear winner of the contest (15 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX1 and the Nikon D3400 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX1 and the D3400 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX1	..	+ +	..	+	..	3.5/5	Sep 2008	US$ 599	ebay.com
2.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	US$ 499	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
4.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
5.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
6.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
7.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
9.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	US$ 549	amazon.com
10.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	US$ 599	ebay.com
11.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 499	ebay.com
12.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	US$ 429	ebay.com
13.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
14.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
15.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
16.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
17.		Panasonic FZ300	..	+ +	..	..	4.5/5	4.5/5	Jul 2015	US$ 599	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
