Leica M Typ 240 vs Panasonic GH1

The Leica M (Typ 240) and the Panasonic Lumix DMC-GH1 are two enthusiast cameras that were revealed to the public, respectively, in September 2012 and March 2009. The M Typ 240 is a rangefinder-focusing mirrorless, while the GH1 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (M Typ 240) and a Four Thirds (GH1) sensor. The Leica has a resolution of 23.7 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M Typ 240		Panasonic GH1
Rangefinder camera		Mirrorless system camera
Leica M mount lenses		Micro Four Thirds lenses
23.7 MP – Full Frame sensor		12 MP – Four Thirds sensor
1080/25p Video		1080/24p Video
ISO 200-6,400		ISO 100-1,600 (100 - 3,200)
Optical viewfinder		Electronic viewfinder (1440k dots)
3.0" LCD – 920k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
3 shutter flaps per second		3 shutter flaps per second
Weathersealed body		not weather sealed
500 shots per battery charge		300 shots per battery charge
139 x 80 x 42 mm, 680 g		124 x 90 x 45 mm, 385 g

Check M Typ 240 offers at
ebay.com
Check GH1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M (Typ 240) and the Panasonic Lumix DMC-GH1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

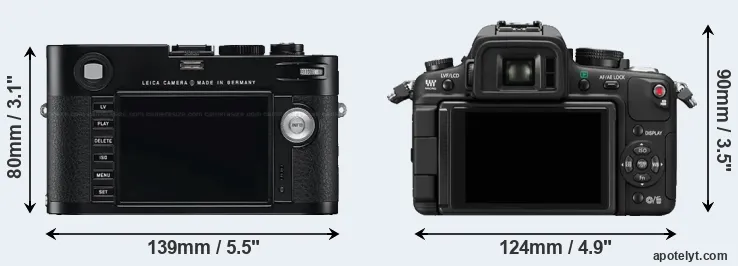

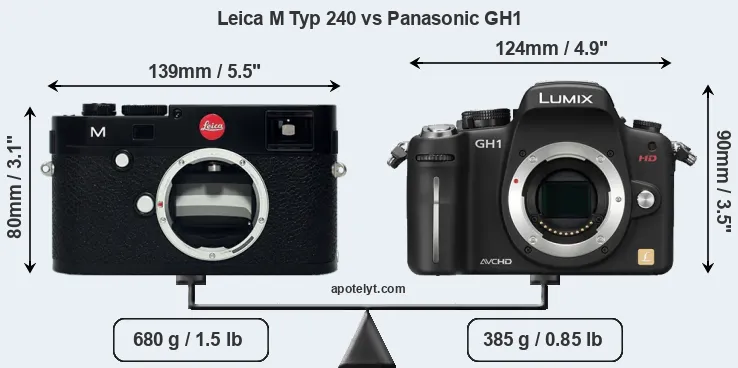

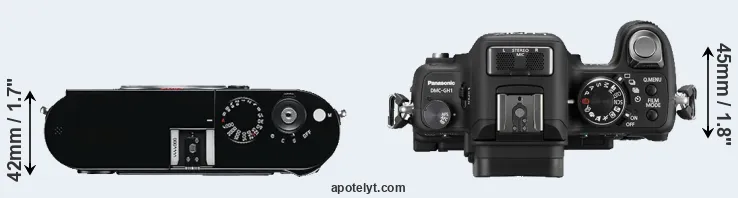

The physical size and weight of the Leica M Typ 240 and the Panasonic GH1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M Typ 240 can be obtained in two different colors (black, silver), while the GH1 is also available in two color-versions, but different ones (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M Typ 240 and the Panasonic GH1 are of equal size. However, the GH1 is substantially lighter (43 percent) than the M Typ 240. It is worth mentioning in this context that the M Typ 240 is splash and dust resistant, while the GH1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica M Lens Catalog (M Typ 240) and the Micro Four Thirds Lens Catalog (GH1).

Concerning battery life, the M Typ 240 gets 500 shots out of its Leica BP-SCL2 battery, while the GH1 can take 300 images on a single charge of its Panasonic DMW-BLB13 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
2.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	US$ 899	ebay.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
4.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
5.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
6.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
7.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
8.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
9.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
10.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
11.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	US$ 1 199	ebay.com
12.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	US$ 599	ebay.com
13.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
14.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
15.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	US$ 749	ebay.com
16.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
17.		Sony RX10	129 mm	88 mm	102 mm	813 g	420	Y	Oct 2013	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GH1 was launched at a markedly lower price (by 87 percent) than the M Typ 240, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

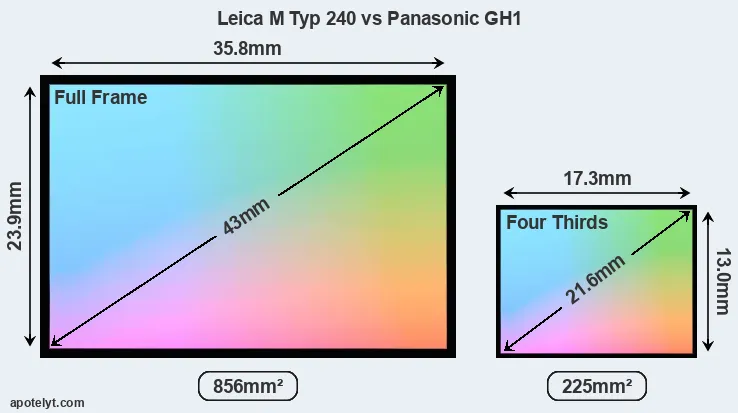

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica M Typ 240 features a full frame sensor and the Panasonic GH1 a Four Thirds sensor. The sensor area in the GH1 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the M Typ 240 has a native 3:2 aspect ratio, while the one in the GH1 offers a 4:3 aspect.

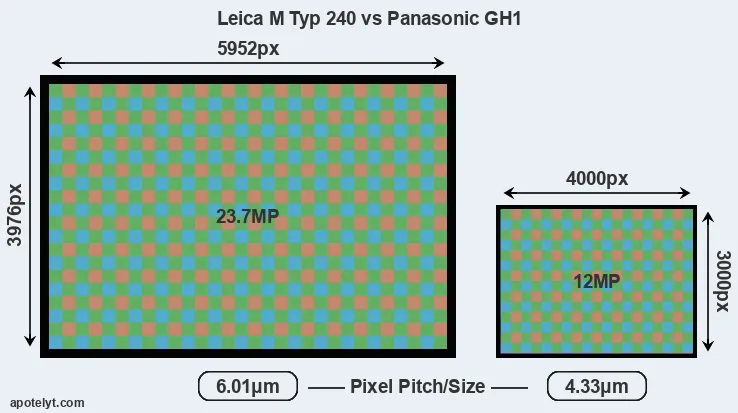

With 23.7MP, the M Typ 240 offers a higher resolution than the GH1 (12MP), but the M Typ 240 nevertheless has larger individual pixels (pixel pitch of 6.01μm versus 4.33μm for the GH1) due to its larger sensor. Moreover, the M Typ 240 is a much more recent model (by 3 years and 6 months) than the GH1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Leica M Typ 240 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M Typ 240 for good quality output (200 dots per inch) amounts to 29.8 x 19.9 inches or 75.6 x 50.5 cm, for very good quality (250 dpi) 23.8 x 15.9 inches or 60.5 x 40.4 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.7 cm. The corresponding values for the Panasonic GH1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Leica M (Typ 240) has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-6400. The corresponding ISO settings for the Panasonic Lumix DMC-GH1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the M Typ 240 provides substantially higher image quality than the GH1, with an overall score that is 20 points higher. This advantage is based on 2.4 bits higher color depth, 1.7 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
2.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
5.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
6.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
7.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
8.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
9.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
10.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
11.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
12.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
13.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
14.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
15.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
16.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
17.		Sony RX10	1-inch	20.0	5472	3648	1080/60p	22.9	12.6	474	69
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M Typ 240 provides a higher frame rate than the GH1. It can shoot video footage at 1080/25p, while the Panasonic is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the GH1 has an electronic viewfinder (1440k dots), while the M Typ 240 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the GH1 has a higher magnification than the one of the M Typ 240 (0.70x vs 0.68x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Leica M Typ 240 and Panasonic GH1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
2.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
5.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
6.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
7.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
8.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
9.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
10.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
11.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
12.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
13.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
14.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
15.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
16.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
17.		Sony RX10	1440	Y	3.0 / 1229	tilting	n	1/3200s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The GH1 has one, while the M Typ 240 does not. While the built-in flash of the GH1 is not very powerful, it can at times be useful as a fill-in light.

The M Typ 240 writes its imaging data to SDXC cards, while the GH1 uses SDHC cards. The M Typ 240 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GH1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M (Typ 240) and Panasonic Lumix DMC-GH1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
2.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
5.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
6.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
7.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
8.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
9.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
10.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
11.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
12.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
13.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
15.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony RX10	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the GH1 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The M Typ 240 does not feature such a mic input.

Both the M Typ 240 and the GH1 have been discontinued, but can regularly be found used on ebay. The GH1 was replaced by the Panasonic GH2, while the M Typ 240 was followed by the Leica M Typ 262. Further information on the features and operation of the M Typ 240 and GH1 can be found, respectively, in the Leica M Typ 240 Manual (free pdf) or the online Panasonic GH1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Leica M Typ 240 and the Panasonic GH1? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Leica M (Typ 240):

• More detail: Offers more megapixels (23.7 vs 12MP) with a 43% higher linear resolution.
• Better image quality: Scores substantially higher (20 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2.4 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.7 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/25p versus 1080/24p).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• Longer lasting: Can take more shots (500 versus 300) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 3 years and 6 months of technical progress since the GH1 launch.

Advantages of the Panasonic Lumix DMC-GH1:

• Better sound: Can connect to an external microphone for higher quality sound recording.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.68x).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Less heavy: Has a lower weight (by 295g or 43 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (87 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in March 2009).

If the count of relative strengths (bullet points above) is taken as a measure, the M Typ 240 is the clear winner of the match-up (13 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M Typ 240 and the GH1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
2.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	US$ 899	ebay.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
4.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
5.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
6.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
7.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
8.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
9.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
10.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
11.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	US$ 1 199	ebay.com
12.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	US$ 599	ebay.com
13.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
14.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
15.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	US$ 749	ebay.com
16.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
17.		Sony RX10	5/5	+	..	80/100	4.5/5	4.5/5	Oct 2013	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check M Typ 240 offers at
ebay.com
Check GH1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check M Typ 240 offers at
ebay.com
Check GH1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
