Leica X Typ 113 vs Olympus E-500

The Leica X (Typ 113) and the Olympus Evolt E-500 are two digital cameras that were announced, respectively, in September 2014 and September 2005. The X Typ 113 is a fixed lens compact, while the E-500 is a DSLR. The cameras are based on an APS-C (X Typ 113) and a Four Thirds (E-500) sensor. The Leica has a resolution of 16.1 megapixels, whereas the Olympus provides 8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica X Typ 113		Olympus E-500
Fixed lens compact camera		Digital single lens reflex
35mm f/1.7		Four Thirds lenses
16.1 MP – APS-C sensor		8 MP – Four Thirds sensor
1080/30p Video		no Video
ISO 100-12,500		ISO 100-400 (100 - 1,600)
Viewfinder optional		Optical viewfinder
3.0" LCD – 920k dots		2.5" LCD – 215k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		2.5 shutter flaps per second
350 shots per battery charge		750 shots per battery charge
133 x 73 x 78 mm, 486 g		130 x 95 x 66 mm, 479 g

Check X Typ 113 offers at
ebay.com
Check E-500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica X (Typ 113) and the Olympus Evolt E-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

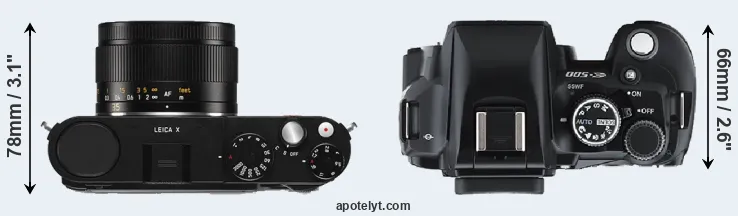

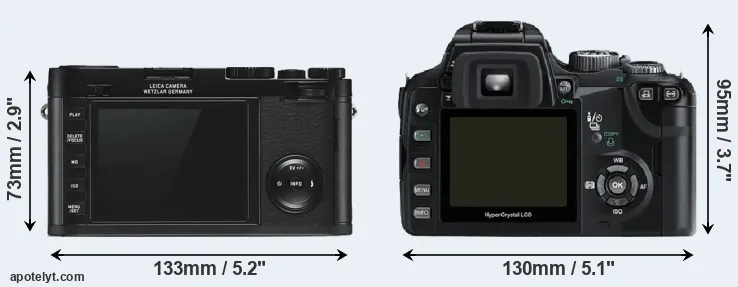

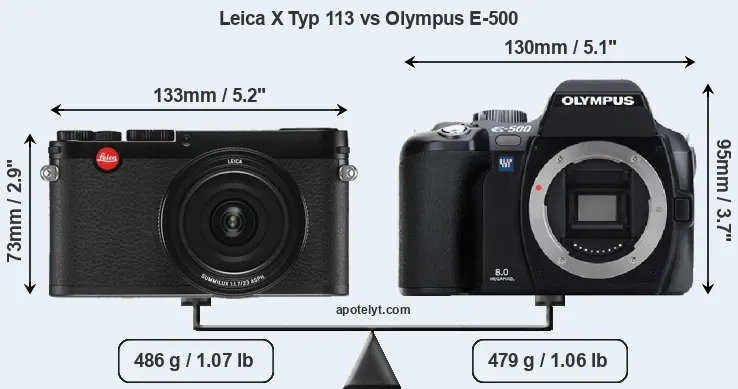

An illustration of the physical size and weight of the Leica X Typ 113 and the Olympus E-500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The X Typ 113 can be obtained in three different colors (black, brown, white), while the E-500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-500 is notably larger (27 percent) than the Leica X Typ 113. In this context, it is worth noting that neither the X Typ 113 nor the E-500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X Typ 113 has a lens built in, whereas the E-500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-500 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the X Typ 113 gets 350 shots out of its Leica BP-DC8 battery, while the E-500 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	US$ 2 299	ebay.com
2.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	US$ 599	ebay.com
3.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
4.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	US$ 1 299	ebay.com
5.		Fujifilm X100T	127 mm	74 mm	52 mm	440 g	330	n	Sep 2014	US$ 1 299	ebay.com
6.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	US$ 1 195	ebay.com
7.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	US$ 849	ebay.com
8.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
9.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
10.		Nikon L840	113 mm	78 mm	96 mm	538 g	590	n	Feb 2015	US$ 299	ebay.com
11.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
13.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	US$ 699	ebay.com
14.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
15.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
16.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
17.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

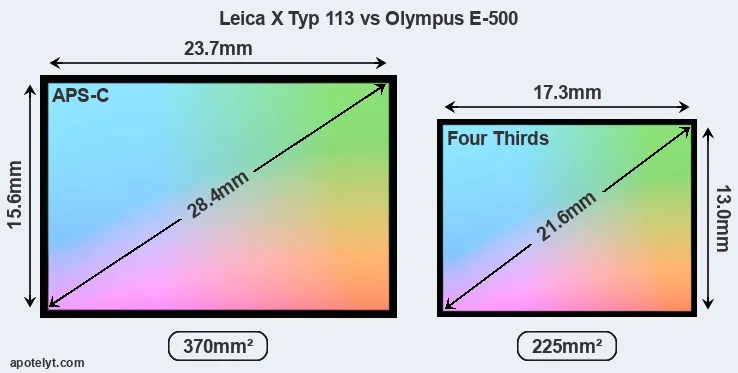

Of the two cameras under consideration, the Leica X Typ 113 features an APS-C sensor and the Olympus E-500 a Four Thirds sensor. The sensor area in the E-500 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X Typ 113 has a native 3:2 aspect ratio, while the one in the E-500 offers a 4:3 aspect.

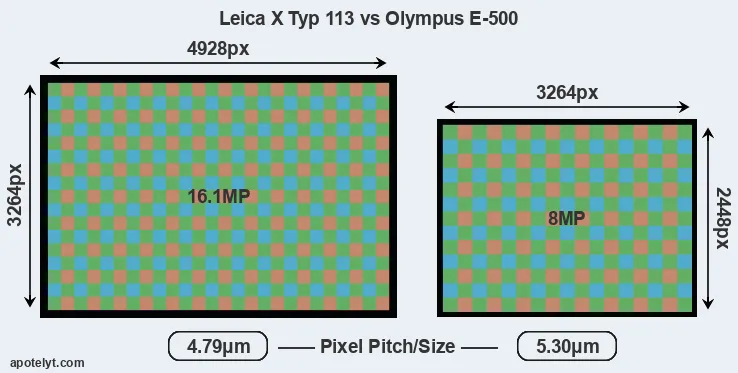

With 16.1MP, the X Typ 113 offers a higher resolution than the E-500 (8MP), but the X Typ 113 has smaller individual pixels (pixel pitch of 4.79μm versus 5.30μm for the E-500). However, the X Typ 113 is a much more recent model (by 8 years and 11 months) than the E-500, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Leica X Typ 113 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X Typ 113 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.

The Leica X (Typ 113) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus Evolt E-500 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.

In terms of underlying technology, the X Typ 113 is build around a CMOS sensor, while the E-500 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
2.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
3.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
4.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
5.		Fujifilm X100T	APS-C	16.0	4896	3264	1080/60p	23.6	12.8	1483	78
6.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
7.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
8.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
9.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
10.		Nikon L840	1/2.3	15.9	4608	3456	1080/60i	20.2	11.6	721	47
11.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
12.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
13.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
14.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
15.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
16.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
17.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The X Typ 113 indeed provides movie recording capabilities, while the E-500 does not. The highest resolution format that the X Typ 113 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X Typ 113 relies on live view and the rear LCD for framing. That said, the X Typ 113 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The following table reports on some other key feature differences and similarities of the Leica X Typ 113, the Olympus E-500, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
2.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
3.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
4.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
5.		Fujifilm X100T	2360	n	3.0 / 1040	fixed	n	1/4000s	6.0/s	Y	n
6.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
7.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
8.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
9.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
10.		Nikon L840	none	n	3.0 / 921	tilting	n	1/4000s	7.4/s	Y	Y
11.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
12.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
13.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
14.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
15.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
16.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
17.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The X Typ 113 writes its imaging data to SDXC cards, while the E-500 uses Compact Flash or xD Picture cards. The E-500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the X Typ 113 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica X (Typ 113) and Olympus Evolt E-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
5.		Fujifilm X100T	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
9.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon L840	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
16.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
17.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

Both the X Typ 113 and the E-500 have been discontinued, but can regularly be found used on ebay. The E-500 was replaced by the Olympus E-510, while the X Typ 113 does not have a direct successor. Further information on the features and operation of the X Typ 113 and E-500 can be found, respectively, in the Leica X Typ 113 Manual (free pdf) or the online Olympus E-500 Manual.

Review summary

So how do things add up? Is the Leica X Typ 113 better than the Olympus E-500 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Leica X (Typ 113):

• More detail: Offers more megapixels (16.1 vs 8MP) with a 45% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 215k dots).
• Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the E-500 requires a separate lens.
• More compact: Is smaller (133x73mm vs 130x95mm) and thus needs less room in the bag.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 8 years and 11 months of technical progress since the E-500 launch.

Arguments in favor of the Olympus Evolt E-500:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (750 versus 350) out of a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in September 2005).

If the number of relative strengths (bullet points above) is taken as a guide, the X Typ 113 is the clear winner of the match-up (13 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica X Typ 113 and the Olympus E-500 place the cameras among the top in their class? Find out in the latest Best Prime Lens Compact Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X Typ 113 or the E-500 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	US$ 2 299	ebay.com
2.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	US$ 599	ebay.com
3.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
4.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	US$ 1 299	ebay.com
5.		Fujifilm X100T	5/5	+	..	81/100	4.5/5	5/5	Sep 2014	US$ 1 299	ebay.com
6.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	US$ 1 195	ebay.com
7.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	US$ 849	ebay.com
8.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
9.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
10.		Nikon L840	..	+ +	..	..	3.5/5	4/5	Feb 2015	US$ 299	ebay.com
11.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
13.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	US$ 699	ebay.com
14.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
15.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
16.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
17.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
