Nikon D1X vs D5100

The Nikon D1X and the Nikon D5100 are two digital cameras that were revealed to the public, respectively, in February 2001 and April 2011. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The D1X has a resolution of 5.9 megapixels, whereas the D5100 provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D1X		Nikon D5100
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Nikon F mount lenses
5.9 MP – APS-C sensor		16.1 MP – APS-C sensor
no Video		1080/30p Video
ISO 125-800 (125 - 3,200)		ISO 100-6,400 (100 - 25,600)
Optical viewfinder		Optical viewfinder
2.0" LCD – 120k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
3 shutter flaps per second		4 shutter flaps per second
Weathersealed body		not weather sealed
1200 shots per battery charge		660 shots per battery charge
157 x 153 x 85 mm, 1100 g		128 x 97 x 79 mm, 560 g

Check D1X offers at
ebay.com
Check D5100 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D1X and the Nikon D5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

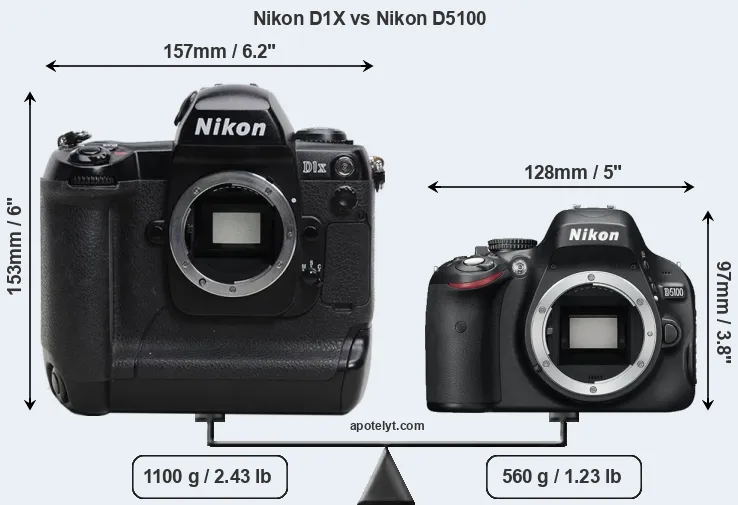

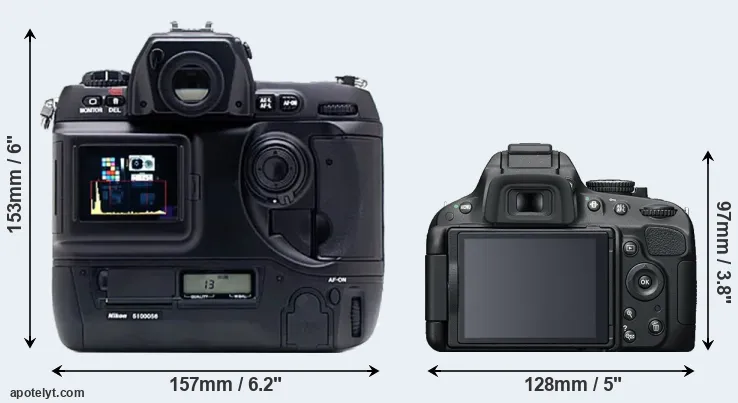

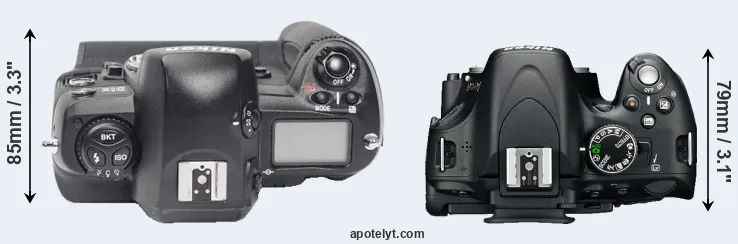

The side-by-side display below illustrates the physical size and weight of the Nikon D1X and the Nikon D5100. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5100 is considerably smaller (48 percent) than the Nikon D1X. Moreover, the D5100 is substantially lighter (49 percent) than the D1X. It is worth mentioning in this context that the D1X is splash and dust resistant, while the D5100 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Nikon Lens Catalog.

Concerning battery life, the D1X gets 1200 shots out of its Nikon EN-4 battery, while the D5100 can take 660 images on a single charge of its Nikon EN-EL14 power pack. As can be seen in the images above, the D1X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D5100, there are third party battery grips available as optional accessories (see here on ebay).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D1X	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	US$ 5 999	ebay.com
2.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	US$ 749	ebay.com
3.		Nikon D1	157 mm	153 mm	85 mm	1100 g	..	Y	Jun 1999	US$ 5 499	ebay.com
4.		Nikon D1H	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	US$ 4 499	ebay.com
5.		Nikon D2X	158 mm	150 mm	86 mm	1252 g	3800	Y	Sep 2004	US$ 4 999	ebay.com
6.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
7.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
8.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	US$ 5 999	ebay.com
9.		Nikon D100	144 mm	116 mm	81 mm	780 g	370	n	Feb 2002	US$ 1 999	ebay.com
10.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
11.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	US$ 1 799	ebay.com
12.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
13.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	US$ 599	ebay.com
14.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	US$ 749	ebay.com
15.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	US$ 749	ebay.com
16.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
17.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D5100 was launched at a markedly lower price (by 88 percent) than the D1X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

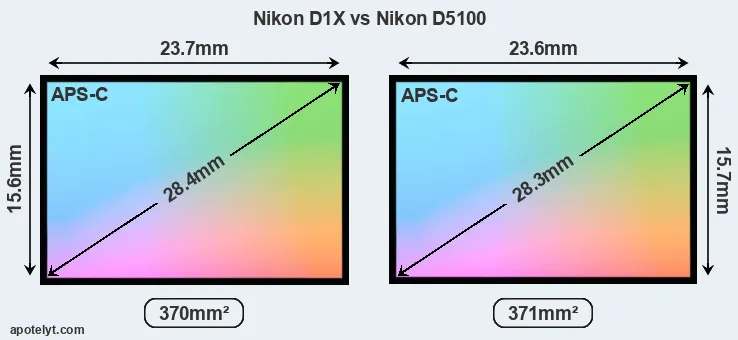

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

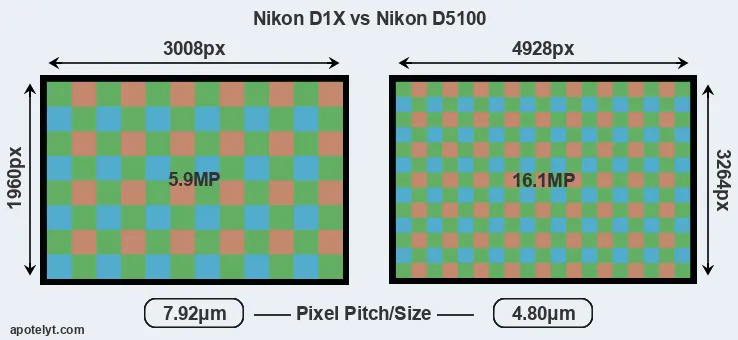

With 16.1MP, the D5100 offers a higher resolution than the D1X (5.9MP), but the D5100 has smaller individual pixels (pixel pitch of 4.80μm versus 7.92μm for the D1X). Yet, the D5100 is a much more recent model (by 10 years and 2 months) than the D1X, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Nikon D5100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5100 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Nikon D1X are 15 x 9.8 inches or 38.2 x 24.9 cm for good quality, 12 x 7.8 inches or 30.6 x 19.9 cm for very good quality, and 10 x 6.5 inches or 25.5 x 16.6 cm for excellent quality prints.

The Nikon D1X has a native sensitivity range from ISO 125 to ISO 800, which can be extended to ISO 125-3200. The corresponding ISO settings for the Nikon D5100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the D1X is build around a CCD sensor, while the D5100 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D1X	APS-C	5.9	3008	1960	none	..	..	..	..
2.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
3.		Nikon D1	APS-C	2.6	2000	1312	none	..	..	..	..
4.		Nikon D1H	APS-C	2.6	2000	1312	none	..	..	..	..
5.		Nikon D2X	APS-C	12.2	4288	2848	none	22.1	10.9	476	59
6.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
7.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
8.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
9.		Nikon D100	APS-C	6.0	3008	2000	none	20.4	9.9	394	48
10.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
11.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
12.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
13.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
14.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
15.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
16.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
17.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The D5100 indeed provides for movie recording, while the D1X does not. The highest resolution format that the D5100 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The D1X and the D5100 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D1X offers a wider field of view (96%) than the one in the D5100 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D1X has a higher magnification (0.53x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D1X, the Nikon D5100, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D1X	optical	Y	2.0 / 120	fixed	n	1/16000s	3.0/s	n	n
2.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
3.		Nikon D1	optical	Y	2.0 / 120	fixed	n	1/16000s	4.5/s	n	n
4.		Nikon D1H	optical	Y	2.0 / 120	fixed	n	1/16000s	5.0/s	n	n
5.		Nikon D2X	optical	Y	2.5 / 235	fixed	n	1/8000s	5.0/s	n	n
6.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
7.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
8.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
9.		Nikon D100	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
10.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
11.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
12.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
13.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
15.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
16.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
17.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D1X, but is missing on the D5100 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Nikon D5100 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D1X writes its imaging data to Compact Flash cards, while the D5100 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D1X and Nikon D5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D1X	Y	- / -	-	-	-	FW	-	-	-
2.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
3.		Nikon D1	Y	- / -	-	-	-	FW	-	-	-
4.		Nikon D1H	Y	- / -	-	-	-	FW	-	-	-
5.		Nikon D2X	Y	- / -	-	-	-	2.0	-	-	-
6.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
7.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
9.		Nikon D100	Y	- / -	-	-	-	1.1	-	-	-
10.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
12.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
14.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
17.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y

Studio photographers will appreciate that the Nikon D1X (unlike the D5100) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D1X and the D5100 have been discontinued, but can regularly be found used on ebay. The D1X was replaced by the Nikon D2X, while the D5100 was followed by the Nikon D5200. Further information on the features and operation of the D1X and D5100 can be found, respectively, in the Nikon D1X Manual (free pdf) or the online Nikon D5100 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Nikon D1X and the Nikon D5100? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Nikon D1X:

• More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.51x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (1200 versus 660) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in February 2001).

Reasons to prefer the Nikon D5100:

• More detail: Has more megapixels (16.1 vs 5.9MP), which boosts linear resolution by 65%.
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 120k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (4 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (128x97mm vs 157x153mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 540g or 49 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
• More modern: Reflects 10 years and 2 months of technical progress since the D1X launch.

If the number of relative strengths (bullet points above) is taken as a guide, the D5100 is the clear winner of the contest (13 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D1X and the Nikon D5100 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D1X or the D5100. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D1X	..	..	..	+ +	..	..	Feb 2001	US$ 5 999	ebay.com
2.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	US$ 749	ebay.com
3.		Nikon D1	..	..	..	+ +	..	..	Jun 1999	US$ 5 499	ebay.com
4.		Nikon D1H	..	..	..	+ +	..	..	Feb 2001	US$ 4 499	ebay.com
5.		Nikon D2X	..	..	..	+ +	..	..	Sep 2004	US$ 4 999	ebay.com
6.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
7.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
8.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	US$ 5 999	ebay.com
9.		Nikon D100	..	..	..	+ +	o	..	Feb 2002	US$ 1 999	ebay.com
10.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
11.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	US$ 1 799	ebay.com
12.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
13.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	US$ 599	ebay.com
14.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	US$ 749	ebay.com
15.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	US$ 749	ebay.com
16.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
17.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
