Olympus E-M1 vs XZ-1
The Olympus OM-D E-M1 and the Olympus XZ-1 are two digital cameras that were announced, respectively, in September 2013 and January 2011. The E-M1 is a mirrorless interchangeable lens camera, while the XZ-1 is a fixed lens compact. The cameras are based on a Four Thirds (E-M1) and a 1/1.7-inch (XZ-1) sensor. The E-M1 has a resolution of 15.9 megapixels, whereas the XZ-1 provides 10.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Check E-M1 offers at
ebay.com

Check XZ-1 offers at
ebay.com
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

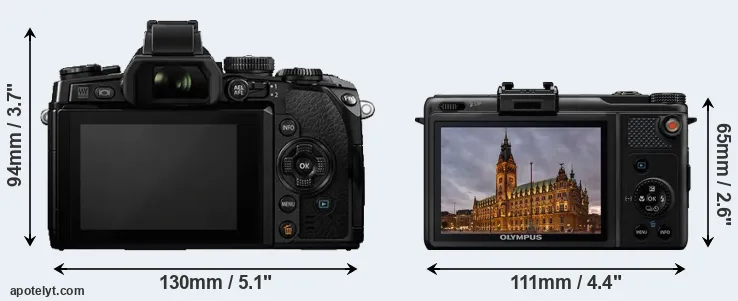

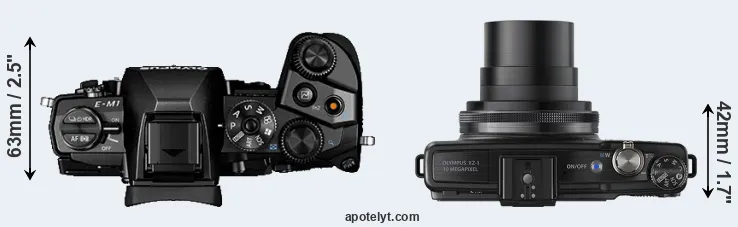

The side-by-side display below illustrates the physical size and weight of the Olympus E-M1 and the Olympus XZ-1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M1 can be obtained in two different colors (black, silver), while the XZ-1 is also available in two color-versions, but different ones (black, white).



If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-1 is considerably smaller (41 percent) than the Olympus E-M1. It is worth mentioning in this context that the E-M1 is splash and dust resistant, while the XZ-1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the E-M1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M1 and their specifications in the Micro Four Thirds Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

| Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-M1 | 130 mm | 94 mm | 63 mm | 497 g | 350 | Y | Sep 2013 | US$ 1 399 | ebay.com | |
| 2. | Olympus XZ-1 | 111 mm | 65 mm | 42 mm | 275 g | 320 | n | Jan 2011 | US$ 499 | ebay.com | |
| 3. | Olympus E-M1 II | 134 mm | 91 mm | 67 mm | 574 g | 440 | Y | Sep 2016 | US$ 1 999 | ebay.com | |
| 4. | Olympus E-M5 | 122 mm | 89 mm | 43 mm | 425 g | 360 | Y | Feb 2012 | US$ 1 299 | ebay.com | |
| 5. | Olympus E-M5 II | 124 mm | 85 mm | 45 mm | 469 g | 310 | Y | Feb 2015 | US$ 1 099 | ebay.com | |
| 6. | Olympus E-P5 | 122 mm | 69 mm | 37 mm | 420 g | 330 | n | May 2013 | US$ 999 | ebay.com | |
| 7. | Olympus E-PL1 | 115 mm | 72 mm | 42 mm | 334 g | 290 | n | Feb 2010 | US$ 599 | ebay.com | |
| 8. | Olympus E-PL3 | 110 mm | 64 mm | 37 mm | 313 g | 300 | n | Jun 2011 | US$ 599 | ebay.com | |
| 9. | Olympus E-PL5 | 111 mm | 64 mm | 38 mm | 325 g | 360 | n | Sep 2012 | US$ 599 | ebay.com | |
| 10. | Olympus E-PL7 | 115 mm | 67 mm | 38 mm | 357 g | 350 | n | Aug 2014 | US$ 599 | ebay.com | |
| 11. | Olympus E-PM1 | 110 mm | 64 mm | 34 mm | 265 g | 330 | n | Jun 2011 | US$ 499 | ebay.com | |
| 12. | Olympus E-PM2 | 110 mm | 64 mm | 34 mm | 269 g | 360 | n | Sep 2012 | US$ 499 | ebay.com | |
| 13. | Olympus PEN-F | 125 mm | 72 mm | 37 mm | 427 g | 330 | n | Jan 2016 | US$ 1 199 | ebay.com | |
| 14. | Olympus XZ-2 | 113 mm | 65 mm | 48 mm | 346 g | 340 | n | Sep 2012 | US$ 599 | ebay.com | |
| 15. | Panasonic GH3 | 133 mm | 93 mm | 82 mm | 550 g | 540 | Y | Sep 2012 | US$ 1 299 | ebay.com | |
| 16. | Panasonic GH4 | 133 mm | 93 mm | 84 mm | 560 g | 500 | Y | Feb 2014 | US$ 1 499 | ebay.com | |
| 17. | Panasonic LX5 | 110 mm | 65 mm | 43 mm | 271 g | 400 | n | Jul 2010 | US$ 499 | ebay.com | |
| Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XZ-1 was launched at a lower price than the E-M1, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Olympus E-M1 features a Four Thirds sensor and the Olympus XZ-1 a 1/1.7-inch sensor. The sensor area in the XZ-1 is 80 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 4.4. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of chip-set technology, the E-M1 uses a more advanced image processing engine (TruePIC VII) than the XZ-1 (TruePic V), with benefits for noise reduction, color accuracy, and processing speed.

With 15.9MP, the E-M1 offers a higher resolution than the XZ-1 (10.1MP), but the E-M1 nevertheless has larger individual pixels (pixel pitch of 3.76μm versus 2.13μm for the XZ-1) due to its larger sensor. Moreover, the E-M1 is a much more recent model (by 2 years and 8 months) than the XZ-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus E-M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.
The E-M1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Olympus OM-D E-M1 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).
In terms of underlying technology, the E-M1 is build around a CMOS sensor, while the XZ-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the E-M1 provides substantially higher image quality than the XZ-1, with an overall score that is 39 points higher. This advantage is based on 4.2 bits higher color depth, 2.3 EV in additional dynamic range, and 2.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

| Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-M1 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 23.0 | 12.7 | 757 | 73 | |
| 2. | Olympus XZ-1 | 1/1.7 | 10.1 | 3664 | 2752 | 720/30p | 18.8 | 10.4 | 117 | 34 | |
| 3. | Olympus E-M1 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.7 | 12.8 | 1312 | 80 | |
| 4. | Olympus E-M5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/60i | 22.8 | 12.3 | 826 | 71 | |
| 5. | Olympus E-M5 II | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 23.0 | 12.5 | 842 | 73 | |
| 6. | Olympus E-P5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.4 | 895 | 72 | |
| 7. | Olympus E-PL1 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.5 | 10.1 | 487 | 54 | |
| 8. | Olympus E-PL3 | Four Thirds | 12.2 | 4032 | 3024 | 1080/60i | 20.9 | 10.3 | 499 | 52 | |
| 9. | Olympus E-PL5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.3 | 889 | 72 | |
| 10. | Olympus E-PL7 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.7 | 12.4 | 873 | 72 | |
| 11. | Olympus E-PM1 | Four Thirds | 12.2 | 4032 | 3024 | 1080/60i | 21.0 | 10.3 | 499 | 52 | |
| 12. | Olympus E-PM2 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.7 | 12.2 | 932 | 72 | |
| 13. | Olympus PEN-F | Four Thirds | 20.2 | 5184 | 3888 | 1080/60p | 23.1 | 12.4 | 894 | 74 | |
| 14. | Olympus XZ-2 | 1/1.7 | 11.8 | 3968 | 2976 | 1080/30p | 20.4 | 11.3 | 216 | 49 | |
| 15. | Panasonic GH3 | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 22.7 | 12.4 | 812 | 71 | |
| 16. | Panasonic GH4 | Four Thirds | 15.9 | 4608 | 3456 | 4K/30p | 23.2 | 12.8 | 791 | 74 | |
| 17. | Panasonic LX5 | 1/1.7 | 10.0 | 3648 | 2736 | 720/60p | 19.6 | 10.8 | 132 | 41 |
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M1 provides a higher video resolution than the XZ-1. It can shoot video footage at 1080/30p, while the XZ-1 is limited to 720/30p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M1 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XZ-1 relies on live view and the rear LCD for framing. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Olympus E-M1, the Olympus XZ-1, and comparable cameras.

| Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-M1 | 2360 | n | 3.0 / 1037 | tilting | Y | 1/8000s | 10.0/s | n | Y | |
| 2. | Olympus XZ-1 | optional | n | 3.0 / 614 | fixed | n | 1/2000s | 2.0/s | Y | Y | |
| 3. | Olympus E-M1 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 18.0/s | n | Y | |
| 4. | Olympus E-M5 | 1440 | n | 3.0 / 610 | tilting | Y | 1/4000s | 9.0/s | n | Y | |
| 5. | Olympus E-M5 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| 6. | Olympus E-P5 | optional | n | 3.0 / 1037 | tilting | Y | 1/8000s | 9.0/s | Y | Y | |
| 7. | Olympus E-PL1 | optional | n | 2.7 / 230 | fixed | n | 1/2000s | 3.0/s | Y | Y | |
| 8. | Olympus E-PL3 | optional | n | 3.0 / 460 | tilting | n | 1/4000s | 5.5/s | n | Y | |
| 9. | Olympus E-PL5 | optional | n | 3.0 / 460 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
| 10. | Olympus E-PL7 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
| 11. | Olympus E-PM1 | optional | n | 3.0 / 460 | fixed | n | 1/4000s | 5.5/s | n | Y | |
| 12. | Olympus E-PM2 | optional | n | 3.0 / 460 | fixed | Y | 1/4000s | 8.0/s | n | Y | |
| 13. | Olympus PEN-F | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| 14. | Olympus XZ-2 | optional | n | 3.0 / 920 | tilting | Y | 1/2000s | 5.0/s | Y | Y | |
| 15. | Panasonic GH3 | 1746 | n | 3.0 / 614 | swivel | Y | 1/4000s | 6.0/s | Y | n | |
| 16. | Panasonic GH4 | 2359 | n | 3.0 / 1036 | swivel | Y | 1/8000s | 12.0/s | Y | n | |
| 17. | Panasonic LX5 | optional | n | 3.0 / 460 | fixed | n | 1/4000s | 2.5/s | Y | Y | |
| Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. | |||||||||||
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M1 has a touchscreen, while the XZ-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 and the Olympus XZ-1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M1 and the XZ-1 write their files to SDXC cards. The E-M1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XZ-1 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

| Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-M1 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
| 2. | Olympus XZ-1 | Y | mono / - | - | - | mini | 2.0 | - | - | - | |
| 3. | Olympus E-M1 II | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | - | |
| 4. | Olympus E-M5 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
| 5. | Olympus E-M5 II | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
| 6. | Olympus E-P5 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
| 7. | Olympus E-PL1 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
| 8. | Olympus E-PL3 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
| 9. | Olympus E-PL5 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
| 10. | Olympus E-PL7 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
| 11. | Olympus E-PM1 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
| 12. | Olympus E-PM2 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
| 13. | Olympus PEN-F | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
| 14. | Olympus XZ-2 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
| 15. | Panasonic GH3 | Y | stereo / mono | Y | Y | mini | 2.0 | Y | - | - | |
| 16. | Panasonic GH4 | Y | stereo / mono | Y | Y | micro | 2.0 | Y | Y | - | |
| 17. | Panasonic LX5 | Y | mono / mono | - | - | mini | 2.0 | - | - | - |
It is notable that the E-M1 has a microphone port, which is missing on the XZ-1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Olympus E-M1 (unlike the XZ-1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-M1 and the XZ-1 have been discontinued, but can regularly be found used on ebay. The XZ-1 was replaced by the Olympus XZ-2, while the E-M1 was followed by the Olympus E-M1 II. Further information on the features and operation of the E-M1 and XZ-1 can be found, respectively, in the Olympus E-M1 Manual (free pdf) or the online Olympus XZ-1 Manual.
Review summary
So what is the bottom line? Is the Olympus E-M1 better than the Olympus XZ-1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Olympus OM-D E-M1:
- More detail: Offers more megapixels (15.9 vs 10.1MP) with a 26% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (39 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (4.2 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.7 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (TruePIC VII vs TruePic V).
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 614k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 2 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 8 months of technical progress since the XZ-1 launch.
Reasons to prefer the Olympus XZ-1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Ready to shoot: Has an integrated lens, whereas the E-M1 necessitates an extra lens.
- More compact: Is smaller (111x65mm vs 130x94mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the E-M1).
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in January 2011).
If the number of relative strengths (bullet points above) is taken as a guide, the E-M1 is the clear winner of the match-up (23 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M1 and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-M1 or the XZ-1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

| Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Olympus E-M1 | 5/5 | + + | .. | 84/100 | 4.5/5 | 4.5/5 | Sep 2013 | US$ 1 399 | ebay.com | |
| 2. | Olympus XZ-1 | 4/5 | .. | .. | 74/100 | 4.5/5 | 4.5/5 | Jan 2011 | US$ 499 | ebay.com | |
| 3. | Olympus E-M1 II | 5/5 | + + | 5/5 | 85/100 | 4.5/5 | 4.5/5 | Sep 2016 | US$ 1 999 | ebay.com | |
| 4. | Olympus E-M5 | 4/5 | + + | .. | 80/100 | 4.5/5 | 5/5 | Feb 2012 | US$ 1 299 | ebay.com | |
| 5. | Olympus E-M5 II | 5/5 | + + | 4.5/5 | 81/100 | 5/5 | 5/5 | Feb 2015 | US$ 1 099 | ebay.com | |
| 6. | Olympus E-P5 | 5/5 | + + | .. | 78/100 | 4.5/5 | 5/5 | May 2013 | US$ 999 | ebay.com | |
| 7. | Olympus E-PL1 | .. | 86/100 | .. | 69/100 | 4/5 | 4.5/5 | Feb 2010 | US$ 599 | ebay.com | |
| 8. | Olympus E-PL3 | 3/5 | + + | .. | 72/100 | 4.5/5 | 4/5 | Jun 2011 | US$ 599 | ebay.com | |
| 9. | Olympus E-PL5 | 3/5 | + + | .. | .. | 4.5/5 | 4.5/5 | Sep 2012 | US$ 599 | ebay.com | |
| 10. | Olympus E-PL7 | 4/5 | + | .. | .. | 5/5 | 4/5 | Aug 2014 | US$ 599 | ebay.com | |
| 11. | Olympus E-PM1 | .. | 86/100 | .. | 71/100 | 4.5/5 | 4.5/5 | Jun 2011 | US$ 499 | ebay.com | |
| 12. | Olympus E-PM2 | 3/5 | .. | .. | 77/100 | 5/5 | 4.5/5 | Sep 2012 | US$ 499 | ebay.com | |
| 13. | Olympus PEN-F | .. | .. | 4/5 | 82/100 | 4.5/5 | 5/5 | Jan 2016 | US$ 1 199 | ebay.com | |
| 14. | Olympus XZ-2 | 4/5 | + | .. | .. | 4.5/5 | 4.5/5 | Sep 2012 | US$ 599 | ebay.com | |
| 15. | Panasonic GH3 | 5/5 | + + | .. | 79/100 | 4.5/5 | 4.5/5 | Sep 2012 | US$ 1 299 | ebay.com | |
| 16. | Panasonic GH4 | 5/5 | + + | .. | 85/100 | 5/5 | 5/5 | Feb 2014 | US$ 1 499 | ebay.com | |
| 17. | Panasonic LX5 | 4/5 | + | .. | 73/100 | 4.5/5 | 4.5/5 | Jul 2010 | US$ 499 | ebay.com | |
| Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. | |||||||||||
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check E-M1 offers at
ebay.com

Check XZ-1 offers at
ebay.com
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon T2i vs Olympus E-M1
- Canon T6i vs Olympus E-M1
- Fujifilm XQ2 vs Olympus XZ-1
- Nikon 1 V1 vs Olympus E-M1
- Nikon D500 vs Olympus XZ-1
- Nikon D7000 vs Olympus E-M1
- Nikon D80 vs Olympus E-M1
- Olympus E-M1 II vs Olympus XZ-1
- Olympus E-M1 vs Pentax K-3 II
- Olympus XZ-1 vs Panasonic FZ330
- Olympus XZ-1 vs Panasonic G100
- Olympus XZ-1 vs Sony NEX-5N
Specifications: Olympus E-M1 vs Olympus XZ-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
| Camera Model | Olympus E-M1 | Olympus XZ-1 |
|---|---|---|
| Camera Type | Mirrorless system camera | Fixed lens compact camera |
| Camera Lens | Micro Four Thirds lenses | 28-112mm f/1.8-2.5 |
| Launch Date | September 2013 | January 2011 |
| Launch Price | USD 1,399 | USD 499 |
| Sensor Specs | Olympus E-M1 | Olympus XZ-1 |
| Sensor Technology | CMOS | CCD |
| Sensor Format | Four Thirds Sensor | 1/1.7" Sensor |
| Sensor Size | 17.3 x 13.0 mm | 7.85 x 5.89 mm |
| Sensor Area | 224.9 mm2 | 46.2365 mm2 |
| Sensor Diagonal | 21.6 mm | 9.8 mm |
| Crop Factor | 2.0x | 4.4x |
| Sensor Resolution | 15.9 Megapixels | 10.1 Megapixels |
| Image Resolution | 4608 x 3456 pixels | 3664 x 2752 pixels |
| Pixel Pitch | 3.76 μm | 2.13 μm |
| Pixel Density | 7.08 MP/cm2 | 21.81 MP/cm2 |
| Moiré control | no AA filter | Anti-Alias filter |
| Movie Capability | 1080/30p Video | 720/30p Video |
| ISO Setting | 200 - 25,600 ISO | 100 - 6,400 ISO |
| ISO Boost | 100 - 25,600 ISO | no Enhancement |
| Image Processor | TruePIC VII | TruePic V |
| DXO Sensor Quality (score) | 73 | 34 |
| DXO Color Depth (bits) | 23.0 | 18.8 |
| DXO Dynamic Range (EV) | 12.7 | 10.4 |
| DXO Low Light (ISO) | 757 | 117 |
| Screen Specs | Olympus E-M1 | Olympus XZ-1 |
| Viewfinder Type | Electronic viewfinder | Viewfinder optional |
| Viewfinder Field of View | 100% | |
| Viewfinder Magnification | 0.74x | |
| Viewfinder Resolution | 2360k dots | |
| LCD Framing | Live View | Live View |
| Rear LCD Size | 3.0inch | 3.0inch |
| LCD Resolution | 1037k dots | 614k dots |
| LCD Attachment | Tilting screen | Fixed screen |
| Touch Input | Touchscreen | no Touchscreen |
| Shooting Specs | Olympus E-M1 | Olympus XZ-1 |
| Focus System | On-Sensor Phase-detect | Contrast-detect AF |
| Manual Focusing Aid | Focus Peaking | no Peaking Feature |
| Continuous Shooting | 10 shutter flaps/s | 2 shutter flaps/s |
| Electronic Shutter | YES | no E-Shutter |
| Time-Lapse Photography | Intervalometer built-in | Intervalometer built-in |
| Image Stabilization | In-body stabilization | In-body stabilization |
| Fill Flash | no On-Board Flash | Built-in Flash |
| Storage Medium | SDXC cards | SDXC cards |
| Single or Dual Card Slots | Single card slot | Single card slot |
| UHS card support | UHS-I | no |
| Connectivity Specs | Olympus E-M1 | Olympus XZ-1 |
| External Flash | Hotshoe | Hotshoe |
| Studio Flash | PC Sync socket | no PC Sync |
| USB Connector | USB 2.0 | USB 2.0 |
| HDMI Port | micro HDMI | mini HDMI |
| Microphone Port | External MIC port | no MIC socket |
| Wifi Support | Wifi built-in | no Wifi |
| Body Specs | Olympus E-M1 | Olympus XZ-1 |
| Environmental Sealing | Weathersealed body | not weather sealed |
| Battery Type | Olympus BLN-1 | Olympus Li-50B |
| Battery Life (CIPA) | 350 shots per charge | 320 shots per charge |
| Body Dimensions |
130 x 94 x 63 mm (5.1 x 3.7 x 2.5 in) |
111 x 65 x 42 mm (4.4 x 2.6 x 1.7 in) |
| Camera Weight | 497 g (17.5 oz) | 275 g (9.7 oz) |

Check E-M1 offers at
ebay.com

Check XZ-1 offers at
ebay.com
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
