Olympus E-P5 vs Stylus 1

The Olympus PEN E-P5 and the Olympus Stylus 1 are two digital cameras that were revealed to the public, respectively, in May 2013 and October 2013. The E-P5 is a mirrorless interchangeable lens camera, while the Stylus 1 is a fixed lens compact. The cameras are based on a Four Thirds (E-P5) and a 1/1.7-inch (Stylus 1) sensor. The E-P5 has a resolution of 15.9 megapixels, whereas the Stylus 1 provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-P5		Olympus Stylus 1
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		28-300mm f/2.8
15.9 MP – Four Thirds sensor		11.8 MP – 1/1.7" sensor
1080/30p Video		1080/30p Video
ISO 200-25,600		ISO 100-12,800
Viewfinder optional		Electronic viewfinder (1440k dots)
3.0" LCD – 1037k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Tilting touchscreen
9 shutter flaps per second		7 shutter flaps per second
In-body stabilization		Lens-based stabilization
330 shots per battery charge		410 shots per battery charge
122 x 69 x 37 mm, 420 g		116 x 87 x 57 mm, 402 g

Check E-P5 offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P5 and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

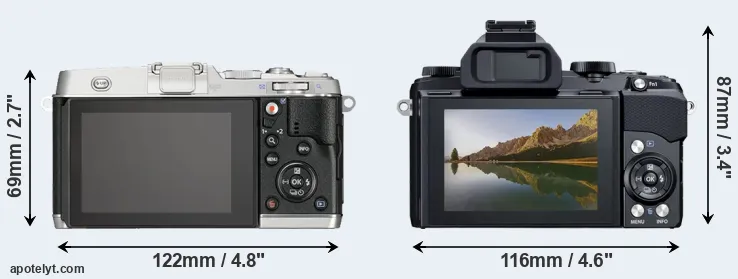

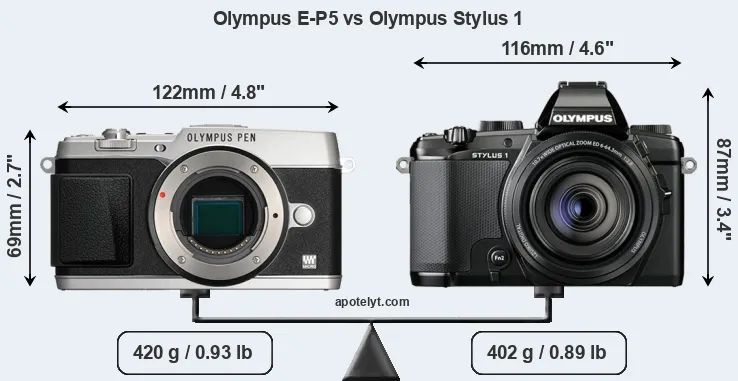

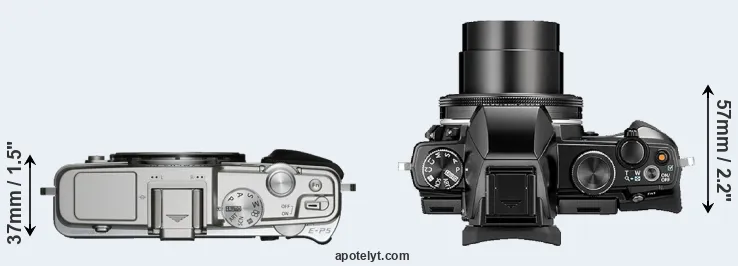

The physical size and weight of the Olympus E-P5 and the Olympus Stylus 1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-P5 can be obtained in three different colors (black, silver, white), while the Stylus 1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is notably larger (20 percent) than the Olympus E-P5. In this context, it is worth noting that neither the E-P5 nor the Stylus 1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the Stylus 1 has a lens built in, whereas the E-P5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-P5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-P5 gets 330 shots out of its Olympus BLN-1 battery, while the Stylus 1 can take 410 images on a single charge of its Olympus BLS-5 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
6.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
7.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	US$ 1 299	ebay.com
8.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
9.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
10.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
11.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
12.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
13.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
14.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	US$ 1 199	ebay.com
15.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
16.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
17.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Stylus 1 was launched at a lower price than the E-P5, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

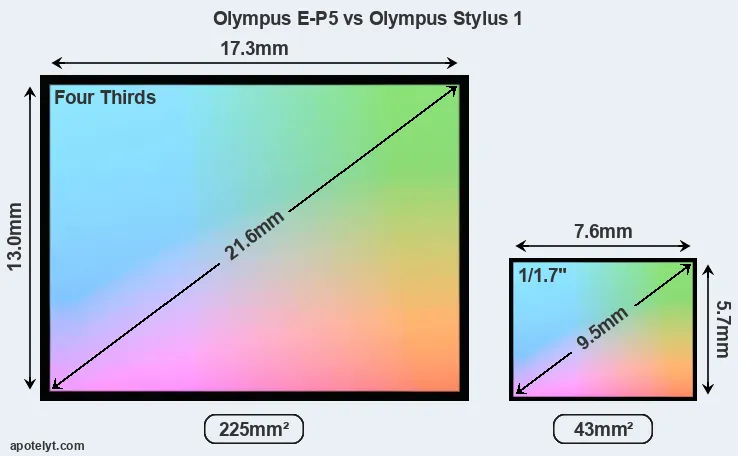

Of the two cameras under consideration, the Olympus E-P5 features a Four Thirds sensor and the Olympus Stylus 1 a 1/1.7-inch sensor. The sensor area in the Stylus 1 is 81 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 4.5. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

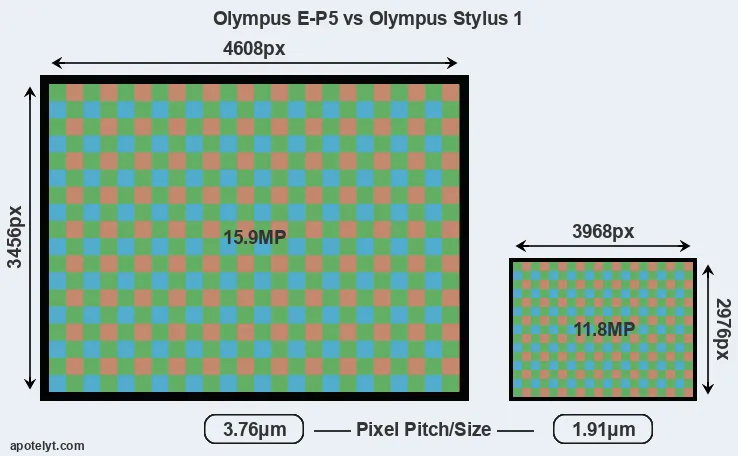

With 15.9MP, the E-P5 offers a higher resolution than the Stylus 1 (11.8MP), but the E-P5 nevertheless has larger individual pixels (pixel pitch of 3.76μm versus 1.91μm for the Stylus 1) due to its larger sensor. However, the Stylus 1 is a somewhat more recent model (by 5 months) than the E-P5, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the Stylus 1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus E-P5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-P5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus Stylus 1 are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The Olympus PEN E-P5 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus Stylus 1 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the E-P5 is build around a CMOS sensor, while the Stylus 1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the E-P5 provides substantially higher image quality than the Stylus 1, with an overall score that is 21 points higher. This advantage is based on 2.1 bits higher color depth, 0.8 EV in additional dynamic range, and 2.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
6.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
7.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
8.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
9.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
10.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
11.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
12.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
13.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
14.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
15.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
16.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
17.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the Stylus 1 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-P5 relies on live view and the rear LCD for framing. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Olympus E-P5 and Olympus Stylus 1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
6.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
7.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
8.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
9.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
10.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
11.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
13.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
14.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
15.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
16.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
17.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus E-P5 and the Olympus Stylus 1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-P5 and the Stylus 1 write their files to SDXC cards. The E-P5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the Stylus 1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P5 and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
6.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
7.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-

Both the E-P5 and the Stylus 1 have been discontinued, but can regularly be found used on ebay. The E-P5 was replaced by the Olympus E-P7, while the Stylus 1 was followed by the Olympus Stylus 1s. Further information on the features and operation of the E-P5 and Stylus 1 can be found, respectively, in the Olympus E-P5 Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-P5 better than the Olympus Stylus 1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Olympus PEN E-P5:

• More detail: Offers more megapixels (15.9 vs 11.8MP) with a 16% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores substantially higher (21 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2.1 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (0.8 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (2.3 stops ISO advantage).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 7 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (122x69mm vs 116x87mm) and thus needs less room in the bag.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in May 2013).

Advantages of the Olympus Stylus 1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Ready to shoot: Has an integrated lens, whereas the E-P5 necessitates an extra lens.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-P5).
• Longer lasting: Gets more shots (410 versus 330) out of a single battery charge.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (5 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the E-P5 is the clear winner of the match-up (12 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-P5 and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-P5 or the Stylus 1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
6.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
7.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	US$ 1 299	ebay.com
8.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
9.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
10.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
11.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
12.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
13.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
14.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	US$ 1 199	ebay.com
15.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
16.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
17.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check E-P5 offers at
ebay.com
Check Stylus 1 offers at
ebay.com
