Panasonic S5 vs Sony A77

The Panasonic Lumix DC-S5 and the Sony Alpha SLT-A77 are two enthusiast cameras that were officially introduced, respectively, in September 2020 and August 2011. The S5 is a mirrorless interchangeable lens camera, while the A77 is a DSLR. The cameras are based on a full frame (S5) and an APS-C (A77) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic S5		Sony A77
Mirrorless system camera		Digital single lens reflex
Leica L mount lenses		Sony A mount lenses
24 MP – Full Frame sensor		24 MP – APS-C sensor
4K/60p Video		1080/60p Video
ISO 100-51,200 (50 - 204,800)		ISO 100-16,000 (50 - 25,600)
Electronic viewfinder (2360k dots)		Electronic viewfinder (2359k dots)
3.0" LCD – 1840k dots		3.0" LCD – 921k dots
Swivel touchscreen		Fully flexible screen (no touchscreen)
7 shutter flaps per second		12 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
440 shots per battery charge		470 shots per battery charge
133 x 98 x 82 mm, 714 g		143 x 104 x 81 mm, 732 g

Check S5 price at
amazon.com
Check A77 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DC-S5 and the Sony Alpha SLT-A77? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

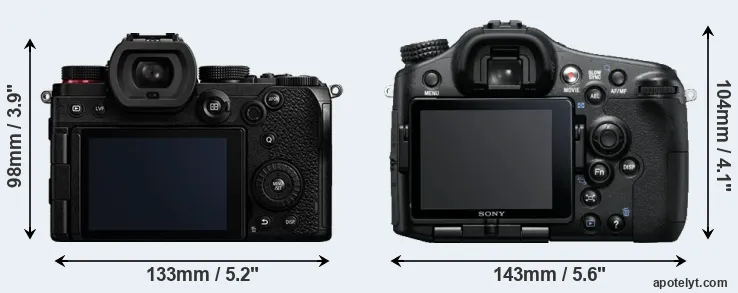

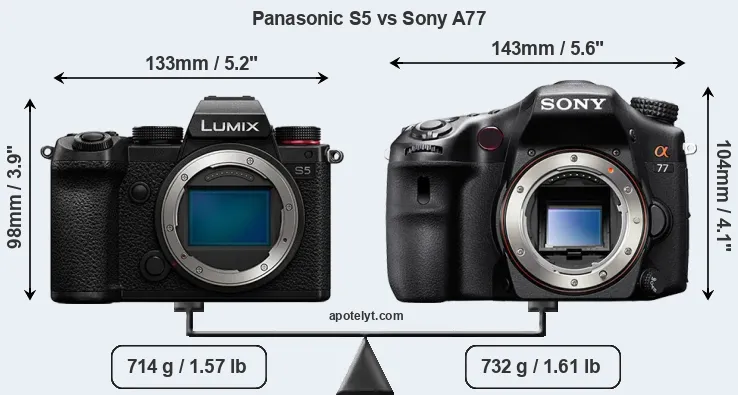

An illustration of the physical size and weight of the Panasonic S5 and the Sony A77 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A77 is notably larger (14 percent) than the Panasonic S5. Moreover, the A77 is slightly heavier (3 percent) than the S5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the S5 gets 440 shots out of its Panasonic DMW-BLK22 battery, while the A77 can take 470 images on a single charge of its Sony NP-FM500H power pack. The power pack in the S5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	US$ 1 999	amazon.com
2.		Sony A77	143 mm	104 mm	81 mm	732 g	470	Y	Aug 2011	US$ 1 399	ebay.com
3.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
4.		Fujifilm X-T4	135 mm	93 mm	64 mm	607 g	500	Y	Feb 2020	US$ 1 699	ebay.com
5.		Nikon Z6 II	134 mm	101 mm	70 mm	705 g	410	Y	Oct 2020	US$ 1 999	amazon.com
6.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	US$ 1 699	ebay.com
7.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
8.		Panasonic GH5 II	139 mm	98 mm	87 mm	727 g	400	Y	May 2021	US$ 1 699	amazon.com
9.		Panasonic S1	149 mm	110 mm	97 mm	1017 g	400	Y	Feb 2019	US$ 2 499	ebay.com
10.		Panasonic S1H	151 mm	114 mm	110 mm	1052 g	400	Y	May 2019	US$ 3 999	amazon.com
11.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
12.		Sony A7 II	127 mm	96 mm	60 mm	599 g	350	Y	Nov 2014	US$ 1 999	ebay.com
13.		Sony A7C	124 mm	71 mm	60 mm	509 g	740	Y	Sep 2020	US$ 1 799	amazon.com
14.		Sony A9	127 mm	96 mm	63 mm	673 g	650	Y	Apr 2017	US$ 4 499	ebay.com
15.		Sony A77 II	143 mm	104 mm	81 mm	647 g	480	Y	May 2014	US$ 1 199	ebay.com
16.		Sony A99	147 mm	111 mm	78 mm	812 g	500	Y	Sep 2012	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The A77 was launched at a markedly lower price (by 30 percent) than the S5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

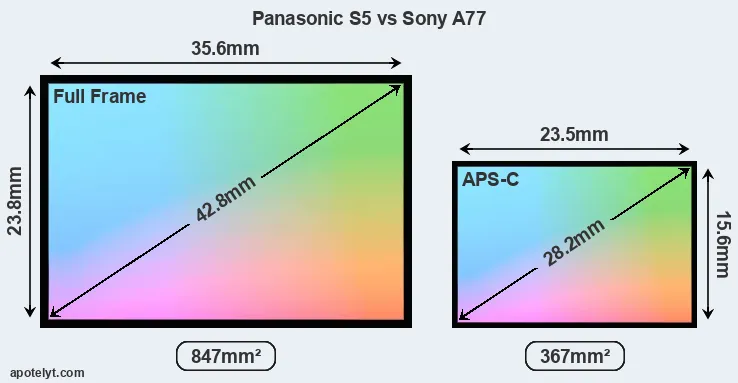

Of the two cameras under consideration, the Panasonic S5 features a full frame sensor and the Sony A77 an APS-C sensor. The sensor area in the A77 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

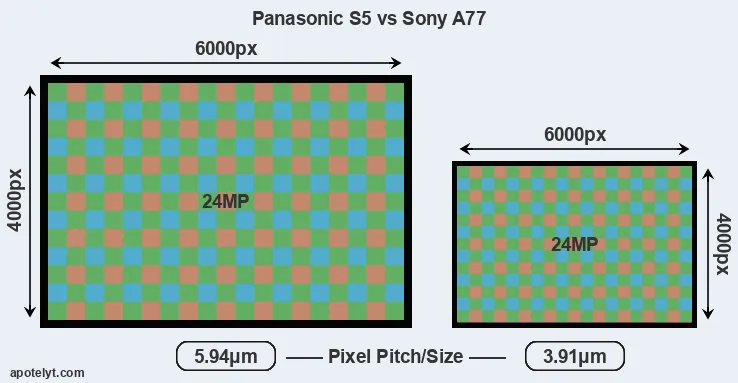

Even though the S5 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the S5 has a lower pixel density and larger individual pixels (with a pixel pitch of 5.94μm versus 3.91μm for the A77), which gives it a potential advantage in terms of light gathering capacity. In addition, the S5 is much more recent (by 9 years) than the A77, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the S5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

Unlike the A77, the S5 has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Panasonic Lumix DC-S5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-204800. The corresponding ISO settings for the Sony Alpha SLT-A77 are ISO 100 to ISO 16000, with the possibility to increase the ISO range to 50-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the S5 provides substantially higher image quality than the A77, with an overall score that is 16 points higher. This advantage is based on 1.1 bits higher color depth, 1.3 EV in additional dynamic range, and 1.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
2.		Sony A77	APS-C	24.0	6000	4000	1080/60p	24.0	13.2	801	78
3.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
4.		Fujifilm X-T4	APS-C	26.0	6240	4160	4K/60p	24.1	13.6	1995	84
5.		Nikon Z6 II	Full Frame	24.3	6048	4024	4K/60p	25.0	14.4	3303	94
6.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
7.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
8.		Panasonic GH5 II	Four Thirds	20.2	5184	3888	4K/60p	23.7	13.1	1136	79
9.		Panasonic S1	Full Frame	24.0	6000	4000	4K/60p	25.2	14.5	3333	95
10.		Panasonic S1H	Full Frame	24.0	6000	4000	6K/30p	25.2	14.2	2805	94
11.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
12.		Sony A7 II	Full Frame	24.0	6000	4000	1080/60p	24.9	13.6	2449	90
13.		Sony A7C	Full Frame	24.0	6000	4000	4K/30p	25.0	14.7	3407	95
14.		Sony A9	Full Frame	24.0	6000	4000	4K/30p	24.9	13.3	3517	92
15.		Sony A77 II	APS-C	24.0	6000	4000	1080/60p	24.4	13.4	1013	82
16.		Sony A99	Full Frame	24.0	6000	4000	1080/60p	25.0	14.0	1555	89
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S5 provides a higher video resolution than the A77. It can shoot video footage at 4K/60p, while the Sony is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the S5 offers a slightly higher resolution than the one in the A77 (2360k vs 2359k dots). The adjacent table lists some of the other core features of the Panasonic S5 and Sony A77 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
2.		Sony A77	2359	Y	3.0 / 921	full-flex	n	1/8000s	12.0/s	Y	Y
3.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
4.		Fujifilm X-T4	3690	n	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
5.		Nikon Z6 II	3690	Y	3.2 / 2100	tilting	Y	1/8000s	14.0/s	n	Y
6.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
7.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
8.		Panasonic GH5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	12.0/s	n	Y
9.		Panasonic S1	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
10.		Panasonic S1H	5760	Y	3.2 / 2330	swivel	Y	1/8000s	9.0/s	n	Y
11.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
12.		Sony A7 II	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	Y
13.		Sony A7C	2360	n	3.0 / 922	swivel	Y	1/4000s	10.0/s	n	Y
14.		Sony A9	3686	n	3.0 / 1440	tilting	Y	1/8000s	20.0/s	n	Y
15.		Sony A77 II	2359	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	Y	Y
16.		Sony A99	2359	Y	3.0 / 1229	full-flex	n	1/8000s	6.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The S5 has a touchscreen, while the A77 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic S5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The S5 writes its imaging data to SDXC cards, while the A77 uses SDXC or Memory Stick PRO Duo cards. The S5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the A77 only has one slot. The S5 supports UHS-II cards (on its first slot), while the A77 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DC-S5 and Sony Alpha SLT-A77 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Sony A77	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
4.		Fujifilm X-T4	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
5.		Nikon Z6 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
7.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
8.		Panasonic GH5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
9.		Panasonic S1	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
10.		Panasonic S1H	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
11.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
12.		Sony A7 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
13.		Sony A7C	Y	stereo / mono	Y	Y	micro	3.2	Y	Y	Y
14.		Sony A9	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	Y
15.		Sony A77 II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
16.		Sony A99	Y	stereo / mono	Y	Y	mini	2.0	-	-	-

It is notable that the S5 has a headphone jack, which is not present on the A77 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Studio photographers will appreciate that the Sony A77 (unlike the S5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the A77 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The S5 is a recent model that features in the current product line-up of Panasonic. In contrast, the A77 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the A77 was succeeded by the Sony A77 II. Further information on the features and operation of the S5 and A77 can be found, respectively, in the Panasonic S5 Manual (free pdf) or the online Sony A77 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Panasonic S5 or the Sony A77 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Advantages of the Panasonic Lumix DC-S5:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.1 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.3 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (1.8 stops ISO advantage).
• Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.73x).
• More detailed LCD: Has a higher resolution rear screen (1840k vs 921k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (133x98mm vs 143x104mm) and thus needs less room in the bag.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 9 years of technical progress since the A77 launch.

Arguments in favor of the Sony Alpha SLT-A77:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster burst: Shoots at higher frequency (12 vs 7 flaps/sec) to capture the decisive moment.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in August 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the S5 is the clear winner of the match-up (22 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic S5 and the Sony A77 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the S5 or the A77. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	US$ 1 999	amazon.com
2.		Sony A77	5/5	91/100	..	81/100	..	5/5	Aug 2011	US$ 1 399	ebay.com
3.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
4.		Fujifilm X-T4	5/5	+ +	5/5	88/100	5/5	5/5	Feb 2020	US$ 1 699	ebay.com
5.		Nikon Z6 II	4.5/5	..	4/5	89/100	4.5/5	4.5/5	Oct 2020	US$ 1 999	amazon.com
6.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	US$ 1 699	ebay.com
7.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
8.		Panasonic GH5 II	4.5/5	..	4.5/5	85/100	4.5/5	5/5	May 2021	US$ 1 699	amazon.com
9.		Panasonic S1	4.5/5	+ +	4.5/5	88/100	4.5/5	4/5	Feb 2019	US$ 2 499	ebay.com
10.		Panasonic S1H	..	..	4/5	90/100	..	..	May 2019	US$ 3 999	amazon.com
11.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
12.		Sony A7 II	5/5	+	4/5	82/100	4.5/5	5/5	Nov 2014	US$ 1 999	ebay.com
13.		Sony A7C	3.5/5	..	3.5/5	86/100	4/5	4/5	Sep 2020	US$ 1 799	amazon.com
14.		Sony A9	5/5	+ +	4.8/5	89/100	5/5	5/5	Apr 2017	US$ 4 499	ebay.com
15.		Sony A77 II	4/5	..	..	80/100	4.5/5	5/5	May 2014	US$ 1 199	ebay.com
16.		Sony A99	5/5	..	..	84/100	4.5/5	4.5/5	Sep 2012	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check S5 price at
amazon.com
Check A77 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check S5 price at
amazon.com
Check A77 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
