Canon T4i PDF User Manual

Did you lose or misplace the instruction manual that came with your Canon EOS Rebel T4i? It happens all too easily, but fortunately Canon makes a soft copy available that you can browse through online, print out, or download (see the pdf file below). It is certainly good practice to carefully familiarize oneself with the many different functionalities and options that the T4i offers, and the official user manual is without doubt an authoritative and comprehensive source of respective information.

That said, the instruction booklet can be a dry read, so that a dedicated camera guide book from a professional photographer that illustrates the camera's core functions in a real life photography context can be a very helpful complement. Yes, getting one of these camera guides (see here at amazon) would involve an additional expense, but if that book helps to exploit the camera's potential to the full, the (small) additional investment may well be worth it.

Also, you might want to check out the video tutorial on the Canon EOS Rebel T4i below.

camera

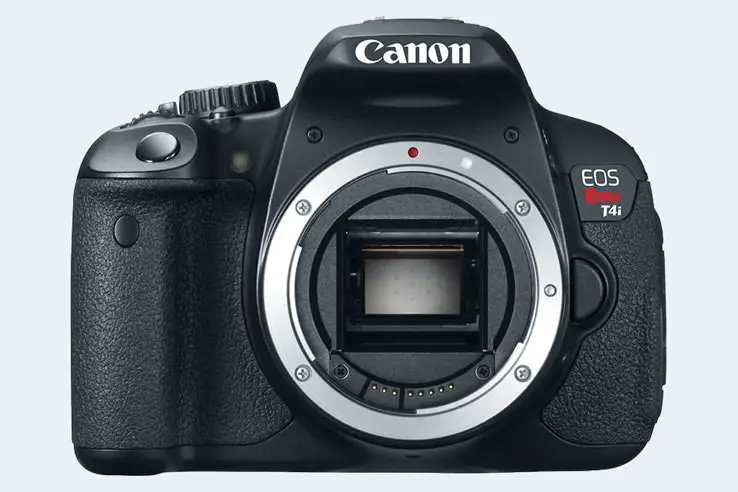

In any case, the T4i (called Canon 650D in some regions) is an advanced imaging tool, whose many features merit serious attention. This DSLR (Digital Single Lens Reflex) camera was revealed to the public on June 8th, 2012, which means that, as of today, the camera is 4535 days old (young?). The camera has meanwhile been discontinued and was succeeded by the Canon T5i as a replacement in the same line of cameras.

ad

Canon's instruction manual for the T4i

The camera's instruction manual is 372 pages long. The pdf version is embedded below. As you browse through, you will hopefully find the information you are looking for. You can also print out a hard copy by right clicking on the manual and then choosing the respective menu option. For convenience, a summary of the key specs of the T4i is included towards the bottom of this webpage.

Don't forget to bookmark this page for future reference (Ctrl-Shift-D on a Windows PC; Cmd-Shift-D on a Mac). Happy browsing!

Click on the button below to download the pdf version of the Canon EOS Rebel T4i manual to your computer. The file will open in a new browser window.

Download the Manual

If you prefer to read the user guide in another language, please check the respective availability on Canon's support site. That site also provides complementary online resources, such as information on the compatibility of various camera accessories or the availability of firmware updates that are not necessarily comprehensively covered in the instruction manual.

Printed, hardcopy versions of the Canon T4i manual can sometimes be found online. You can check the availability on amazon and ebay via the buttons below.

amazon.com ebay.com

ad

Video tutorial for the Canon EOS Rebel T4i

Perhaps instead of reading through a manual or operations guide, you might prefer to better familiarize yourself with your T4i by watching a video tutorial. It can notably help to quickly get to know the key functions and to set up your camera according to your particular preferences and needs.

Once again, the Canon T4i is a sophisticated imaging tool and not exploiting its capabilities to the full would be a pity. Hence, taking the time to study online information material or to read through a well-written camera guide book is highly recommended to make the most of your purchase.

Find T4i guide book at
amazon.com

Canon T4i FAQ

Below are some additional questions and answers concerning some particular features of the T4i.

What technology is the imaging sensor in the Canon T4i based on?

The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.

Which image processing chip is used in the Canon T4i to convert the raw signal into an image file and perform noise reduction and image sharpening?

Canon equipped the T4i with the DIGIC 5 image processor.

What is the ISO sensitivity range of the Canon T4i?

The camera has a native sensitivity range from ISO 100 to ISO 12800.

Does the Canon T4i have a selfie-friendly screen?

Yes, the LCD-screen of the T4i is flexible and can be turned to be front-facing for capturing selfies.

What is the life expectancy of the shutter in the Canon EOS Rebel T4i?

Canon mentions a shutter rating of 100 000 actuations for the T4i. This number represents a Mean Time before Failure, that is an average value. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust the expected shutter life of the T4i over, say, three years, one would have to take about 100 pictures each and every day.

How do I find the shutter count on my Canon T4i?

Canon embeds the number of shutter actuations in the camera firmware. You can check the number of shots that your T4i has taken up to now by using a third-party app, as described on the Canon T4i shutter count page.

Does the Canon T4i feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Canon T4i for flash photography?

The T4i's flash sync speed is 1/200 sec.

Does the Canon T4i support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the Canon T4i use?

The camera gets its power from the Canon LP-E8 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Is there a vertical grip available for the Canon T4i?

Yes, Canon offers the BG-E8 as an optional accessory to facilitate shooting in portrait orientation and to provide additional battery power.

ad

Further reading

How does the T4i stack up against available alternatives? In case you are interested in seeing how this camera compares to another one, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Core camera specifications

    Here is a list of the main features and technical characteristics of the Canon EOS Rebel T4i.

    Specifications Summary
    Camera Model Canon T4i
    Camera Type Digital single lens reflex
    Camera Lens Canon EF mount lenses
    Launch Date June 2012
    Launch Price USD 849
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 22.3 x 14.9 mm
    Sensor Area 332 mm2
    Sensor Diagonal 26.8 mm
    Crop Factor 1.6x
    Sensor Resolution 17.9 Megapixels
    Image Resolution 5 184 x 3 456 pixels
    Pixel Pitch 4.31 μm
    Pixel Density 5.39 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/30p Video
    ISO Setting 100 - 12 800 ISO
    ISO Boost 100 - 25 600 ISO
    Image Processor DIGIC 5
    DXO Sensor Quality (score) 62
    DXO Color Depth (bits) 21.7
    DXO Dynamic Range (EV) 11.2
    DXO Low Light (ISO) 722
    Screen Specs
    Viewfinder Type Optical viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.53x
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Swivel screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System Phase-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 5 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Microphone Port External MIC port
    Wifi Support no Wifi
    Body Specs
    Battery Type Canon LP-E8 power pack
    Battery Life (CIPA)440 shots per charge
    Body Dimensions 133 x 100 x 79 mm
    (5.2 x 3.9 x 3.1 in)
    Camera Weight 575 g (20.3 oz)
