Fujifilm X-E1 PDF User Manual

Did you lose or misplace the instruction manual that came with your Fujifilm X-E1? It happens all too easily, but fortunately Fujifilm makes a soft copy available that you can browse through online, print out, or download (see the pdf file below). It is certainly good practice to carefully familiarize oneself with the many different functionalities and options that the X-E1 offers, and the official user manual is without doubt an authoritative and comprehensive source of respective information.

That said, the instruction booklet can be a dry read, so that a dedicated camera guide book from a professional photographer that illustrates the camera's core functions in a real life photography context can be a very helpful complement. Yes, getting one of these camera guides (see here at amazon) would involve an additional expense, but if that book helps to exploit the camera's potential to the full, the (small) additional investment may well be worth it.

Also, you might want to check out the video tutorial on the Fujifilm X-E1 below.

camera

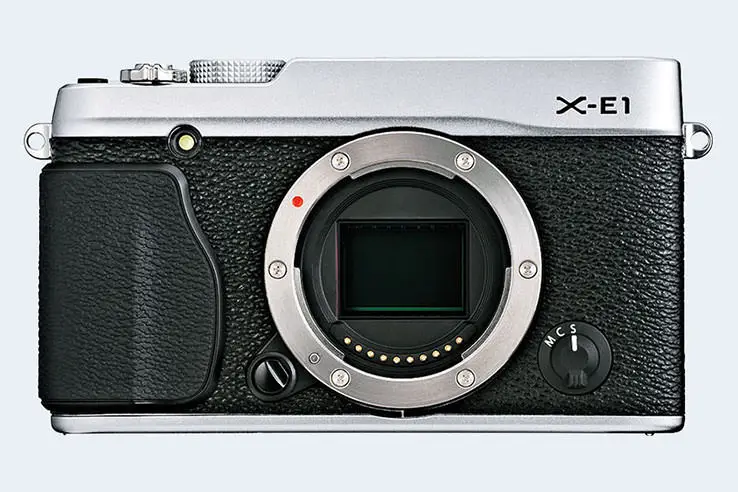

In any case, the X-E1 is an advanced imaging tool, whose many features merit serious attention. This mirrorless interchangeable lens camera was revealed to the public on September 6th, 2012, which means that, as of today, the camera is 4400 days old (young?). The camera has meanwhile been discontinued and was succeeded by the Fujifilm X-E2 as a replacement in the same line of cameras.

ad

Fujifilm's owner manual for the X-E1

The camera's owner manual is 136 pages long. The pdf version is embedded below. As you browse through, you will hopefully find the information you are looking for. You can also print out a hard copy by right clicking on the manual and then choosing the respective menu option. For convenience, a summary of the key specs of the X-E1 is included towards the bottom of this webpage.

Don't forget to bookmark this page for future reference (Ctrl-Shift-D on a Windows PC; Cmd-Shift-D on a Mac). Happy browsing!

Click on the button below to download the pdf version of the Fujifilm X-E1 manual to your computer. The file will open in a new browser window.

Download the Manual

If you prefer to read the user guide in another language, please check the respective availability on Fujifilm's support site. That site also provides complementary online resources, such as information on the compatibility of various camera accessories or the availability of firmware updates that are not necessarily comprehensively covered in the instruction manual.

Printed, hardcopy versions of the Fujifilm X-E1 manual can sometimes be found online. You can check the availability on amazon and ebay via the buttons below.

amazon.com ebay.com

ad

Video tutorial for the Fujifilm X-E1

Perhaps instead of reading through a manual or operations guide, you might prefer to better familiarize yourself with your X-E1 by watching a video tutorial. It can notably help to quickly get to know the key functions and to set up your camera according to your particular preferences and needs.

Once again, the Fujifilm X-E1 is a sophisticated imaging tool and not exploiting its capabilities to the full would be a pity. Hence, taking the time to study online information material or to read through a well-written camera guide book is highly recommended to make the most of your purchase.

Find X-E1 guide book at
amazon.com

Fujifilm X-E1 FAQ

Below are some additional questions and answers concerning some particular features of the X-E1.

What is the technology behind the imaging sensor in the Fujifilm X-E1?

The camera features a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used in the Fujifilm X-E1 to convert the raw signal into an image file and perform noise reduction and image sharpening?

Fujifilm equipped the X-E1 with the EXR Processor image processor.

What is the ISO sensitivity range of the Fujifilm X-E1?

The camera has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600.

What is the life expectancy of the shutter in the Fujifilm X-E1?

Fujifilm does not publish a shutter rating for the X-E1. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

Is it difficult to use manual focus lenses with the Fujifilm X-E1?

The X-E1 offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.

Does the Fujifilm X-E1 feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Fujifilm X-E1 for flash photography?

The X-E1's flash sync speed is 1/180 sec.

Does the Fujifilm X-E1 support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the Fujifilm X-E1 use?

The camera gets its power from the Fujifilm NP-W126 (here at amazon), which is a rechargeable Lithium-Ion power pack.

ad

Further reading

How does the X-E1 stack up against available alternatives? In case you would like to check on the differences and similarities with other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Core camera specifications

    Here is a list of the main features and technical characteristics of the Fujifilm X-E1.

    Specifications Summary
    Camera Model Fujifilm X-E1
    Camera Type Mirrorless system camera
    Camera Lens Fujifilm X mount lenses
    Launch Date September 2012
    Launch Price USD 999
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 23.6 x 15.6 mm
    Sensor Area 368 mm2
    Sensor Diagonal 28.3 mm
    Crop Factor 1.5x
    Sensor Resolution 16 Megapixels
    Image Resolution 4 896 x 3 264 pixels
    Pixel Pitch 4.80 μm
    Pixel Density 4.34 MP/cm2
    Moiré control no AA filter
    Movie Capability 1080/24p Video
    ISO Setting 200 - 6 400 ISO
    ISO Boost 100 - 25 600 ISO
    Image Processor EXR Processor
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Resolution 2360k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 2.8 inch
    LCD Resolution 460k dots
    LCD Attachment Fixed screen
    Touch Input No touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 6 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Microphone Port External MIC port
    Wifi Support no Wifi
    Body Specs
    Battery Type Fujifilm NP-W126 power pack
    Battery Life (CIPA)350 shots per charge
    Body Dimensions 129 x 75 x 38 mm
    (5.1 x 3.0 x 1.5 in)
    Camera Weight 350 g (12.3 oz)
