What is the sensor size of the Canon T2i?

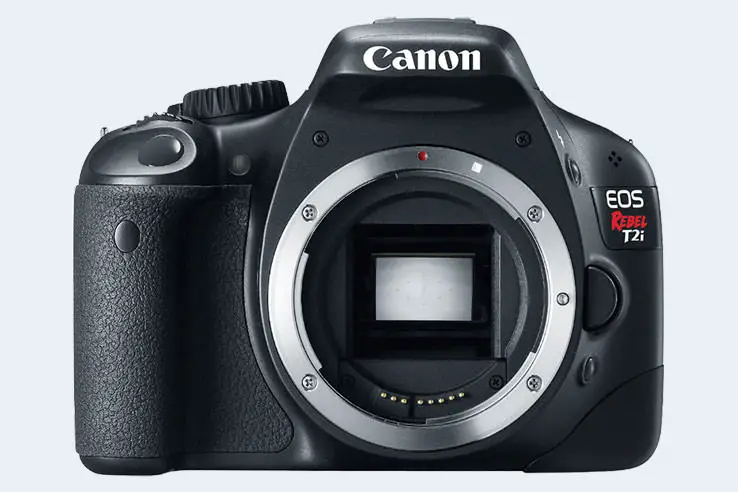

The Canon EOS Rebel T2i is a digital camera that has an APS-C sensor at its core. This imager measures 22.3mm in width and 14.9mm in height, so that the total imaging area of the sensor amounts to 332 mm2.
The T2i provides an image resolution of 17.9 megapixels, based on 5 184 horizontal pixels and 3 456 vertical pixels.
Sensor size comparison with a film slide
The sensor diagonal measures 26.8mm, which gives rise to a format factor (or crop factor) of 1.6. Hence, the Canon T2i is a crop-sensor camera, as its sensor is smaller than a traditional 35mm film slide or negative.
Sensor specs and performance
The table below compares the sensor specs of the Canon T2i to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon T2i | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.1 | 11.5 | 784 | 66 | |
2. | Canon T1i | APS-C | 15.1 | 4752 | 3168 | 1080/20p | 21.7 | 11.5 | 663 | 63 | |
3. | Canon T3 | APS-C | 12.2 | 4272 | 2848 | 720/30p | 21.9 | 11.0 | 755 | 62 | |
4. | Canon T3i | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.1 | 11.5 | 793 | 65 | |
5. | Canon T4i | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.7 | 11.2 | 722 | 62 | |
6. | Canon T5 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.3 | 724 | 63 | |
7. | Canon T5i | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.7 | 11.2 | 681 | 61 | |
8. | Canon T6s | APS-C | 24.0 | 6000 | 4000 | 1080/30p | 22.6 | 12.0 | 915 | 70 | |
9. | Canon T100 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.4 | 695 | 63 | |
10. | Canon XSi | APS-C | 12.2 | 4272 | 2848 | none | 21.9 | 10.8 | 692 | 61 | |
11. | Canon XTi | APS-C | 10.1 | 3888 | 2592 | none | 22.1 | 11.0 | 664 | 62 |
In the United States, the T2i was initially launched in February 2010 at a price of $699.
Camera to camera comparisons
In case you would like to check on the differences and similarities with other camera models, just use the search menu below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Camera Model | Canon T2i | |
---|---|---|
Camera Type | Digital single lens reflex | |
Camera Lens | Canon EF mount lenses | |
Launch Date | February 2010 | |
Launch Price | USD 699 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | APS-C Sensor | |
Sensor Size | 22.3 x 14.9 mm | |
Sensor Area | 332 mm2 | |
Sensor Diagonal | 26.8 mm | |
Crop Factor | 1.6x | |
Sensor Resolution | 17.9 Megapixels | |
Image Resolution | 5 184 x 3 456 pixels | |
Pixel Pitch | 4.31 μm | |
Pixel Density | 5.39 MP/cm2 | |
Moiré control | Anti-Alias filter | |
Movie Capability | 1080/30p Video | |
ISO Setting | 100 - 6 400 ISO | |
ISO Boost | 100 - 12 800 ISO | |
Image Processor | DIGIC 4 | |
DXO Sensor Quality (score) | 66 | |
DXO Color Depth (bits) | 22.1 | |
DXO Dynamic Range (EV) | 11.5 | |
DXO Low Light (ISO) | 784 | |
Screen Specs | ||
Viewfinder Type | Optical viewfinder | |
Viewfinder Field of View | 95% | |
Viewfinder Magnification | 0.54x | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 1040k dots | |
LCD Attachment | Fixed screen | |
Touch Input | No touchscreen | |
Shooting Specs | ||
Focus System | Phase-detect AF | |
Manual Focusing Aid | no Peaking Feature | |
Maximum Shutter Speed | 1/4000s | |
Continuous Shooting | 3.7 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Fill Flash | Built-in Flash | |
Storage Medium | SDXC cards | |
Single or Dual Card Slots | Single card slot | |
UHS card support | no | |
Connectivity Specs | ||
External Flash | Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | mini HDMI | |
Microphone Port | External MIC port | |
Wifi Support | no Wifi | |
Body Specs | ||
Battery Type | Canon LP-E8 power pack | |
Battery Life (CIPA) | 440 shots per charge | |
Body Dimensions |
129 x 98 x 62 mm (5.1 x 3.9 x 2.4 in) |
|
Camera Weight | 530 g (18.7 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
