LCD resolution of the Fujifilm X-T1

The rear LCD screen of the Fujifilm X-T1 has a resolution of 1,040,000 dots and measures 3.0 inches across its diagonal. A high-resolution display offers a clearer and crisper user experience than a lower pixel screen, notably during live view framing and image review. While the physical size of the LCD is naturally limited by the space that is available on the back of the camera, the resolution of the rear screen has continued to increase over time, with new camera models often featuring nicer rear panels as one of the key arguments for a camera upgrade.

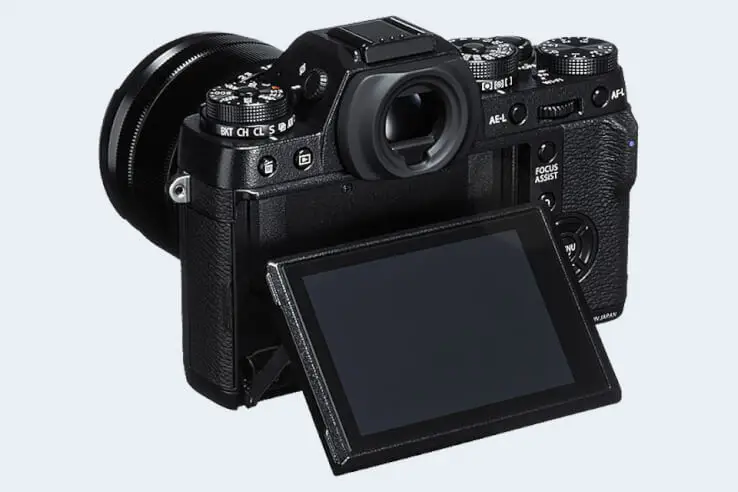

articulated screen
Flexible screen on the X-T1
Fujifilm X-T1 Screen Specs
Viewfinder Type Electronic viewfinder
Viewfinder Field of View 100%
Viewfinder Magnification 0.77x
Viewfinder Resolution 2360k dots
Top-Level Screen no Top Display
LCD Framing Live View
LCD Size 3.0 inch
LCD Resolution 1040k dots
LCD Attachment Tilting screen
Touch Input No touchscreen

In terms of screen handling characteristics, the LCD of the Fujifilm X-T1 is not touch sensitive and is flexibly attached to the body to allow for odd-angle shots.

Back side of the Fujifilm X-T1 with LCD

X-T1 and credit card rear side

As can be seen from the rear-side image, the 3.0-inch LCD occupies a large part of the backside of the camera. For comparison, the diagonal on a standard credit card measures 4 inches.

ad

Camera to camera comparisons

The Fujifilm X-T1 is a mirrorless interchangeable lens camera that was officially introduced in January 2014 and is equipped with an APS-C sensor. It offers a resolution of 16 megapixel. In the United States, the Fujifilm X-T1 was initially launched at a price of $1,299.

logo
Check X-T1 offers at
ebay.com

The table below compares the rear screen specs of the Fujifilm X-T1 to those of several similar cameras. Additionally, the table includes some information on other core features, such as the viewfinder, shutter, flash, and image stabilization system.

scroll hint
LCD and Other Feature Comparison
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Fujifilm X-T12360 n3.0 / 1040 tilting n 1/4000s 8.0/s n n
2.

Fujifilm X-A2none n3.0 / 920 tilting n 1/4000s 5.6/s Y n
3.

Fujifilm X-Pro11440 n3.0 / 1230 fixed n 1/4000s 6.0/s n n
4.

Fujifilm X-Pro22360 n3.0 / 1620 fixed n 1/8000s 8.0/s n n
5.

Fujifilm X-T22360 n3.0 / 1040 full-flex n 1/8000s 8.0/s n n
6.

Fujifilm X-T102360 n3.0 / 920 tilting n 1/4000s 8.0/s Y n
7.

Fujifilm X100S2360 n2.8 / 460 fixed n 1/4000s 6.0/s Y n
8.

Fujifilm X100T2360 n3.0 / 1040 fixed n 1/4000s 6.0/s Y n
9.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
10.

Panasonic GH42359 n3.0 / 1036 swivel Y 1/8000s 12.0/s Y n
11.

Sony A72400 n3.0 / 1230 tilting n 1/8000s 5.0/s n n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

If you would like to see a side-by-side review with another camera, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications Summary
    Camera Model Fujifilm X-T1
    Camera Type Mirrorless system camera
    Camera Lens Fujifilm X mount lenses
    Launch Date January 2014
    Launch Price USD 1 299
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 23.6 x 15.6 mm
    Sensor Area 368 mm2
    Sensor Diagonal 28.3 mm
    Crop Factor 1.5x
    Sensor Resolution 16 Megapixels
    Image Resolution 4 896 x 3 264 pixels
    Pixel Pitch 4.80 μm
    Pixel Density 4.34 MP/cm2
    Moiré control no AA filter
    Movie Capability 1080/60p Video
    ISO Setting 200 - 6 400 ISO
    ISO Boost 100 - 51 200 ISO
    Image Processor EXR Processor II
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.77x
    Viewfinder Resolution 2360k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Tilting screen
    V-logging Friendliness No front-flip
    Touch Input No touchscreen
    Shooting Specs
    Focus System On-Sensor Phase-detect
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 8 shutter flaps/s
    Shutter Life Expectancy200 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash no On-Board Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-II
    Connectivity Specs
    External Flash Hotshoe
    Studio Flash PC Sync socket
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Microphone Port External MIC port
    Wifi Support Wifi built-in
    Body Specs
    Environmental SealingWeathersealed body
    Battery Type Fujifilm NP-W126 power pack
    Battery Life (CIPA)350 shots per charge
    Body Dimensions 129 x 90 x 47 mm
    (5.1 x 3.5 x 1.9 in)
    Camera Weight 440 g (15.5 oz)
