Canon 10D vs Panasonic LX5

The Canon EOS 10D and the Panasonic Lumix DMC-LX5 are two digital cameras that were officially introduced, respectively, in February 2003 and July 2010. The 10D is a DSLR, while the LX5 is a fixed lens compact. The cameras are based on an APS-C (10D) and a 1/1.7-inch (LX5) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Panasonic provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 10D		Panasonic LX5
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-90mm f/2.0-3.3
6.3 MP – APS-C sensor		10 MP – 1/1.7" sensor
no Video		720/60p Video
ISO 100-3,200		ISO 80-3,200 (80 - 12,800)
Optical viewfinder		Viewfinder optional
1.8" LCD – 118k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		2.5 shutter flaps per second
500 shots per battery charge		400 shots per battery charge
150 x 107 x 75 mm, 850 g		110 x 65 x 43 mm, 271 g

Check 10D offers at
ebay.com
Check LX5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 10D and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

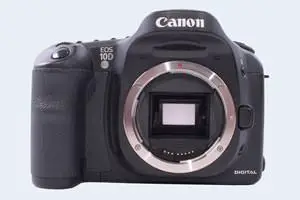

An illustration of the physical size and weight of the Canon 10D and the Panasonic LX5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The LX5 can be obtained in two different colors (black, white), while the 10D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is considerably smaller (55 percent) than the Canon 10D. In this context, it is worth noting that neither the 10D nor the LX5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX5 has a lens built in, whereas the 10D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 10D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 10D gets 500 shots out of its Canon BP-511 battery, while the LX5 can take 400 images on a single charge of its Panasonic DMW-BCJ13 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	US$ 1 999	ebay.com
2.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
3.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
4.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
5.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
6.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
7.		Canon D60	150 mm	107 mm	75 mm	855 g	620	n	Feb 2002	US$ 2 999	ebay.com
8.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
9.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
10.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
11.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
12.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
13.		Nikon D100	144 mm	116 mm	81 mm	780 g	370	n	Feb 2002	US$ 1 999	ebay.com
14.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
15.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
16.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The LX5 was launched at a lower price than the 10D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 10D features an APS-C sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the 10D has a native 3:2 aspect ratio, while the one in the LX5 offers a 4:3 aspect. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

Despite having a smaller sensor, the LX5 offers a higher resolution of 10 megapixels, compared with 6.3 MP of the 10D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.14μm versus 7.38μm for the 10D). However, it should be noted that the LX5 is much more recent (by 7 years and 4 months) than the 10D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic LX5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the LX5 for good quality output (200 dots per inch) amounts to 18.2 x 13.7 inches or 46.3 x 34.7 cm, for very good quality (250 dpi) 14.6 x 10.9 inches or 37.1 x 27.8 cm, and for excellent quality (300 dpi) 12.2 x 9.1 inches or 30.9 x 23.2 cm. The corresponding values for the Canon 10D are 15.4 x 10.2 inches or 39 x 26 cm for good quality, 12.3 x 8.2 inches or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inches or 26 x 17.3 cm for excellent quality prints.

The Canon EOS 10D has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the 10D is build around a CMOS sensor, while the LX5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 10D provides substantially higher image quality than the LX5, with an overall score that is 16 points higher. This advantage is based on 1.5 bits higher color depth, 0.1 EV in additional dynamic range, and 2.1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
2.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
3.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
4.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
5.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
6.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
7.		Canon D60	APS-C	6.3	3072	2048	none	20.3	9.8	301	47
8.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
9.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
10.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
11.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
12.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
13.		Nikon D100	APS-C	6.0	3008	2000	none	20.4	9.9	394	48
14.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
15.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
16.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The LX5 indeed provides for movie recording, while the 10D does not. The highest resolution format that the LX5 can use is 720/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 10D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the LX5 relies on live view and the rear LCD for framing. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The adjacent table lists some of the other core features of the Canon 10D and Panasonic LX5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
2.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
3.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
4.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
5.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
6.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
7.		Canon D60	optical	Y	1.8 / 114	fixed	n	1/4000s	3.0/s	Y	n
8.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
9.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
10.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
12.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
13.		Nikon D100	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
14.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
15.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
16.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 10D, but is missing on the LX5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 10D writes its imaging data to Compact Flash cards, while the LX5 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 10D and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
2.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
5.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon D60	Y	- / -	-	-	-	1.1	-	-	-
8.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
10.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Nikon D100	Y	- / -	-	-	-	1.1	-	-	-
14.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
15.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Canon 10D (unlike the LX5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 10D and the LX5 have been discontinued, but can regularly be found used on ebay. The 10D was replaced by the Canon 20D, while the LX5 was followed by the Panasonic LX7. Further information on the features and operation of the 10D and LX5 can be found, respectively, in the Canon 10D Manual (free pdf) or the online Panasonic LX5 Manual.

Review summary

So what is the bottom line? Is the Canon 10D better than the Panasonic LX5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 10D:

• Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.5 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (2.1 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster burst: Shoots at higher frequency (3 vs 2.5 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (500 versus 400) on a single battery charge.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in February 2003).

Advantages of the Panasonic Lumix DMC-LX5:

• More detail: Has more megapixels (10 vs 6.3MP), which boosts linear resolution by 24%.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Broader imaging potential: Can capture not only stills but also 720/60p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 118k dots).
• Ready to shoot: Comes with an integrated lens, while the 10D requires a separate lens.
• More compact: Is smaller (110x65mm vs 150x107mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 10D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 7 years and 4 months of technical progress since the 10D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the LX5 emerges as the winner of the match-up (12 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 10D and the Panasonic LX5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 10D or the LX5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	US$ 1 999	ebay.com
2.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
3.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
4.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
5.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
6.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
7.		Canon D60	..	..	..	+ +	o	..	Feb 2002	US$ 2 999	ebay.com
8.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
9.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
10.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
11.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
12.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
13.		Nikon D100	..	..	..	+ +	o	..	Feb 2002	US$ 1 999	ebay.com
14.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
15.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
16.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
