Canon 1D Mark IV vs 5D

The Canon EOS-1D Mark IV and the Canon EOS 5D are two professional cameras that were revealed to the public, respectively, in October 2009 and August 2005. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark IV) and a full frame (5D) sensor. The 1D Mark IV has a resolution of 16 megapixels, whereas the 5D provides 12.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 1D Mark IV		Canon 5D
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
16 MP – APS-H sensor		12.7 MP – Full Frame sensor
1080/30p Video		no Video
ISO 100-12,800 (50 - 102,400)		ISO 100-1,600 (50 - 3,200)
Optical viewfinder		Optical viewfinder
3.0" LCD – 920k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
10 shutter flaps per second		3 shutter flaps per second
Weathersealed body		Weathersealed body
1500 shots per battery charge		400 shots per battery charge
156 x 157 x 80 mm, 1230 g		152 x 113 x 75 mm, 895 g

Check 1D Mark IV offers at
ebay.com
Check 5D offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark IV and the Canon EOS 5D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 1D Mark IV and the Canon 5D. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5D is considerably smaller (30 percent) than the Canon 1D Mark IV. Moreover, the 5D is markedly lighter (27 percent) than the 1D Mark IV. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (1D Mark IV). You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 1D Mark IV gets 1500 shots out of its Canon LP-E4 battery, while the 5D can take 400 images on a single charge of its Canon BP-511A power pack. As can be seen in the images above, the 1D Mark IV has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5D, Canon provides the BG-E4 vertical grip as an optional accessory (see here on ebay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	US$ 4 999	ebay.com
2.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	US$ 3 299	ebay.com
3.		Canon 1D Mark II	156 mm	158 mm	80 mm	1535 g	1200	Y	Jan 2004	US$ 4 499	ebay.com
4.		Canon 1D Mark III	156 mm	157 mm	80 mm	1155 g	2200	Y	Feb 2007	US$ 4 499	ebay.com
5.		Canon 1Ds Mark II	156 mm	158 mm	80 mm	1215 g	1200	Y	Sep 2004	US$ 7 999	ebay.com
6.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	US$ 6 799	ebay.com
7.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
8.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
9.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
10.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
11.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
12.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
13.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
14.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
15.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
16.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	US$ 5 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 5D was launched at a markedly lower price (by 34 percent) than the 1D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

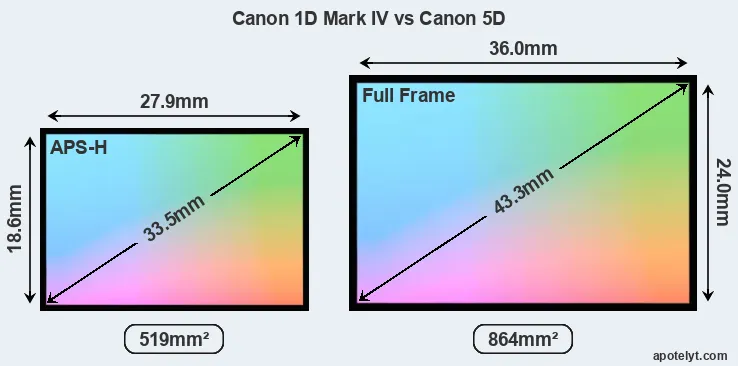

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D Mark IV features an APS-H sensor and the Canon 5D a full frame sensor. The sensor area in the 5D is 66 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the 1D Mark IV uses a more advanced image processing engine (DIGIC IV) than the 5D (DIGIC 2), with benefits for noise reduction, color accuracy, and processing speed.

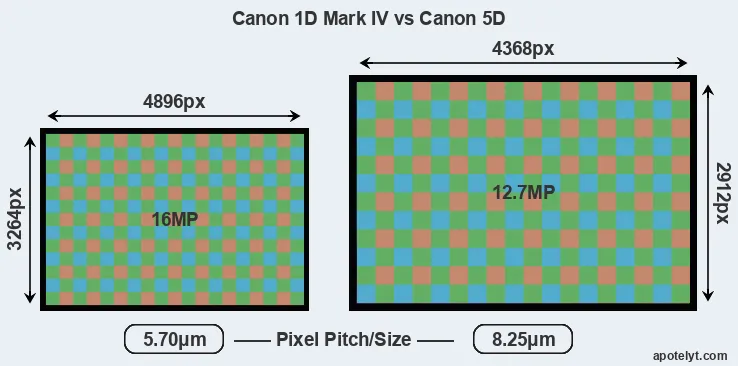

Despite having a smaller sensor, the Canon 1D Mark IV offers a higher resolution of 16 megapixels, compared with 12.7 MP of the Canon 5D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.70μm versus 8.25μm for the 5D). However, it should be noted that the 1D Mark IV is much more recent (by 4 years and 2 months) than the 5D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon 1D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 1D Mark IV for good quality output (200 dots per inch) amounts to 24.5 x 16.3 inches or 62.2 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.7 x 33.2 cm, and for excellent quality (300 dpi) 16.3 x 10.9 inches or 41.5 x 27.6 cm. The corresponding values for the Canon 5D are 21.8 x 14.6 inches or 55.5 x 37 cm for good quality, 17.5 x 11.6 inches or 44.4 x 29.6 cm for very good quality, and 14.6 x 9.7 inches or 37 x 24.7 cm for excellent quality prints.

The Canon EOS-1D Mark IV has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS 5D are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 50-3200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
2.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
3.		Canon 1D Mark II	APS-H	8.2	3504	2336	none	22.3	11.1	1003	66
4.		Canon 1D Mark III	APS-H	10.1	3888	2592	none	22.7	11.7	1078	71
5.		Canon 1Ds Mark II	Full Frame	16.6	4992	3328	none	23.3	11.3	1480	74
6.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
7.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
8.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
9.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
10.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
11.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
12.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
13.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
14.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
15.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
16.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89

Many modern cameras are not only capable of taking still images, but can also record movies. The 1D Mark IV indeed provides movie recording capabilities, while the 5D does not. The highest resolution format that the 1D Mark IV can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 1D Mark IV and the 5D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1D Mark IV offers a wider field of view (100%) than the one in the 5D (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 5D has a higher magnification (0.71x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D Mark IV and Canon 5D along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
2.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
3.		Canon 1D Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	8.3/s	n	n
4.		Canon 1D Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	10.0/s	n	n
5.		Canon 1Ds Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	4.0/s	n	n
6.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
7.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
8.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
9.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
10.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
11.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
12.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
13.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
14.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
15.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
16.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The 1D Mark IV writes its imaging data to Compact Flash or SDHC cards, while the 5D uses Compact Flash cards. The 1D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the 5D only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark IV and Canon EOS 5D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
2.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 1D Mark II	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 1D Mark III	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 1Ds Mark II	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
7.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
8.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
10.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
11.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
12.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
14.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
15.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the 1D Mark IV and the 5D have been discontinued, but can regularly be found used on ebay. The 5D was replaced by the Canon 5D Mark II, while the 1D Mark IV does not have a direct successor. Further information on the features and operation of the 1D Mark IV and 5D can be found, respectively, in the Canon 1D Mark IV Manual (free pdf) or the online Canon 5D Manual.

Review summary

So what conclusions can be drawn? Is the Canon 1D Mark IV better than the Canon 5D or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS-1D Mark IV:

• More detail: Offers more megapixels (16 vs 12.7MP) with a 12% higher linear resolution.
• More dynamic range: Captures a larger spectrum of light and dark details (0.9 EV of extra DR).
• Better jpgs: Has a more modern image processing engine (DIGIC IV vs DIGIC 2).
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (1500 versus 400) on a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 4 years and 2 months of technical progress since the 5D launch.

Advantages of the Canon EOS 5D:

• Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.58x).
• More compact: Is smaller (152x113mm vs 156x157mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 335g or 27 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (34 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in August 2005).

If the number of relative strengths (bullet points above) is taken as a guide, the 1D Mark IV is the clear winner of the match-up (12 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 1D Mark IV and the Canon 5D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1D Mark IV or the 5D. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	US$ 4 999	ebay.com
2.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	US$ 3 299	ebay.com
3.		Canon 1D Mark II	..	..	..	+ +	..	..	Jan 2004	US$ 4 499	ebay.com
4.		Canon 1D Mark III	..	..	..	..	..	..	Feb 2007	US$ 4 499	ebay.com
5.		Canon 1Ds Mark II	..	..	..	+ +	..	..	Sep 2004	US$ 7 999	ebay.com
6.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	US$ 6 799	ebay.com
7.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
8.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
9.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
10.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
11.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
12.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
13.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
14.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
15.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
16.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	US$ 5 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check 1D Mark IV offers at
ebay.com
Check 5D offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check 1D Mark IV offers at
ebay.com
Check 5D offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
