Canon 5D Mark II vs Pentax WG-1000

The Canon EOS 5D Mark II and the Pentax WG-1000 are two digital cameras that were officially introduced, respectively, in September 2008 and June 2024. The 5D Mark II is a DSLR, while the WG-1000 is a fixed lens compact. The cameras are based on a full frame (5D Mark II) and a 1/2.3-inch (WG-1000) sensor. The Canon has a resolution of 21 megapixels, whereas the Pentax provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D Mark II		Pentax WG-1000
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		27-108mm f/3.0-6.6
21 MP – Full Frame sensor		15.9 MP – 1/2.3" sensor
1080/30p Video		1080/30p Video
ISO 100-6,400 (50 - 25,600)		ISO 100-3,200
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 920k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.9 shutter flaps per second		8 shutter flaps per second
Weathersealed body		Waterproof body (15m)
850 shots per battery charge		300 shots per battery charge
152 x 114 x 75 mm, 850 g		116 x 69 x 51 mm, 220 g

Check 5D Mark II offers at
ebay.com
Check WG-1000 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark II and the Pentax WG-1000? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

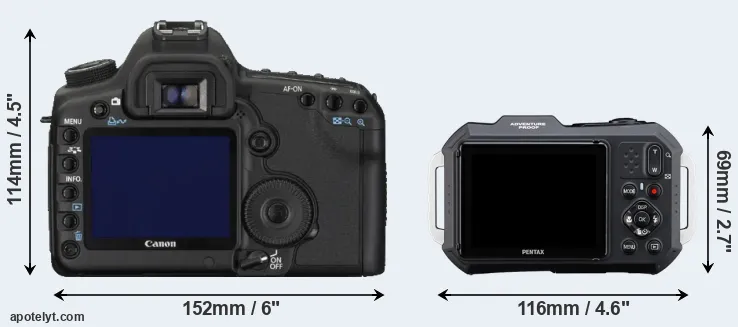

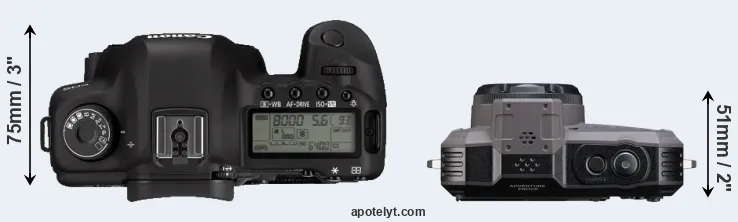

Body comparison

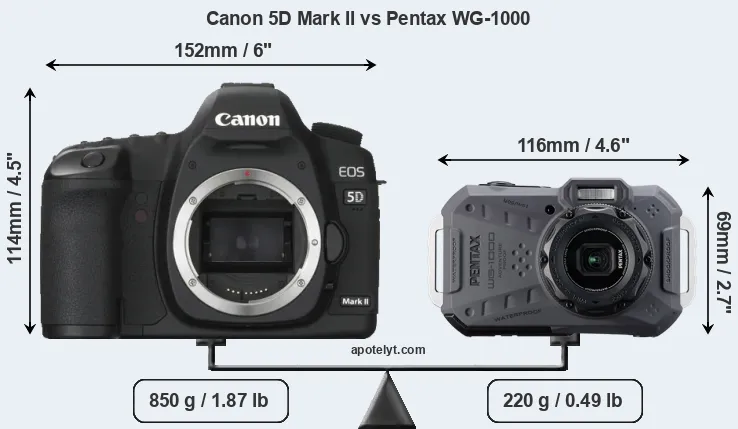

The physical size and weight of the Canon 5D Mark II and the Pentax WG-1000 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax WG-1000 is considerably smaller (54 percent) than the Canon 5D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the WG-1000 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the WG-1000 has a lens built in, whereas the 5D Mark II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5D Mark II and their specifications in the Canon EF Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
2.		Pentax WG-1000	116 mm	69 mm	51 mm	220 g	300	Y	Jun 2024	US$ 229	amazon.com
3.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	US$ 7 999	ebay.com
4.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	US$ 6 799	ebay.com
5.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
6.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	US$ 3 299	ebay.com
7.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	US$ 3 499	ebay.com
8.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
9.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
10.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
11.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
12.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
13.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
14.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
15.		Pentax WG-8	118 mm	66 mm	33 mm	242 g	340	Y	Jun 2024	US$ 399	amazon.com
16.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	US$ 279	amazon.com
17.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	US$ 279	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The WG-1000 was launched at a lower price than the 5D Mark II, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

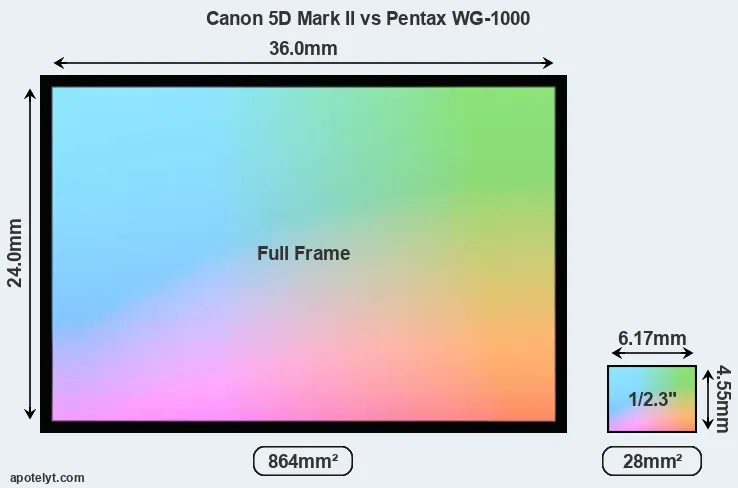

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D Mark II features a full frame sensor and the Pentax WG-1000 a 1/2.3-inch sensor. The sensor area in the WG-1000 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the 5D Mark II has a native 3:2 aspect ratio, while the one in the WG-1000 offers a 4:3 aspect.

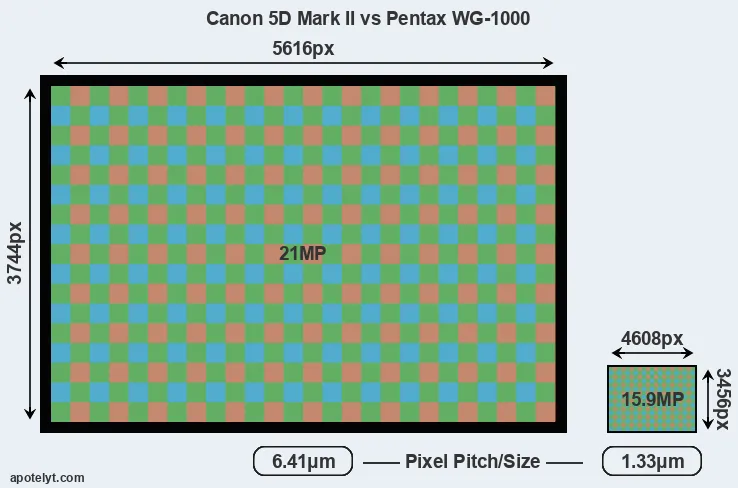

With 21MP, the 5D Mark II offers a higher resolution than the WG-1000 (15.9MP), but the 5D Mark II nevertheless has larger individual pixels (pixel pitch of 6.41μm versus 1.33μm for the WG-1000) due to its larger sensor. However, the WG-1000 is a much more recent model (by 15 years and 8 months) than the 5D Mark II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the WG-1000 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 5D Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark II for good quality output (200 dots per inch) amounts to 28.1 x 18.7 inches or 71.3 x 47.5 cm, for very good quality (250 dpi) 22.5 x 15 inches or 57.1 x 38 cm, and for excellent quality (300 dpi) 18.7 x 12.5 inches or 47.5 x 31.7 cm. The corresponding values for the Pentax WG-1000 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon EOS 5D Mark II has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Pentax WG-1000 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
2.		Pentax WG-1000	1/2.3	15.9	4608	3456	1080/30p	20.9	12.8	1626	54
3.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
4.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
5.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
6.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
7.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
8.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
9.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
10.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
11.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
12.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
13.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
14.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
15.		Pentax WG-8	1/2.3	20.2	5184	3888	4K/30p	20.9	12.8	1626	54
16.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
17.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 5D Mark II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the WG-1000 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 5D Mark II and Pentax WG-1000 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
2.		Pentax WG-1000	none	n	2.7 / 230	fixed	n	1/2000s	8.0/s	Y	n
3.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
4.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
5.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
6.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
7.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
8.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
9.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
10.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
11.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
12.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
13.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
14.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
15.		Pentax WG-8	none	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
16.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
17.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 5D Mark II, but is missing on the WG-1000 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 5D Mark II writes its imaging data to Compact Flash cards, while the WG-1000 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark II and Pentax WG-1000 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Pentax WG-1000	-	mono / mono	-	-	-	2.0	-	-	-
3.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
4.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
6.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
9.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
10.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
11.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
12.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
13.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
14.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Pentax WG-8	-	mono / mono	-	-	-	3.0	-	-	-
16.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
17.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-

It is notable that the 5D Mark II has a hotshoe, while the WG-1000 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Canon 5D Mark II (unlike the WG-1000) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The WG-1000 is a recent model that features in the current product line-up of Pentax. In contrast, the 5D Mark II has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 5D Mark II was succeeded by the Canon 5D Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.

Review summary

So what is the bottom line? Which of the two cameras – the Canon 5D Mark II or the Pentax WG-1000 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS 5D Mark II:

• More detail: Offers more megapixels (21 vs 15.9MP) with a 17% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (850 versus 300) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2008).

Arguments in favor of the Pentax WG-1000:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster burst: Shoots at higher frequency (8 vs 3.9 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 5D Mark II requires a separate lens.
• More compact: Is smaller (116x69mm vs 152x114mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 5D Mark II).
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 15 years and 8 months of technical progress since the 5D Mark II launch.

If the count of relative strengths (bullet points above) is taken as a measure, the 5D Mark II is the clear winner of the match-up (17 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D Mark II and the Pentax WG-1000 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 5D Mark II or the WG-1000. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
2.		Pentax WG-1000	..	..	..	..	..	..	Jun 2024	US$ 229	amazon.com
3.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	US$ 7 999	ebay.com
4.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	US$ 6 799	ebay.com
5.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
6.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	US$ 3 299	ebay.com
7.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	US$ 3 499	ebay.com
8.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
9.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
10.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
11.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
12.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
13.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
14.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
15.		Pentax WG-8	..	..	..	..	..	..	Jun 2024	US$ 399	amazon.com
16.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	US$ 279	amazon.com
17.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	US$ 279	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
