Canon 5D Mark IV vs Nikon D5

The Canon EOS 5D Mark IV and the Nikon D5 are two professional cameras that were officially introduced, respectively, in August 2016 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The Canon has a resolution of 30.1 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 5D Mark IV		Nikon D5
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Nikon F mount lenses
30.1 MP – Full Frame sensor		20.7 MP – Full Frame sensor
4K/30p Video		4K/30p Video
ISO 100-32,000 (50 - 102,400)		ISO 100-102,400 (50 - 3,280,000)
Optical viewfinder		Optical viewfinder
3.2" LCD – 1620k dots		3.2" LCD – 2359k dots
Fixed touchscreen		Fixed touchscreen
7 shutter flaps per second		14 shutter flaps per second
Weathersealed body		Weathersealed body
900 shots per battery charge		3780 shots per battery charge
151 x 116 x 76 mm, 890 g		160 x 159 x 92 mm, 1415 g

Check 5D Mark IV price at
amazon.com
Check D5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

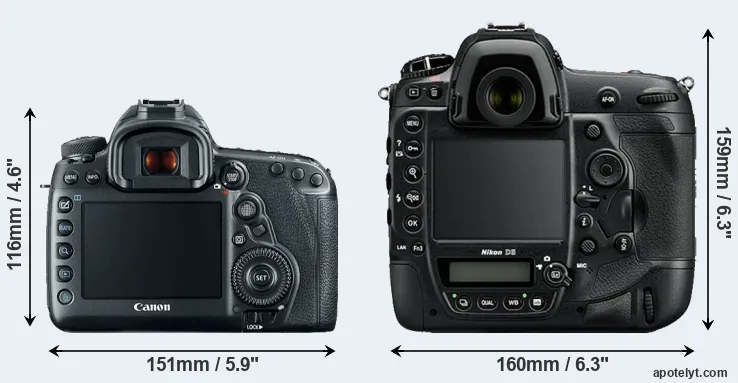

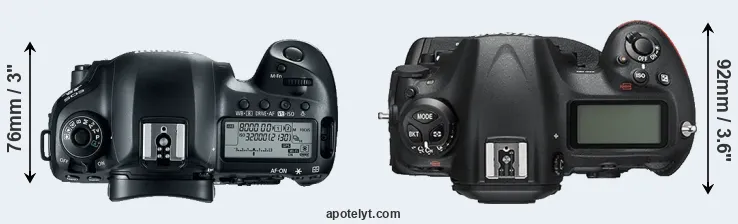

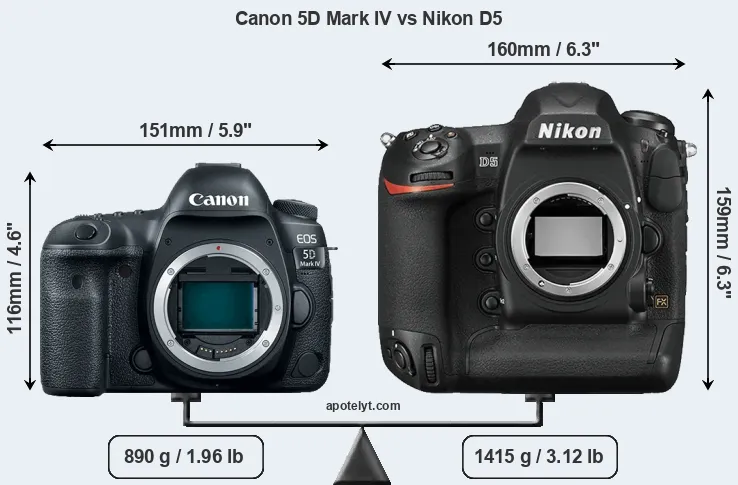

The side-by-side display below illustrates the physical size and weight of the Canon 5D Mark IV and the Nikon D5. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (45 percent) than the Canon 5D Mark IV. Moreover, the D5 is substantially heavier (59 percent) than the 5D Mark IV. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around a full frame sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Nikon Lens Catalog (D5).

Concerning battery life, the 5D Mark IV gets 900 shots out of its Canon LP-E6N battery, while the D5 can take 3780 images on a single charge of its Nikon EN-EL18a power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5D Mark IV, Canon provides the BG-E20 vertical grip as an optional accessory (see here on ebay).

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
2.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
3.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	US$ 3 299	ebay.com
5.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	US$ 3 499	ebay.com
6.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	US$ 3 499	ebay.com
7.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
8.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
9.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
10.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	US$ 6 499	ebay.com
11.		Nikon D6	160 mm	163 mm	92 mm	1270 g	3580	Y	Feb 2020	US$ 6 499	amazon.com
12.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
13.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	US$ 2 299	ebay.com
14.		Nikon D800	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	US$ 2 999	ebay.com
15.		Nikon D800E	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	US$ 3 299	ebay.com
16.		Nikon D850	146 mm	124 mm	79 mm	1005 g	1840	Y	Jul 2017	US$ 3 299	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 5D Mark IV was launched at a markedly lower price (by 46 percent) than the D5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

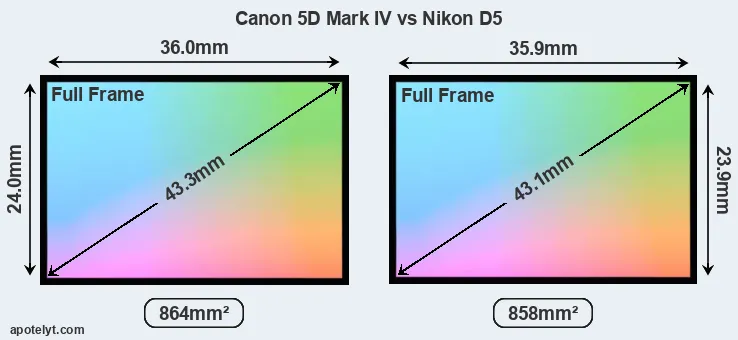

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the D5 is 1 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

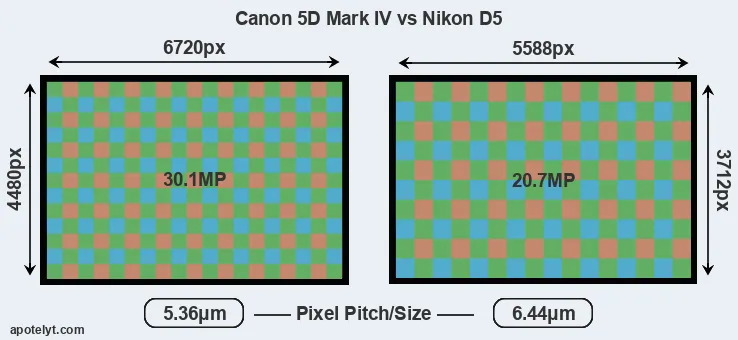

With 30.1MP, the 5D Mark IV offers a higher resolution than the D5 (20.7MP), but the 5D Mark IV has smaller individual pixels (pixel pitch of 5.36μm versus 6.44μm for the D5). However, the 5D Mark IV is a somewhat more recent model (by 7 months) than the D5, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Nikon D5 are 27.9 x 18.6 inches or 71 x 47.1 cm for good quality, 22.4 x 14.8 inches or 56.8 x 37.7 cm for very good quality, and 18.6 x 12.4 inches or 47.3 x 31.4 cm for excellent quality prints.

The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
2.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
3.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
4.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
5.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
6.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
7.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
8.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
9.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
10.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
11.		Nikon D6	Full Frame	20.7	5568	3712	4K/30p	25.3	14.3	2886	95
12.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
13.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
14.		Nikon D800	Full Frame	36.2	7360	4912	1080/30p	25.3	14.4	2853	95
15.		Nikon D800E	Full Frame	36.2	7360	4912	1080/30p	25.6	14.3	2979	96
16.		Nikon D850	Full Frame	45.4	8256	5504	4K/30p	26.4	14.8	2660	100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 5D Mark IV and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D5 has a higher magnification than the one of the 5D Mark IV (0.72x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D Mark IV and Nikon D5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
2.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
3.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
4.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
5.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
6.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
7.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
8.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
9.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
10.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
11.		Nikon D6	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
12.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
13.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
14.		Nikon D800	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
15.		Nikon D800E	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
16.		Nikon D850	optical	Y	3.2 / 2359	tilting	Y	1/8000s	9.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon 5D Mark IV and the Nikon D5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the D5 uses Compact Flash or XQD cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
2.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
3.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
5.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
7.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
8.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
9.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
11.		Nikon D6	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
12.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
13.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
14.		Nikon D800	Y	mono / mono	Y	Y	mini	3.0	-	-	-
15.		Nikon D800E	Y	mono / mono	Y	Y	mini	3.0	-	-	-
16.		Nikon D850	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y

It is notable that the 5D Mark IV offers wifi support, while the D5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the D5 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the D5 was succeeded by the Nikon D6. Further information on the features and operation of the 5D Mark IV and D5 can be found, respectively, in the Canon 5D Mark IV Manual (free pdf) or the online Nikon D5 Manual.

Review summary

So what conclusions can be drawn? Is the Canon 5D Mark IV better than the Nikon D5 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS 5D Mark IV:

• More detail: Offers more megapixels (30.1 vs 20.7MP) with a 20% higher linear resolution.
• More dynamic range: Captures a larger spectrum of light and dark details (1.3 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More compact: Is smaller (151x116mm vs 160x159mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 525g or 37 percent) and hence easier to carry around.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 7 months after the D5).

Reasons to prefer the Nikon D5:

• Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.71x).
• More detailed LCD: Has a higher resolution rear screen (2359k vs 1620k dots).
• Faster burst: Shoots at higher frequency (14 vs 7 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (3780 versus 900) out of a single battery charge.
• More heavily discounted: Has been on the market for longer (launched in January 2016).

If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (11 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 5D Mark IV or the D5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
2.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
3.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	US$ 3 299	ebay.com
5.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	US$ 3 499	ebay.com
6.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	US$ 3 499	ebay.com
7.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
8.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
9.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
10.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	US$ 6 499	ebay.com
11.		Nikon D6	..	..	4/5	..	4.5/5	4.5/5	Feb 2020	US$ 6 499	amazon.com
12.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
13.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	US$ 2 299	ebay.com
14.		Nikon D800	5/5	+ +	..	82/100	5/5	5/5	Feb 2012	US$ 2 999	ebay.com
15.		Nikon D800E	..	..	..	84/100	5/5	5/5	Feb 2012	US$ 3 299	ebay.com
16.		Nikon D850	4.5/5	+ +	5/5	89/100	4.5/5	5/5	Jul 2017	US$ 3 299	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
