Canon 60D vs Pentax K-S1

The Canon EOS 60D and the Pentax K-S1 are two digital cameras that were announced, respectively, in August 2010 and August 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Pentax provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 60D		Pentax K-S1
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Pentax K mount lenses
17.9 MP – APS-C sensor		20 MP – APS-C sensor
1080/30p Video		1080/30p Video
ISO 100-6,400 (100 - 12,800)		ISO 100-51,200
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 921k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5.3 shutter flaps per second		5.4 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		not weather sealed
1100 shots per battery charge		410 shots per battery charge
145 x 106 x 79 mm, 755 g		121 x 93 x 70 mm, 558 g

Check 60D offers at
ebay.com
Check K-S1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Pentax K-S1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

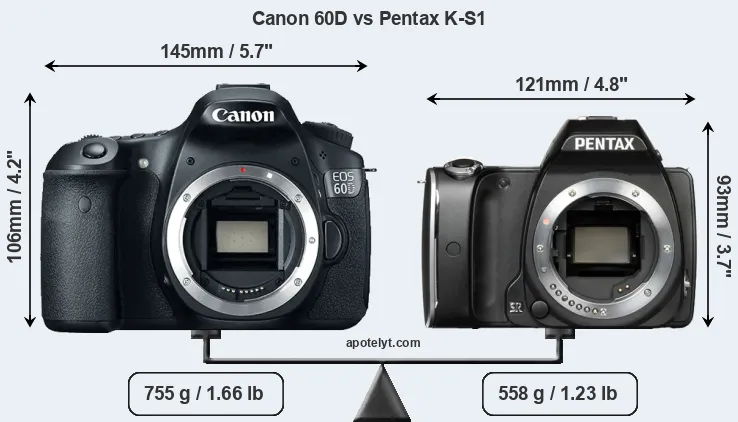

The physical size and weight of the Canon 60D and the Pentax K-S1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The K-S1 can be obtained in four different colors (black, grey, orange, white), while the 60D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-S1 is notably smaller (27 percent) than the Canon 60D. Moreover, the K-S1 is markedly lighter (26 percent) than the 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the K-S1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 60D gets 1100 shots out of its Canon LP-E6 battery, while the K-S1 can take 410 images on a single charge of its Pentax D-LI109 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
2.		Pentax K-S1	121 mm	93 mm	70 mm	558 g	410	n	Aug 2014	US$ 749	ebay.com
3.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
5.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
6.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
7.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
8.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
9.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
10.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
11.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
12.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
13.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
14.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	US$ 1 499	ebay.com
15.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	US$ 549	ebay.com
16.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	US$ 749	ebay.com
17.		Sony A68	143 mm	104 mm	81 mm	610 g	540	n	Nov 2015	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The K-S1 was launched at a markedly lower price (by 46 percent) than the 60D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the K-S1 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (60D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

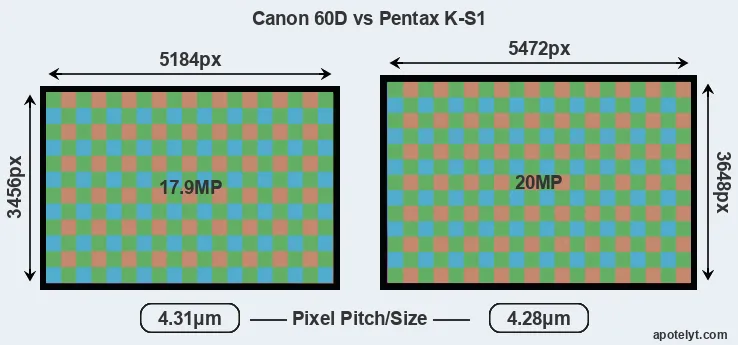

With 20MP, the K-S1 offers a higher resolution than the 60D (17.9MP), but the K-S1 has marginally smaller individual pixels (pixel pitch of 4.28μm versus 4.31μm for the 60D). Yet, the K-S1 is a much more recent model (by 4 years) than the 60D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the K-S1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Pentax K-S1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-S1 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon 60D are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Pentax K-S1 are ISO 100 to ISO 51200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the K-S1 offers substantially better image quality than the 60D (overall score 12 points higher). The advantage is based on 1.3 bits higher color depth, 1.5 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
2.		Pentax K-S1	APS-C	20.0	5472	3648	1080/30p	23.5	13.0	1061	78
3.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
4.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
5.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
6.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
7.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
8.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
9.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
10.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
11.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
12.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
13.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
14.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
15.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79
16.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
17.		Sony A68	APS-C	24.0	6000	4000	1080/60i	24.1	13.5	701	79
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The 60D and the K-S1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the K-S1 offers a wider field of view (100%) than the one in the 60D (96%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the K-S1 has a higher magnification (0.63x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 60D and Pentax K-S1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
2.		Pentax K-S1	optical	n	3.0 / 921	fixed	n	1/6000s	5.4/s	Y	Y
3.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
4.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
5.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
6.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
7.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
8.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
9.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
10.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
11.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
12.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
13.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
14.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
15.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
16.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
17.		Sony A68	1440	Y	2.7 / 460	tilting	n	1/4000s	8.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 60D, but is missing on the K-S1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Concerning the storage of imaging data, both the 60D and the K-S1 write their files to SDXC cards. The K-S1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 60D cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Pentax K-S1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Pentax K-S1	Y	stereo / mono	-	-	micro	2.0	-	-	-
3.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
7.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
9.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
11.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
13.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
15.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-
16.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-
17.		Sony A68	Y	stereo / mono	Y	-	micro	2.0	-	-	-

It is notable that the 60D has a microphone port, which is missing on the K-S1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Canon 60D (unlike the K-S1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 60D and the K-S1 have been discontinued, but can regularly be found used on ebay. The 60D was replaced by the Canon 70D, while the K-S1 was followed by the Pentax K-S2. Further information on the features and operation of the 60D and K-S1 can be found, respectively, in the Canon 60D Manual (free pdf) or the online Pentax K-S1 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon 60D or the Pentax K-S1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS 60D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
• Longer lasting: Can take more shots (1100 versus 410) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2010).

Advantages of the Pentax K-S1:

• More detail: Has more megapixels (20 vs 17.9MP), which boosts linear resolution by 6%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (12 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.5 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
• More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.59x).
• More compact: Is smaller (121x93mm vs 145x106mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 197g or 26 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
• More modern: Reflects 4 years of technical progress since the 60D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the K-S1 emerges as the winner of the match-up (14 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 60D and the Pentax K-S1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 60D or the K-S1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
2.		Pentax K-S1	4/5	..	..	..	4.5/5	4/5	Aug 2014	US$ 749	ebay.com
3.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
5.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
6.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
7.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
8.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
9.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
10.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
11.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
12.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
13.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
14.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	US$ 1 499	ebay.com
15.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	US$ 549	ebay.com
16.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	US$ 749	ebay.com
17.		Sony A68	3/5	..	..	..	4/5	4/5	Nov 2015	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
