Canon 70D vs Leica S1

The Canon EOS 70D and the Leica S1 Pro are two digital cameras that were announced, respectively, in July 2013 and August 1996. The 70D is a DSLR, while the S1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (70D) and a medium format (S1) sensor. The Canon has a resolution of 20 megapixels, whereas the Leica provides 26.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 70D		Leica S1
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Leica R mount lenses
20 MP – APS-C sensor		26.4 MP – Medium Format sensor
1080/30p Video		no Video
ISO 100-12,800 (100 - 25,600)		ISO 50-1,600
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		no LCD
Swivel touchscreen		no rear screen
7 shutter flaps per second		0.01 shutter flaps per second
Weathersealed body		not weather sealed
139 x 104 x 79 mm, 755 g		339 x 214 x 119 mm, 2500 g

Check 70D offers at
ebay.com
Check S1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 70D and the Leica S1 Pro? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

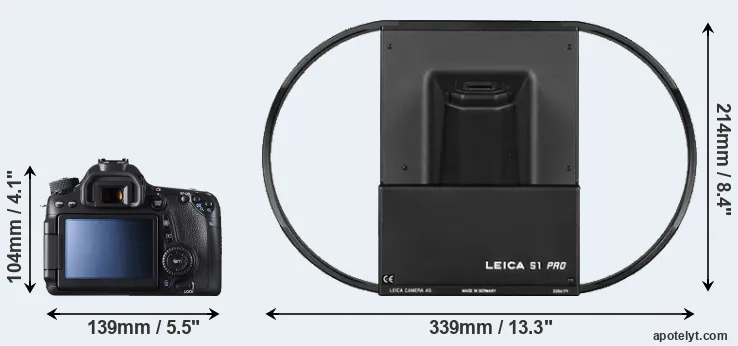

The side-by-side display below illustrates the physical size and weight of the Canon 70D and the Leica S1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S1 is considerably larger (402 percent) than the Canon 70D. Moreover, the S1 is substantially heavier (231 percent) than the 70D. It is worth mentioning in this context that the 70D is splash and dust resistant, while the S1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (70D) and the Leica R Lens Catalog (S1). Mirrorless cameras, such as the S1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
2.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	US$ 21 499	ebay.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
4.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
5.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
6.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
7.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
8.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
9.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
10.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
11.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
12.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	US$ 22 999	ebay.com
13.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
14.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	US$ 1 199	ebay.com
15.		Sony A6400	120 mm	67 mm	50 mm	403 g	410	Y	Jan 2019	US$ 899	amazon.com
16.		Sony RX10	129 mm	88 mm	102 mm	813 g	420	Y	Oct 2013	US$ 1 299	ebay.com
17.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 70D was launched at a markedly lower price (by 94 percent) than the S1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

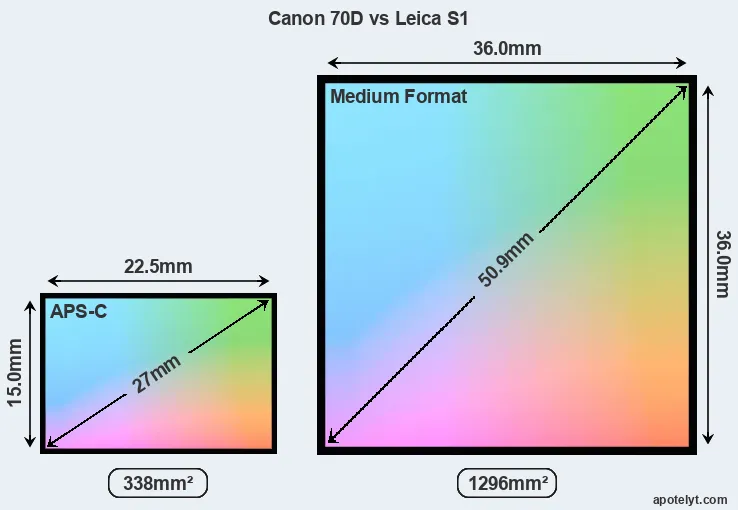

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 70D features an APS-C sensor and the Leica S1 a medium format sensor. The sensor area in the S1 is 283 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 0.85. The sensor in the 70D has a native 3:2 aspect ratio, while the one in the S1 offers a 1:1 aspect.

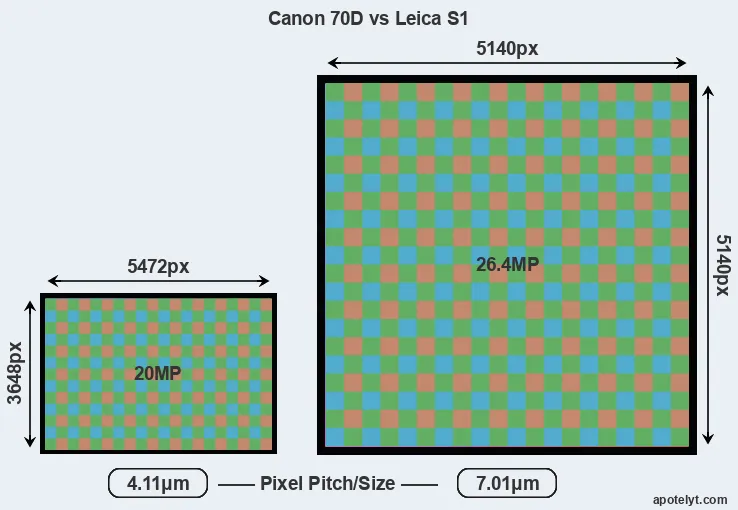

With 26.4MP, the S1 offers a higher resolution than the 70D (20MP), but the S1 nevertheless has larger individual pixels (pixel pitch of 7.01μm versus 4.11μm for the 70D) due to its larger sensor. However, the 70D is a much more recent model (by 16 years and 10 months) than the S1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica S1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S1 for good quality output (200 dots per inch) amounts to 25.7 x 25.7 inches or 65.3 x 65.3 cm, for very good quality (250 dpi) 20.6 x 20.6 inches or 52.2 x 52.2 cm, and for excellent quality (300 dpi) 17.1 x 17.1 inches or 43.5 x 43.5 cm. The corresponding values for the Canon 70D are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The 70D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 70D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica S1 Pro are ISO 50 to ISO 1600 (no boost).

In terms of underlying technology, the 70D is build around a CMOS sensor, while the S1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
2.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
5.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
6.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
7.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
8.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
9.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
10.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
11.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
12.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
13.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
14.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
15.		Sony A6400	APS-C	24.0	6000	4000	4K/30p	24.0	13.6	1431	83
16.		Sony RX10	1-inch	20.0	5472	3648	1080/60p	22.9	12.6	474	69
17.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The 70D indeed provides movie recording capabilities, while the S1 does not. The highest resolution format that the 70D can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 70D and the S1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The following table reports on some other key feature differences and similarities of the Canon 70D, the Leica S1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
2.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
5.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
6.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
7.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
8.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
9.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
10.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
11.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
12.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
13.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
14.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
15.		Sony A6400	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
16.		Sony RX10	1440	Y	3.0 / 1229	tilting	n	1/3200s	10.0/s	Y	Y
17.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 70D has one, while the S1 does not. While the built-in flash of the 70D is not very powerful, it can at times be useful as a fill-in light.

The 70D writes its imaging data to SDXC cards, while the S1 uses external storage.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 70D and Leica S1 Pro and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
2.		Leica S1	-	- / -	-	-	-	-	-	-	-
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
6.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
7.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
9.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
11.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
13.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
14.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
15.		Sony A6400	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y
16.		Sony RX10	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
17.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the 70D has a hotshoe, while the S1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the 70D and the S1 have been discontinued, but can regularly be found used on ebay. The S1 was replaced by the Leica S2, while the 70D was followed by the Canon 80D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.

Review summary

So what is the bottom line? Is the Canon 70D better than the Leica S1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 70D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Rear screen: Has a backside LCD (3.0") for image review and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (7 vs 0.01 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (139x104mm vs 339x214mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 1745g or 70 percent) and hence easier to carry around.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced into a lower priced category (94 percent cheaper at launch).
• More modern: Reflects 16 years and 10 months of technical progress since the S1 launch.

Reasons to prefer the Leica S1 Pro:

• More detail: Has more megapixels (26.4 vs 20MP), which boosts linear resolution by 11%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in August 1996).

If the number of relative strengths (bullet points above) is taken as a guide, the 70D is the clear winner of the match-up (17 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 70D and the Leica S1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 70D or the S1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
2.		Leica S1	..	..	..	..	..	..	Aug 1996	US$ 21 499	ebay.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
4.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
5.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
6.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
7.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
8.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
9.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
10.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
11.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
12.		Leica S2	..	..	..	..	..	..	Sep 2008	US$ 22 999	ebay.com
13.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
14.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	US$ 1 199	ebay.com
15.		Sony A6400	4/5	+	4/5	85/100	4.5/5	4/5	Jan 2019	US$ 899	amazon.com
16.		Sony RX10	5/5	+	..	80/100	4.5/5	4.5/5	Oct 2013	US$ 1 299	ebay.com
17.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
