Canon 77D vs R1

The Canon EOS 77D and the Canon EOS R1 are two digital cameras that were officially introduced, respectively, in February 2017 and July 2024. The 77D is a DSLR, while the R1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (77D) and a full frame (R1) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 77D
versus
Canon R1
Canon 77D   Canon R1
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Canon RF mount lenses
24 MP – APS-C sensor 24 MP – Full Frame sensor
1080/60p Video 6K/60p Video
ISO 100-25,600 (100 - 51,200) ISO 100-102,400 (50 - 409,600)
Optical viewfinder Electronic viewfinder (9440k dots)
3.0" LCD – 1040k dots 3.2" LCD – 2100k dots
Swivel touchscreen Swivel touchscreen
6 shutter flaps per second 12 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
600 shots per battery charge1330 shots per battery charge
131 x 100 x 76 mm, 540 g 158 x 150 x 87 mm, 1115 g
logo
Check 77D offers at
ebay.com
logo
Check R1 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Canon EOS R1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 77D and the Canon R1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

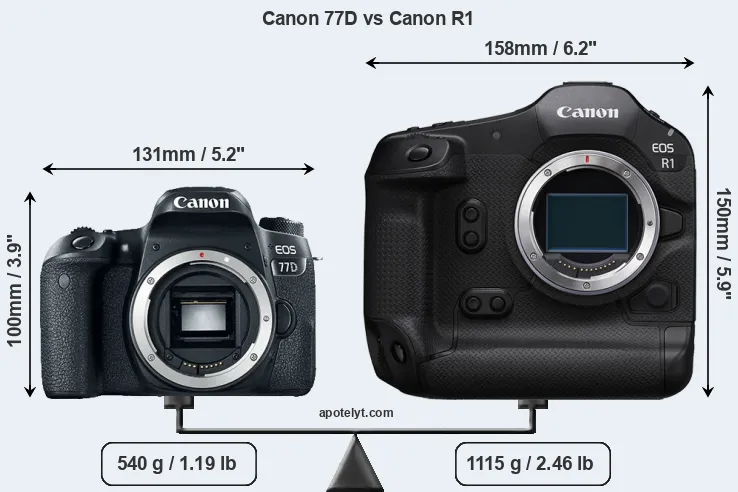

Size Canon 77D vs Canon R1

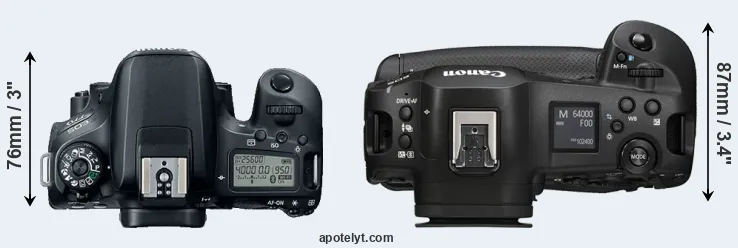

Compare 77D versus R1 top

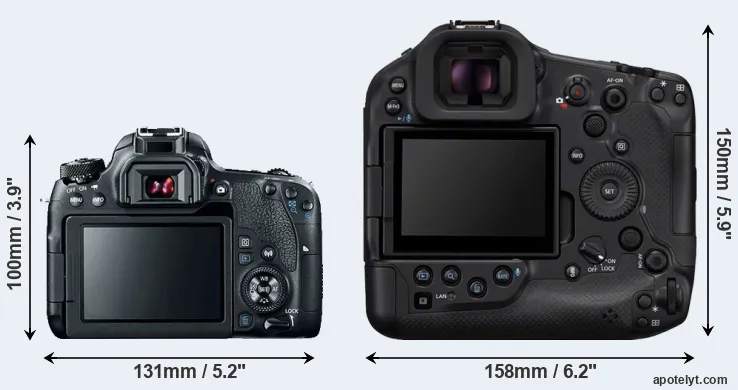

Comparison 77D or R1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R1 is considerably larger (81 percent) than the Canon 77D. Moreover, the R1 is substantially heavier (106 percent) than the 77D. It is noteworthy in this context that the R1 is splash and dust-proof, while the 77D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 77D gets 600 shots out of its Canon LP-E17 battery, while the R1 can take 1330 images on a single charge of its Canon LP-E19 power pack. As can be seen in the images above, the R1 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 77D, there are third party battery grips available as optional accessories (see here on ebay). The power pack in the R1 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 US$ 899ebay.com
2.

Canon R1 158 mm 150 mm 87 mm 1115 g 1330 Y Jul 2024 US$ 6 299 amazon.com
3.

Canon M5 116 mm 89 mm 61 mm 427 g 295 n Sep 2016 US$ 979ebay.com
4.

Canon M6 112 mm 68 mm 45 mm 390 g 295 n Feb 2017 US$ 779ebay.com
5.

Canon R3 150 mm 143 mm 87 mm 1015 g 760 Y Sep 2021 US$ 5 999 amazon.com
6.

Canon R5 Mark II 138 mm 98 mm 88 mm 746 g 340 Y Jul 2024 US$ 4 299 amazon.com
7.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 US$ 2 499 amazon.com
8.

Canon R6 Mark II 138 mm 98 mm 88 mm 670 g 450 Y Nov 2022 US$ 2 499 amazon.com
9.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 US$ 549ebay.com
10.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 US$ 849ebay.com
11.

Canon T6 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 US$ 449ebay.com
12.

Canon T6i 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 US$ 749ebay.com
13.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 US$ 649ebay.com
14.

Canon T7 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 US$ 449 amazon.com
15.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 US$ 749ebay.com
16.

Canon T8i 131 mm 103 mm 76 mm 515 g 800 n Feb 2020 US$ 749ebay.com
17.

Sony A9 III 136 mm 97 mm 83 mm 702 g 530 Y Nov 2023 US$ 5 999 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 77D was launched at a markedly lower price (by 86 percent) than the R1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 77D features an APS-C sensor and the Canon R1 a full frame sensor. The sensor area in the R1 is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the R1 uses a more advanced image processing engine (DIGIC X) than the 77D (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.

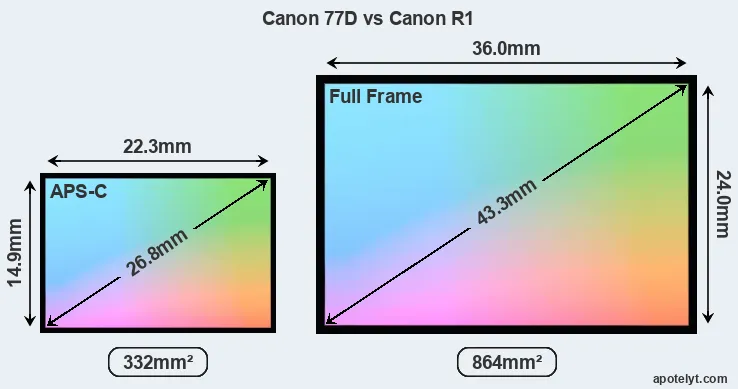

Canon 77D and Canon R1 sensor measures

Even though the R1 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the R1 has a lower pixel density and larger individual pixels (with a pixel pitch of 6.00μm versus 3.72μm for the 77D), which gives it a potential advantage in terms of light gathering capacity. In addition, the R1 is much more recent (by 7 years and 5 months) than the 77D, and its sensor will have benefitted from technological advances during this time.

The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS R1 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-409600.

In terms of underlying technology, the 77D is build around a CMOS sensor, while the R1 uses a Stacked BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

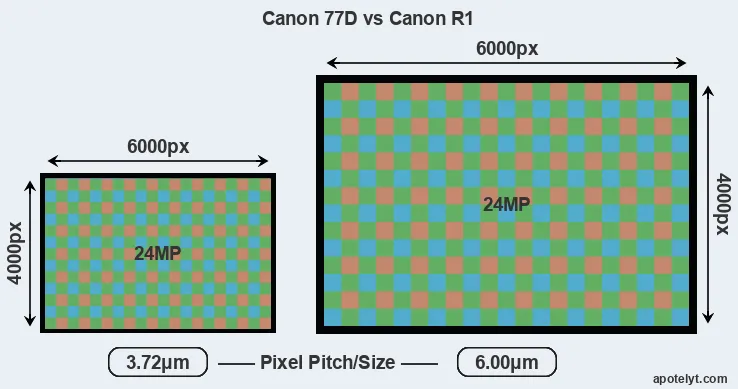

77D versus R1 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
2.

Canon R1 Full Frame 24.0 6000 40006K/60p25.414.8333297
3.

Canon M5 APS-C 24.0 6000 40001080/60p23.412.4126277
4.

Canon M6 APS-C 24.0 6000 40001080/60p23.412.6131778
5.

Canon R3 Full Frame 24.0 6000 40006K/60p25.014.7408696
6.

Canon R5 Mark II Full Frame 44.8 8192 54648k/60p25.414.8333297
7.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
8.

Canon R6 Mark II Full Frame 24.0 6000 40004k/60p25.414.6315496
9.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
10.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.272262
11.

Canon T6 APS-C 17.9 5184 34561080/30p22.011.778166
12.

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971
13.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
14.

Canon T7 APS-C 24.0 6000 40001080/30p23.813.3168481
15.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
16.

Canon T8i APS-C 24.0 6000 40004K/24p24.013.5187383
17.

Sony A9 III Full Frame 24.0 6000 40004K/120p25.414.7324396
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the R1 provides a better video resolution than the 77D. It can shoot movie footage at 6K/60p, while the 77D is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R1 has an electronic viewfinder (9440k dots), while the 77D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the R1 offers a wider field of view (100%) than the one in the 77D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the R1 has a higher magnification (0.9x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 77D and Canon R1 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
2.

Canon R19440 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
3.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
4.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
5.

Canon R35760 Y3.2 / 4150 swivel Y 1/8000s 12.0/s n Y
6.

Canon R5 Mark II5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
7.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
8.

Canon R6 Mark II3690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
9.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
10.

Canon T4ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
11.

Canon T6optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
12.

Canon T6ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
13.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
14.

Canon T7optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
15.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
16.

Canon T8ioptical n3.0 / 1040 swivel Y 1/4000s 7.5/s Y n
17.

Sony A9 III9440 n3.2 / 2100 full-flex Y 1/80000s 120.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 77D has one, while the R1 does not. While the built-in flash of the 77D is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 77D and the Canon R1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 77D writes its imaging data to SDXC cards, while the R1 uses CFexpress (type B) or SDXC cards. The R1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 77D only has one slot. The R1 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 77D can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Canon EOS R1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 77DYstereo / monoY-mini2.0YYY
2.

Canon R1Ystereo / monoYYfull3.2Y-Y
3.

Canon M5Ystereo / monoY-mini2.0YYY
4.

Canon M6Ystereo / monoY-mini2.0YYY
5.

Canon R3Ystereo / monoYYmicro3.2Y-Y
6.

Canon R5 Mark IIYmono / monoYYfull3.2Y-Y
7.

Canon R6Ymono / monoYYmicro3.2Y-Y
8.

Canon R6 Mark IIYstereo / monoYYmicro3.2Y-Y
9.

Canon SL2Ystereo / monoY-mini2.0YYY
10.

Canon T4iYstereo / monoY-mini2.0---
11.

Canon T6Ymono / mono--mini2.0YY-
12.

Canon T6iYstereo / monoY-mini2.0YY-
13.

Canon T6sYstereo / monoY-mini2.0YY-
14.

Canon T7Ymono / mono--mini2.0YY-
15.

Canon T7iYstereo / monoY-mini2.0YYY
16.

Canon T8iYstereo / monoY-mini2.0Y-Y
17.

Sony A9 IIIYstereo / monoYYfull3.2Y-Y

It is notable that the R1 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The 77D lacks such a headphone port.

Studio photographers will appreciate that the Canon R1 (unlike the 77D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R1 is a recent model that features in the current product line-up of Canon. In contrast, the 77D has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the 77D from Canon. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what conclusions can be drawn? Is the Canon 77D better than the Canon R1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Canon EOS 77D:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • More compact: Is smaller (131x100mm vs 158x150mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 575g or 52 percent) and hence easier to carry around.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in February 2017).


Advantages of the Canon EOS R1:

  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 7).
  • Better video: Provides higher definition movie capture (6K/60p vs 1080/60p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.9x vs 0.51x).
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (12 vs 6 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Gets more shots (1330 versus 600) out of a single battery charge.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 7 years and 5 months of technical progress since the 77D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the R1 is the clear winner of the contest (27 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

77D 07:27 R1

How about other alternatives? Do the specifications of the Canon 77D and the Canon R1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 77D and the R1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 US$ 899ebay.com
2.

Canon R1............ Jul 2024 US$ 6 299 amazon.com
3.

Canon M54/5+4/582/1004/54/5 Sep 2016 US$ 979ebay.com
4.

Canon M6......80/1004/54/5 Feb 2017 US$ 779ebay.com
5.

Canon R35/5o4.5/5..5/54.5/5 Sep 2021 US$ 5 999 amazon.com
6.

Canon R5 Mark II......93/100.... Jul 2024 US$ 4 299 amazon.com
7.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 US$ 2 499 amazon.com
8.

Canon R6 Mark II5/5+ +4.5/591/1004.5/55/5 Nov 2022 US$ 2 499 amazon.com
9.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 US$ 549ebay.com
10.

Canon T4i4/5+ +..77/1004.5/54.5/5 Jun 2012 US$ 849ebay.com
11.

Canon T64/5o4/573/1004/54/5 Mar 2016 US$ 449ebay.com
12.

Canon T6i5/5....75/1004.5/54.5/5 Feb 2015 US$ 749ebay.com
13.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 US$ 649ebay.com
14.

Canon T7..o3.5/5..3.5/53.5/5 Feb 2018 US$ 449 amazon.com
15.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 US$ 749ebay.com
16.

Canon T8i4.5/5+3/580/1004/53.5/5 Feb 2020 US$ 749ebay.com
17.

Sony A9 III4.5/5....91/100.... Nov 2023 US$ 5 999 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check 77D offers at
ebay.com
logo
Check R1 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Canon 77D vs Canon R1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 77D Canon R1
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Canon RF mount lenses
    Launch Date February 2017 July 2024
    Launch Price USD 899 USD 6,299
    Sensor Specs Canon 77D Canon R1
    Sensor Technology CMOS Stacked BSI-CMOS
    Sensor Format APS-C Sensor Full Frame Sensor
    Sensor Size 22.3 x 14.9 mm 36.0 x 24.0 mm
    Sensor Area 332.27 mm2 864 mm2
    Sensor Diagonal 26.8 mm 43.3 mm
    Crop Factor 1.6x 1.0x
    Sensor Resolution 24 Megapixels 24 Megapixels
    Image Resolution 6000 x 4000 pixels 6000 x 4000 pixels
    Pixel Pitch 3.72 μm 6.00 μm
    Pixel Density 7.22 MP/cm2 2.78 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 6K/60p Video
    ISO Setting 100 - 25,600 ISO 100 - 102,400 ISO
    ISO Boost 100 - 51,200 ISO 50 - 409,600 ISO
    Image Processor DIGIC 7 DIGIC X
    DXO Sensor Quality (score) 78 ..
    DXO Color Depth (bits) 23.6 ..
    DXO Dynamic Range (EV) 13.3 ..
    DXO Low Light (ISO) 971 ..
    Screen Specs Canon 77D Canon R1
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.51x 0.9x
    Viewfinder Resolution 9440k dots
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.2inch
    LCD Resolution 1040k dots 2100k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon 77D Canon R1
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 6 shutter flaps/s 12 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/64000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards CFexB or SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    UHS card support UHS-I UHS-II
    Connectivity Specs Canon 77D Canon R1
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 3.2
    HDMI Port mini HDMI full HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon 77D Canon R1
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Canon LP-E17 Canon LP-E19
    Battery Life (CIPA)600 shots per charge1330 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    158 x 150 x 87 mm
    (6.2 x 5.9 x 3.4 in)
    Camera Weight 540 g (19.0 oz) 1115 g (39.3 oz)
    logo
    Check 77D offers at
    ebay.com
    logo
    Check R1 price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 77D vs Canon R1
