Canon 80D vs Panasonic S9

The Canon EOS 80D and the Panasonic Lumix DC-S9 are two enthusiast cameras that were officially introduced, respectively, in February 2016 and May 2024. The 80D is a DSLR, while the S9 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (80D) and a full frame (S9) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 80D		Panasonic S9
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Leica L mount lenses
24 MP – APS-C sensor		24 MP – Full Frame sensor
1080/60p Video		6K/30p Video
ISO 100-16,000 (100 - 25,600)		ISO 100-51,200 (50 - 204,800)
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
7 shutter flaps per second		30 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		not weather sealed
960 shots per battery charge		470 shots per battery charge
139 x 105 x 79 mm, 730 g		126 x 74 x 47 mm, 486 g

Check 80D offers at
ebay.com
Check S9 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 80D and the Panasonic Lumix DC-S9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

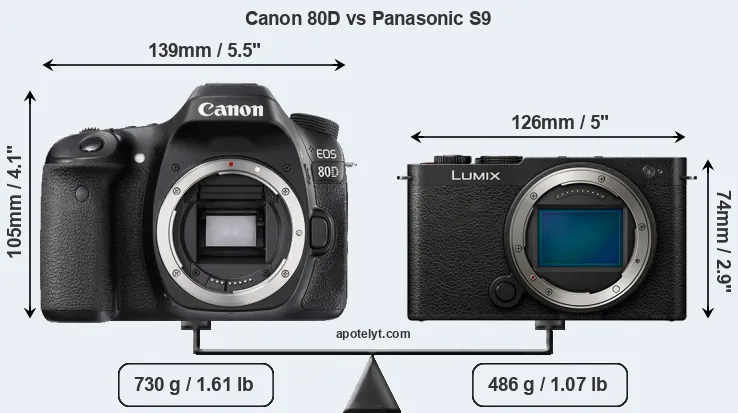

An illustration of the physical size and weight of the Canon 80D and the Panasonic S9 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The S9 can be obtained in four different colors (black, blue, red, green), while the 80D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S9 is considerably smaller (36 percent) than the Canon 80D. Moreover, the S9 is markedly lighter (33 percent) than the 80D. It is worth mentioning in this context that the 80D is splash and dust resistant, while the S9 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 80D gets 960 shots out of its Canon LP-E6N battery, while the S9 can take 470 images on a single charge of its Panasonic DMW-BLK22 power pack. The power pack in the S9 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
2.		Panasonic S9	126 mm	74 mm	47 mm	486 g	470	n	May 2024	US$ 1 499	amazon.com
3.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	US$ 3 499	amazon.com
4.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
5.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
6.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
7.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
8.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	US$ 1 199	amazon.com
9.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
10.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
11.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
12.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
13.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
14.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	US$ 849	ebay.com
15.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
16.		Sony A6700	122 mm	69 mm	64 mm	493 g	570	Y	Jul 2023	US$ 1 399	amazon.com
17.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 80D was launched at a somewhat lower price (by 20 percent) than the S9, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 80D features an APS-C sensor and the Panasonic S9 a full frame sensor. The sensor area in the S9 is 151 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the S9 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the S9 has a lower pixel density and larger individual pixels (with a pixel pitch of 5.94μm versus 3.75μm for the 80D), which gives it a potential advantage in terms of light gathering capacity. In addition, the S9 is much more recent (by 8 years and 3 months) than the 80D, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the S9 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS 80D has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-S9 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

In terms of underlying technology, the 80D is build around a CMOS sensor, while the S9 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
2.		Panasonic S9	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3297	96
3.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
4.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
5.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
6.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
7.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
8.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
9.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
10.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
11.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
12.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
13.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
14.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
15.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
16.		Sony A6700	APS-C	25.6	6192	4128	4K/120p	24.3	14.0	2329	86
17.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the S9 provides a better video resolution than the 80D. It can shoot movie footage at 6K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the 80D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the S9 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 80D and Panasonic S9 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
2.		Panasonic S9	none	n	3.0 / 1840	swivel	Y	1/8000s	30.0/s	n	Y
3.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
4.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
5.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
6.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
7.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
8.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
9.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
10.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
11.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
12.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
13.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
14.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
15.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
16.		Sony A6700	2360	n	3.0 / 1037	swivel	Y	1/4000s	11.0/s	n	Y
17.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 80D has one, while the S9 does not. While the built-in flash of the 80D is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S9 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon 80D and the Panasonic S9 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 80D and the S9 write their files to SDXC cards. The S9 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 80D can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 80D and Panasonic Lumix DC-S9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Panasonic S9	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
3.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
4.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
7.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
9.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
11.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
12.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
13.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
14.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
16.		Sony A6700	Y	stereo / mono	Y	Y	YES	3.2	Y	Y	Y
17.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the 80D has a headphone jack, which is not present on the S9 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

The S9 is a recent model that features in the current product line-up of Panasonic. In contrast, the 80D has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 80D was succeeded by the Canon 90D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.

Review summary

So what is the bottom line? Is the Canon 80D better than the Panasonic S9 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 80D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Longer lasting: Can take more shots (960 versus 470) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced segment (20 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in February 2016).

Advantages of the Panasonic Lumix DC-S9:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (6K/30p vs 1080/60p).
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
• Faster burst: Shoots at higher frequency (30 vs 7 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (126x74mm vs 139x105mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 244g or 33 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 8 years and 3 months of technical progress since the 80D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the S9 is the clear winner of the contest (18 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 80D and the Panasonic S9 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 80D or the S9 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
2.		Panasonic S9	..	..	..	..	..	..	May 2024	US$ 1 499	amazon.com
3.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	US$ 3 499	amazon.com
4.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
5.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
6.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
7.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
8.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	US$ 1 199	amazon.com
9.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
10.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
11.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
12.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
13.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
14.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	US$ 849	ebay.com
15.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
16.		Sony A6700	4.5/5	+	4.5/5	88/100	4.5/5	4.5/5	Jul 2023	US$ 1 399	amazon.com
17.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check 80D offers at
ebay.com
Check S9 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check 80D offers at
ebay.com
Check S9 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
