Canon D30 vs Samsung NX500

The Canon EOS-D30 and the Samsung NX500 are two digital cameras that were officially introduced, respectively, in May 2000 and February 2015. The D30 is a DSLR, while the NX500 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 3.1 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon D30		Samsung NX500
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Samsung NX mount lenses
3.1 MP – APS-C sensor		28 MP – APS-C sensor
no Video		4K/30p Video
ISO 100-1,600		ISO 100-25,600 (100 - 51,200)
Optical viewfinder		No viewfinder, LCD framing
1.8" LCD – 114k dots		3.0" LCD – 1036k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		9 shutter flaps per second
540 shots per battery charge		370 shots per battery charge
150 x 107 x 75 mm, 750 g		120 x 64 x 43 mm, 287 g

Check D30 offers at
ebay.com
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-D30 and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

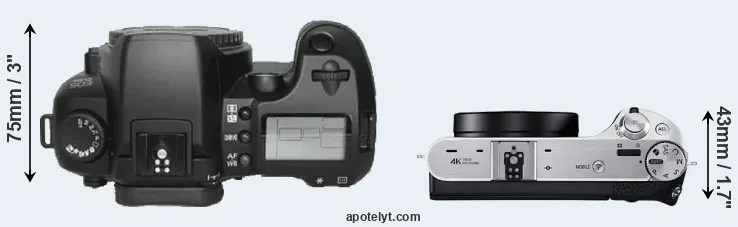

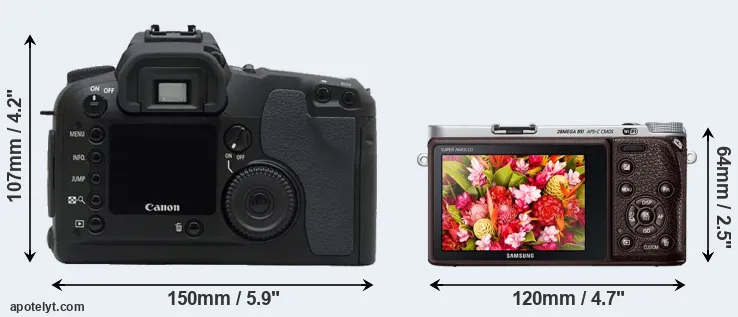

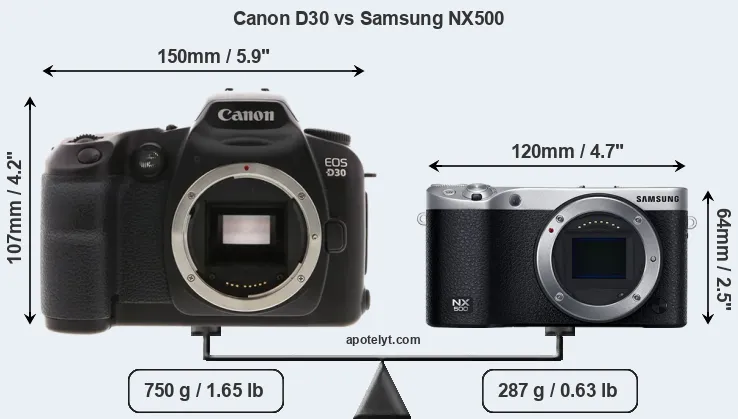

Body comparison

The physical size and weight of the Canon D30 and the Samsung NX500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is considerably smaller (52 percent) than the Canon D30. Moreover, the NX500 is substantially lighter (62 percent) than the D30. In this context, it is worth noting that neither the D30 nor the NX500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the NX500 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon D30	150 mm	107 mm	75 mm	750 g	540	n	May 2000	EUR 2 999	ebay.com
2.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	EUR 749	ebay.com
3.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	EUR 4 065	amazon.com
4.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	EUR 1 999	ebay.com
5.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	EUR 1 599	ebay.com
6.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	EUR 1 399	ebay.com
7.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	EUR 1 299	ebay.com
8.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
9.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	EUR 1 285	ebay.com
10.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	EUR 599	ebay.com
11.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	EUR 1 095	ebay.com
12.		Canon D60	150 mm	107 mm	75 mm	855 g	620	n	Feb 2002	EUR 2 999	ebay.com
13.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	EUR 749	ebay.com
14.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	EUR 799	ebay.com
15.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	EUR 819	ebay.com
16.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	EUR 799	ebay.com
17.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	EUR 549	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NX500 was launched at a markedly lower price (by 73 percent) than the D30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

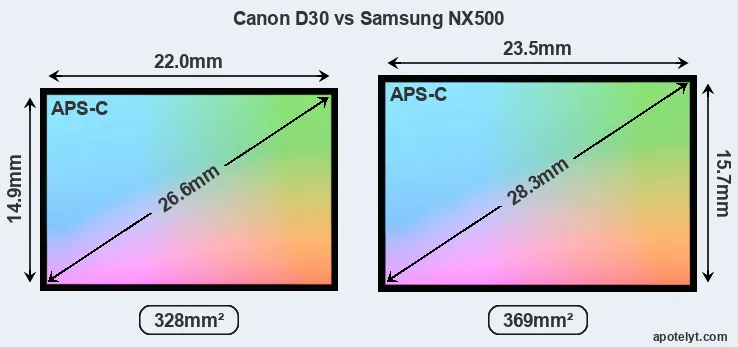

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NX500 is 13 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (D30) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

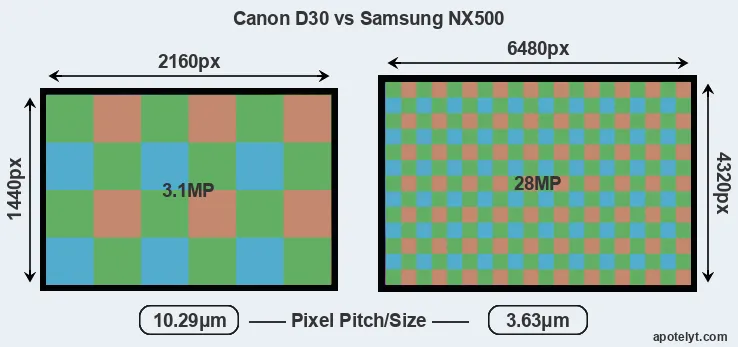

With 28MP, the NX500 offers a higher resolution than the D30 (3.1MP), but the NX500 has smaller individual pixels (pixel pitch of 3.63μm versus 10.29μm for the D30). Yet, the NX500 is a much more recent model (by 14 years and 8 months) than the D30, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Canon D30 are 10.8 x 7.2 inches or 27.4 x 18.3 cm for good quality, 8.6 x 5.8 inches or 21.9 x 14.6 cm for very good quality, and 7.2 x 4.8 inches or 18.3 x 12.2 cm for excellent quality prints.

The NX500 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS-D30 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the D30 is build around a CMOS sensor, while the NX500 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon D30	APS-C	3.1	2160	1440	none	..	..	..	..
2.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
3.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
4.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
5.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
6.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
7.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
8.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
9.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
10.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
11.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
12.		Canon D60	APS-C	6.3	3072	2048	none	20.3	9.8	301	47
13.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
14.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
15.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
16.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
17.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The NX500 indeed provides for movie recording, while the D30 does not. The highest resolution format that the NX500 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D30 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon D30 and Samsung NX500 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon D30	optical	Y	1.8 / 114	fixed	n	1/4000s	3.0/s	Y	n
2.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
3.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
4.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
6.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
7.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
8.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
9.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
10.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
12.		Canon D60	optical	Y	1.8 / 114	fixed	n	1/4000s	3.0/s	Y	n
13.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
14.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
15.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
16.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D30, but is missing on the NX500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Samsung NX500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D30 writes its imaging data to Compact Flash cards, while the NX500 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-D30 and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon D30	Y	- / -	-	-	-	1.0	-	-	-
2.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
4.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
5.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
6.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
8.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
12.		Canon D60	Y	- / -	-	-	-	1.1	-	-	-
13.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
15.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
16.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the NX500 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D30 does not provide wifi capability.

Studio photographers will appreciate that the Canon D30 (unlike the NX500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D30 and the NX500 have been discontinued, but can regularly be found used on ebay. The D30 was replaced by the Canon D60, while the NX500 does not have a direct successor. Further information on the features and operation of the D30 and NX500 can be found, respectively, in the Canon D30 Manual (free pdf) or the online Samsung NX500 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon D30 and the Samsung NX500? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS-D30:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Longer lasting: Can take more shots (540 versus 370) on a single battery charge.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in May 2000).

Advantages of the Samsung NX500:

• More detail: Has more megapixels (28 vs 3.1MP), which boosts linear resolution by 200%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1036k vs 114k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (120x64mm vs 150x107mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 463g or 62 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
• More modern: Reflects 14 years and 8 months of technical progress since the D30 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the NX500 is the clear winner of the contest (22 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon D30 and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D30 or the NX500. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon D30	..	..	..	+ +	..	..	May 2000	EUR 2 999	ebay.com
2.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	EUR 749	ebay.com
3.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	EUR 4 065	amazon.com
4.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	EUR 1 999	ebay.com
5.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	EUR 1 599	ebay.com
6.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	EUR 1 399	ebay.com
7.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	EUR 1 299	ebay.com
8.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
9.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	EUR 1 285	ebay.com
10.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	EUR 599	ebay.com
11.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	EUR 1 095	ebay.com
12.		Canon D60	..	..	..	+ +	o	..	Feb 2002	EUR 2 999	ebay.com
13.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	EUR 749	ebay.com
14.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	EUR 799	ebay.com
15.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	EUR 819	ebay.com
16.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	EUR 799	ebay.com
17.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	EUR 549	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
