Canon G1 X vs SX20

The Canon PowerShot G1 X and the Canon PowerShot SX20 IS are two digital cameras that were revealed to the public, respectively, in January 2012 and August 2009. Both the G1X and the SX20 are fixed lens compact cameras that are based on an 1.5-inch (G1X) and a 1/2.3-inch (SX20) sensor. The G1X has a resolution of 14.2 megapixels, whereas the SX20 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G1 X		Canon SX20
Fixed lens compact camera		Fixed lens compact camera
28-112mm f/2.8-5.8		28-560mm f/2.8-5.7
14.2 MP – 1.5" sensor		12 MP – 1/2.3" sensor
1080/24p Video		720/30p Video
ISO 100-12,800		ISO 100-3,200
Optical viewfinder		Electronic viewfinder (202k dots)
3.0" LCD – 922k dots		2.5" LCD – 230k dots
Swivel screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
1.9 shutter flaps per second		0.7 shutter flaps per second
117 x 81 x 65 mm, 534 g		123 x 88 x 87 mm, 600 g

Check G1X offers at
ebay.com
Check SX20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G1 X and the Canon PowerShot SX20 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

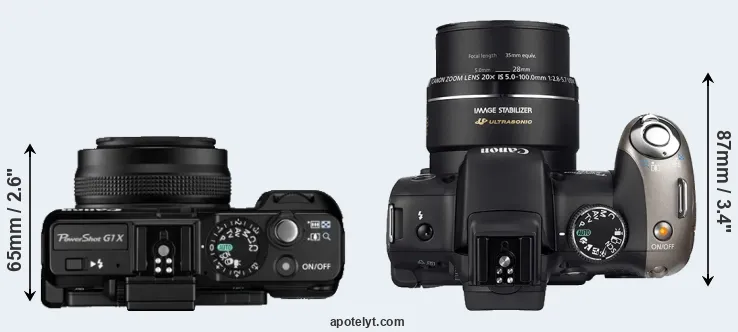

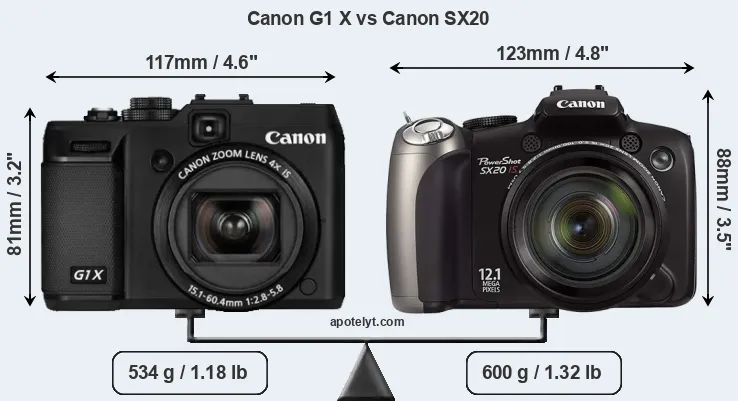

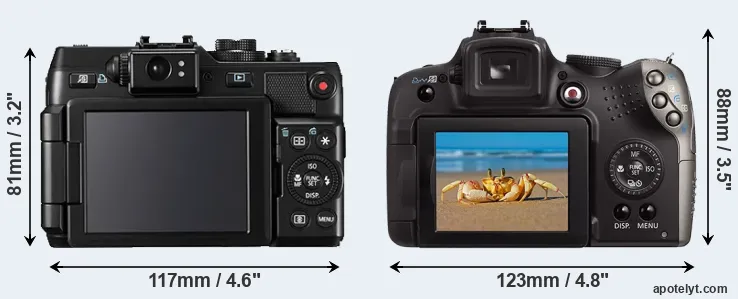

The side-by-side display below illustrates the physical size and weight of the Canon G1 X and the Canon SX20. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX20 is notably larger (14 percent) than the Canon G1 X. Moreover, the SX20 is markedly heavier (12 percent) than the G1X. In this context, it is worth noting that neither the G1X nor the SX20 are weather-sealed.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
2.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
3.		Canon 450D	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
4.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
5.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
6.		Canon 1000D	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
7.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
8.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
9.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
10.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
11.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
12.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
13.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
14.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
15.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	US$ 949	ebay.com
16.		Leica V-LUX 4	125 mm	87 mm	110 mm	588 g	540	n	Sep 2012	US$ 949	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX20 was launched at a markedly lower price (by 50 percent) than the G1X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

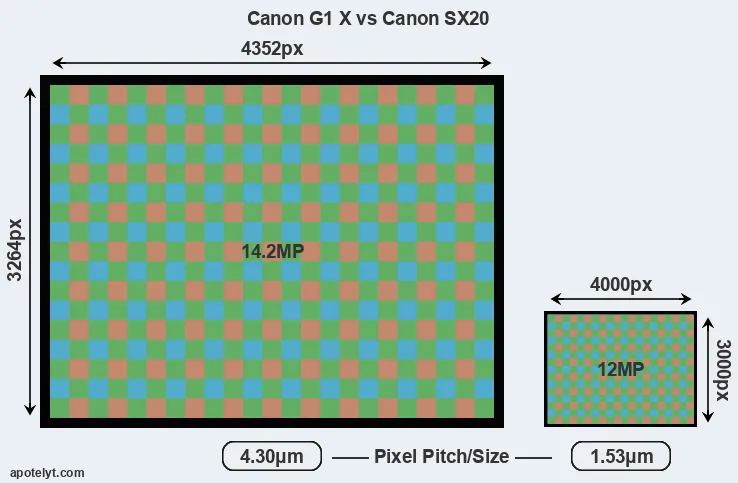

Of the two cameras under consideration, the Canon G1 X features an 1.5-inch sensor and the Canon SX20 a 1/2.3-inch sensor. The sensor area in the SX20 is 89 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.85 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the G1X uses a more advanced image processing engine (DIGIC 5) than the SX20 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

With 14.2MP, the G1X offers a higher resolution than the SX20 (12MP), but the G1X nevertheless has larger individual pixels (pixel pitch of 4.30μm versus 1.53μm for the SX20) due to its larger sensor. Moreover, the G1X is a much more recent model (by 2 years and 4 months) than the SX20, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon G1 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G1X for good quality output (200 dots per inch) amounts to 21.8 x 16.3 inches or 55.3 x 41.5 cm, for very good quality (250 dpi) 17.4 x 13.1 inches or 44.2 x 33.2 cm, and for excellent quality (300 dpi) 14.5 x 10.9 inches or 36.8 x 27.6 cm. The corresponding values for the Canon SX20 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot G1 X has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Canon PowerShot SX20 IS are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the G1X is build around a CMOS sensor, while the SX20 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
2.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
3.		Canon 450D	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
4.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
5.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
6.		Canon 1000D	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
7.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
8.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
9.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
10.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
11.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
12.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
13.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
14.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
15.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
16.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the G1X provides a higher video resolution than the SX20. It can shoot video footage at 1080/24p, while the SX20 is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SX20 has an electronic viewfinder (202k dots), while the G1X has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon G1 X and Canon SX20 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
2.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
3.		Canon 450D	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
4.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
5.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon 1000D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
8.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
9.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
10.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
11.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
12.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
13.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
14.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
15.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
16.		Leica V-LUX 4	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the G1X and the SX20 have zoom lenses built in. The G1X has a 28-112mm f/2.8-5.8 optic and the SX20 offers a 28-560mm f/2.8-5.7 (focal lengths in full frame equivalent terms). Hence, the G1X and SX20 provide the same view at the wide-angle end, but the SX20 has more tele-photo reach at the long end. Both cameras offer the same maximum aperture.

The G1X writes its imaging data to SDXC cards, while the SX20 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G1 X and Canon PowerShot SX20 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
3.		Canon 450D	Y	- / -	-	-	mini	2.0	-	-	-
4.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
5.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon 1000D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
9.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
11.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
12.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
13.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
14.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Leica V-LUX 4	Y	stereo / mono	Y	-	mini	2.0	-	-	-

Both the G1X and the SX20 have been discontinued, but can regularly be found used on ebay. The SX20 was replaced by the Canon SX30, while the G1X was followed by the Canon G1X Mark II. Further information on the features and operation of the G1X and SX20 can be found, respectively, in the Canon G1 X Manual (free pdf) or the online Canon SX20 Manual.

Review summary

So what conclusions can be drawn? Is the Canon G1 X better than the Canon SX20 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot G1 X:

• More detail: Offers more megapixels (14.2 vs 12MP) with a 9% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better jpgs: Has a more modern image processing engine (DIGIC 5 vs DIGIC 4).
• Better video: Provides higher definition movie capture (1080/24p vs 720/30p).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (1.9 vs 0.7 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (117x81mm vs 123x88mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 66g or 11 percent) and hence easier to carry around.
• More modern: Reflects 2 years and 4 months of technical progress since the SX20 launch.

Arguments in favor of the Canon PowerShot SX20 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in August 2009).

If the number of relative strengths (bullet points above) is taken as a guide, the G1X is the clear winner of the match-up (17 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G1 X and the Canon SX20 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the G1X and the SX20 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
2.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
3.		Canon 450D	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
4.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
5.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
6.		Canon 1000D	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
7.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
8.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
9.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
10.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
11.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
12.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
13.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
14.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
15.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	US$ 949	ebay.com
16.		Leica V-LUX 4	..	..	..	..	..	..	Sep 2012	US$ 949	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
