Canon G1 X vs SX500

The Canon PowerShot G1 X and the Canon PowerShot SX500 IS are two digital cameras that were announced, respectively, in January 2012 and August 2012. Both the G1X and the SX500 are fixed lens compact cameras that are based on an 1.5-inch (G1X) and a 1/2.3-inch (SX500) sensor. The G1X has a resolution of 14.2 megapixels, whereas the SX500 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G1 X		Canon SX500
Fixed lens compact camera		Fixed lens compact camera
28-112mm f/2.8-5.8		24-720mm f/3.4-5.8
14.2 MP – 1.5" sensor		15.9 MP – 1/2.3" sensor
1080/24p Video		720/30p Video
ISO 100-12,800		ISO 80-1,600
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 922k dots		3.0" LCD – 461k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.9 shutter flaps per second		0.8 shutter flaps per second
250 shots per battery charge		195 shots per battery charge
117 x 81 x 65 mm, 534 g		104 x 70 x 80 mm, 341 g

Check G1X offers at
ebay.com
Check SX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G1 X and the Canon PowerShot SX500 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

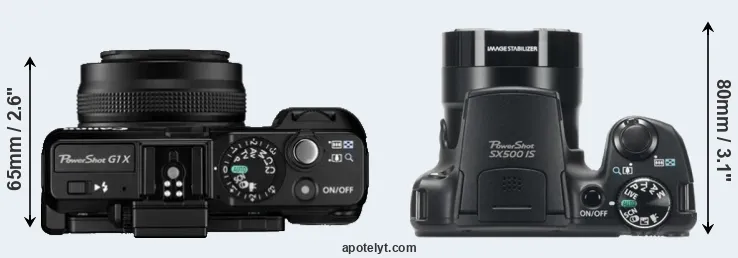

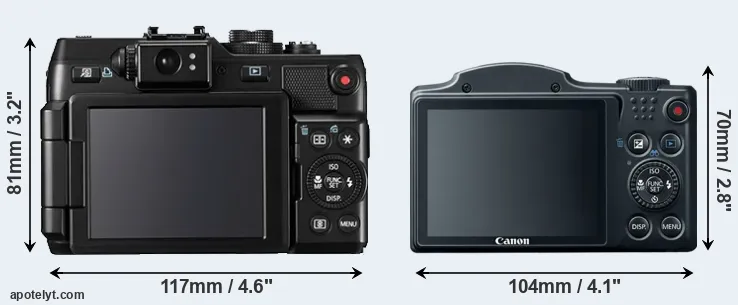

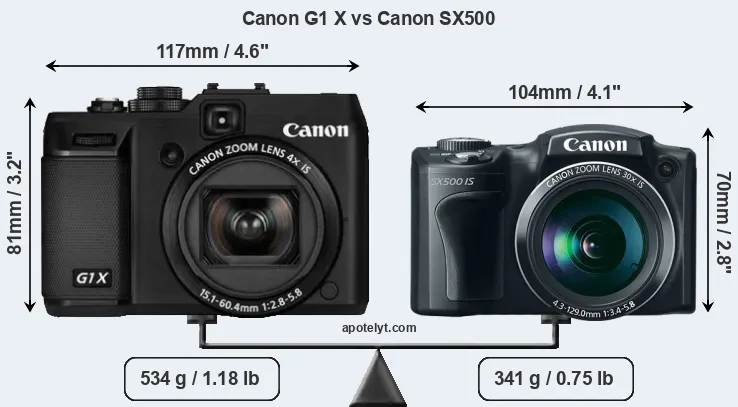

An illustration of the physical size and weight of the Canon G1 X and the Canon SX500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX500 is notably smaller (23 percent) than the Canon G1 X. Moreover, the SX500 is substantially lighter (36 percent) than the G1X. In this context, it is worth noting that neither the G1X nor the SX500 are weather-sealed.

Concerning battery life, the G1X gets 250 shots out of its Canon NB-10L battery, while the SX500 can take 195 images on a single charge of its Canon NB-6L power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
2.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	US$ 329	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
6.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
7.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
8.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
9.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
10.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
11.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
12.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
13.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
14.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
15.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
16.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	US$ 949	ebay.com
17.		Leica V-LUX 4	125 mm	87 mm	110 mm	588 g	540	n	Sep 2012	US$ 949	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX500 was launched at a markedly lower price (by 59 percent) than the G1X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

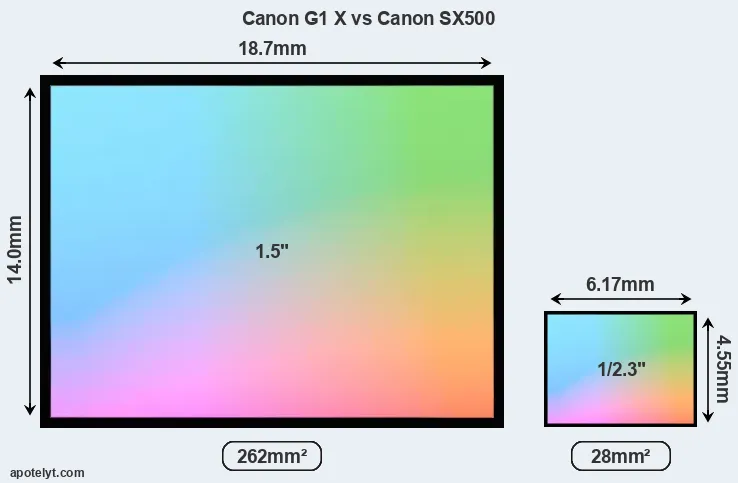

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G1 X features an 1.5-inch sensor and the Canon SX500 a 1/2.3-inch sensor. The sensor area in the SX500 is 89 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.85 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the G1X uses a more advanced image processing engine (DIGIC 5) than the SX500 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

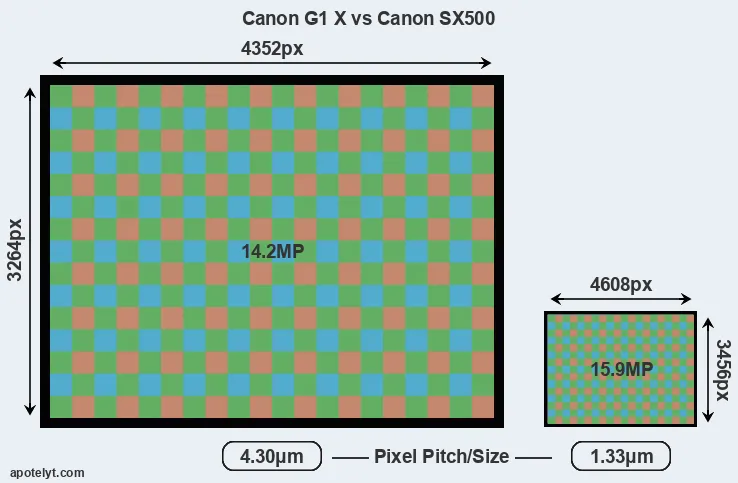

Despite having a smaller sensor, the SX500 offers a higher resolution of 15.9 megapixels, compared with 14.2 MP of the G1X. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 4.30μm for the G1X). However, it should be noted that the SX500 is a somewhat more recent model (by 7 months) than the G1X, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the SX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX500 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon G1 X are 21.8 x 16.3 inches or 55.3 x 41.5 cm for good quality, 17.4 x 13.1 inches or 44.2 x 33.2 cm for very good quality, and 14.5 x 10.9 inches or 36.8 x 27.6 cm for excellent quality prints.

The Canon PowerShot G1 X has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Canon PowerShot SX500 IS are ISO 80 to ISO 1600 (no boost).

In terms of underlying technology, the G1X is build around a CMOS sensor, while the SX500 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
2.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
6.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
7.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
8.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
9.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
10.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
11.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
12.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
13.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
14.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
15.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
16.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
17.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the G1X provides a higher video resolution than the SX500. It can shoot video footage at 1080/24p, while the SX500 is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the G1X has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX500 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon G1 X, the Canon SX500, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
2.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
6.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
7.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
9.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
10.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
11.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
12.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
13.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
15.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
16.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
17.		Leica V-LUX 4	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the G1X and the SX500 have zoom lenses built in. The G1X has a 28-112mm f/2.8-5.8 optic and the SX500 offers a 24-720mm f/3.4-5.8 (focal lengths in full frame equivalent terms). Hence, the SX500 provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the G1X. The G1X offers the faster maximum aperture.

Concerning the storage of imaging data, both the G1X and the SX500 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G1 X and Canon PowerShot SX500 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
8.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
9.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
16.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
17.		Leica V-LUX 4	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the G1X has a hotshoe, while the SX500 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the G1X and the SX500 have been discontinued, but can regularly be found used on ebay. The G1X was replaced by the Canon G1X Mark II, while the SX500 was followed by the Canon SX510. Further information on the features and operation of the G1X and SX500 can be found, respectively, in the Canon G1 X Manual (free pdf) or the online Canon SX500 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon G1 X and the Canon SX500? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon PowerShot G1 X:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better jpgs: Has a more modern image processing engine (DIGIC 5 vs DIGIC 4).
• Better video: Provides higher definition movie capture (1080/24p vs 720/30p).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (922k vs 461k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (1.9 vs 0.8 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
• Longer lasting: Can take more shots (250 versus 195) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in January 2012).

Arguments in favor of the Canon PowerShot SX500 IS:

• More detail: Has more megapixels (15.9 vs 14.2MP), which boosts linear resolution by 6%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More compact: Is smaller (104x70mm vs 117x81mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 193g or 36 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (59 percent cheaper at launch).
• More modern: Was introduced somewhat (7 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the G1X is the clear winner of the match-up (17 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G1 X and the Canon SX500 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G1X or the SX500. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
2.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	US$ 329	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
6.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
7.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
8.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
9.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
10.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
11.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
12.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
13.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
14.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
15.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
16.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	US$ 949	ebay.com
17.		Leica V-LUX 4	..	..	..	..	..	..	Sep 2012	US$ 949	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
