Canon G5 X Mark II vs Sony NEX-5R

The Canon PowerShot G5 X Mark II and the Sony Alpha NEX-5R are two digital cameras that were announced, respectively, in July 2019 and August 2012. The G5X Mark II is a fixed lens compact, while the NEX-5R is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G5X Mark II) and an APS-C (NEX-5R) sensor. The Canon has a resolution of 20 megapixels, whereas the Sony provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G5 X Mark II		Sony NEX-5R
Fixed lens compact camera		Mirrorless system camera
24-120mm f/1.8-2.8		Sony E mount lenses
20 MP – 1" sensor		16 MP – APS-C sensor
4K/30p Video		1080/60i Video
ISO 125-12,800 (125 - 25,600)		ISO 100-25,600
Electronic viewfinder (2360k dots)		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Tilting touchscreen		Tilting touchscreen
30 shutter flaps per second		10 shutter flaps per second
230 shots per battery charge		330 shots per battery charge
111 x 61 x 46 mm, 340 g		111 x 59 x 39 mm, 276 g

Check G5X Mark II offers at
ebay.com
Check NEX-5R offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X Mark II and the Sony Alpha NEX-5R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

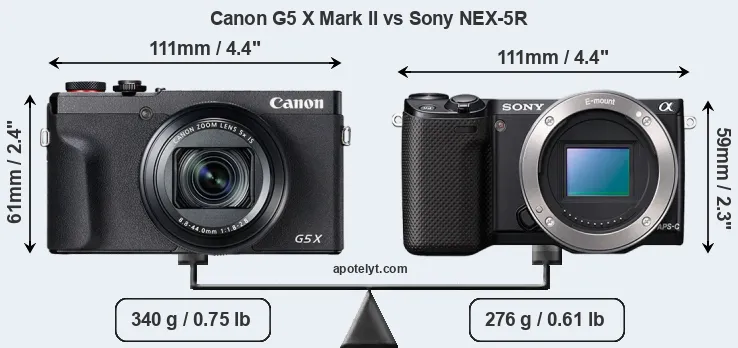

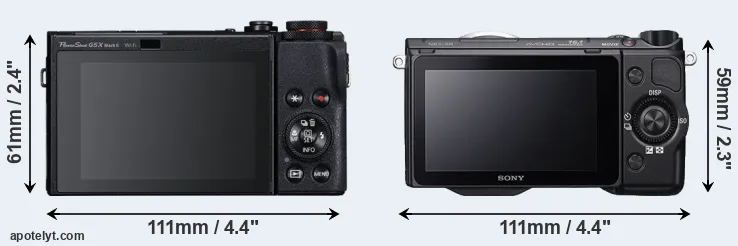

An illustration of the physical size and weight of the Canon G5 X Mark II and the Sony NEX-5R is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The NEX-5R can be obtained in two different colors (black, silver), while the G5X Mark II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5R is somewhat smaller (3 percent) than the Canon G5 X Mark II. In this context, it is worth noting that neither the G5X Mark II nor the NEX-5R are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G5X Mark II has a lens built in, whereas the NEX-5R is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the NEX-5R and their specifications in the Sony E-Mount Lens Catalog.

Concerning battery life, the G5X Mark II gets 230 shots out of its Canon NB-13L battery, while the NEX-5R can take 330 images on a single charge of its Sony NP-FW50 power pack. The power pack in the G5X Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
2.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	US$ 749	ebay.com
3.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	US$ 749	amazon.com
5.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
6.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
7.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	US$ 1 049	ebay.com
8.		Panasonic FZ1000 II	136 mm	97 mm	131 mm	810 g	350	n	Feb 2019	US$ 899	amazon.com
9.		Panasonic LX100 II	115 mm	66 mm	65 mm	392 g	300	n	Aug 2018	US$ 999	ebay.com
10.		Panasonic TZ200	111 mm	65 mm	45 mm	340 g	370	n	Feb 2018	US$ 799	amazon.com
11.		Sony A6400	120 mm	67 mm	50 mm	403 g	410	Y	Jan 2019	US$ 899	amazon.com
12.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	US$ 499	ebay.com
13.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	US$ 699	ebay.com
14.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	US$ 699	ebay.com
15.		Sony NEX-5T	111 mm	59 mm	39 mm	276 g	330	n	Aug 2013	US$ 699	ebay.com
16.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	US$ 599	ebay.com
17.		Sony ZV-1	105 mm	60 mm	44 mm	294 g	260	n	May 2020	US$ 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

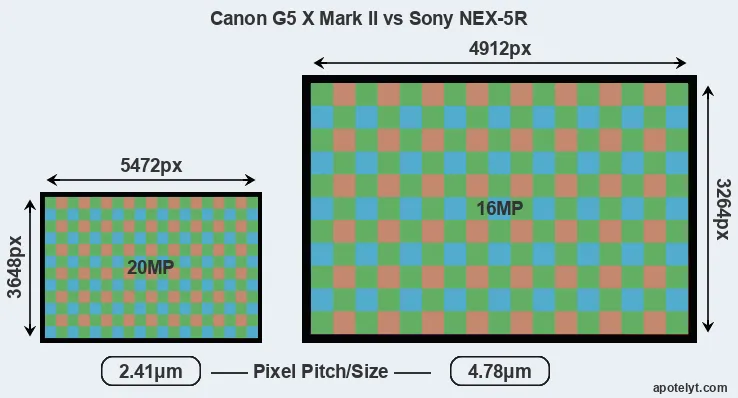

Of the two cameras under consideration, the Canon G5 X Mark II features an one-inch sensor and the Sony NEX-5R an APS-C sensor. The sensor area in the NEX-5R is 215 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon G5 X Mark II offers a higher resolution of 20 megapixels, compared with 16 MP of the Sony NEX-5R. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 4.78μm for the NEX-5R). However, it should be noted that the G5X Mark II is much more recent (by 6 years and 10 months) than the NEX-5R, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon G5 X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5X Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Sony NEX-5R are 24.6 x 16.3 inches or 62.4 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.9 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.6 x 27.6 cm for excellent quality prints.

The Canon PowerShot G5 X Mark II has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Sony Alpha NEX-5R are ISO 100 to ISO 25600 (no boost).

In terms of underlying technology, the G5X Mark II is build around a BSI-CMOS sensor, while the NEX-5R uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
2.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
3.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
4.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
5.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
6.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
7.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
8.		Panasonic FZ1000 II	1-inch	20.0	5472	3648	4K/30p	22.1	12.4	546	65
9.		Panasonic LX100 II	Four Thirds	16.8	4736	3552	4K/30p	22.8	12.7	979	72
10.		Panasonic TZ200	1-inch	20.0	5472	3648	4K/30p	22.0	12.2	449	64
11.		Sony A6400	APS-C	24.0	6000	4000	4K/30p	24.0	13.6	1431	83
12.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
13.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
14.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
15.		Sony NEX-5T	APS-C	16.0	4912	3264	1080/60p	23.6	13.0	1015	78
16.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
17.		Sony ZV-1	1-inch	20.0	5472	3648	4K/30p	22.2	12.6	669	66
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G5X Mark II provides a higher video resolution than the NEX-5R. It can shoot video footage at 4K/30p, while the Sony is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the G5X Mark II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NEX-5R relies on live view and the rear LCD for framing. That said, the NEX-5R can be equipped with an optional viewfinder – the FDA-EV1S. The adjacent table lists some of the other core features of the Canon G5 X Mark II and Sony NEX-5R along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
2.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
3.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
4.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
5.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
6.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
7.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
8.		Panasonic FZ1000 II	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
9.		Panasonic LX100 II	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
10.		Panasonic TZ200	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
11.		Sony A6400	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
12.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
13.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
14.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
15.		Sony NEX-5T	optional	n	3.0 / 922	tilting	Y	1/4000s	10.0/s	n	n
16.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
17.		Sony ZV-1	none	n	3.0 / 922	swivel	Y	1/2000s	24.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The G5X Mark II has one, while the NEX-5R does not. While the built-in flash of the G5X Mark II is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the G5X Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon G5 X Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The G5X Mark II writes its imaging data to SDXC cards, while the NEX-5R uses SDXC or Memory Stick PRO Duo cards. The G5X Mark II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-5R cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X Mark II and Sony Alpha NEX-5R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
2.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
3.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
5.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
7.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Panasonic FZ1000 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Panasonic LX100 II	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Panasonic TZ200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Sony A6400	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y
12.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-
13.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-5T	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony ZV-1	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y

It is notable that the NEX-5R has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The G5X Mark II does not feature such an accessory-socket.

Both the G5X Mark II and the NEX-5R have been discontinued, but can regularly be found used on ebay. The NEX-5R was replaced by the Sony NEX-5T, while the G5X Mark II does not have a direct successor. Further information on the features and operation of the G5X Mark II and NEX-5R can be found, respectively, in the Canon G5 X Mark II Manual (free pdf) or the online Sony NEX-5R Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon G5 X Mark II and the Sony NEX-5R? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon PowerShot G5 X Mark II:

• More detail: Offers more megapixels (20 vs 16MP) with a 12% higher linear resolution.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Faster burst: Shoots at higher frequency (30 vs 10 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the NEX-5R requires a separate lens.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 6 years and 10 months of technical progress since the NEX-5R launch.

Advantages of the Sony Alpha NEX-5R:

• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (330 versus 230) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in August 2012).

If the count of relative strengths (bullet points above) is taken as a measure, the G5X Mark II is the clear winner of the match-up (15 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G5 X Mark II and the Sony NEX-5R place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the G5X Mark II or the NEX-5R perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
2.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	US$ 749	ebay.com
3.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	US$ 749	amazon.com
5.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
6.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
7.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	US$ 1 049	ebay.com
8.		Panasonic FZ1000 II	..	..	..	83/100	4.5/5	4.5/5	Feb 2019	US$ 899	amazon.com
9.		Panasonic LX100 II	4.5/5	+	4.2/5	82/100	4.5/5	4.5/5	Aug 2018	US$ 999	ebay.com
10.		Panasonic TZ200	..	+ +	4.5/5	81/100	4.5/5	4.5/5	Feb 2018	US$ 799	amazon.com
11.		Sony A6400	4/5	+	4/5	85/100	4.5/5	4/5	Jan 2019	US$ 899	amazon.com
12.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	US$ 499	ebay.com
13.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	US$ 699	ebay.com
14.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	US$ 699	ebay.com
15.		Sony NEX-5T	..	..	..	..	4.5/5	4.5/5	Aug 2013	US$ 699	ebay.com
16.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	US$ 599	ebay.com
17.		Sony ZV-1	4/5	+	4/5	85/100	4/5	4.5/5	May 2020	US$ 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
