Canon G5 X vs SX700

The Canon PowerShot G5 X and the Canon PowerShot SX700 HS are two digital cameras that were officially introduced, respectively, in October 2015 and February 2014. Both the G5X and the SX700 are fixed lens compact cameras that are based on an one-inch (G5X) and a 1/2.3-inch (SX700) sensor. The G5X has a resolution of 20 megapixels, whereas the SX700 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G5 X		Canon SX700
Fixed lens compact camera		Fixed lens compact camera
24-100mm f/1.8-2.8		25-750mm f/3.2-6.9
20 MP – 1" sensor		15.9 MP – 1/2.3" sensor
1080/60p Video		1080/60p Video
ISO 125-12,800 (125 - 25,600)		ISO 100-3,200
Electronic viewfinder (2360k dots)		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 922k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
5.9 shutter flaps per second		8.5 shutter flaps per second
210 shots per battery charge		250 shots per battery charge
112 x 76 x 44 mm, 353 g		113 x 66 x 35 mm, 269 g

Check G5X offers at
ebay.com
Check SX700 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X and the Canon PowerShot SX700 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

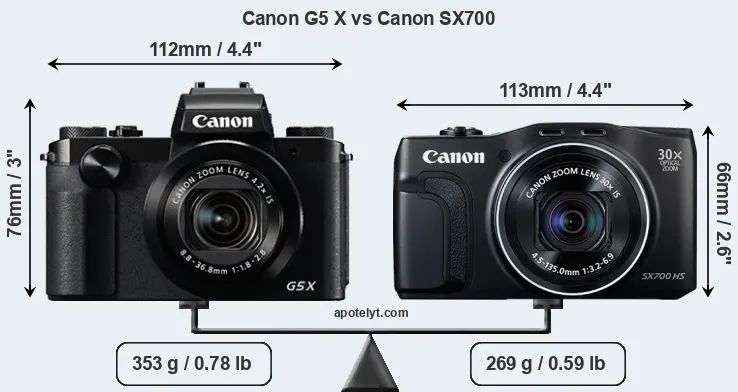

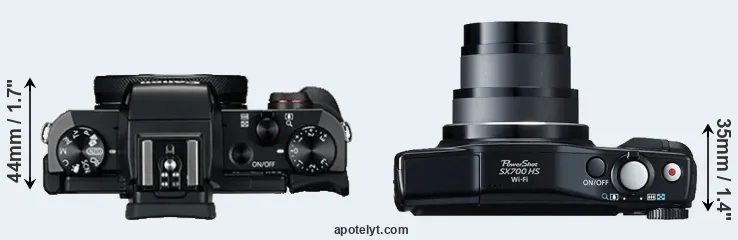

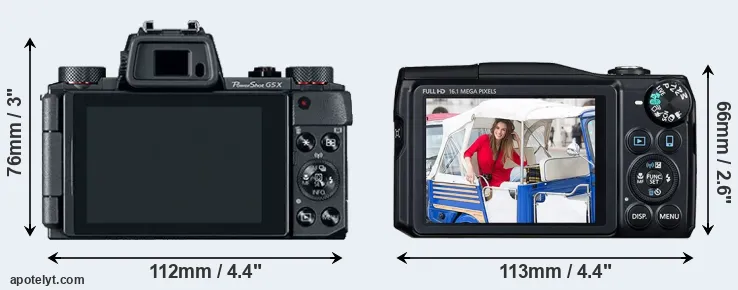

An illustration of the physical size and weight of the Canon G5 X and the Canon SX700 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The SX700 can be obtained in two different colors (black, red), while the G5X is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX700 is notably smaller (12 percent) than the Canon G5 X. Moreover, the SX700 is markedly lighter (24 percent) than the G5X. In this context, it is worth noting that neither the G5X nor the SX700 are weather-sealed.

Concerning battery life, the G5X gets 210 shots out of its Canon NB-13L battery, while the SX700 can take 250 images on a single charge of its Canon NB-6LH power pack. The power pack in the G5X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
2.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
3.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	US$ 899	ebay.com
4.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
5.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
6.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	US$ 749	amazon.com
7.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
8.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	US$ 249	ebay.com
9.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
10.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
11.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
12.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
13.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	US$ 799	ebay.com
14.		Panasonic LX10	106 mm	60 mm	42 mm	310 g	260	n	Sep 2016	US$ 699	amazon.com
15.		Panasonic ZS100	111 mm	65 mm	44 mm	312 g	300	n	Jan 2016	US$ 699	ebay.com
16.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
17.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX700 was launched at a markedly lower price (by 56 percent) than the G5X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G5 X features an one-inch sensor and the Canon SX700 a 1/2.3-inch sensor. The sensor area in the SX700 is 76 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 5.6. The sensor in the G5X has a native 3:2 aspect ratio, while the one in the SX700 offers a 4:3 aspect.

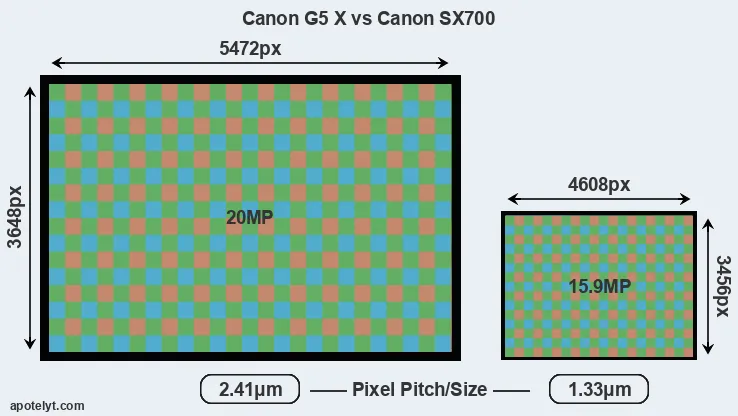

With 20MP, the G5X offers a higher resolution than the SX700 (15.9MP), but the G5X nevertheless has larger individual pixels (pixel pitch of 2.41μm versus 1.33μm for the SX700) due to its larger sensor. Moreover, the G5X is a somewhat more recent model (by 1 year and 7 months) than the SX700, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX700 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon G5 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon SX700 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot G5 X has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Canon PowerShot SX700 HS are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
2.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
3.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
4.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
5.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
6.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
7.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
8.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
9.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
10.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
11.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
12.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
13.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
14.		Panasonic LX10	1-inch	20.0	5472	3648	4K/30p	22.8	12.5	581	70
15.		Panasonic ZS100	1-inch	20.0	5472	3648	4K/30p	22.8	12.5	559	70
16.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
17.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the G5X has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX700 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon G5 X, the Canon SX700, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
2.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
3.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
4.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
5.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
6.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
7.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
8.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
9.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
10.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
11.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
12.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
13.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
14.		Panasonic LX10	none	n	3.0 / 1040	tilting	Y	1/4000s	10.0/s	Y	Y
15.		Panasonic ZS100	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
16.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G5X has a touchscreen, while the SX700 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon G5 X has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the G5X and the SX700 have zoom lenses built in. The G5X has a 24-100mm f/1.8-2.8 optic and the SX700 offers a 25-750mm f/3.2-6.9 (focal lengths in full frame equivalent terms). Hence, the G5X provides a wider angle of view at the short end than the SX700, but less tele-photo reach at the long end. The G5X offers the faster maximum aperture.

Concerning the storage of imaging data, both the G5X and the SX700 write their files to SDXC cards. The G5X supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX700 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X and Canon PowerShot SX700 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
4.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
7.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
12.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Panasonic LX10	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic ZS100	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the G5X has a hotshoe, while the SX700 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the G5X and the SX700 have been discontinued, but can regularly be found used on ebay. The SX700 was replaced by the Canon SX710, while the G5X was followed by the Canon G5 X Mark II. Further information on the features and operation of the G5X and SX700 can be found, respectively, in the Canon G5 X Manual (free pdf) or the online Canon SX700 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon G5 X and the Canon SX700? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot G5 X:

• More detail: Offers more megapixels (20 vs 15.9MP) with a 14% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/3.2).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Is somewhat more recent (announced 1 year and 7 months after the SX700).

Reasons to prefer the Canon PowerShot SX700 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (8.5 vs 5.9 flaps/sec) to capture the decisive moment.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More compact: Is smaller (113x66mm vs 112x76mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 84g or 24 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (250 versus 210) out of a single battery charge.
• More affordable: Was introduced into a lower priced category (56 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in February 2014).

If the number of relative strengths (bullet points above) is taken as a guide, the G5X is the clear winner of the match-up (18 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G5 X and the Canon SX700 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G5X or the SX700. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
2.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
3.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	US$ 899	ebay.com
4.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
5.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
6.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	US$ 749	amazon.com
7.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
8.		Canon SX400	..	+	..	..	..	..	Jul 2014	US$ 249	ebay.com
9.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
10.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
11.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
12.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
13.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	US$ 799	ebay.com
14.		Panasonic LX10	..	+ +	4/5	81/100	4/5	4.5/5	Sep 2016	US$ 699	amazon.com
15.		Panasonic ZS100	4.5/5	+ +	..	82/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
16.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
17.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check G5X offers at
ebay.com
Check SX700 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check G5X offers at
ebay.com
Check SX700 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
