Canon R vs R5 Mark II

The Canon EOS R and the Canon EOS R5 Mark II are two digital cameras that were officially introduced, respectively, in September 2018 and July 2024. Both the Canon R and the R5 Mark II are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The Canon R has a resolution of 30.1 megapixels, whereas the R5 Mark II provides 44.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R		Canon R5 Mark II
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Canon RF mount lenses
30.1 MP – Full Frame sensor		44.8 MP – Full Frame sensor
4K/30p Video		8k/60p Video
ISO 100-40,000 (50 - 102,400)		ISO 100-51,200 (50 - 102,400)
Electronic viewfinder (3690k dots)		Electronic viewfinder (5760k dots)
3.2" LCD – 2100k dots		3.2" LCD – 2100k dots
Swivel touchscreen		Swivel touchscreen
8 shutter flaps per second		12 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		Weathersealed body
370 shots per battery charge		340 shots per battery charge
139 x 98 x 84 mm, 660 g		138 x 98 x 88 mm, 746 g

Check Canon R offers at
ebay.com
Check R5 Mark II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R and the Canon EOS R5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

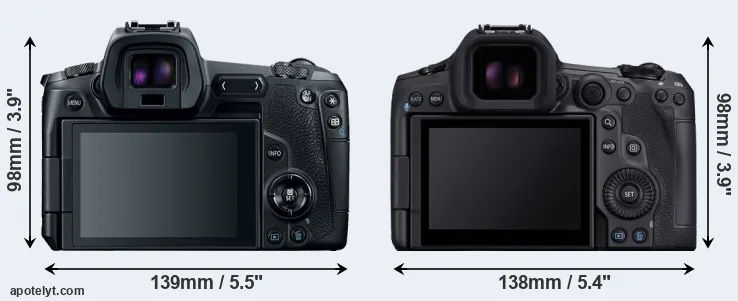

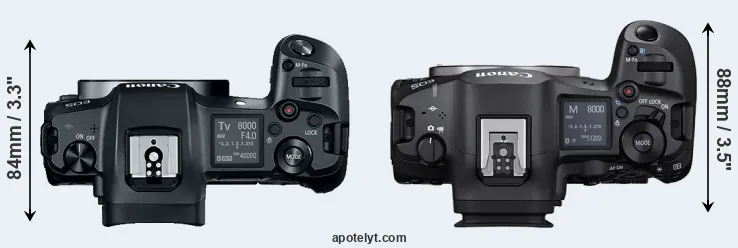

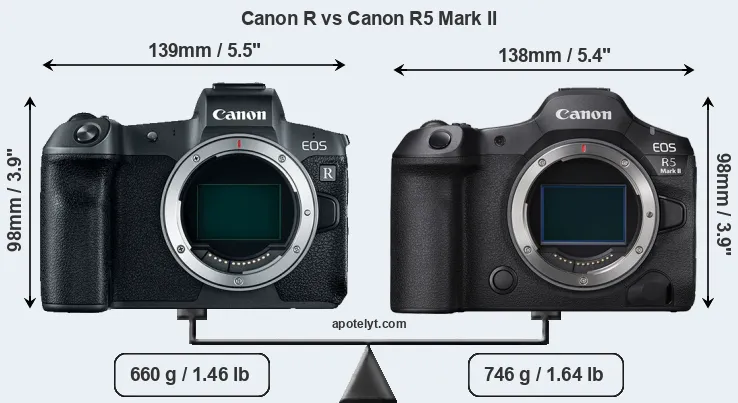

An illustration of the physical size and weight of the Canon R and the Canon R5 Mark II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R and the Canon R5 Mark II are of equal size. However, the R5 Mark II is markedly heavier (13 percent) than the Canon R. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	EUR 2 499	ebay.com
2.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	EUR 4 799	amazon.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	EUR 1 999	ebay.com
4.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	EUR 2 099	amazon.com
5.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	EUR 1 285	ebay.com
6.		Canon 90D	141 mm	105 mm	77 mm	701 g	1300	Y	Aug 2019	EUR 1 299	amazon.com
7.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	EUR 4 499	amazon.com
8.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	EUR 4 999	amazon.com
9.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	EUR 2 699	amazon.com
10.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	EUR 1 499	amazon.com
11.		Fujifilm GFX 50S II	150 mm	104 mm	87 mm	900 g	440	Y	Sep 2021	EUR 3 999	amazon.com
12.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	EUR 2 149	ebay.com
13.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	EUR 2 999	ebay.com
14.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	EUR 4 599	amazon.com
15.		Panasonic GH5s	139 mm	98 mm	87 mm	660 g	440	Y	Jan 2018	EUR 2 499	amazon.com
16.		Sony A7 III	127 mm	96 mm	74 mm	650 g	610	Y	Feb 2018	EUR 2 299	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon R was launched at a markedly lower price (by 47 percent) than the R5 Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

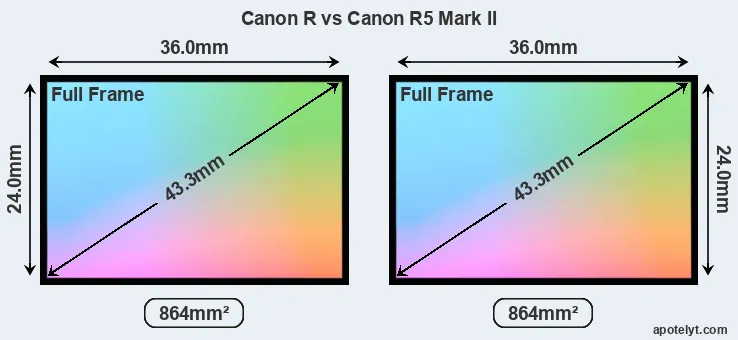

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the R5 Mark II uses a more advanced image processing engine (DIGIC X) than the Canon R (DIGIC 8), with benefits for noise reduction, color accuracy, and processing speed.

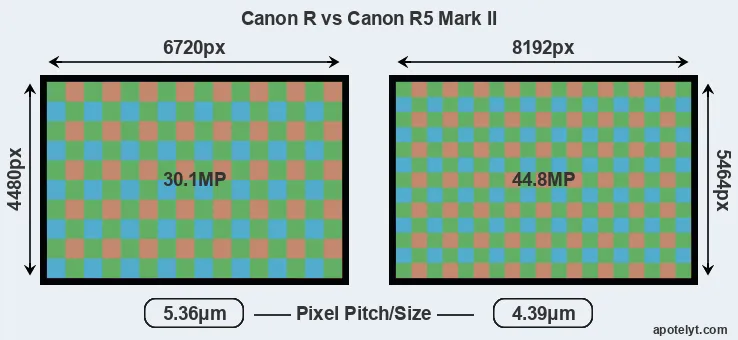

While the two cameras under review share the same sensor size, the R5 Mark II offers a higher resolution of 44.8 megapixels, compared with 30.1 MP of the Canon R. This megapixels advantage translates into a 22 percent gain in linear resolution. On the other hand, these sensor specs imply that the R5 Mark II has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.39μm versus 5.36μm for the Canon R). However, it should be noted that the R5 Mark II is much more recent (by 5 years and 10 months) than the Canon R, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon R are 33.6 x 22.4 inches or 85.3 x 56.9 cm for good quality, 26.9 x 17.9 inches or 68.3 x 45.5 cm for very good quality, and 22.4 x 14.9 inches or 56.9 x 37.9 cm for excellent quality prints.

The Canon EOS R has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS R5 Mark II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-102400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
2.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
5.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
6.		Canon 90D	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
7.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
8.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
9.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
10.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
11.		Fujifilm GFX 50S II	Medium Format	51.1	8256	6192	1080/30p	25.9	14.8	3456	100
12.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
13.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
14.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
15.		Panasonic GH5s	Four Thirds	9.9	3680	2700	4K/60p	23.1	12.8	1154	74
16.		Sony A7 III	Full Frame	24.0	6000	4000	4K/30p	25.0	14.7	3730	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R5 Mark II provides a better video resolution than the Canon R. It can shoot movie footage at 8k/60p, while the Canon R is limited to 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the R5 Mark II offers a substantially higher resolution than the one in the Canon R (5760k vs 3690k dots). The table below summarizes some of the other core capabilities of the Canon R and Canon R5 Mark II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
2.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
5.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
6.		Canon 90D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	11.0/s	Y	n
7.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
8.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
9.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
10.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
11.		Fujifilm GFX 50S II	3690	Y	3.2 / 2360	full-flex	Y	1/4000s	3.0/s	n	Y
12.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
13.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
14.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
15.		Panasonic GH5s	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	n
16.		Sony A7 III	2359	n	3.0 / 922	tilting	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the R5 Mark II and the Canon R is in-body image stabilization (IBIS). The R5 Mark II reduces the risk of handshake-induced blur with all attached lenses, while the Canon R offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The Canon R writes its imaging data to SDXC cards, while the R5 Mark II uses CFexpress (type B) or SDXC cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the Canon R only has one slot. Moreover, both cameras support UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R and Canon EOS R5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
2.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
6.		Canon 90D	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
7.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
8.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
9.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
10.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
11.		Fujifilm GFX 50S II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	-
12.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
13.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
14.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Panasonic GH5s	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
16.		Sony A7 III	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y

Studio photographers will appreciate that the Canon R5 Mark II (unlike the Canon R) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the Canon R has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the Canon R from Canon. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what is the bottom line? Which of the two cameras – the Canon R or the Canon R5 Mark II – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS R:

• Less heavy: Is lighter (by 86g or 12 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2018).

Advantages of the Canon EOS R5 Mark II:

• More detail: Has more megapixels (44.8 vs 30.1MP), which boosts linear resolution by 22%.
• Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 8).
• Better video: Provides higher definition movie capture (8k/60p vs 4K/30p).
• More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 3690k dots).
• Faster burst: Shoots at higher frequency (12 vs 8 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 3.1).
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 5 years and 10 months of technical progress since the Canon R launch.

If the number of relative strengths (bullet points above) is taken as a guide, the R5 Mark II is the clear winner of the contest (12 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R and the Canon R5 Mark II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the Canon R or the R5 Mark II perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	EUR 2 499	ebay.com
2.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	EUR 4 799	amazon.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	EUR 1 999	ebay.com
4.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	EUR 2 099	amazon.com
5.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	EUR 1 285	ebay.com
6.		Canon 90D	4/5	+	4.5/5	85/100	4.5/5	4.5/5	Aug 2019	EUR 1 299	amazon.com
7.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	EUR 4 499	amazon.com
8.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	EUR 4 999	amazon.com
9.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	EUR 2 699	amazon.com
10.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	EUR 1 499	amazon.com
11.		Fujifilm GFX 50S II	5/5	..	5/5	87/100	..	5/5	Sep 2021	EUR 3 999	amazon.com
12.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	EUR 2 149	ebay.com
13.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	EUR 2 999	ebay.com
14.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	EUR 4 599	amazon.com
15.		Panasonic GH5s	..	..	4.5/5	84/100	4.5/5	4.5/5	Jan 2018	EUR 2 499	amazon.com
16.		Sony A7 III	..	+ +	4.5/5	89/100	5/5	5/5	Feb 2018	EUR 2 299	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
