Canon R10 vs R5 Mark II

The Canon EOS R10 and the Canon EOS R5 Mark II are two digital cameras that were revealed to the public, respectively, in May 2022 and July 2024. Both the R10 and the R5 Mark II are mirrorless interchangeable lens cameras that are based on an APS-C (R10) and a full frame (R5 Mark II) sensor. The R10 has a resolution of 24 megapixels, whereas the R5 Mark II provides 44.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R10		Canon R5 Mark II
Mirrorless system camera		Mirrorless system camera
		Canon RF mount lenses
24 MP – APS-C sensor		44.8 MP – Full Frame sensor
4k/60p Video		8k/60p Video
ISO 100-32,000 (100 - 51,200)		ISO 100-51,200 (50 - 102,400)
Electronic viewfinder (2360k dots)		Electronic viewfinder (5760k dots)
3.0" LCD – 1040k dots		3.2" LCD – 2100k dots
Swivel touchscreen		Swivel touchscreen
15 shutter flaps per second		12 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
450 shots per battery charge		340 shots per battery charge
123 x 88 x 83 mm, 429 g		138 x 98 x 88 mm, 746 g

Check R10 price at
amazon.com
Check R5 Mark II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R10 and the Canon EOS R5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

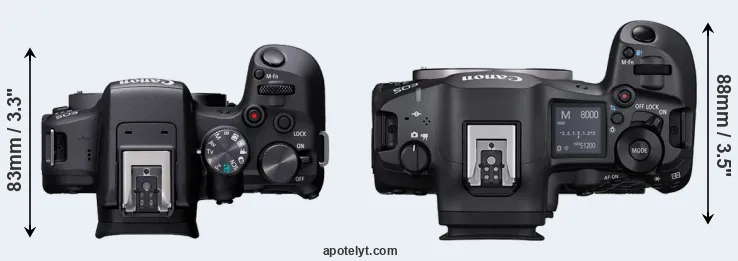

An illustration of the physical size and weight of the Canon R10 and the Canon R5 Mark II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R5 Mark II is notably larger (25 percent) than the Canon R10. Moreover, the R5 Mark II is substantially heavier (74 percent) than the R10. It is noteworthy in this context that the R5 Mark II is splash and dust-proof, while the R10 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
2.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	US$ 4 299	amazon.com
3.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
4.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	US$ 849	ebay.com
5.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
6.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
7.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
8.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
9.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
10.		Canon R50	116 mm	86 mm	69 mm	375 g	230	n	Feb 2023	US$ 679	amazon.com
11.		Canon R50 V	119 mm	74 mm	45 mm	370 g	390	n	Mar 2025	US$ 649	amazon.com
12.		Canon R100	116 mm	86 mm	69 mm	356 g	400	n	May 2023	US$ 479	amazon.com
13.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
14.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
15.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
16.		Canon V1	118 mm	68 mm	53 mm	426 g	340	n	Feb 2025	US$ 899	amazon.com
17.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	US$ 3 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The R10 was launched at a markedly lower price (by 77 percent) than the R5 Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

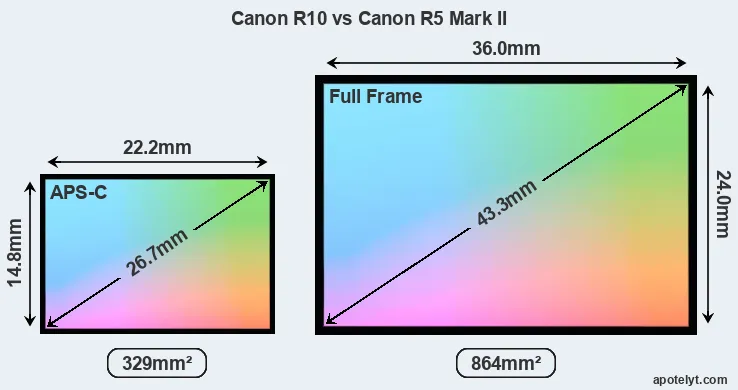

Of the two cameras under consideration, the Canon R10 features an APS-C sensor and the Canon R5 Mark II a full frame sensor. The sensor area in the R5 Mark II is 163 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 44.8MP, the R5 Mark II offers a higher resolution than the R10 (24MP), but the R5 Mark II nevertheless has larger individual pixels (pixel pitch of 4.39μm versus 3.70μm for the R10) due to its larger sensor. Moreover, the R5 Mark II is a much more recent model (by 2 years and 1 month) than the R10, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon R10 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The Canon EOS R10 has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS R5 Mark II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-102400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
2.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
3.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
4.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
5.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
6.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
7.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
8.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
9.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
10.		Canon R50	APS-C	24.0	6000	4000	4K/30p	24.1	13.9	2168	84
11.		Canon R50 V	APS-C	24.0	6000	4000	4K/60p	24.1	14.1	2383	85
12.		Canon R100	APS-C	24.0	6000	4000	4k/24p	24.1	13.9	2197	84
13.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
14.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
15.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
16.		Canon V1	APS-C	22.1	5750	3840	4K/60p	23.5	13.7	1911	79
17.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R5 Mark II provides a better video resolution than the R10. It can shoot movie footage at 8k/60p, while the R10 is limited to 4k/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the R5 Mark II offers a substantially higher resolution than the one in the R10 (5760k vs 2360k dots). The following table reports on some other key feature differences and similarities of the Canon R10, the Canon R5 Mark II, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
2.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
3.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
4.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
5.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
6.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
7.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
8.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
9.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
10.		Canon R50	2360	n	3.0 / 1620	swivel	Y	1/4000s	12.0/s	Y	n
11.		Canon R50 V	none	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	n	n
12.		Canon R100	2360	n	3.0 / 1040	fixed	n	1/4000s	6.5/s	Y	n
13.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
15.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon V1	none	n	3.0 / 1040	swivel	Y	1/2000s	30.0/s	n	n
17.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The R10 has one, while the R5 Mark II does not. While the built-in flash of the R10 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R10 and the Canon R5 Mark II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R10 writes its imaging data to SDXC cards, while the R5 Mark II uses CFexpress (type B) or SDXC cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the R10 only has one slot. Moreover, both cameras support UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R10 and Canon EOS R5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
3.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
7.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
8.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
9.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
10.		Canon R50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
11.		Canon R50 V	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
12.		Canon R100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
13.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
14.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
15.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
16.		Canon V1	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
17.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

It is notable that the R5 Mark II has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The R10 lacks such a headphone port.

Studio photographers will appreciate that the Canon R5 Mark II (unlike the R10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R10 and the R5 Mark II are recent models that are part of the current product line-up. The R5 Mark II replaced the earlier Canon R5, while the R10 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon R10 and the Canon R5 Mark II? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS R10:

• Faster burst: Shoots at higher frequency (15 vs 12 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (123x88mm vs 138x98mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 317g or 42 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (450 versus 340) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (77 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in May 2022).

Reasons to prefer the Canon EOS R5 Mark II:

• More detail: Has more megapixels (44.8 vs 24MP), which boosts linear resolution by 37%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (8k/60p vs 4k/60p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 2360k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.58x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 2 years and 1 month of technical progress since the R10 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the R5 Mark II is the clear winner of the contest (19 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R10 and the Canon R5 Mark II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the R10 or the R5 Mark II perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
2.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	US$ 4 299	amazon.com
3.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
4.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	US$ 849	ebay.com
5.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
6.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
7.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
8.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
9.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
10.		Canon R50	4/5	+ +	4.5/5	84/100	..	4.5/5	Feb 2023	US$ 679	amazon.com
11.		Canon R50 V	..	..	..	84/100	..	..	Mar 2025	US$ 649	amazon.com
12.		Canon R100	3/5	o	4.5/5	79/100	..	3.5/5	May 2023	US$ 479	amazon.com
13.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
14.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
15.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
16.		Canon V1	..	..	..	84/100	..	..	Feb 2025	US$ 899	amazon.com
17.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	US$ 3 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check R10 price at
amazon.com
Check R5 Mark II price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check R10 price at
amazon.com
Check R5 Mark II price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
