Canon R10 vs Olympus E-420

The Canon EOS R10 and the Olympus E-420 are two digital cameras that were announced, respectively, in May 2022 and March 2008. The R10 is a mirrorless interchangeable lens camera, while the E-420 is a DSLR. The cameras are based on an APS-C (R10) and a Four Thirds (E-420) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R10		Olympus E-420
Mirrorless system camera		Digital single lens reflex
		Four Thirds lenses
24 MP – APS-C sensor		10 MP – Four Thirds sensor
4k/60p Video		no Video
ISO 100-32,000 (100 - 51,200)		ISO 100-1,600
Electronic viewfinder (2360k dots)		Optical viewfinder
3.0" LCD – 1040k dots		2.7" LCD – 215k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
15 shutter flaps per second		3.5 shutter flaps per second
450 shots per battery charge		500 shots per battery charge
123 x 88 x 83 mm, 429 g		130 x 91 x 53 mm, 440 g

Check R10 price at
amazon.com
Check E-420 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R10 and the Olympus E-420? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

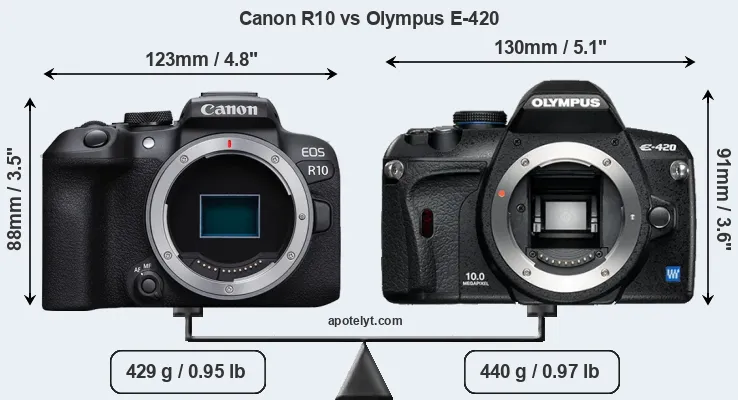

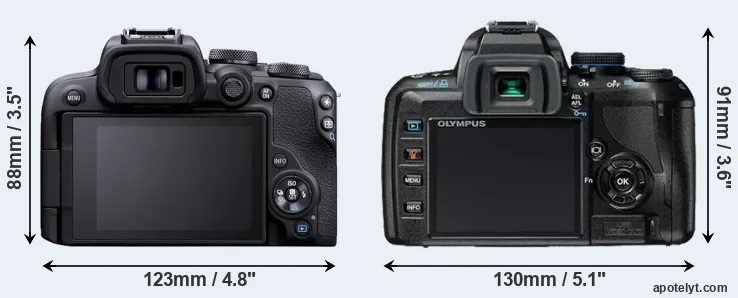

The physical size and weight of the Canon R10 and the Olympus E-420 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-420 is notably larger (9 percent) than the Canon R10. Moreover, the E-420 is slightly heavier (3 percent) than the R10. In this context, it is worth noting that neither the R10 nor the E-420 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R10 gets 450 shots out of its Canon LP-E17 battery, while the E-420 can take 500 images on a single charge of its Olympus BLS-1 power pack. The power pack in the R10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
2.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
3.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
4.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
5.		Canon R50	116 mm	86 mm	69 mm	375 g	230	n	Feb 2023	US$ 679	amazon.com
6.		Canon R50 V	119 mm	74 mm	45 mm	370 g	390	n	Mar 2025	US$ 649	amazon.com
7.		Canon R100	116 mm	86 mm	69 mm	356 g	400	n	May 2023	US$ 479	amazon.com
8.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
9.		Canon V1	118 mm	68 mm	53 mm	426 g	340	n	Feb 2025	US$ 899	amazon.com
10.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	US$ 849	ebay.com
11.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	US$ 899	ebay.com
12.		Nikon Z fc	135 mm	94 mm	44 mm	445 g	300	n	Jun 2021	US$ 959	amazon.com
13.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	US$ 699	ebay.com
14.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
15.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	US$ 499	ebay.com
16.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
17.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-420 was launched at a markedly lower price (by 39 percent) than the R10, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R10 features an APS-C sensor and the Olympus E-420 a Four Thirds sensor. The sensor area in the E-420 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the R10 has a native 3:2 aspect ratio, while the one in the E-420 offers a 4:3 aspect.

With 24MP, the R10 offers a higher resolution than the E-420 (10MP), but the R10 has smaller individual pixels (pixel pitch of 3.70μm versus 4.74μm for the E-420). However, the R10 is a much more recent model (by 14 years and 2 months) than the E-420, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R10 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-420 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The R10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R10 has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus E-420 are ISO 100 to ISO 1600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
2.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
3.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
4.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
5.		Canon R50	APS-C	24.0	6000	4000	4K/30p	24.1	13.9	2168	84
6.		Canon R50 V	APS-C	24.0	6000	4000	4K/60p	24.1	14.1	2383	85
7.		Canon R100	APS-C	24.0	6000	4000	4k/24p	24.1	13.9	2197	84
8.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
9.		Canon V1	APS-C	22.1	5750	3840	4K/60p	23.5	13.7	1911	79
10.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
11.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
12.		Nikon Z fc	APS-C	20.7	5568	3712	4K/30p	24.2	13.8	2131	85
13.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
14.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
15.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
16.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
17.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The R10 indeed provides movie recording capabilities, while the E-420 does not. The highest resolution format that the R10 can use is 4k/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the R10 has an electronic viewfinder (2360k dots), while the E-420 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the R10 offers a wider field of view (100%) than the one in the E-420 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the R10 has a higher magnification (0.58x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon R10 and Olympus E-420 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
2.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
3.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
4.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
5.		Canon R50	2360	n	3.0 / 1620	swivel	Y	1/4000s	12.0/s	Y	n
6.		Canon R50 V	none	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	n	n
7.		Canon R100	2360	n	3.0 / 1040	fixed	n	1/4000s	6.5/s	Y	n
8.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
9.		Canon V1	none	n	3.0 / 1040	swivel	Y	1/2000s	30.0/s	n	n
10.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
11.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
12.		Nikon Z fc	2360	Y	3.0 / 1040	swivel	Y	1/4000s	11.0/s	n	n
13.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
14.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
15.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
16.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
17.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The R10 has a touchscreen, while the E-420 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R10 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R10 writes its imaging data to SDXC cards, while the E-420 uses Compact Flash or xD Picture cards. The E-420 features dual card slots, which can be very useful in case a memory card fails. In contrast, the R10 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R10 and Olympus E-420 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
5.		Canon R50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
6.		Canon R50 V	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
7.		Canon R100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
9.		Canon V1	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
10.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
11.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
12.		Nikon Z fc	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
13.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the R10 offers wifi support, while the E-420 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The R10 is a recent model that features in the current product line-up of Canon. In contrast, the E-420 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the E-420 from Olympus. Further information on the features and operation of the R10 and E-420 can be found, respectively, in the Canon R10 Manual (free pdf) or the online Olympus E-420 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon R10 and the Olympus E-420? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS R10:

• More detail: Offers more megapixels (24 vs 10MP) with a 58% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can record not only still images but also 4k/60p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.46x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (15 vs 3.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 14 years and 2 months of technical progress since the E-420 launch.

Advantages of the Olympus E-420:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Gets more shots (500 versus 450) out of a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More affordable: Was introduced into a lower priced category (39 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in March 2008).

If the count of relative strengths (bullet points above) is taken as a measure, the R10 is the clear winner of the match-up (24 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R10 and the Olympus E-420 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R10 or the E-420. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
2.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
3.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
4.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
5.		Canon R50	4/5	+ +	4.5/5	84/100	..	4.5/5	Feb 2023	US$ 679	amazon.com
6.		Canon R50 V	..	..	..	84/100	..	..	Mar 2025	US$ 649	amazon.com
7.		Canon R100	3/5	o	4.5/5	79/100	..	3.5/5	May 2023	US$ 479	amazon.com
8.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
9.		Canon V1	..	..	..	84/100	..	..	Feb 2025	US$ 899	amazon.com
10.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	US$ 849	ebay.com
11.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	US$ 899	ebay.com
12.		Nikon Z fc	4/5	..	4.5/5	86/100	5/5	4.5/5	Jun 2021	US$ 959	amazon.com
13.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	US$ 699	ebay.com
14.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
15.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	US$ 499	ebay.com
16.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
17.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check R10 price at
amazon.com
Check E-420 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check R10 price at
amazon.com
Check E-420 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
