Canon R100 vs XS

The Canon EOS R100 and the Canon EOS Rebel XS (labelled Canon 1000D in some countries) are two digital cameras that were announced, respectively, in May 2023 and June 2008. The R100 is a mirrorless interchangeable lens camera, while the XS is a DSLR. Both cameras are equipped with an APS-C sensor. The R100 has a resolution of 24 megapixels, whereas the XS provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R100		Canon XS
Mirrorless system camera		Digital single lens reflex
		Canon EF mount lenses
24 MP – APS-C sensor		10.1 MP – APS-C sensor
4k/24p Video		no Video
ISO 100-25,600		ISO 100-800 (100 - 1,600)
Electronic viewfinder (2360k dots)		Optical viewfinder
3.0" LCD – 1040k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
6.5 shutter flaps per second		3 shutter flaps per second
400 shots per battery charge		500 shots per battery charge
116 x 86 x 69 mm, 356 g		126 x 98 x 65 mm, 502 g

Check R100 price at
amazon.com
Check XS offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R100 and the Canon EOS Rebel XS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

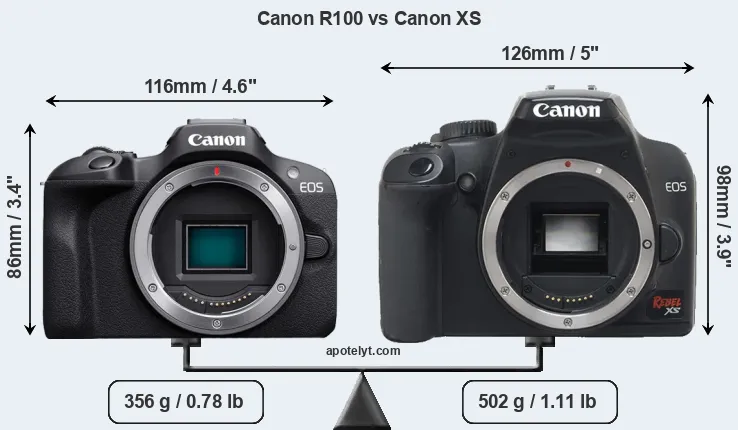

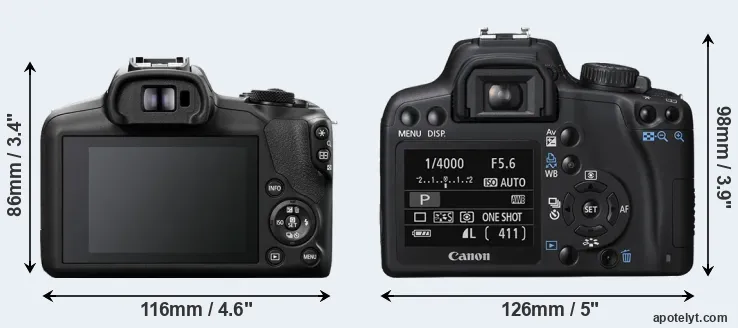

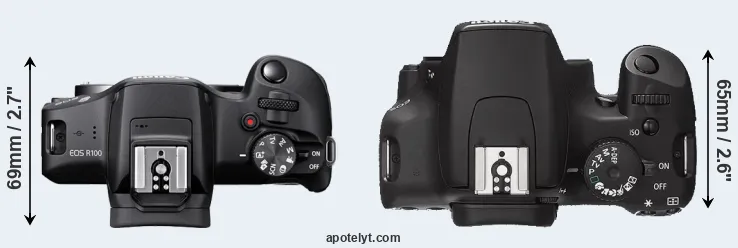

An illustration of the physical size and weight of the Canon R100 and the Canon XS is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XS is notably larger (24 percent) than the Canon R100. Moreover, the XS is substantially heavier (41 percent) than the R100. In this context, it is worth noting that neither the R100 nor the XS are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R100 gets 400 shots out of its Canon LP-E17 battery, while the XS can take 500 images on a single charge of its Canon LP-E5 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R100	116 mm	86 mm	69 mm	356 g	400	n	May 2023	US$ 479	amazon.com
2.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
4.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
5.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
6.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	US$ 549	ebay.com
7.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
8.		Canon R50	116 mm	86 mm	69 mm	375 g	230	n	Feb 2023	US$ 679	amazon.com
9.		Canon R50 V	119 mm	74 mm	45 mm	370 g	390	n	Mar 2025	US$ 649	amazon.com
10.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
11.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
12.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
13.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
14.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
15.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
16.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
17.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XS was somewhat cheaper (by 6 percent) than the R100 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the XS is 1 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the R100 uses a more advanced image processing engine (DIGIC 8) than the XS (DIGIC 3), with benefits for noise reduction, color accuracy, and processing speed.

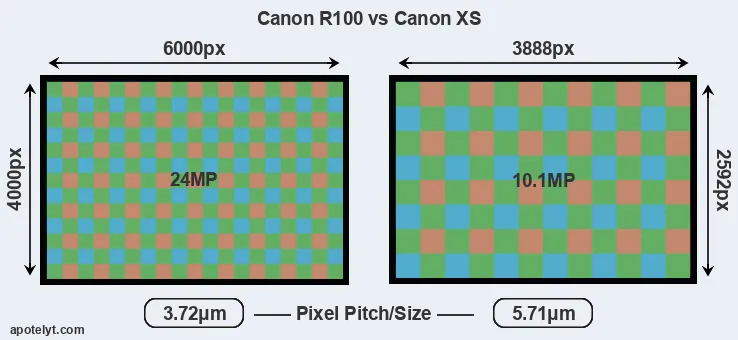

With 24MP, the R100 offers a higher resolution than the XS (10.1MP), but the R100 has smaller individual pixels (pixel pitch of 3.72μm versus 5.71μm for the XS). However, the R100 is a much more recent model (by 14 years and 11 months) than the XS, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the R100 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon R100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The R100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R100 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon EOS Rebel XS are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-1600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R100	APS-C	24.0	6000	4000	4k/24p	24.1	13.9	2197	84
2.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
5.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
6.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
7.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
8.		Canon R50	APS-C	24.0	6000	4000	4K/30p	24.1	13.9	2168	84
9.		Canon R50 V	APS-C	24.0	6000	4000	4K/60p	24.1	14.1	2383	85
10.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
11.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
12.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
13.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
14.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
15.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
16.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
17.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The R100 indeed provides movie recording capabilities, while the XS does not. The highest resolution format that the R100 can use is 4k/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the R100 has an electronic viewfinder (2360k dots), while the XS has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the R100 offers a wider field of view (100%) than the one in the XS (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the R100 has a higher magnification (0.58x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon R100 and Canon XS along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R100	2360	n	3.0 / 1040	fixed	n	1/4000s	6.5/s	Y	n
2.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
5.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
6.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
7.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
8.		Canon R50	2360	n	3.0 / 1620	swivel	Y	1/4000s	12.0/s	Y	n
9.		Canon R50 V	none	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	n	n
10.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
12.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
13.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
14.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
17.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R100 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R100 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R100 writes its imaging data to SDXC cards, while the XS uses SDHC cards. The R100 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XS cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R100 and Canon EOS Rebel XS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
7.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon R50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
9.		Canon R50 V	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
10.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
12.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
14.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
17.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-

It is notable that the R100 offers wifi support, while the XS does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The R100 is a recent model that features in the current product line-up of Canon. In contrast, the XS has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the XS was succeeded by the Canon T3. Further information on the features and operation of the R100 and XS can be found, respectively, in the Canon R100 Manual (free pdf) or the online Canon XS Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon R100 and the Canon XS? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS R100:

• More detail: Offers more megapixels (24 vs 10.1MP) with a 54% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 3).
• Broader imaging potential: Can record not only still images but also 4k/24p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.51x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Faster burst: Shoots at higher frequency (6.5 vs 3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (116x86mm vs 126x98mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 146g or 29 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 14 years and 11 months of technical progress since the XS launch.

Advantages of the Canon EOS Rebel XS:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Gets more shots (500 versus 400) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in June 2008).

If the count of relative strengths (bullet points above) is taken as a measure, the R100 is the clear winner of the match-up (20 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R100 and the Canon XS place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the R100 or the XS perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R100	3/5	o	4.5/5	79/100	..	3.5/5	May 2023	US$ 479	amazon.com
2.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
4.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
5.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
6.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	US$ 549	ebay.com
7.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
8.		Canon R50	4/5	+ +	4.5/5	84/100	..	4.5/5	Feb 2023	US$ 679	amazon.com
9.		Canon R50 V	..	..	..	84/100	..	..	Mar 2025	US$ 649	amazon.com
10.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
11.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
12.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
13.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
14.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
15.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
16.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
17.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
