Canon R5 Mark II vs XTi
The Canon EOS R5 Mark II and the Canon EOS Rebel XTi (labelled Canon 400D in some countries) are two digital cameras that were officially introduced, respectively, in July 2024 and August 2006. The R5 Mark II is a mirrorless interchangeable lens camera, while the XTi is a DSLR. The cameras are based on a full frame (R5 Mark II) and an APS-C (XTi) sensor. The R5 Mark II has a resolution of 44.8 megapixels, whereas the XTi provides 10.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Check R5 Mark II price at
amazon.com

Check XTi offers at
ebay.com
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 Mark II and the Canon EOS Rebel XTi? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

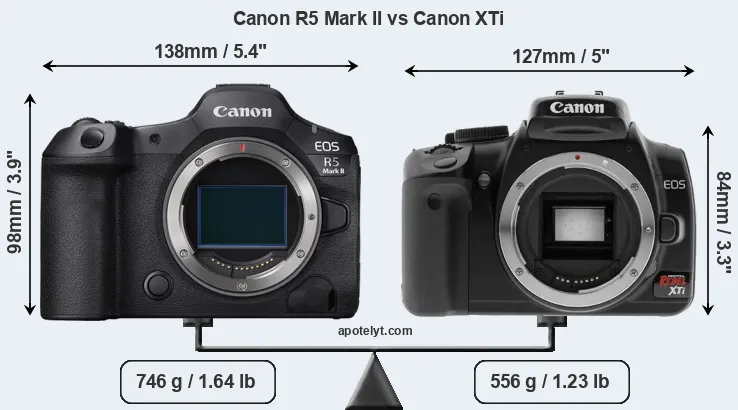

The physical size and weight of the Canon R5 Mark II and the Canon XTi are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.



If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XTi is notably smaller (21 percent) than the Canon R5 Mark II. Moreover, the XTi is markedly lighter (25 percent) than the R5 Mark II. It is worth mentioning in this context that the R5 Mark II is splash and dust resistant, while the XTi does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the R5 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

| Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon R5 Mark II | 138 mm | 98 mm | 88 mm | 746 g | 340 | Y | Jul 2024 | EUR 4 799 | amazon.com | |
| 2. | Canon XTi | 127 mm | 84 mm | 65 mm | 556 g | 370 | n | Aug 2006 | EUR 799 | ebay.com | |
| 3. | Canon 40D | 146 mm | 108 mm | 74 mm | 822 g | 750 | n | Aug 2007 | EUR 1 299 | ebay.com | |
| 4. | Canon R1 | 158 mm | 150 mm | 87 mm | 1115 g | 1330 | Y | Jul 2024 | EUR 7 499 | amazon.com | |
| 5. | Canon R5 | 138 mm | 98 mm | 88 mm | 738 g | 320 | Y | Jul 2020 | EUR 4 499 | amazon.com | |
| 6. | Canon R5 C | 142 mm | 101 mm | 111 mm | 770 g | 320 | Y | Jan 2022 | EUR 4 999 | amazon.com | |
| 7. | Canon R6 | 138 mm | 98 mm | 88 mm | 680 g | 360 | Y | Jul 2020 | EUR 2 699 | amazon.com | |
| 8. | Canon R6 Mark II | 138 mm | 98 mm | 88 mm | 670 g | 450 | Y | Nov 2022 | EUR 2 899 | amazon.com | |
| 9. | Canon T3 | 130 mm | 100 mm | 78 mm | 495 g | 700 | n | Feb 2011 | EUR 399 | ebay.com | |
| 10. | Canon T4i | 133 mm | 100 mm | 79 mm | 575 g | 440 | n | Jun 2012 | EUR 799 | ebay.com | |
| 11. | Canon XS | 126 mm | 98 mm | 65 mm | 502 g | 500 | n | Jun 2008 | EUR 399 | ebay.com | |
| 12. | Canon XT | 127 mm | 94 mm | 64 mm | 540 g | 400 | n | Feb 2005 | EUR 899 | ebay.com | |
| 13. | Fujifilm GFX 50S II | 150 mm | 104 mm | 87 mm | 900 g | 440 | Y | Sep 2021 | EUR 3 999 | amazon.com | |
| 14. | Fujifilm GFX 100S II | 150 mm | 104 mm | 87 mm | 883 g | 530 | Y | May 2024 | EUR 5 499 | amazon.com | |
| 15. | Nikon Z8 | 144 mm | 119 mm | 83 mm | 910 g | 340 | Y | May 2023 | EUR 4 599 | amazon.com | |
| 16. | Panasonic S1R II | 134 mm | 102 mm | 92 mm | 795 g | 350 | Y | May 2025 | EUR 3 599 | amazon.com | |
| 17. | Sony A1 II | 136 mm | 97 mm | 83 mm | 743 g | 520 | Y | Nov 2024 | EUR 7 499 | amazon.com | |
| Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XTi was launched at a markedly lower price (by 81 percent) than the R5 Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

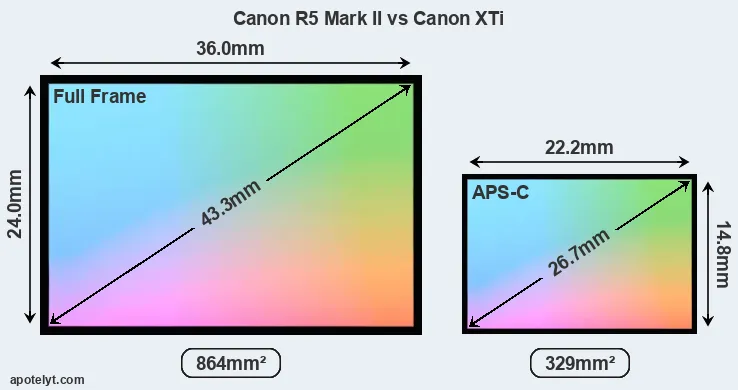

Of the two cameras under consideration, the Canon R5 Mark II features a full frame sensor and the Canon XTi an APS-C sensor. The sensor area in the XTi is 62 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the R5 Mark II uses a more advanced image processing engine (DIGIC X) than the XTi (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.

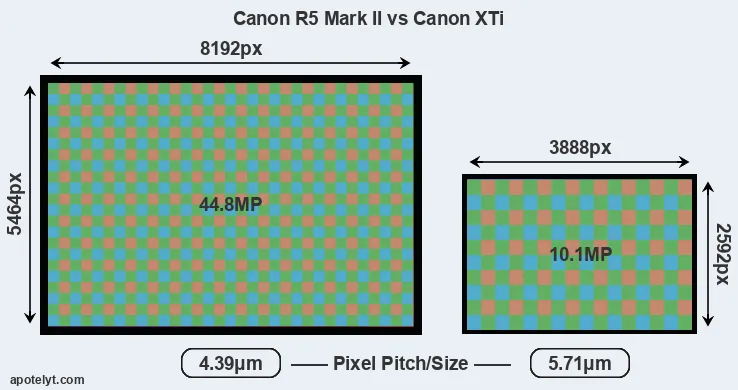

With 44.8MP, the R5 Mark II offers a higher resolution than the XTi (10.1MP), but the R5 Mark II has smaller individual pixels (pixel pitch of 4.39μm versus 5.71μm for the XTi). However, the R5 Mark II is a much more recent model (by 17 years and 10 months) than the XTi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The R5 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS R5 Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS Rebel XTi are ISO 100 to ISO 1600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

| Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon R5 Mark II | Full Frame | 44.8 | 8192 | 5464 | 8k/60p | 25.4 | 14.8 | 3332 | 97 | |
| 2. | Canon XTi | APS-C | 10.1 | 3888 | 2592 | none | 22.1 | 11.0 | 664 | 62 | |
| 3. | Canon 40D | APS-C | 10.1 | 3888 | 2592 | none | 22.1 | 11.3 | 703 | 64 | |
| 4. | Canon R1 | Full Frame | 24.0 | 6000 | 4000 | 6K/60p | 25.4 | 14.8 | 3332 | 97 | |
| 5. | Canon R5 | Full Frame | 44.8 | 8192 | 5464 | 8K/30p | 25.3 | 14.6 | 3042 | 95 | |
| 6. | Canon R5 C | Full Frame | 44.8 | 8192 | 5464 | 8k/60p | 25.4 | 14.5 | 3082 | 96 | |
| 7. | Canon R6 | Full Frame | 20.0 | 5472 | 3648 | 4k/60p | 24.2 | 14.3 | 3394 | 90 | |
| 8. | Canon R6 Mark II | Full Frame | 24.0 | 6000 | 4000 | 4k/60p | 25.4 | 14.6 | 3154 | 96 | |
| 9. | Canon T3 | APS-C | 12.2 | 4272 | 2848 | 720/30p | 21.9 | 11.0 | 755 | 62 | |
| 10. | Canon T4i | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.7 | 11.2 | 722 | 62 | |
| 11. | Canon XS | APS-C | 10.1 | 3888 | 2592 | none | 22.0 | 10.9 | 719 | 62 | |
| 12. | Canon XT | APS-C | 8.0 | 3456 | 2304 | none | 21.8 | 10.8 | 637 | 60 | |
| 13. | Fujifilm GFX 50S II | Medium Format | 51.1 | 8256 | 6192 | 1080/30p | 25.9 | 14.8 | 3456 | 100 | |
| 14. | Fujifilm GFX 100S II | Medium Format | 101.8 | 11648 | 8736 | 4K/30p | 25.9 | 15.1 | 3720 | 101 | |
| 15. | Nikon Z8 | Full Frame | 45.4 | 8256 | 5504 | 8K/30p | 26.3 | 14.2 | 2548 | 98 | |
| 16. | Panasonic S1R II | Full Frame | 44.2 | 8144 | 5424 | 8K/30p | 25.4 | 14.8 | 3406 | 97 | |
| 17. | Sony A1 II | Full Frame | 49.8 | 8640 | 5760 | 8k/30p | 25.4 | 14.8 | 3363 | 97 | |
| Note: DXO values in italics represent estimates based on sensor size and age. | |||||||||||
Many modern cameras cannot only take still pictures, but also record videos. The R5 Mark II indeed provides movie recording capabilities, while the XTi does not. The highest resolution format that the R5 Mark II can use is 8k/60p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R5 Mark II has an electronic viewfinder (5760k dots), while the XTi has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the R5 Mark II offers a wider field of view (100%) than the one in the XTi (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the R5 Mark II has a higher magnification (0.76x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon R5 Mark II and Canon XTi in connection with corresponding information for a sample of similar cameras.

| Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon R5 Mark II | 5760 | Y | 3.2 / 2100 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
| 2. | Canon XTi | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
| 3. | Canon 40D | optical | Y | 3.0 / 230 | fixed | n | 1/8000s | 6.5/s | Y | n | |
| 4. | Canon R1 | 9440 | Y | 3.2 / 2100 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
| 5. | Canon R5 | 5760 | Y | 3.2 / 2100 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
| 6. | Canon R5 C | 5760 | Y | 3.2 / 2100 | swivel | Y | 1/8000s | 12.0/s | n | n | |
| 7. | Canon R6 | 3690 | n | 3.0 / 1620 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
| 8. | Canon R6 Mark II | 3690 | n | 3.0 / 1620 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
| 9. | Canon T3 | optical | n | 2.7 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
| 10. | Canon T4i | optical | n | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
| 11. | Canon XS | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
| 12. | Canon XT | optical | n | 1.8 / 115 | fixed | n | 1/4000s | 3.0/s | Y | n | |
| 13. | Fujifilm GFX 50S II | 3690 | Y | 3.2 / 2360 | full-flex | Y | 1/4000s | 3.0/s | n | Y | |
| 14. | Fujifilm GFX 100S II | 5760 | Y | 3.2 / 2360 | full-flex | Y | 1/4000s | 7.0/s | n | Y | |
| 15. | Nikon Z8 | 3690 | Y | 3.2 / 2089 | full-flex | Y | 1/32000s | 30.0/s | n | Y | |
| 16. | Panasonic S1R II | 5760 | n | 3.2 / 1840 | full-flex | Y | 1/8000s | 9.0/s | n | Y | |
| 17. | Sony A1 II | 9437 | n | 3.2 / 2100 | full-flex | Y | 1/8000s | 30.0/s | n | Y | |
| Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. | |||||||||||
One feature that is present on the R5 Mark II, but is missing on the XTi is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The R5 Mark II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the XTi does not have a selfie-screen.The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon R5 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The R5 Mark II writes its imaging data to CFexpress (type B) or SDXC cards, while the XTi uses Compact Flash cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the XTi only has one slot.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 Mark II and Canon EOS Rebel XTi and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

| Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon R5 Mark II | Y | mono / mono | Y | Y | full | 3.2 | Y | - | Y | |
| 2. | Canon XTi | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 3. | Canon 40D | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 4. | Canon R1 | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
| 5. | Canon R5 | Y | mono / mono | Y | Y | micro | 3.2 | Y | - | Y | |
| 6. | Canon R5 C | Y | stereo / mono | Y | Y | micro | 3.2 | Y | - | Y | |
| 7. | Canon R6 | Y | mono / mono | Y | Y | micro | 3.2 | Y | - | Y | |
| 8. | Canon R6 Mark II | Y | stereo / mono | Y | Y | micro | 3.2 | Y | - | Y | |
| 9. | Canon T3 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
| 10. | Canon T4i | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
| 11. | Canon XS | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 12. | Canon XT | Y | - / - | - | - | - | 2.0 | - | - | - | |
| 13. | Fujifilm GFX 50S II | Y | stereo / mono | Y | Y | micro | 3.2 | Y | - | - | |
| 14. | Fujifilm GFX 100S II | Y | stereo / mono | Y | Y | micro | 3.2 | Y | - | Y | |
| 15. | Nikon Z8 | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
| 16. | Panasonic S1R II | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
| 17. | Sony A1 II | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y |
It is notable that the R5 Mark II offers wifi support, while the XTi does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Canon R5 Mark II (unlike the XTi) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the XTi has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the XTi was succeeded by the Canon Xsi. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
Review summary
So how do things add up? Is the Canon R5 Mark II better than the Canon XTi or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS R5 Mark II:
- More detail: Offers more megapixels (44.8 vs 10.1MP) with a 111% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC II).
- Broader imaging potential: Can record not only still images but also 8k/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.49x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 17 years and 10 months of technical progress since the XTi launch.
Advantages of the Canon EOS Rebel XTi:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More compact: Is smaller (127x84mm vs 138x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 190g or 25 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (81 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in August 2006).
If the number of relative strengths (bullet points above) is taken as a guide, the R5 Mark II is the clear winner of the match-up (31 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon R5 Mark II and the Canon XTi place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the R5 Mark II or the XTi perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

| Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon R5 Mark II | .. | .. | .. | 93/100 | .. | .. | Jul 2024 | EUR 4 799 | amazon.com | |
| 2. | Canon XTi | .. | + + | .. | + + | o | 4/5 | Aug 2006 | EUR 799 | ebay.com | |
| 3. | Canon 40D | .. | + + | .. | + + | 4.5/5 | 4.5/5 | Aug 2007 | EUR 1 299 | ebay.com | |
| 4. | Canon R1 | .. | .. | .. | .. | .. | .. | Jul 2024 | EUR 7 499 | amazon.com | |
| 5. | Canon R5 | 4.5/5 | + | 4/5 | 91/100 | 4.5/5 | 4.5/5 | Jul 2020 | EUR 4 499 | amazon.com | |
| 6. | Canon R5 C | .. | + + | .. | .. | .. | .. | Jan 2022 | EUR 4 999 | amazon.com | |
| 7. | Canon R6 | 5/5 | + + | 4/5 | 90/100 | 4.5/5 | 5/5 | Jul 2020 | EUR 2 699 | amazon.com | |
| 8. | Canon R6 Mark II | 5/5 | + + | 4.5/5 | 91/100 | 4.5/5 | 5/5 | Nov 2022 | EUR 2 899 | amazon.com | |
| 9. | Canon T3 | .. | 80/100 | .. | 69/100 | 4/5 | 4.5/5 | Feb 2011 | EUR 399 | ebay.com | |
| 10. | Canon T4i | 4/5 | + + | .. | 77/100 | 4.5/5 | 4.5/5 | Jun 2012 | EUR 799 | ebay.com | |
| 11. | Canon XS | .. | 82/100 | .. | + + | 3.5/5 | 4.5/5 | Jun 2008 | EUR 399 | ebay.com | |
| 12. | Canon XT | .. | 80/100 | .. | + + | o | .. | Feb 2005 | EUR 899 | ebay.com | |
| 13. | Fujifilm GFX 50S II | 5/5 | .. | 5/5 | 87/100 | .. | 5/5 | Sep 2021 | EUR 3 999 | amazon.com | |
| 14. | Fujifilm GFX 100S II | .. | .. | .. | .. | .. | .. | May 2024 | EUR 5 499 | amazon.com | |
| 15. | Nikon Z8 | 5/5 | .. | 5/5 | 94/100 | 5/5 | 4.5/5 | May 2023 | EUR 4 599 | amazon.com | |
| 16. | Panasonic S1R II | .. | .. | .. | .. | .. | .. | May 2025 | EUR 3 599 | amazon.com | |
| 17. | Sony A1 II | .. | .. | .. | .. | .. | .. | Nov 2024 | EUR 7 499 | amazon.com | |
| Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. | |||||||||||
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check R5 Mark II price at
amazon.com

Check XTi offers at
ebay.com
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1Ds Mark III vs Canon R5 Mark II
- Canon M6 vs Canon R5 Mark II
- Canon R100 vs Canon R5 Mark II
- Canon R5 Mark II vs Nikon D300
- Canon R5 Mark II vs Olympus Stylus 1
- Canon R5 Mark II vs Sony HX80
- Canon T3i vs Canon XTi
- Canon XTi vs Leica M9
- Canon XTi vs Nikon D300S
- Canon XTi vs Nikon D3400
- Canon XTi vs Panasonic GF3
- Canon XTi vs Sony NEX-3N
Specifications: Canon R5 Mark II vs Canon XTi
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
| Camera Model | Canon R5 Mark II | Canon XTi |
|---|---|---|
| Camera Type | Mirrorless system camera | Digital single lens reflex |
| Camera Lens | Canon RF mount lenses | Canon EF mount lenses |
| Launch Date | July 2024 | August 2006 |
| Launch Price | USD 4,299 | USD 799 |
| Sensor Specs | Canon R5 Mark II | Canon XTi |
| Sensor Technology | CMOS | CMOS |
| Sensor Format | Full Frame Sensor | APS-C Sensor |
| Sensor Size | 36.0 x 24.0 mm | 22.2 x 14.8 mm |
| Sensor Area | 864 mm2 | 328.56 mm2 |
| Sensor Diagonal | 43.3 mm | 26.7 mm |
| Crop Factor | 1.0x | 1.6x |
| Sensor Resolution | 44.8 Megapixels | 10.1 Megapixels |
| Image Resolution | 8192 x 5464 pixels | 3888 x 2592 pixels |
| Pixel Pitch | 4.39 μm | 5.71 μm |
| Pixel Density | 5.18 MP/cm2 | 3.07 MP/cm2 |
| Moiré control | Anti-Alias filter | Anti-Alias filter |
| Movie Capability | 8k/60p Video | no Video |
| ISO Setting | 100 - 51,200 ISO | 100 - 1,600 ISO |
| ISO Boost | 50 - 102,400 ISO | no Enhancement |
| Image Processor | DIGIC X | DIGIC II |
| DXO Sensor Quality (score) | .. | 62 |
| DXO Color Depth (bits) | .. | 22.1 |
| DXO Dynamic Range (EV) | .. | 11.0 |
| DXO Low Light (ISO) | .. | 664 |
| Screen Specs | Canon R5 Mark II | Canon XTi |
| Viewfinder Type | Electronic viewfinder | Optical viewfinder |
| Viewfinder Field of View | 100% | 95% |
| Viewfinder Magnification | 0.76x | 0.49x |
| Viewfinder Resolution | 5760k dots | |
| Top-Level Screen | Control Panel | no Top Display |
| LCD Framing | Live View | |
| Rear LCD Size | 3.2inch | 2.5inch |
| LCD Resolution | 2100k dots | 230k dots |
| LCD Attachment | Swivel screen | Fixed screen |
| Touch Input | Touchscreen | no Touchscreen |
| Shooting Specs | Canon R5 Mark II | Canon XTi |
| Focus System | On-Sensor Phase-detect | Phase-detect AF |
| Manual Focusing Aid | Focus Peaking | no Peaking Feature |
| Continuous Shooting | 12 shutter flaps/s | 3 shutter flaps/s |
| Electronic Shutter | up to 1/32000s | no E-Shutter |
| Time-Lapse Photography | Intervalometer built-in | no Intervalometer |
| Image Stabilization | In-body stabilization | Lens stabilization only |
| Fill Flash | no On-Board Flash | Built-in Flash |
| Storage Medium | CFexB or SDXC cards | CF cards |
| Single or Dual Card Slots | Dual card slots | Single card slot |
| Connectivity Specs | Canon R5 Mark II | Canon XTi |
| External Flash | Hotshoe | Hotshoe |
| Studio Flash | PC Sync socket | no PC Sync |
| USB Connector | USB 3.2 | USB 2.0 |
| HDMI Port | full HDMI | no HDMI |
| Microphone Port | External MIC port | no MIC socket |
| Headphone Socket | Headphone port | no Headphone port |
| Wifi Support | Wifi built-in | no Wifi |
| Bluetooth Support | Bluetooth built-in | no Bluetooth |
| Body Specs | Canon R5 Mark II | Canon XTi |
| Environmental Sealing | Weathersealed body | not weather sealed |
| Battery Type | Canon LP-E6P | Canon NB-2LH |
| Battery Life (CIPA) | 340 shots per charge | 370 shots per charge |
| In-Camera Charging | USB charging | no USB charging |
| Body Dimensions |
138 x 98 x 88 mm (5.4 x 3.9 x 3.5 in) |
127 x 84 x 65 mm (5.0 x 3.3 x 2.6 in) |
| Camera Weight | 746 g (26.3 oz) | 556 g (19.6 oz) |

Check R5 Mark II price at
amazon.com

Check XTi offers at
ebay.com
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
