Canon R5 Mark II vs Leica M10-R

The Canon EOS R5 Mark II and the Leica M10-R are two enthusiast cameras that were announced, respectively, in July 2024 and July 2020. The R5 Mark II is a mirrorless interchangeable lens camera, while the M10-R is a rangefinder-focusing mirrorless. Both cameras are equipped with a full frame sensor. The Canon has a resolution of 44.8 megapixels, whereas the Leica provides 40.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R5 Mark II		Leica M10-R
Mirrorless system camera		Rangefinder camera
Canon RF mount lenses		Leica M mount lenses
44.8 MP – Full Frame sensor		40.9 MP – Full Frame sensor
8k/60p Video		no Video
ISO 100-51,200 (50 - 102,400)		ISO 100-50,000
Electronic viewfinder (5760k dots)		Optical viewfinder
3.2" LCD – 2100k dots		3.0" LCD – 1037k dots
Swivel touchscreen		Fixed touchscreen
12 shutter flaps per second		4.5 shutter flaps per second
In-body stabilization		no shake reduction
Weathersealed body		Weathersealed body
340 shots per battery charge		210 shots per battery charge
138 x 98 x 88 mm, 746 g		139 x 80 x 39 mm, 660 g

Check R5 Mark II price at
amazon.com
Check M10-R offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 Mark II and the Leica M10-R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

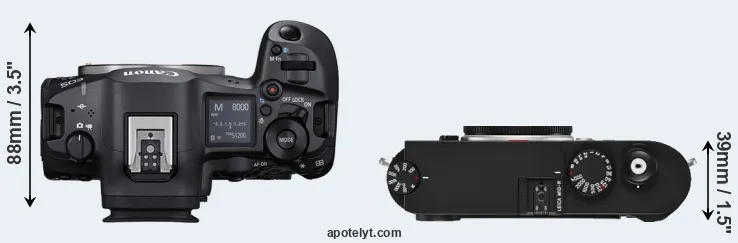

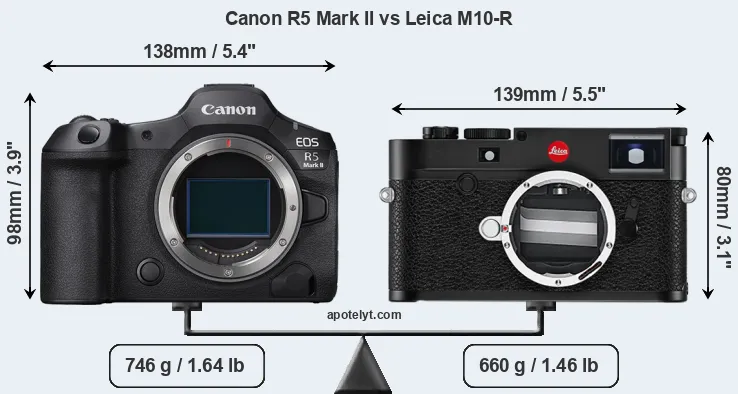

The physical size and weight of the Canon R5 Mark II and the Leica M10-R are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The M10-R can be obtained in two different colors (black, silver), while the R5 Mark II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M10-R is notably smaller (18 percent) than the Canon R5 Mark II. Moreover, the M10-R is markedly lighter (12 percent) than the R5 Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the R5 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	US$ 4 299	amazon.com
2.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
3.		Canon R1	158 mm	150 mm	87 mm	1115 g	1330	Y	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
8.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
9.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
10.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
11.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
12.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
13.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	US$ 3 999	amazon.com
14.		Panasonic S1R II	134 mm	102 mm	92 mm	795 g	350	Y	May 2025	US$ 3 299	amazon.com
15.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
16.		Sony A1 II	136 mm	97 mm	83 mm	743 g	520	Y	Nov 2024	US$ 6 499	amazon.com
17.		Sony A7R V	131 mm	97 mm	82 mm	723 g	530	Y	Oct 2022	US$ 3 899	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The R5 Mark II was launched at a markedly lower price (by 48 percent) than the M10-R, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

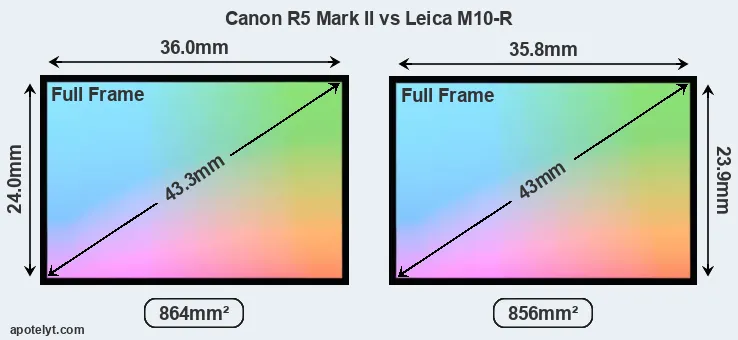

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the M10-R is 1 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

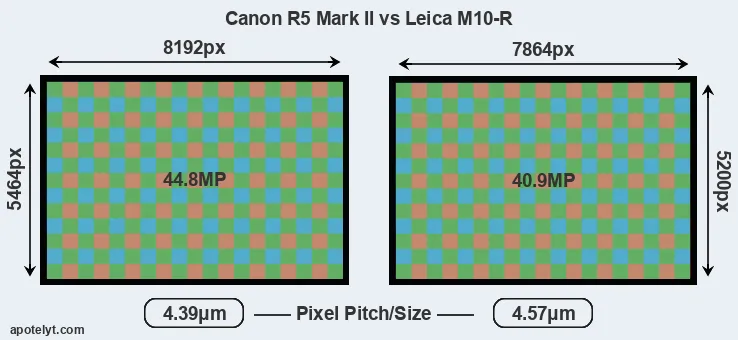

With 44.8MP, the R5 Mark II offers a higher resolution than the M10-R (40.9MP), but the R5 Mark II has smaller individual pixels (pixel pitch of 4.39μm versus 4.57μm for the M10-R). However, the R5 Mark II is a much more recent model (by 4 years) than the M10-R, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the M10-R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The R5 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R5 Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Leica M10-R are ISO 100 to ISO 50000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
2.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
3.		Canon R1	Full Frame	24.0	6000	4000	6K/60p	25.4	14.8	3332	97
4.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
5.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
6.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
7.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
8.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
9.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
10.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
11.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
12.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
13.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
14.		Panasonic S1R II	Full Frame	44.2	8144	5424	8K/30p	25.4	14.8	3406	97
15.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
16.		Sony A1 II	Full Frame	49.8	8640	5760	8k/30p	25.4	14.8	3363	97
17.		Sony A7R V	Full Frame	60.2	9504	6336	8k/24p	26.5	14.8	3187	100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The R5 Mark II indeed provides movie recording capabilities, while the M10-R does not. The highest resolution format that the R5 Mark II can use is 8k/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R5 Mark II has an electronic viewfinder (5760k dots), while the M10-R has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the R5 Mark II has a higher magnification than the one of the M10-R (0.76x vs 0.73x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon R5 Mark II and Leica M10-R along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
2.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
3.		Canon R1	9440	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
4.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
5.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
6.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
7.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
8.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
9.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
10.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
11.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
12.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
13.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
14.		Panasonic S1R II	5760	n	3.2 / 1840	full-flex	Y	1/8000s	9.0/s	n	Y
15.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
16.		Sony A1 II	9437	n	3.2 / 2100	full-flex	Y	1/8000s	30.0/s	n	Y
17.		Sony A7R V	9440	n	3.2 / 2100	full-flex	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the R5 Mark II, but is missing on the M10-R is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II and the Leica M10-R both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R5 Mark II writes its imaging data to CFexpress (type B) or SDXC cards, while the M10-R uses SDXC cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the M10-R only has one slot. The R5 Mark II supports UHS-II cards (on both slots), while the M10-R can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 Mark II and Leica M10-R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
2.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
3.		Canon R1	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
4.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
5.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
7.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
8.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
9.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
10.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
11.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
12.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
13.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
14.		Panasonic S1R II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
16.		Sony A1 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Sony A7R V	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

Studio photographers will appreciate that the Canon R5 Mark II (unlike the M10-R) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the M10-R has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the M10-R from Leica. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon R5 Mark II and the Leica M10-R? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS R5 Mark II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 8k/60p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.73x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1037k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 4.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Longer lasting: Can take more shots (340 versus 210) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More affordable: Was introduced into a lower priced category (48 percent cheaper at launch).
• More modern: Reflects 4 years of technical progress since the M10-R launch.

Advantages of the Leica M10-R:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More compact: Is smaller (139x80mm vs 138x98mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 86g or 12 percent) and is thus easier to take along.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in July 2020).

If the number of relative strengths (bullet points above) is taken as a guide, the R5 Mark II is the clear winner of the match-up (22 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the R5 Mark II and the M10-R in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	US$ 4 299	amazon.com
2.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
3.		Canon R1	..	..	..	..	..	..	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
8.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
9.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
10.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
11.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
12.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
13.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	US$ 3 999	amazon.com
14.		Panasonic S1R II	..	..	..	..	..	..	May 2025	US$ 3 299	amazon.com
15.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
16.		Sony A1 II	..	..	..	..	..	..	Nov 2024	US$ 6 499	amazon.com
17.		Sony A7R V	5/5	+ +	4.5/5	92/100	..	..	Oct 2022	US$ 3 899	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check R5 Mark II price at
amazon.com
Check M10-R offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check R5 Mark II price at
amazon.com
Check M10-R offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
