Canon R5 Mark II vs Olympus E-1

The Canon EOS R5 Mark II and the Olympus E-1 are two digital cameras that were revealed to the public, respectively, in July 2024 and June 2003. The R5 Mark II is a mirrorless interchangeable lens camera, while the E-1 is a DSLR. The cameras are based on a full frame (R5 Mark II) and a Four Thirds (E-1) sensor. The Canon has a resolution of 44.8 megapixels, whereas the Olympus provides 4.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon R5 Mark II
versus
Olympus E-1
Canon R5 Mark II   Olympus E-1
Mirrorless system camera Digital single lens reflex
Canon RF mount lenses Four Thirds lenses
44.8 MP – Full Frame sensor 4.9 MP – Four Thirds sensor
8k/60p Video no Video
ISO 100-51,200 (50 - 102,400) ISO 100-800 (100 - 3,200)
Electronic viewfinder (5760k dots) Optical viewfinder
3.2" LCD – 2100k dots 1.8" LCD – 134k dots
Swivel touchscreen Fixed screen (not touch-sensitive)
12 shutter flaps per second 3 shutter flaps per second
In-body stabilizationLens stabilization only
Weathersealed bodyWeathersealed body
340 shots per battery charge750 shots per battery charge
138 x 98 x 88 mm, 746 g 141 x 104 x 81 mm, 738 g
logo
Check R5 Mark II price at
amazon.com
logo
Check E-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 Mark II and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon R5 Mark II and the Olympus E-1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

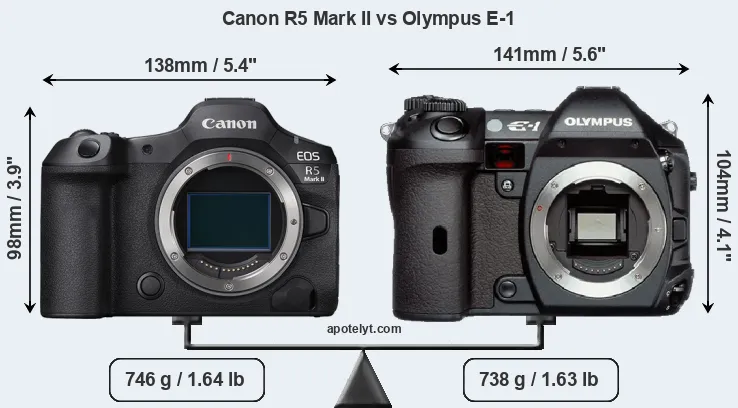

Size Canon R5 Mark II vs Olympus E-1

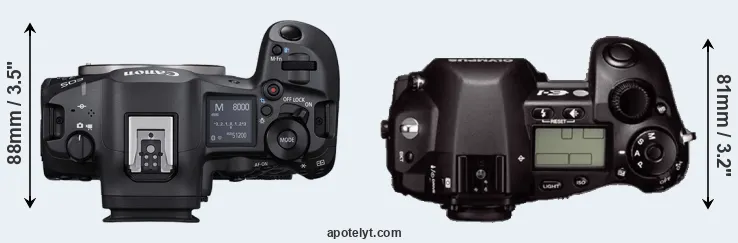

Compare R5 Mark II versus E-1 top

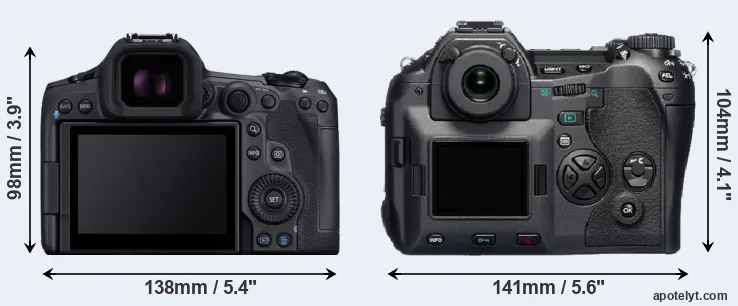

Comparison R5 Mark II or E-1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is notably larger (8 percent) than the Canon R5 Mark II. However, the E-1 is slightly lighter (1 percent) than the R5 Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the R5 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon R5 Mark II 138 mm 98 mm 88 mm 746 g 340 Y Jul 2024 US$ 4 299 amazon.com
2.

Olympus E-1 141 mm 104 mm 81 mm 738 g 750 Y Jun 2003 US$ 1 699ebay.com
3.

Canon R1 158 mm 150 mm 87 mm 1115 g 1330 Y Jul 2024 US$ 6 299 amazon.com
4.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 US$ 3 899 amazon.com
5.

Canon R5 C 142 mm 101 mm 111 mm 770 g 320 Y Jan 2022 US$ 4 499 amazon.com
6.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 US$ 2 499 amazon.com
7.

Canon R6 Mark II 138 mm 98 mm 88 mm 670 g 450 Y Nov 2022 US$ 2 499 amazon.com
8.

Leica Digilux 3 146 mm 87 mm 77 mm 606 g 750 n Sep 2006 US$ 1 499ebay.com
9.

Nikon Z8 144 mm 119 mm 83 mm 910 g 340 Y May 2023 US$ 3 999 amazon.com
10.

Olympus E-3 142 mm 116 mm 75 mm 876 g 750 Y Oct 2007 US$ 1 699ebay.com
11.

Olympus E-5 142 mm 117 mm 75 mm 873 g 750 Y Sep 2010 US$ 1 699ebay.com
12.

Olympus E-300 147 mm 85 mm 64 mm 624 g 750 n Sep 2004 US$ 799ebay.com
13.

Olympus E-330 140 mm 87 mm 72 mm 637 g 750 n Jan 2006 US$ 999ebay.com
14.

Panasonic S1R II 134 mm 102 mm 92 mm 795 g 350 Y May 2025 US$ 3 299 amazon.com
15.

Panasonic S5 II 134 mm 102 mm 90 mm 740 g 370 Y Jan 2023 US$ 1 999 amazon.com
16.

Sony A1 II 136 mm 97 mm 83 mm 743 g 520 Y Nov 2024 US$ 6 499 amazon.com
17.

Sony A7R V 131 mm 97 mm 82 mm 723 g 530 Y Oct 2022 US$ 3 899 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-1 was launched at a markedly lower price (by 60 percent) than the R5 Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon R5 Mark II features a full frame sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the R5 Mark II has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.

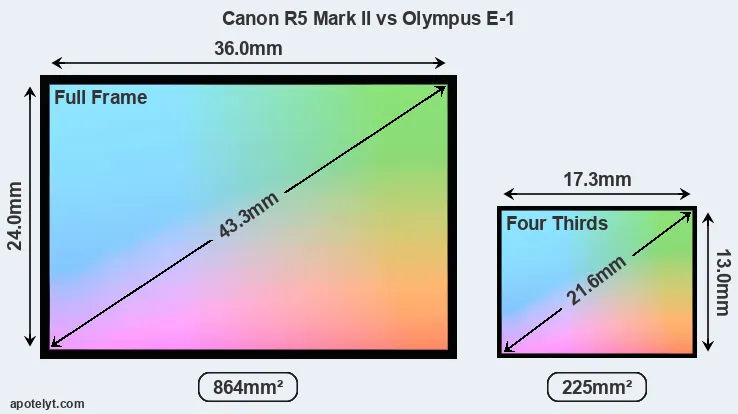

Canon R5 Mark II and Olympus E-1 sensor measures

With 44.8MP, the R5 Mark II offers a higher resolution than the E-1 (4.9MP), but the R5 Mark II has smaller individual pixels (pixel pitch of 4.39μm versus 6.78μm for the E-1). However, the R5 Mark II is a much more recent model (by 21 years) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The R5 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R5 Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the R5 Mark II is build around a CMOS sensor, while the E-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

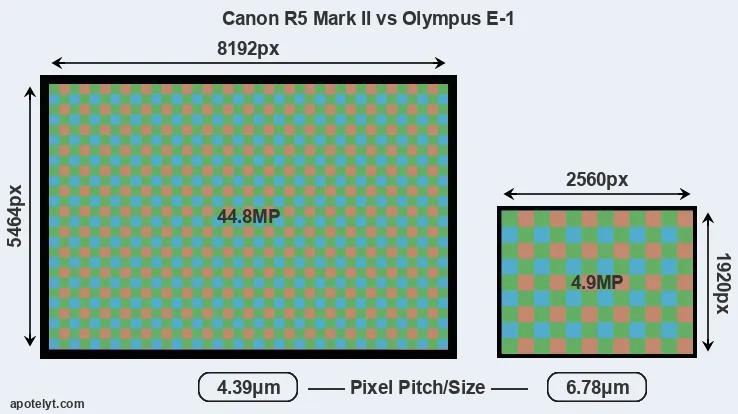

R5 Mark II versus E-1 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon R5 Mark II Full Frame 44.8 8192 54648k/60p25.414.8333297
2.

Olympus E-1 Four Thirds 4.9 2560 1920none20.09.7-14544
3.

Canon R1 Full Frame 24.0 6000 40006K/60p25.414.8333297
4.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
5.

Canon R5 C Full Frame 44.8 8192 54648k/60p25.414.5308296
6.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
7.

Canon R6 Mark II Full Frame 24.0 6000 40004k/60p25.414.6315496
8.

Leica Digilux 3 Four Thirds 7.4 3136 2352none21.010.612753
9.

Nikon Z8 Full Frame 45.4 8256 55048K/30p26.314.2254898
10.

Olympus E-3 Four Thirds 10.0 3648 2736none21.610.557156
11.

Olympus E-5 Four Thirds 12.2 4032 3024720/30p21.610.551956
12.

Olympus E-300 Four Thirds 8.0 3264 2448none20.410.1-4048
13.

Olympus E-330 Four Thirds 7.4 3136 2352none20.810.47352
14.

Panasonic S1R II Full Frame 44.2 8144 54248K/30p25.414.8340697
15.

Panasonic S5 II Full Frame 24.0 6000 40006K/30p25.414.6315896
16.

Sony A1 II Full Frame 49.8 8640 57608k/30p25.414.8336397
17.

Sony A7R V Full Frame 60.2 9504 63368k/24p26.514.83187100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The R5 Mark II indeed provides movie recording capabilities, while the E-1 does not. The highest resolution format that the R5 Mark II can use is 8k/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the R5 Mark II has an electronic viewfinder (5760k dots), while the E-1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the R5 Mark II has a higher magnification than the one of the E-1 (0.76x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon R5 Mark II and Olympus E-1 along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon R5 Mark II5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
2.

Olympus E-1optical Y1.8 / 134 fixed n 1/4000s 3.0/s n n
3.

Canon R19440 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
4.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
5.

Canon R5 C5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n n
6.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
7.

Canon R6 Mark II3690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
8.

Leica Digilux 3optical n2.5 / 207 fixed n 1/4000s 3.0/s Y n
9.

Nikon Z83690 Y3.2 / 2089 full-flex Y 1/32000s 30.0/s n Y
10.

Olympus E-3optical Y2.5 / 230 swivel n 1/8000s 5.0/s Y Y
11.

Olympus E-5optical Y3.0 / 920 swivel n 1/8000s 5.0/s Y Y
12.

Olympus E-300optical n1.8 / 134 fixed n 1/4000s 2.5/s Y n
13.

Olympus E-330optical n2.5 / 215 tilting n 1/4000s 3.0/s Y n
14.

Panasonic S1R II5760 n3.2 / 1840 full-flex Y 1/8000s 9.0/s n Y
15.

Panasonic S5 II3680 n3.0 / 1840 swivel Y 1/8000s 9.0/s n Y
16.

Sony A1 II9437 n3.2 / 2100 full-flex Y 1/8000s 30.0/s n Y
17.

Sony A7R V9440 n3.2 / 2100 full-flex Y 1/8000s 10.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the R5 Mark II and the E-1 is in-body image stabilization (IBIS). The R5 Mark II reduces the risk of handshake-induced blur with all attached lenses, while the E-1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The R5 Mark II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-1 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R5 Mark II writes its imaging data to CFexpress (type B) or SDXC cards, while the E-1 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 Mark II and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon R5 Mark IIYmono / monoYYfull3.2Y-Y
2.

Olympus E-1Y- / ----2.0---
3.

Canon R1Ystereo / monoYYfull3.2Y-Y
4.

Canon R5Ymono / monoYYmicro3.2Y-Y
5.

Canon R5 CYstereo / monoYYmicro3.2Y-Y
6.

Canon R6Ymono / monoYYmicro3.2Y-Y
7.

Canon R6 Mark IIYstereo / monoYYmicro3.2Y-Y
8.

Leica Digilux 3Ystereo / mono---2.0---
9.

Nikon Z8Ystereo / monoYYfull3.2Y-Y
10.

Olympus E-3Y- / ----2.0---
11.

Olympus E-5Ystereo / ---mini2.0---
12.

Olympus E-300Y- / ----2.0---
13.

Olympus E-330Y- / ----2.0---
14.

Panasonic S1R IIYstereo / monoYYfull3.2Y-Y
15.

Panasonic S5 IIYstereo / monoYYfull3.2Y-Y
16.

Sony A1 IIYstereo / monoYYfull3.2Y-Y
17.

Sony A7R VYstereo / monoYYfull3.2Y-Y

It is notable that the R5 Mark II offers wifi support, while the E-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the E-1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-1 was succeeded by the Olympus E-3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.

Review summary

So what is the bottom line? Is the Canon R5 Mark II better than the Olympus E-1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Canon EOS R5 Mark II:

  • More detail: Offers more megapixels (44.8 vs 4.9MP) with a 208% higher linear resolution.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Broader imaging potential: Can record not only still images but also 8k/60p movies.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.48x).
  • Larger screen: Has a bigger rear LCD (3.2" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 134k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (12 vs 3 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 21 years of technical progress since the E-1 launch.

ilogo

Advantages of the Olympus E-1:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Gets more shots (750 versus 340) out of a single battery charge.
  • More affordable: Was introduced into a lower priced category (60 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in June 2003).

If the count of relative strengths (bullet points above) is taken as a measure, the R5 Mark II is the clear winner of the match-up (25 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

R5 Mark II 25:04 E-1

How about other alternatives? Do the specifications of the Canon R5 Mark II and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the R5 Mark II or the E-1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon R5 Mark II......93/100.... Jul 2024 US$ 4 299 amazon.com
2.

Olympus E-1......+o.. Jun 2003 US$ 1 699ebay.com
3.

Canon R1............ Jul 2024 US$ 6 299 amazon.com
4.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 US$ 3 899 amazon.com
5.

Canon R5 C..+ +........ Jan 2022 US$ 4 499 amazon.com
6.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 US$ 2 499 amazon.com
7.

Canon R6 Mark II5/5+ +4.5/591/1004.5/55/5 Nov 2022 US$ 2 499 amazon.com
8.

Leica Digilux 3............ Sep 2006 US$ 1 499ebay.com
9.

Nikon Z85/5..5/594/1005/54.5/5 May 2023 US$ 3 999 amazon.com
10.

Olympus E-3..88/100..+ +o4/5 Oct 2007 US$ 1 699ebay.com
11.

Olympus E-54/5....75/1004/54.5/5 Sep 2010 US$ 1 699ebay.com
12.

Olympus E-300......+o4.5/5 Sep 2004 US$ 799ebay.com
13.

Olympus E-330......+o.. Jan 2006 US$ 999ebay.com
14.

Panasonic S1R II............ May 2025 US$ 3 299 amazon.com
15.

Panasonic S5 II4.5/5+ +5/590/1004.5/55/5 Jan 2023 US$ 1 999 amazon.com
16.

Sony A1 II............ Nov 2024 US$ 6 499 amazon.com
17.

Sony A7R V5/5+ +4.5/592/100.... Oct 2022 US$ 3 899 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check R5 Mark II price at
amazon.com
logo
Check E-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon R5 Mark II vs Olympus E-1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon R5 Mark II Olympus E-1
    Camera Type Mirrorless system camera Digital single lens reflex
    Camera Lens Canon RF mount lenses Four Thirds lenses
    Launch Date July 2024 June 2003
    Launch Price USD 4,299 USD 1,699
    Sensor Specs Canon R5 Mark II Olympus E-1
    Sensor Technology CMOS CCD
    Sensor Format Full Frame Sensor Four Thirds Sensor
    Sensor Size 36.0 x 24.0 mm 17.3 x 13.0 mm
    Sensor Area 864 mm2 224.9 mm2
    Sensor Diagonal 43.3 mm 21.6 mm
    Crop Factor 1.0x 2.0x
    Sensor Resolution 44.8 Megapixels 4.9 Megapixels
    Image Resolution 8192 x 5464 pixels 2560 x 1920 pixels
    Pixel Pitch 4.39 μm 6.78 μm
    Pixel Density 5.18 MP/cm2 2.19 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 8k/60p Video no Video
    ISO Setting 100 - 51,200 ISO 100 - 800 ISO
    ISO Boost 50 - 102,400 ISO 100 - 3,200 ISO
    Image Processor DIGIC X TruePic
    Screen Specs Canon R5 Mark II Olympus E-1
    Viewfinder Type Electronic viewfinder Optical viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.76x 0.48x
    Viewfinder Resolution 5760k dots
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View
    Rear LCD Size 3.2inch 1.8inch
    LCD Resolution 2100k dots 134k dots
    LCD Attachment Swivel screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon R5 Mark II Olympus E-1
    Focus System On-Sensor Phase-detect Phase-detect AF
    Manual Focusing AidFocus Peakingno Peaking Feature
    Continuous Shooting 12 shutter flaps/s 3 shutter flaps/s
    Electronic Shutterup to 1/32000sno E-Shutter
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Image StabilizationIn-body stabilizationLens stabilization only
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CFexB or SDXC cards CF or XD cards
    Single or Dual Card Slots Dual card slots Dual card slots
    Connectivity Specs Canon R5 Mark II Olympus E-1
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 3.2 USB 2.0
    HDMI Port full HDMI no HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in no Wifi
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon R5 Mark II Olympus E-1
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Canon LP-E6P Olympus BLM-1
    Battery Life (CIPA)340 shots per charge750 shots per charge
    In-Camera Charging USB charging no USB charging
    Body Dimensions 138 x 98 x 88 mm
    (5.4 x 3.9 x 3.5 in)
    141 x 104 x 81 mm
    (5.6 x 4.1 x 3.2 in)
    Camera Weight 746 g (26.3 oz) 738 g (26.0 oz)
    logo
    Check R5 Mark II price at
    amazon.com
    logo
    Check E-1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon R5 Mark II vs Olympus E-1
