Canon R5 Mark II vs Olympus E-M1

The Canon EOS R5 Mark II and the Olympus OM-D E-M1 are two enthusiast cameras that were revealed to the public, respectively, in July 2024 and September 2013. Both the R5 Mark II and the E-M1 are mirrorless interchangeable lens cameras that are based on a full frame (R5 Mark II) and a Four Thirds (E-M1) sensor. The Canon has a resolution of 44.8 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon R5 Mark II
versus
Olympus E-M1
Canon R5 Mark II   Olympus E-M1
Mirrorless system camera Mirrorless system camera
Canon RF mount lenses Micro Four Thirds lenses
44.8 MP – Full Frame sensor 15.9 MP – Four Thirds sensor
8k/60p Video 1080/30p Video
ISO 100-51,200 (50 - 102,400) ISO 200-25,600
Electronic viewfinder (5760k dots) Electronic viewfinder (2360k dots)
3.2" LCD – 2100k dots 3.0" LCD – 1037k dots
Swivel touchscreen Tilting touchscreen
12 shutter flaps per second 10 shutter flaps per second
In-body stabilizationIn-body stabilization
Weathersealed bodyWeathersealed body
340 shots per battery charge350 shots per battery charge
138 x 98 x 88 mm, 746 g 130 x 94 x 63 mm, 497 g
logo
Check R5 Mark II price at
amazon.com
logo
Check E-M1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 Mark II and the Olympus OM-D E-M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon R5 Mark II and the Olympus E-M1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-M1 can be obtained in two different colors (black, silver), while the R5 Mark II is only available in black.

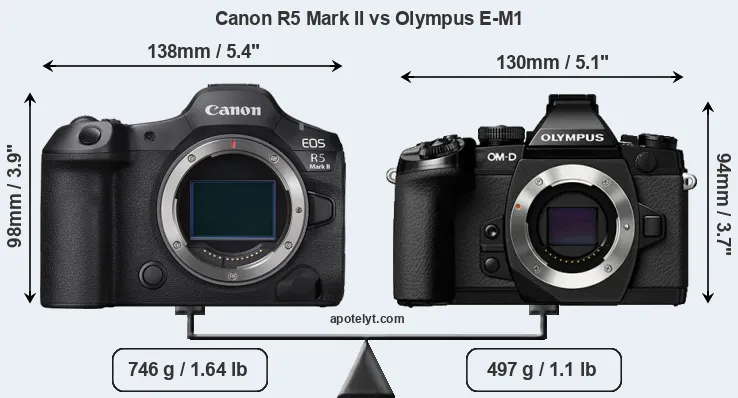

Size Canon R5 Mark II vs Olympus E-M1

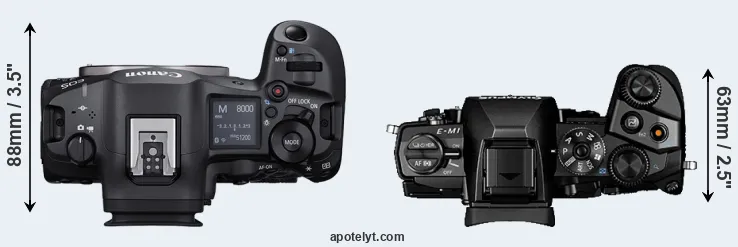

Compare R5 Mark II versus E-M1 top

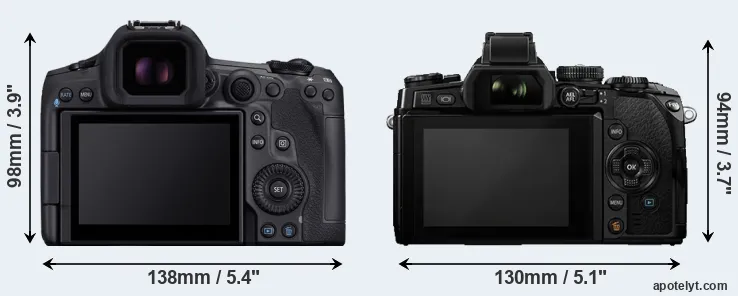

Comparison R5 Mark II or E-M1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 is notably smaller (10 percent) than the Canon R5 Mark II. Moreover, the E-M1 is markedly lighter (33 percent) than the R5 Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the R5 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon R5 Mark II 138 mm 98 mm 88 mm 746 g 340 Y Jul 2024 EUR 4 799 amazon.com
2.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 EUR 1 499ebay.com
3.

Canon R1 158 mm 150 mm 87 mm 1115 g 1330 Y Jul 2024 EUR 7 499 amazon.com
4.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 EUR 4 499 amazon.com
5.

Canon R5 C 142 mm 101 mm 111 mm 770 g 320 Y Jan 2022 EUR 4 999 amazon.com
6.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 EUR 2 699 amazon.com
7.

Canon R6 Mark II 138 mm 98 mm 88 mm 670 g 450 Y Nov 2022 EUR 2 899 amazon.com
8.

Fujifilm GFX 50S II 150 mm 104 mm 87 mm 900 g 440 Y Sep 2021 EUR 3 999 amazon.com
9.

Fujifilm GFX 100S II 150 mm 104 mm 87 mm 883 g 530 Y May 2024 EUR 5 499 amazon.com
10.

Nikon Z8 144 mm 119 mm 83 mm 910 g 340 Y May 2023 EUR 4 599 amazon.com
11.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 EUR 1 999ebay.com
12.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 EUR 1 099ebay.com
13.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 EUR 1 099ebay.com
14.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 EUR 999ebay.com
15.

Panasonic GH4 133 mm 93 mm 84 mm 560 g 500 Y Feb 2014 EUR 1 499ebay.com
16.

Panasonic S1R II 134 mm 102 mm 92 mm 795 g 350 Y May 2025 EUR 3 599 amazon.com
17.

Sony A1 II 136 mm 97 mm 83 mm 743 g 520 Y Nov 2024 EUR 7 499 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M1 was launched at a markedly lower price (by 67 percent) than the R5 Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R5 Mark II features a full frame sensor and the Olympus E-M1 a Four Thirds sensor. The sensor area in the E-M1 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the R5 Mark II has a native 3:2 aspect ratio, while the one in the E-M1 offers a 4:3 aspect.

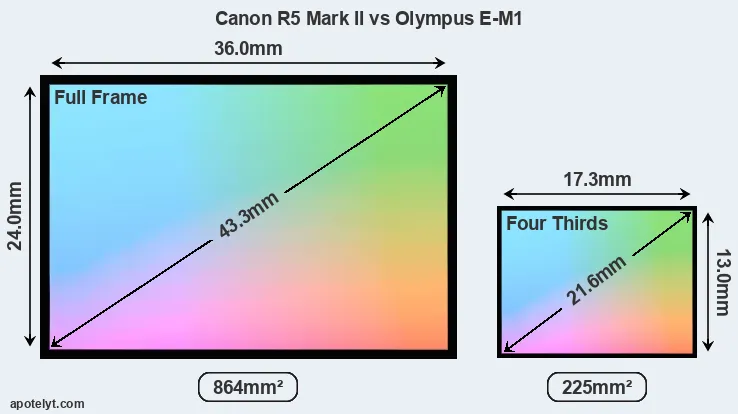

Canon R5 Mark II and Olympus E-M1 sensor measures

With 44.8MP, the R5 Mark II offers a higher resolution than the E-M1 (15.9MP), but the R5 Mark II nevertheless has larger individual pixels (pixel pitch of 4.39μm versus 3.76μm for the E-M1) due to its larger sensor. Moreover, the R5 Mark II is a much more recent model (by 10 years and 10 months) than the E-M1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Olympus E-M1 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon EOS R5 Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Olympus OM-D E-M1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

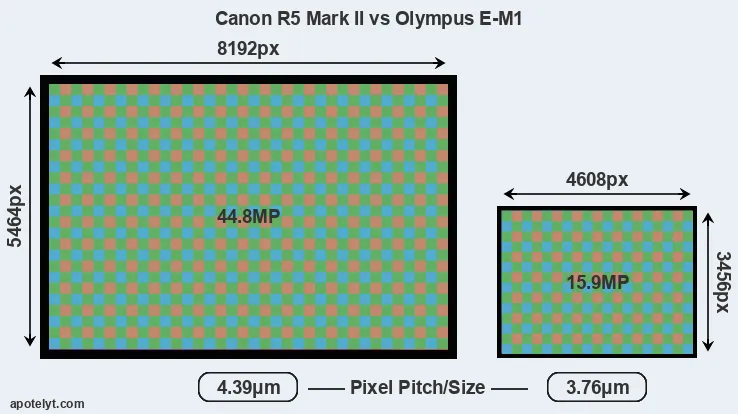

R5 Mark II versus E-M1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon R5 Mark II Full Frame 44.8 8192 54648k/60p25.414.8333297
2.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
3.

Canon R1 Full Frame 24.0 6000 40006K/60p25.414.8333297
4.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
5.

Canon R5 C Full Frame 44.8 8192 54648k/60p25.414.5308296
6.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
7.

Canon R6 Mark II Full Frame 24.0 6000 40004k/60p25.414.6315496
8.

Fujifilm GFX 50S II Medium Format 51.1 8256 61921080/30p25.914.83456100
9.

Fujifilm GFX 100S II Medium Format 101.8 11648 87364K/30p25.915.13720101
10.

Nikon Z8 Full Frame 45.4 8256 55048K/30p26.314.2254898
11.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
12.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
13.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
14.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
15.

Panasonic GH4 Four Thirds 15.9 4608 34564K/30p23.212.879174
16.

Panasonic S1R II Full Frame 44.2 8144 54248K/30p25.414.8340697
17.

Sony A1 II Full Frame 49.8 8640 57608k/30p25.414.8336397
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the R5 Mark II provides a higher video resolution than the E-M1. It can shoot video footage at 8k/60p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the R5 Mark II offers a substantially higher resolution than the one in the E-M1 (5760k vs 2360k dots). The table below summarizes some of the other core capabilities of the Canon R5 Mark II and Olympus E-M1 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon R5 Mark II5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
2.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
3.

Canon R19440 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
4.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
5.

Canon R5 C5760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n n
6.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
7.

Canon R6 Mark II3690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
8.

Fujifilm GFX 50S II3690 Y3.2 / 2360 full-flex Y 1/4000s 3.0/s n Y
9.

Fujifilm GFX 100S II5760 Y3.2 / 2360 full-flex Y 1/4000s 7.0/s n Y
10.

Nikon Z83690 Y3.2 / 2089 full-flex Y 1/32000s 30.0/s n Y
11.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
12.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
13.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
14.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
15.

Panasonic GH42359 n3.0 / 1036 swivel Y 1/8000s 12.0/s Y n
16.

Panasonic S1R II5760 n3.2 / 1840 full-flex Y 1/8000s 9.0/s n Y
17.

Sony A1 II9437 n3.2 / 2100 full-flex Y 1/8000s 30.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the R5 Mark II, but is missing on the E-M1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The R5 Mark II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-M1 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II and the Olympus E-M1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R5 Mark II writes its imaging data to CFexpress (type B) or SDXC cards, while the E-M1 uses SDXC cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M1 only has one slot. The R5 Mark II supports UHS-II cards (on both slots), while the E-M1 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 Mark II and Olympus OM-D E-M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon R5 Mark IIYmono / monoYYfull3.2Y-Y
2.

Olympus E-M1Ystereo / monoY-micro2.0Y--
3.

Canon R1Ystereo / monoYYfull3.2Y-Y
4.

Canon R5Ymono / monoYYmicro3.2Y-Y
5.

Canon R5 CYstereo / monoYYmicro3.2Y-Y
6.

Canon R6Ymono / monoYYmicro3.2Y-Y
7.

Canon R6 Mark IIYstereo / monoYYmicro3.2Y-Y
8.

Fujifilm GFX 50S IIYstereo / monoYYmicro3.2Y--
9.

Fujifilm GFX 100S IIYstereo / monoYYmicro3.2Y-Y
10.

Nikon Z8Ystereo / monoYYfull3.2Y-Y
11.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
12.

Olympus E-M5Ystereo / mono--mini2.0---
13.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
14.

Olympus E-P5Ystereo / mono--micro2.0Y--
15.

Panasonic GH4Ystereo / monoYYmicro2.0YY-
16.

Panasonic S1R IIYstereo / monoYYfull3.2Y-Y
17.

Sony A1 IIYstereo / monoYYfull3.2Y-Y

It is notable that the R5 Mark II has a headphone jack, which is not present on the E-M1 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the E-M1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-M1 was succeeded by the Olympus E-M1 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.

Review summary

So how do things add up? Is there a clear favorite between the Canon R5 Mark II and the Olympus E-M1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Canon EOS R5 Mark II:

  • More detail: Offers more megapixels (44.8 vs 15.9MP) with a 71% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better video: Provides higher definition movie capture (8k/60p vs 1080/30p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 2360k dots).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.74x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1037k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (12 vs 10 flaps/sec) to capture the decisive moment.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 10 years and 10 months of technical progress since the E-M1 launch.

ilogo

Advantages of the Olympus OM-D E-M1:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Less heavy: Has a lower weight (by 249g or 33 percent) and is thus easier to take along.
  • More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in September 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the R5 Mark II is the clear winner of the match-up (23 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

R5 Mark II 23:04 E-M1

How about other alternatives? Do the specifications of the Canon R5 Mark II and the Olympus E-M1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R5 Mark II or the E-M1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon R5 Mark II......93/100.... Jul 2024 EUR 4 799 amazon.com
2.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 EUR 1 499ebay.com
3.

Canon R1............ Jul 2024 EUR 7 499 amazon.com
4.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 EUR 4 499 amazon.com
5.

Canon R5 C..+ +........ Jan 2022 EUR 4 999 amazon.com
6.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 EUR 2 699 amazon.com
7.

Canon R6 Mark II5/5+ +4.5/591/1004.5/55/5 Nov 2022 EUR 2 899 amazon.com
8.

Fujifilm GFX 50S II5/5..5/587/100..5/5 Sep 2021 EUR 3 999 amazon.com
9.

Fujifilm GFX 100S II............ May 2024 EUR 5 499 amazon.com
10.

Nikon Z85/5..5/594/1005/54.5/5 May 2023 EUR 4 599 amazon.com
11.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 EUR 1 999ebay.com
12.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 EUR 1 099ebay.com
13.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 EUR 1 099ebay.com
14.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 EUR 999ebay.com
15.

Panasonic GH45/5+ +..85/1005/55/5 Feb 2014 EUR 1 499ebay.com
16.

Panasonic S1R II............ May 2025 EUR 3 599 amazon.com
17.

Sony A1 II............ Nov 2024 EUR 7 499 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check R5 Mark II price at
amazon.com
logo
Check E-M1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Canon R5 Mark II vs Olympus E-M1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon R5 Mark II Olympus E-M1
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon RF mount lenses Micro Four Thirds lenses
    Launch Date July 2024 September 2013
    Launch Price USD 4,299 USD 1,399
    Sensor Specs Canon R5 Mark II Olympus E-M1
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Four Thirds Sensor
    Sensor Size 36.0 x 24.0 mm 17.3 x 13.0 mm
    Sensor Area 864 mm2 224.9 mm2
    Sensor Diagonal 43.3 mm 21.6 mm
    Crop Factor 1.0x 2.0x
    Sensor Resolution 44.8 Megapixels 15.9 Megapixels
    Image Resolution 8192 x 5464 pixels 4608 x 3456 pixels
    Pixel Pitch 4.39 μm 3.76 μm
    Pixel Density 5.18 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 8k/60p Video 1080/30p Video
    ISO Setting 100 - 51,200 ISO 200 - 25,600 ISO
    ISO Boost 50 - 102,400 ISO 100 - 25,600 ISO
    Image Processor DIGIC X TruePIC VII
    DXO Sensor Quality (score) .. 73
    DXO Color Depth (bits) .. 23.0
    DXO Dynamic Range (EV) .. 12.7
    DXO Low Light (ISO) .. 757
    Screen Specs Canon R5 Mark II Olympus E-M1
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.76x 0.74x
    Viewfinder Resolution 5760k dots 2360k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.0inch
    LCD Resolution 2100k dots 1037k dots
    LCD Attachment Swivel screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon R5 Mark II Olympus E-M1
    Focus System On-Sensor Phase-detect On-Sensor Phase-detect
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 12 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterup to 1/32000sYES
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CFexB or SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support Dual UHS-II UHS-I
    Connectivity Specs Canon R5 Mark II Olympus E-M1
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 3.2 USB 2.0
    HDMI Port full HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon R5 Mark II Olympus E-M1
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Canon LP-E6P Olympus BLN-1
    Battery Life (CIPA)340 shots per charge350 shots per charge
    In-Camera Charging USB charging no USB charging
    Body Dimensions 138 x 98 x 88 mm
    (5.4 x 3.9 x 3.5 in)
    130 x 94 x 63 mm
    (5.1 x 3.7 x 2.5 in)
    Camera Weight 746 g (26.3 oz) 497 g (17.5 oz)
    logo
    Check R5 Mark II price at
    amazon.com
    logo
    Check E-M1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon R5 Mark II vs Olympus E-M1
