Canon RP vs Fujifilm X-T20

The Canon EOS RP and the Fujifilm X-T20 are two digital cameras that were officially introduced, respectively, in February 2019 and January 2017. Both the RP and the X-T20 are mirrorless interchangeable lens cameras that are based on a full frame (RP) and an APS-C (X-T20) sensor. The Canon has a resolution of 26 megapixels, whereas the Fujifilm provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon RP		Fujifilm X-T20
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Fujifilm X mount lenses
26 MP – Full Frame sensor		24 MP – APS-C sensor
4K/30p Video		4K/30p Video
ISO 100-40,000 (50 - 102,400)		ISO 200-12,800 (100 - 51,200)
Electronic viewfinder (2360k dots)		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Tilting touchscreen
5 shutter flaps per second		8 shutter flaps per second
250 shots per battery charge		350 shots per battery charge
133 x 85 x 70 mm, 485 g		118 x 83 x 41 mm, 383 g

Check RP price at
amazon.com
Check X-T20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS RP and the Fujifilm X-T20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

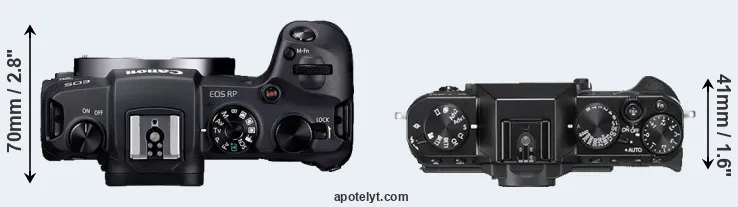

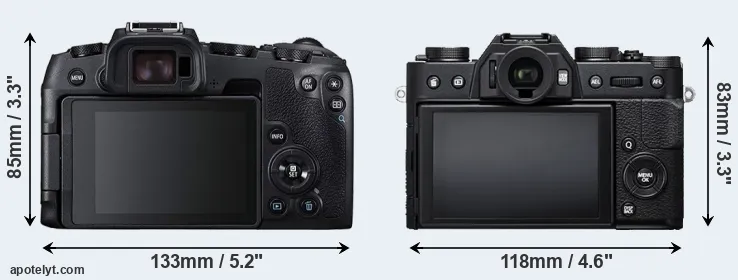

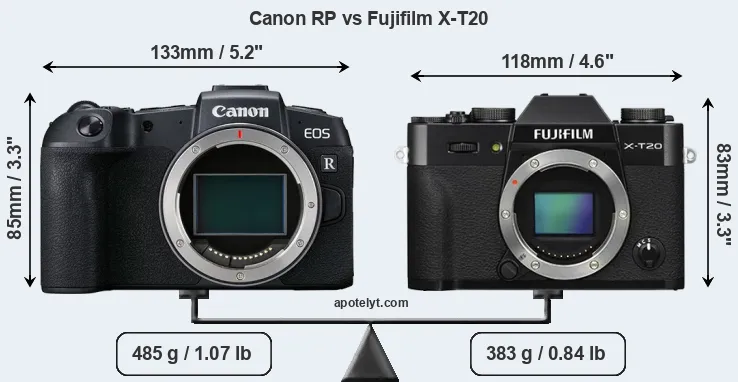

The side-by-side display below illustrates the physical size and weight of the Canon RP and the Fujifilm X-T20. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The X-T20 can be obtained in two different colors (black, silver), while the RP is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T20 is notably smaller (13 percent) than the Canon RP. Moreover, the X-T20 is markedly lighter (21 percent) than the RP. In this context, it is worth noting that neither the RP nor the X-T20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the RP gets 250 shots out of its Canon LP-E17 battery, while the X-T20 can take 350 images on a single charge of its Fujifilm NP-W126S power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
2.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
5.		Canon 250D	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
6.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
7.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
8.		Canon 850D	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	US$ 749	ebay.com
9.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
10.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	US$ 2 299	ebay.com
11.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
12.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
13.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
14.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
15.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	US$ 799	ebay.com
16.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
17.		Sony NEX-7	120 mm	67 mm	43 mm	400 g	430	n	Aug 2011	US$ 1 349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X-T20 was launched at a markedly lower price (by 31 percent) than the RP, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

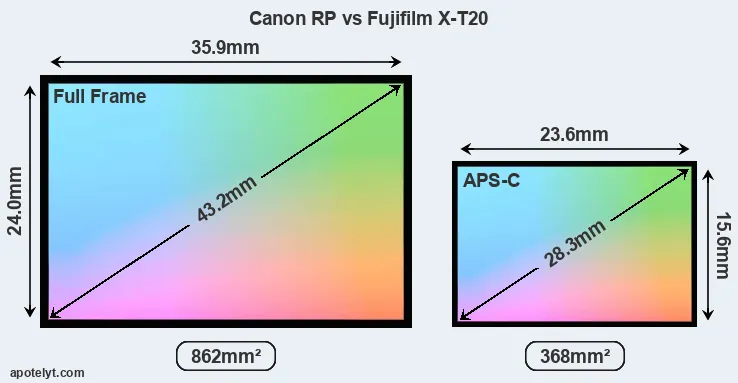

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon RP features a full frame sensor and the Fujifilm X-T20 an APS-C sensor. The sensor area in the X-T20 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

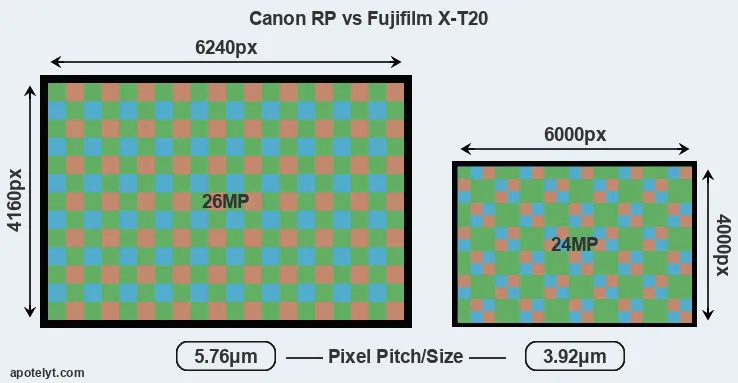

With 26MP, the RP offers a slightly higher resolution than the X-T20 (24MP), but the RP nevertheless has larger individual pixels (pixel pitch of 5.76μm versus 3.92μm for the X-T20) due to its larger sensor. Moreover, the RP is a much more recent model (by 2 years) than the X-T20, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-T20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS RP has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Fujifilm X-T20 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Like most digital cameras, the RP uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-T20 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
2.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 250D	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
6.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
7.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
8.		Canon 850D	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
9.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
10.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
11.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
12.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1664	81
13.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
14.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
15.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
16.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
17.		Sony NEX-7	APS-C	24.0	6000	4000	1080/60i	24.1	13.4	1016	81
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The RP and the X-T20 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The following table reports on some other key feature differences and similarities of the Canon RP, the Fujifilm X-T20, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
2.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 250D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 850D	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
9.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
11.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
12.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
13.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
14.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
15.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
16.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
17.		Sony NEX-7	2359	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X-T20 has one, while the RP does not. While the built-in flash of the X-T20 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T20 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon RP and the Fujifilm X-T20 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the RP and the X-T20 write their files to SDXC cards. The RP supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X-T20 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS RP and Fujifilm X-T20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
2.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 250D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
6.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon 850D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
9.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
11.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
12.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
14.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
15.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
16.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
17.		Sony NEX-7	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the RP has a headphone jack, which is not present on the X-T20 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

The RP is a recent model that features in the current product line-up of Canon. In contrast, the X-T20 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the X-T20 was succeeded by the Fujifilm X-T100. Further information on the features and operation of the RP and X-T20 can be found, respectively, in the Canon RP Manual (free pdf) or the online Fujifilm X-T20 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon RP and the Fujifilm X-T20? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon EOS RP:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.62x).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 2 years of technical progress since the X-T20 launch.

Advantages of the Fujifilm X-T20:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (118x83mm vs 133x85mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 102g or 21 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (350 versus 250) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (31 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in January 2017).

If the count of individual advantages (bullet points above) is taken as a guide, the RP emerges as the winner of the contest (12 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon RP and the Fujifilm X-T20 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the RP or the X-T20 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
2.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
5.		Canon 250D	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
6.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
7.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
8.		Canon 850D	4/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	US$ 749	ebay.com
9.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
10.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	US$ 2 299	ebay.com
11.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
12.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
13.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
14.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
15.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	US$ 799	ebay.com
16.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
17.		Sony NEX-7	5/5	+ +	..	81/100	4.5/5	5/5	Aug 2011	US$ 1 349	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
