Canon S120 vs Nikon B700

The Canon PowerShot S120 and the Nikon Coolpix B700 are two digital cameras that were revealed to the public, respectively, in August 2013 and February 2016. Both the S120 and the B700 are fixed lens compact cameras that are based on a 1/1.7-inch (S120) and a 1/2.3-inch (B700) sensor. The Canon has a resolution of 12 megapixels, whereas the Nikon provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon S120		Nikon B700
Fixed lens compact camera		Fixed lens compact camera
24-120mm f/1.8-5.7		24-1440mm f/3.3-6.5
12 MP – 1/1.7" sensor		20.2 MP – 1/2.3" sensor
1080/60p Video		4K/30p Video
ISO 80-12,800		ISO 100-3,200
No viewfinder, LCD framing		Electronic viewfinder (921k dots)
3.0" LCD – 922k dots		3.0" LCD – 921k dots
Fixed touchscreen		Swivel screen (not touch-sensitive)
12.1 shutter flaps per second		5 shutter flaps per second
230 shots per battery charge		350 shots per battery charge
100 x 59 x 29 mm, 217 g		125 x 85 x 107 mm, 565 g

Check S120 offers at
ebay.com
Check B700 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot S120 and the Nikon Coolpix B700? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

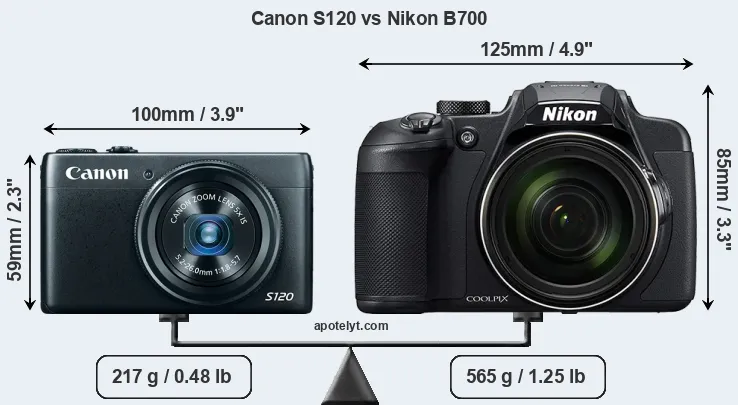

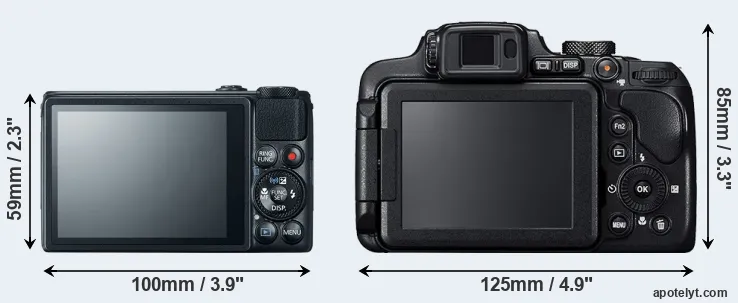

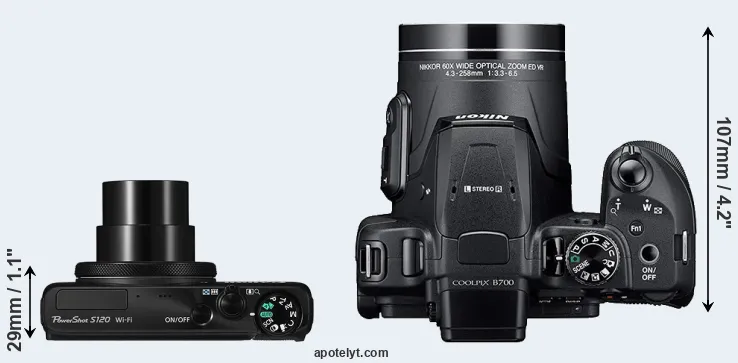

An illustration of the physical size and weight of the Canon S120 and the Nikon B700 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The B700 can be obtained in two different colors (black, red), while the S120 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon B700 is considerably larger (80 percent) than the Canon S120. Moreover, the B700 is substantially heavier (160 percent) than the S120. In this context, it is worth noting that neither the S120 nor the B700 are weather-sealed.

Concerning battery life, the S120 gets 230 shots out of its Canon NB-6LH battery, while the B700 can take 350 images on a single charge of its Nikon EN-EL23 power pack. The power pack in the B700 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
2.		Nikon B700	125 mm	85 mm	107 mm	565 g	350	n	Feb 2016	US$ 499	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
4.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
5.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
7.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
8.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
9.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
10.		Kodak AZ901	139 mm	104 mm	119 mm	777 g	400	n	Jan 2016	US$ 499	amazon.com
11.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
12.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
13.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
14.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
15.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
16.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	US$ 449	ebay.com
17.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The S120 was somewhat cheaper (by 10 percent) than the B700 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

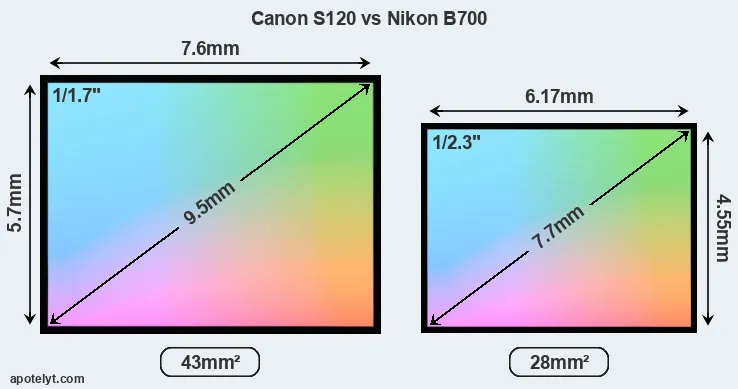

Of the two cameras under consideration, the Canon S120 features a 1/1.7-inch sensor and the Nikon B700 a 1/2.3-inch sensor. The sensor area in the B700 is 35 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the B700 offers a higher resolution of 20.2 megapixels, compared with 12 MP of the S120. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.89μm for the S120). However, it should be noted that the B700 is much more recent (by 2 years and 6 months) than the S120, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the B700 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon B700 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the B700 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon S120 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot S120 has a native sensitivity range from ISO 80 to ISO 12800. The corresponding ISO settings for the Nikon Coolpix B700 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
2.		Nikon B700	1/2.3	20.2	5184	3888	4K/30p	20.4	11.8	818	48
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
5.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
8.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
9.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
10.		Kodak AZ901	1/2.3	20.2	5184	3888	1080/30p	20.3	11.7	806	48
11.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
12.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
13.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
14.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
15.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
16.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
17.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the B700 provides a better video resolution than the S120. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the B700 has an electronic viewfinder (921k dots), which can be very helpful when shooting in bright sunlight. In contrast, the S120 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon S120 and Nikon B700 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
2.		Nikon B700	921	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
5.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
8.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
9.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
10.		Kodak AZ901	202	n	3.0 / 920	swivel	n	1/2000s	5.0/s	Y	Y
11.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
12.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
13.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
14.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
15.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
16.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
17.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The S120 has a touchscreen, while the B700 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon S120 and the Nikon B700 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the S120 and the B700 have zoom lenses built in. The S120 has a 24-120mm f/1.8-5.7 optic and the B700 offers a 24-1440mm f/3.3-6.5 (focal lengths in full frame equivalent terms). Hence, the Canon and Nikon provide the same view at the wide-angle end, but the Nikon has more tele-photo reach at the long end. The S120 offers the faster maximum aperture.

Concerning the storage of imaging data, both the S120 and the B700 write their files to SDXC cards. The S120 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the B700 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot S120 and Nikon Coolpix B700 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Nikon B700	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
9.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Kodak AZ901	-	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-
17.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the S120 and the B700 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Nikon. Further information on the features and operation of the S120 and B700 can be found, respectively, in the Canon S120 Manual (free pdf) or the online Nikon B700 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon S120 and the Nikon B700? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon PowerShot S120:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (12.1 vs 5 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/3.3).
• More compact: Is smaller (100x59mm vs 125x85mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 348g or 62 percent) and hence easier to carry around.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been available for much longer (launched in August 2013).

Reasons to prefer the Nikon Coolpix B700:

• More detail: Has more megapixels (20.2 vs 12MP), which boosts linear resolution by 30%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Longer lasting: Gets more shots (350 versus 230) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 2 years and 6 months of technical progress since the S120 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the B700 comes out slightly ahead of the S120 (13 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon S120 and the Nikon B700 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the S120 and the B700 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
2.		Nikon B700	..	+	..	..	4/5	4/5	Feb 2016	US$ 499	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
4.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
5.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
7.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
8.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
9.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
10.		Kodak AZ901	..	..	..	..	3.5/5	3/5	Jan 2016	US$ 499	amazon.com
11.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
12.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
13.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
14.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
15.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
16.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	US$ 449	ebay.com
17.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
