Canon SL1 vs SX10

The Canon EOS Rebel SL1 (called Canon 100D in some regions) and the Canon PowerShot SX10 IS are two digital cameras that were officially introduced, respectively, in March 2013 and September 2008. The SL1 is a DSLR, while the SX10 is a fixed lens compact. The cameras are based on an APS-C (SL1) and a 1/2.3-inch (SX10) sensor. The SL1 has a resolution of 17.9 megapixels, whereas the SX10 provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SL1		Canon SX10
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		28-560mm f/2.8-5.7
17.9 MP – APS-C sensor		10 MP – 1/2.3" sensor
1080/30p Video		480/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-1,600 (100 - 3,200)
Optical viewfinder		Electronic viewfinder (202k dots)
3.0" LCD – 1040k dots		2.5" LCD – 230k dots
Fixed touchscreen		Swivel screen (not touch-sensitive)
4.9 shutter flaps per second		0.7 shutter flaps per second
117 x 91 x 69 mm, 407 g		123 x 88 x 87 mm, 600 g

Check SL1 offers at
ebay.com
Check SX10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL1 and the Canon PowerShot SX10 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

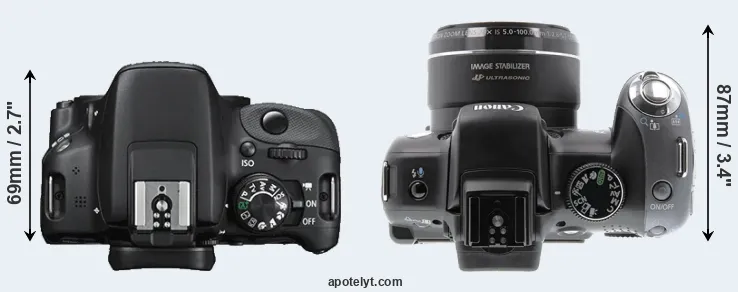

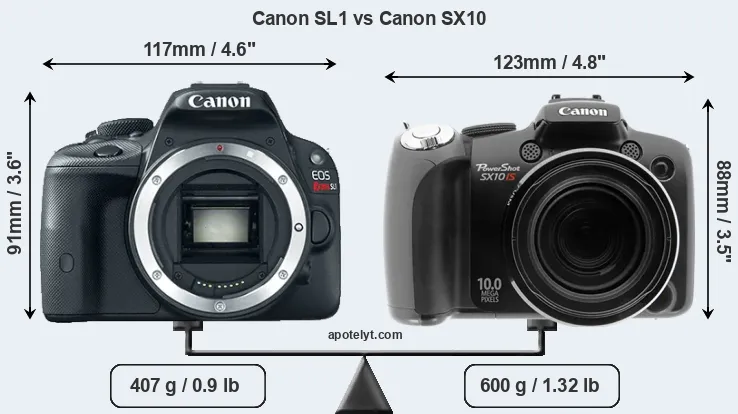

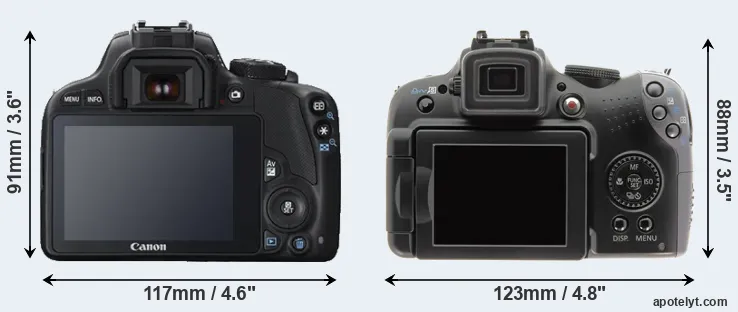

An illustration of the physical size and weight of the Canon SL1 and the Canon SX10 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The SL1 can be obtained in two different colors (black, white), while the SX10 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX10 is somewhat larger (2 percent) than the Canon SL1. In this context, it is worth noting that neither the SL1 nor the SX10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX10 has a lens built in, whereas the SL1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the SL1 and their specifications in the Canon EF Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
2.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
4.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
5.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
6.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
7.		Canon SX1	128 mm	88 mm	88 mm	615 g	..	n	Sep 2008	US$ 599	ebay.com
8.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
9.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
10.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
11.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
12.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
13.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
14.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
15.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
16.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
17.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX10 was launched at a lower price than the SL1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

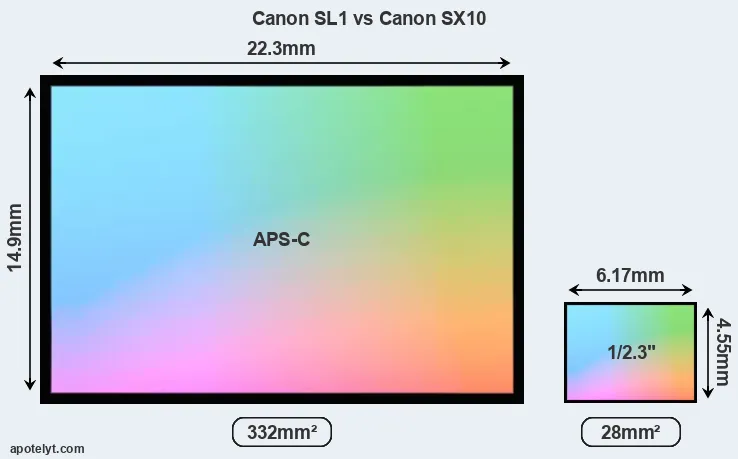

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SL1 features an APS-C sensor and the Canon SX10 a 1/2.3-inch sensor. The sensor area in the SX10 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the SL1 has a native 3:2 aspect ratio, while the one in the SX10 offers a 4:3 aspect.

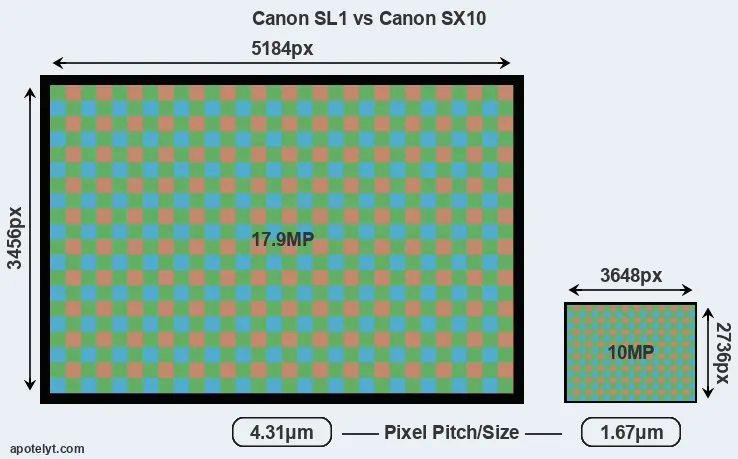

With 17.9MP, the SL1 offers a higher resolution than the SX10 (10MP), but the SL1 nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 1.67μm for the SX10) due to its larger sensor. Moreover, the SL1 is a much more recent model (by 4 years and 6 months) than the SX10, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX10 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SL1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL1 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon SX10 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The SL1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS Rebel SL1 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon PowerShot SX10 IS are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the SL1 is build around a CMOS sensor, while the SX10 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
2.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
5.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
6.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon SX1	1/2.3	10.0	3648	2736	1080/30p	19.0	10.3	144	35
8.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
9.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
10.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
11.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
12.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
13.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
14.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
15.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
16.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
17.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SL1 provides a higher video resolution than the SX10. It can shoot video footage at 1080/30p, while the SX10 is limited to 480/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the SX10 has an electronic viewfinder (202k dots), while the SL1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon SL1 and Canon SX10 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
2.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
5.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
6.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon SX1	202	n	2.8 / 230	swivel	n	1/3200s	4.0/s	Y	Y
8.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
9.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
10.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
11.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
12.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
14.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
15.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
17.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The SL1 has a touchscreen, while the SX10 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The SL1 writes its imaging data to SDXC cards, while the SX10 uses SDHC cards. The SL1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX10 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL1 and Canon PowerShot SX10 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon SX1	Y	stereo / mono	-	-	YES	2.0	-	-	-
8.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
9.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
10.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
14.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
16.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
17.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the SL1 has a microphone port, which is missing on the SX10. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the SL1 and the SX10 have been discontinued, but can regularly be found used on ebay. The SX10 was replaced by the Canon SX20, while the SL1 was followed by the Canon SL2. Further information on the features and operation of the SL1 and SX10 can be found, respectively, in the Canon SL1 Manual (free pdf) or the online Canon SX10 Manual.

Review summary

So what is the bottom line? Is the Canon SL1 better than the Canon SX10 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS Rebel SL1:

• More detail: Offers more megapixels (17.9 vs 10MP) with a 37% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (1080/30p vs 480/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (4.9 vs 0.7 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 4 years and 6 months of technical progress since the SX10 launch.

Advantages of the Canon PowerShot SX10 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Ready to shoot: Comes with an integrated lens, while the SL1 requires a separate lens.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in September 2008).

If the number of relative strengths (bullet points above) is taken as a guide, the SL1 is the clear winner of the match-up (18 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SL1 and the Canon SX10 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SL1 or the SX10 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
2.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
4.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
5.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
6.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
7.		Canon SX1	..	+ +	..	+	..	3.5/5	Sep 2008	US$ 599	ebay.com
8.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
9.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
10.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
11.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
12.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
13.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
14.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
15.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
16.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
17.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
