Canon SX1 vs Nikon D80

The Canon PowerShot SX1 IS and the Nikon D80 are two digital cameras that were announced, respectively, in September 2008 and August 2006. The SX1 is a fixed lens compact, while the D80 is a DSLR. The cameras are based on a 1/2.3-inch (SX1) and an APS-C (D80) sensor. Both cameras offer a resolution of 10 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX1		Nikon D80
Fixed lens compact camera		Digital single lens reflex
28-560mm f/2.8-5.7		Nikon F mount lenses
10 MP – 1/2.3" sensor		10 MP – APS-C sensor
1080/30p Video		no Video
ISO 100-1,600 (100 - 3,200)		ISO 100-1,600 (100 - 3,200)
Electronic viewfinder (202k dots)		Optical viewfinder
2.8" LCD – 230k dots		2.5" LCD – 230k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
4 shutter flaps per second		3 shutter flaps per second
128 x 88 x 88 mm, 615 g		132 x 103 x 77 mm, 668 g

Check SX1 offers at
ebay.com
Check D80 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX1 IS and the Nikon D80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

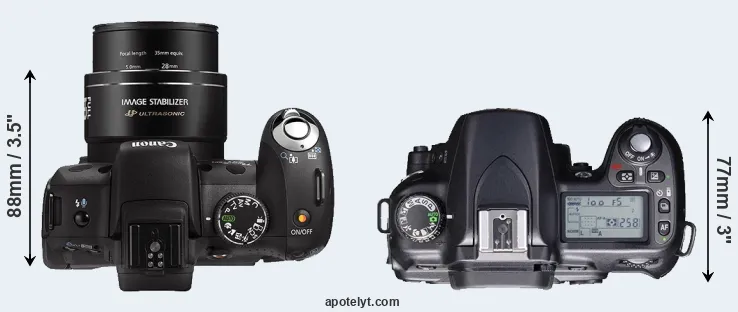

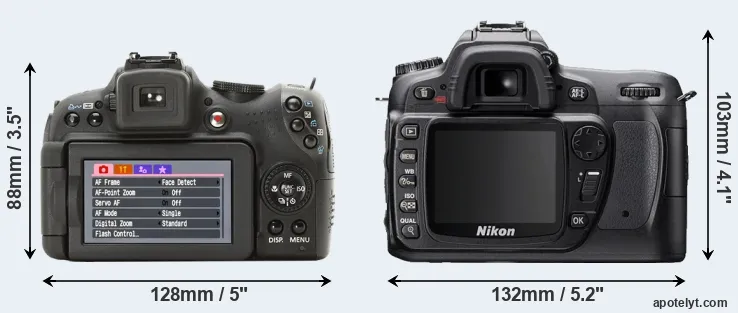

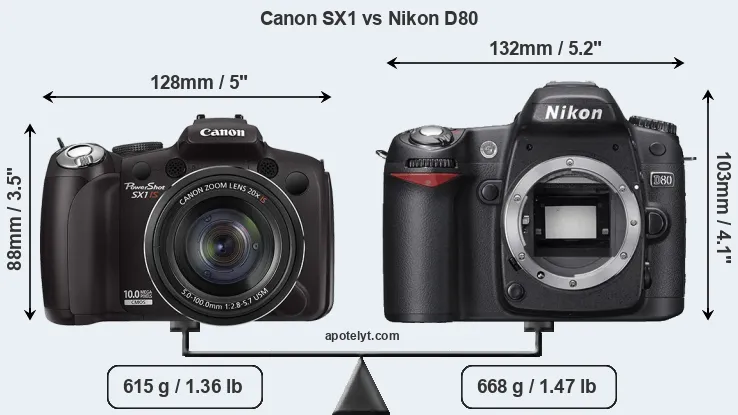

The physical size and weight of the Canon SX1 and the Nikon D80 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D80 is notably larger (21 percent) than the Canon SX1. In this context, it is worth noting that neither the SX1 nor the D80 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX1 has a lens built in, whereas the D80 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D80 and their specifications in the Nikon Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX1	128 mm	88 mm	88 mm	615 g	..	n	Sep 2008	US$ 599	ebay.com
2.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	US$ 999	ebay.com
3.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	US$ 499	ebay.com
4.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
5.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
6.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
7.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
8.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
9.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
10.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	US$ 549	amazon.com
11.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
12.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
13.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
14.		Nikon D90	132 mm	103 mm	77 mm	703 g	850	n	Aug 2008	US$ 1 299	ebay.com
15.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	US$ 749	ebay.com
16.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
17.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX1 was launched at a lower price than the D80, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

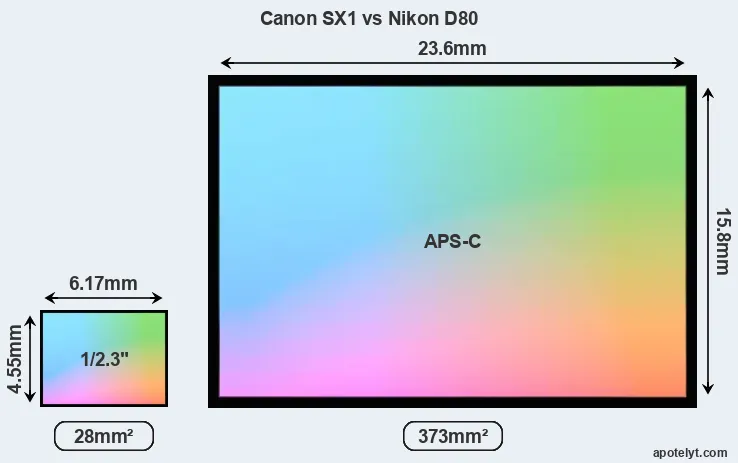

Of the two cameras under consideration, the Canon SX1 features a 1/2.3-inch sensor and the Nikon D80 an APS-C sensor. The sensor area in the D80 is 1232 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX1 has a native 4:3 aspect ratio, while the one in the D80 offers a 3:2 aspect.

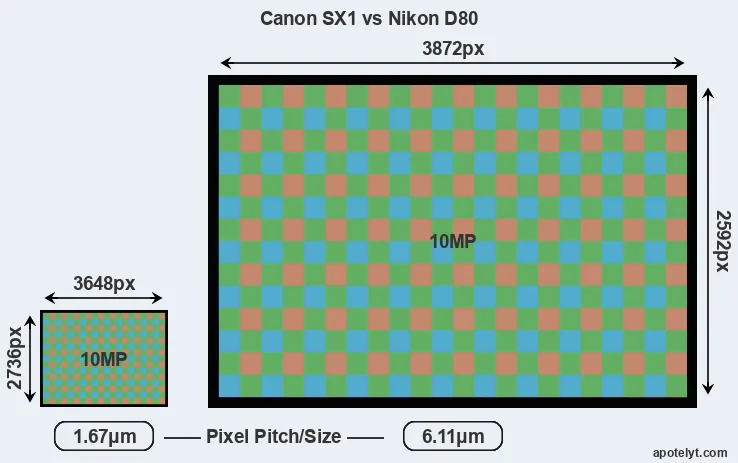

Even though the D80 has a larger sensor, both cameras offer the same resolution of 10 megapixels. This implies that the D80 has a lower pixel density and larger individual pixels (with a pixel pitch of 6.11μm versus 1.67μm for the SX1), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the SX1 is much more recent (by 2 years and 1 month) than the D80, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the SX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot SX1 IS has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The Nikon D80 offers exactly the same ISO settings.

In terms of underlying technology, the SX1 is build around a CMOS sensor, while the D80 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX1	1/2.3	10.0	3648	2736	1080/30p	19.0	10.3	144	35
2.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
3.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
4.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
5.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
6.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
7.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
8.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
9.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
10.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
11.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
12.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
13.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
14.		Nikon D90	APS-C	12.2	4288	2848	720/24p	22.7	12.5	977	73
15.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
16.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
17.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The SX1 indeed provides movie recording capabilities, while the D80 does not. The highest resolution format that the SX1 can use is 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the SX1 has an electronic viewfinder (202k dots), while the D80 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon SX1, the Nikon D80, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX1	202	n	2.8 / 230	swivel	n	1/3200s	4.0/s	Y	Y
2.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
4.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
5.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
6.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
7.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
8.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
9.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
10.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
11.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
12.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
13.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
14.		Nikon D90	optical	Y	3.0 / 920	fixed	n	1/4000s	4.5/s	Y	n
15.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
16.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
17.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the SX1 and the D80 write their files to SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX1 IS and Nikon D80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX1	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
7.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
8.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
11.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
12.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
13.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D90	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
17.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-

Both the SX1 and the D80 have been discontinued, but can regularly be found used on ebay. The D80 was replaced by the Nikon D90, while the SX1 does not have a direct successor. Further information on the features and operation of the SX1 and D80 can be found, respectively, in the Canon SX1 Manual (free pdf) or the online Nikon D80 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon SX1 or the Nikon D80 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot SX1 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (2.8" vs 2.5") for image review and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster burst: Shoots at higher frequency (4 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the D80 requires a separate lens.
• More compact: Is smaller (128x88mm vs 132x103mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D80).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years and 1 month of technical progress since the D80 launch.

Reasons to prefer the Nikon D80:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• More heavily discounted: Has been around for much longer (launched in August 2006).

If the number of relative strengths (bullet points above) is taken as a guide, the SX1 emerges as the winner of the contest (12 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX1 and the Nikon D80 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SX1 and the D80 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX1	..	+ +	..	+	..	3.5/5	Sep 2008	US$ 599	ebay.com
2.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	US$ 999	ebay.com
3.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	US$ 499	ebay.com
4.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
5.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
6.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
7.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
8.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
9.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
10.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	US$ 549	amazon.com
11.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
12.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
13.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
14.		Nikon D90	..	+ +	..	+ +	4/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
15.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	US$ 749	ebay.com
16.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
17.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
