Canon SX30 vs SX430

The Canon PowerShot SX30 IS and the Canon PowerShot SX430 IS are two digital cameras that were revealed to the public, respectively, in September 2010 and January 2017. Both the SX30 and the SX430 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The SX30 has a resolution of 14 megapixels, whereas the SX430 provides 19.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX30		Canon SX430
Fixed lens compact camera		Fixed lens compact camera
24-840mm f/2.7-5.8		24-1080mm f/3.5-6.6
14 MP – 1/2.3" sensor		19.9 MP – 1/2.3" sensor
720/30p Video		720/25p Video
ISO 100-1,600 (100 - 6,400)		ISO 100-1,600
Electronic viewfinder (202k dots)		No viewfinder, LCD framing
2.7" LCD – 230k dots		3.0" LCD – 230k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
0.6 shutter flaps per second		0.5 shutter flaps per second
370 shots per battery charge		195 shots per battery charge
123 x 92 x 108 mm, 601 g		104 x 69 x 85 mm, 323 g

Check SX30 offers at
ebay.com
Check SX430 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX30 IS and the Canon PowerShot SX430 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

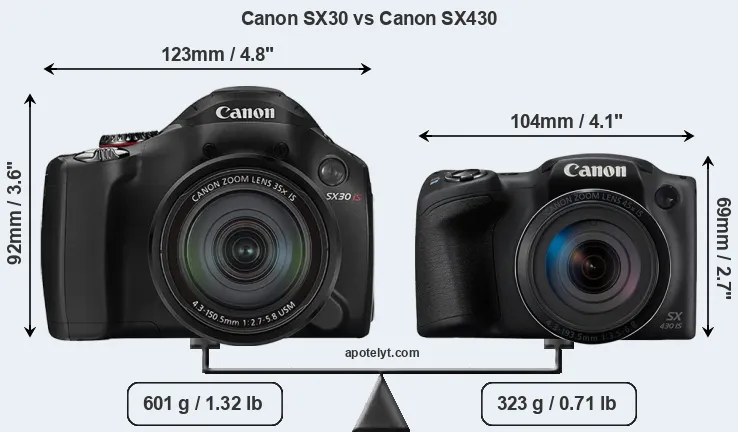

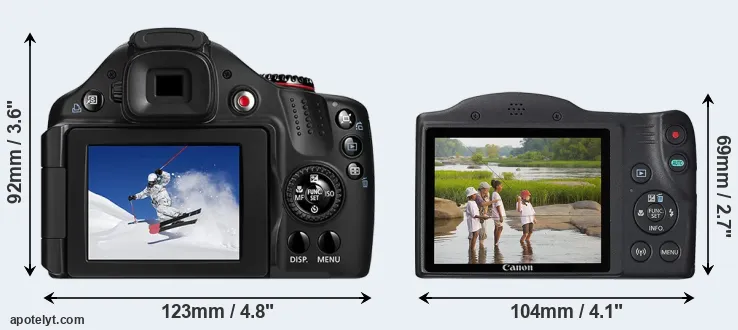

Body comparison

The physical size and weight of the Canon SX30 and the Canon SX430 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX430 is considerably smaller (37 percent) than the Canon SX30. Moreover, the SX430 is substantially lighter (46 percent) than the SX30. In this context, it is worth noting that neither the SX30 nor the SX430 are weather-sealed.

Concerning battery life, the SX30 gets 370 shots out of its Canon NB-7L battery, while the SX430 can take 195 images on a single charge of its Canon NB-11LH power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
2.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
3.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
4.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
5.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
7.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
8.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
9.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
10.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
11.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
12.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
13.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
14.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
15.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
16.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
17.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX430 was launched at a markedly lower price (by 30 percent) than the SX30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

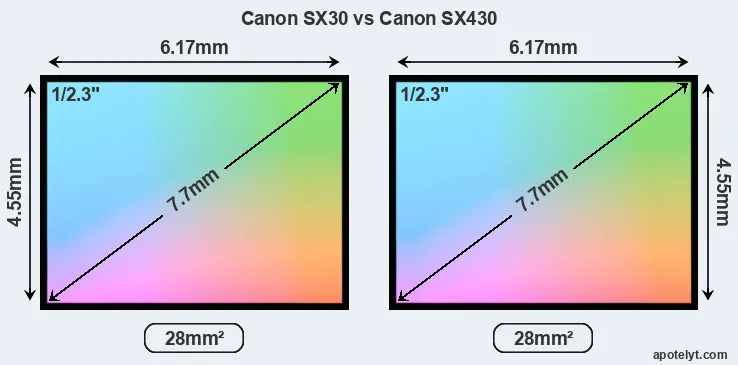

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the SX430 uses a more advanced image processing engine (DIGIC 4+) than the SX30 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

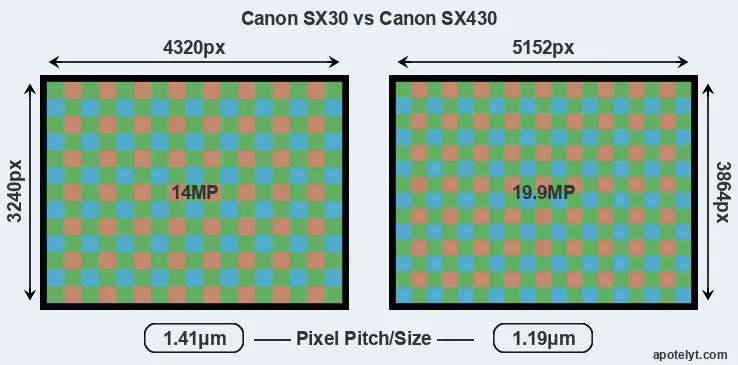

While the two cameras under review share the same sensor size, the SX430 offers a higher resolution of 19.9 megapixels, compared with 14 MP of the SX30. This megapixels advantage translates into a 19 percent gain in linear resolution. On the other hand, these sensor specs imply that the SX430 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 1.41μm for the SX30). However, it should be noted that the SX430 is much more recent (by 6 years and 3 months) than the SX30, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX430 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX430 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Canon SX30 are 21.6 x 16.2 inches or 54.9 x 41.1 cm for good quality, 17.3 x 13 inches or 43.9 x 32.9 cm for very good quality, and 14.4 x 10.8 inches or 36.6 x 27.4 cm for excellent quality prints.

The Canon PowerShot SX30 IS has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-6400. The corresponding ISO settings for the Canon PowerShot SX430 IS are ISO 100 to ISO 1600 (no boost).

Technology-wise, both cameras are equipped with CCD (Charged Coupled Device) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
2.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
3.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
4.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
5.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
8.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
9.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
10.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
11.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
12.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
13.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
14.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
15.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
16.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
17.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the SX30 provides a higher frame rate than the SX430. It can shoot video footage at 720/30p, while the SX430 is limited to 720/25p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the SX30 has an electronic viewfinder (202k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX430 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX30 and Canon SX430 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
2.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
3.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
5.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
8.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
9.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
10.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
11.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
12.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
13.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
14.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
15.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
16.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
17.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX30 and the SX430 have zoom lenses built in. The SX30 has a 24-840mm f/2.7-5.8 optic and the SX430 offers a 24-1080mm f/3.5-6.6 (focal lengths in full frame equivalent terms). Hence, the SX30 and SX430 provide the same view at the wide-angle end, but the SX430 has more tele-photo reach at the long end. The SX30 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX30 and the SX430 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX30 IS and Canon PowerShot SX430 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
3.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
9.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
10.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
13.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
14.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
15.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-

It is notable that the SX30 has a hotshoe, while the SX430 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the SX30 and the SX430 have been discontinued, but can regularly be found used on ebay. The SX30 was replaced by the Canon SX40, while the SX430 does not have a direct successor. Further information on the features and operation of the SX30 and SX430 can be found, respectively, in the Canon SX30 Manual (free pdf) or the online Canon SX430 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon SX30 and the Canon SX430? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon PowerShot SX30 IS:

• Better video: Provides higher movie framerates (720/30p versus 720/25p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster burst: Shoots at higher frequency (0.6 vs 0.5 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.7 vs f/3.5).
• Longer lasting: Can take more shots (370 versus 195) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in September 2010).

Advantages of the Canon PowerShot SX430 IS:

• More detail: Has more megapixels (19.9 vs 14MP), which boosts linear resolution by 19%.
• Better jpgs: Has a more modern image processing engine (DIGIC 4+ vs DIGIC 4).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More compact: Is smaller (104x69mm vs 123x92mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 278g or 46 percent) and is thus easier to take along.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
• More modern: Reflects 6 years and 3 months of technical progress since the SX30 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the SX430 emerges as the winner of the match-up (11 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX30 and the Canon SX430 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX30 and the SX430 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
2.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
3.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
4.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
5.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
7.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
8.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
9.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
10.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
11.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
12.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
13.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
14.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
15.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
16.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
17.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check SX30 offers at
ebay.com
Check SX430 offers at
ebay.com
