Canon SX30 vs Olympus Stylus 1

The Canon PowerShot SX30 IS and the Olympus Stylus 1 are two digital cameras that were revealed to the public, respectively, in September 2010 and October 2013. Both the SX30 and the Stylus 1 are fixed lens compact cameras that are based on a 1/2.3-inch (SX30) and a 1/1.7-inch (Stylus 1) sensor. The Canon has a resolution of 14 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX30		Olympus Stylus 1
Fixed lens compact camera		Fixed lens compact camera
24-840mm f/2.7-5.8		28-300mm f/2.8
14 MP – 1/2.3" sensor		11.8 MP – 1/1.7" sensor
720/30p Video		1080/30p Video
ISO 100-1,600 (100 - 6,400)		ISO 100-12,800
Electronic viewfinder (202k dots)		Electronic viewfinder (1440k dots)
2.7" LCD – 230k dots		3.0" LCD – 1040k dots
Swivel screen (not touch-sensitive)		Tilting touchscreen
0.6 shutter flaps per second		7 shutter flaps per second
370 shots per battery charge		410 shots per battery charge
123 x 92 x 108 mm, 601 g		116 x 87 x 57 mm, 402 g

Check SX30 offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX30 IS and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

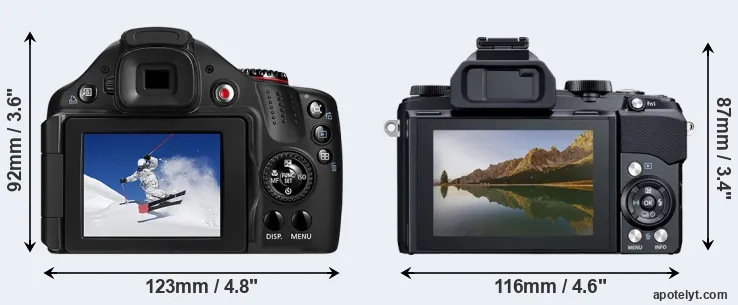

The side-by-side display below illustrates the physical size and weight of the Canon SX30 and the Olympus Stylus 1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is notably smaller (11 percent) than the Canon SX30. Moreover, the Stylus 1 is markedly lighter (33 percent) than the SX30. In this context, it is worth noting that neither the SX30 nor the Stylus 1 are weather-sealed.

Concerning battery life, the SX30 gets 370 shots out of its Canon NB-7L battery, while the Stylus 1 can take 410 images on a single charge of its Olympus BLS-5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
6.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
7.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
9.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
10.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
11.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	US$ 849	ebay.com
12.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	US$ 949	ebay.com
13.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
14.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
15.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
16.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
17.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX30 was launched at a markedly lower price (by 39 percent) than the Stylus 1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX30 features a 1/2.3-inch sensor and the Olympus Stylus 1 a 1/1.7-inch sensor. The sensor area in the Stylus 1 is 54 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 4.5. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Canon SX30 offers a higher resolution of 14 megapixels, compared with 11.8 MP of the Olympus Stylus 1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.41μm versus 1.91μm for the Stylus 1). Moreover, it should be noted that the Stylus 1 is much more recent (by 3 years and 1 month) than the SX30, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX30 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX30 for good quality output (200 dots per inch) amounts to 21.6 x 16.2 inches or 54.9 x 41.1 cm, for very good quality (250 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm, and for excellent quality (300 dpi) 14.4 x 10.8 inches or 36.6 x 27.4 cm. The corresponding values for the Olympus Stylus 1 are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The Canon PowerShot SX30 IS has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-6400. The corresponding ISO settings for the Olympus Stylus 1 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the SX30 is build around a CCD sensor, while the Stylus 1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
6.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
7.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
10.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
11.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
12.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
13.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
14.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
15.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
16.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
17.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the Stylus 1 provides a better video resolution than the SX30. It can shoot movie footage at 1080/30p, while the Canon is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the Stylus 1 offers a substantially higher resolution than the one in the SX30 (1440k vs 202k dots). The adjacent table lists some of the other core features of the Canon SX30 and Olympus Stylus 1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
6.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
7.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
10.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
12.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
13.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
14.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
15.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
16.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
17.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Stylus 1 has a touchscreen, while the SX30 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus Stylus 1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the SX30 and the Stylus 1 have zoom lenses built in. The SX30 has a 24-840mm f/2.7-5.8 optic and the Stylus 1 offers a 28-300mm f/2.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Olympus. The SX30 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX30 and the Stylus 1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX30 IS and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
6.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
7.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-

It is notable that the Stylus 1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX30 does not provide wifi capability.

Both the SX30 and the Stylus 1 have been discontinued, but can regularly be found used on ebay. The SX30 was replaced by the Canon SX40, while the Stylus 1 was followed by the Olympus Stylus 1s. Further information on the features and operation of the SX30 and Stylus 1 can be found, respectively, in the Canon SX30 Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So what conclusions can be drawn? Is the Canon SX30 better than the Olympus Stylus 1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon PowerShot SX30 IS:

• More detail: Offers more megapixels (14 vs 11.8MP) with a 9% higher linear resolution.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/2000s) to freeze action.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.7 vs f/2.8).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More affordable: Was introduced into a lower priced category (39 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2010).

Arguments in favor of the Olympus Stylus 1:

• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• More detailed viewfinder: Has higher resolution electronic viewfinder (1440k vs 202k dots).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (7 vs 0.6 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (116x87mm vs 123x92mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 199g or 33 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (410 versus 370) out of a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 3 years and 1 month of technical progress since the SX30 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the Stylus 1 is the clear winner of the contest (16 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX30 and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX30 or the Stylus 1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
6.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
7.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
9.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
10.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
11.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	US$ 849	ebay.com
12.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	US$ 949	ebay.com
13.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
14.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
15.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
16.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
17.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
