Canon SX40 vs T5i

The Canon PowerShot SX40 HS and the Canon EOS Rebel T5i (labelled Canon 700D in some countries) are two digital cameras that were officially introduced, respectively, in September 2011 and March 2013. The SX40 is a fixed lens compact, while the T5i is a DSLR. The cameras are based on a 1/2.3-inch (SX40) and an APS-C (T5i) sensor. The SX40 has a resolution of 12 megapixels, whereas the T5i provides 17.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX40		Canon T5i
Fixed lens compact camera		Digital single lens reflex
24-840mm f/2.7-5.8		Canon EF mount lenses
12 MP – 1/2.3" sensor		17.9 MP – APS-C sensor
1080/24p Video		1080/30p Video
ISO 100-3,200		ISO 100-12,800 (100 - 25,600)
Electronic viewfinder (202k dots)		Optical viewfinder
2.7" LCD – 230k dots		3.0" LCD – 1040k dots
Swivel screen (not touch-sensitive)		Swivel touchscreen
10.3 shutter flaps per second		5 shutter flaps per second
380 shots per battery charge		440 shots per battery charge
123 x 92 x 108 mm, 600 g		133 x 100 x 79 mm, 580 g

Check SX40 offers at
ebay.com
Check T5i offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX40 HS and the Canon EOS Rebel T5i? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

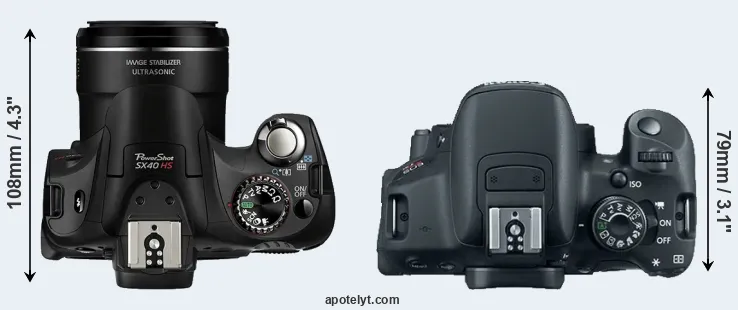

An illustration of the physical size and weight of the Canon SX40 and the Canon T5i is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T5i is notably larger (18 percent) than the Canon SX40. In this context, it is worth noting that neither the SX40 nor the T5i are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX40 has a lens built in, whereas the T5i is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the T5i and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the SX40 gets 380 shots out of its Canon NB-10L battery, while the T5i can take 440 images on a single charge of its Canon LP-E8 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
2.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
3.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
4.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
5.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	US$ 499	ebay.com
6.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
7.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
8.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
9.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
10.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
11.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
12.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
13.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
14.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
15.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
16.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
17.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX40 was launched at a lower price than the T5i, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

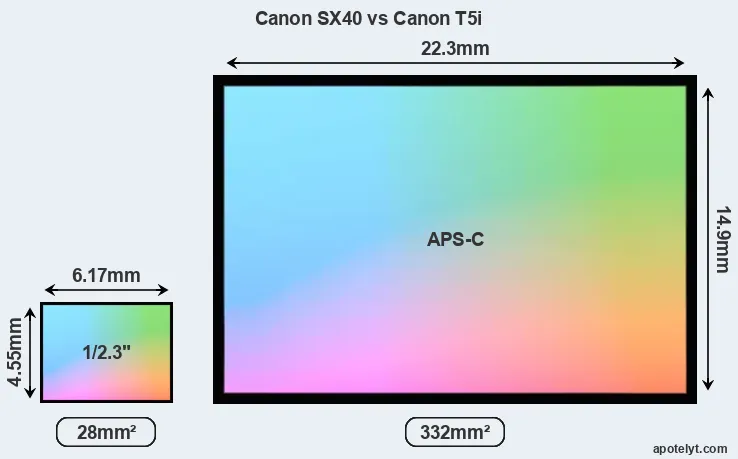

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon SX40 features a 1/2.3-inch sensor and the Canon T5i an APS-C sensor. The sensor area in the T5i is 1086 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.6. The sensor in the SX40 has a native 4:3 aspect ratio, while the one in the T5i offers a 3:2 aspect.

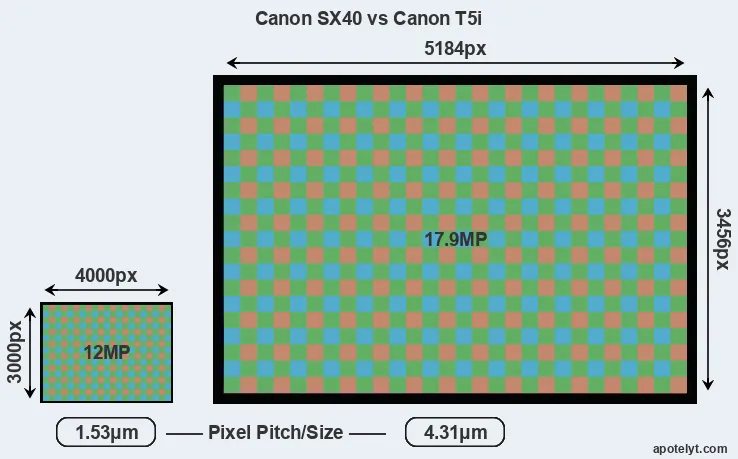

With 17.9MP, the T5i offers a higher resolution than the SX40 (12MP), but the T5i nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 1.53μm for the SX40) due to its larger sensor. Moreover, the T5i is a somewhat more recent model (by 1 year and 6 months) than the SX40, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX40 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon T5i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T5i for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon SX40 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The T5i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot SX40 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Canon EOS Rebel T5i are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the SX40 is build around a BSI-CMOS sensor, while the T5i uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
2.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
3.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
4.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
5.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
6.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
7.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
8.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
9.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
10.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
11.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
12.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
13.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
14.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
15.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
16.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
17.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the T5i provides a faster frame rate than the SX40. It can shoot movie footage at 1080/30p, while the SX40 is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the SX40 has an electronic viewfinder (202k dots), while the T5i has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon SX40 and Canon T5i along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
2.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
3.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
5.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
6.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
7.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
8.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
9.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
10.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
11.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
12.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
14.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
15.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
16.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
17.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The T5i has a touchscreen, while the SX40 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the SX40 and the T5i write their files to SDXC cards. The T5i supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX40 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX40 HS and Canon EOS Rebel T5i and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
10.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
11.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
14.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
16.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-

It is notable that the T5i has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX40 does not feature such a mic input.

Both the SX40 and the T5i have been discontinued, but can regularly be found used on ebay. The SX40 was replaced by the Canon SX50, while the T5i was followed by the Canon T6i. Further information on the features and operation of the SX40 and T5i can be found, respectively, in the Canon SX40 Manual (free pdf) or the online Canon T5i Manual.

Review summary

So what conclusions can be drawn? Is the Canon SX40 better than the Canon T5i or vice versa? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon PowerShot SX40 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (10.3 vs 5 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the T5i requires a separate lens.
• More compact: Is smaller (123x92mm vs 133x100mm) and thus needs less room in the bag.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been on the market for longer (launched in September 2011).

Advantages of the Canon EOS Rebel T5i:

• More detail: Has more megapixels (17.9 vs 12MP), which boosts linear resolution by 25%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (440 versus 380) out of a single battery charge.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Was introduced somewhat (1 year and 6 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the T5i is the clear winner of the contest (19 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX40 and the Canon T5i place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX40 or the T5i. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
2.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
3.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
4.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
5.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	US$ 499	ebay.com
6.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
7.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
8.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
9.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
10.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
11.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
12.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
13.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
14.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
15.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
16.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
17.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
